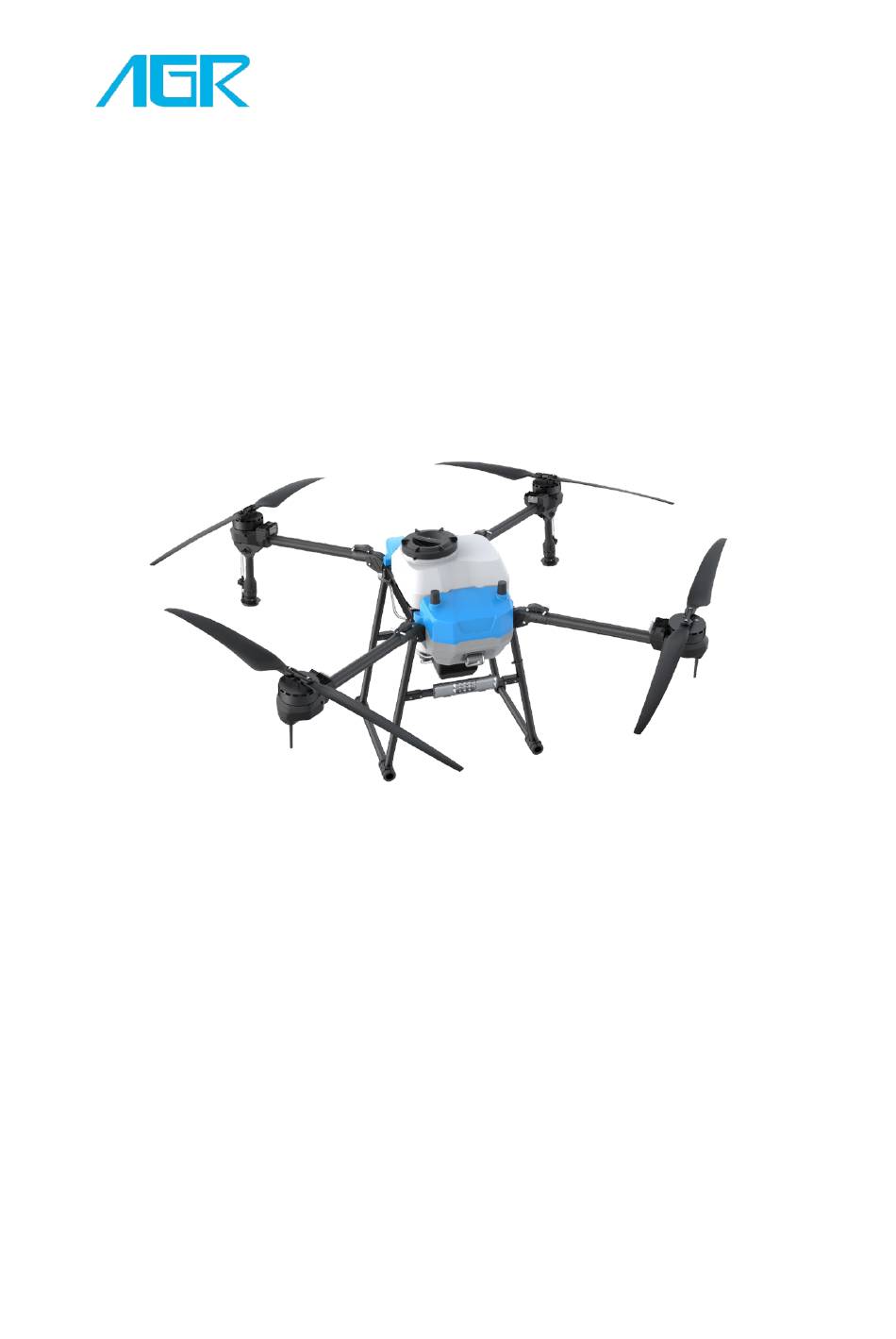

- Page 1 B100 Fast Installation Guide Model: 3WWDZ-50A V1.0 Making Agriculture Easier, Safer and More Efficient.
-
Page 3: Table Of Contents
B100 Fast Installation Guide ......................1 ⅠLearn AGR Drone ..........................3 1.List of Items ........................... 3 3.List of items ........................... 4 4.Drone structure introduction ......................5 5.Remote control structure introduction ..................6 Stick model（Default American hand） ..................6 6.Logout, Real-name Verified, Operator Certification .............. 7 ⅡUse drone............................ -
Page 4: Ⅰlearn Agr Drone
ⅠLearn AGR Drone 1.List of Items The list of items includes the B100 frame and kit, please check whether all the items listed are contained. If there is a defect, please contact your seller in time. 2.Schematic Diagram of Frame... -
Page 5: List Of Items
3.List of items Main Main Including Including Parts Parts Whole B100 Agriculture Drone B100 Drone drone Instruction Manual Hand-held RTK B100 Agriculture Drone Dotter dotter Docume Quick-use Guide Screwdriver ntation B100 Agriculture Drone handle Certificate H2.5 Socket Warranty manual driver bit H3.0... -
Page 6: Drone Structure Introduction
4.Drone structure introduction 7、spray Tank 1、ESC 8、battery 2、centrifugal nozzle 9、Centrifugal nozzle base 3、propellers 10、Pressure Relief Valve 4、motors 11、Load cell 5、Enclosure 12、FPV 6、spotlights 18、Data Link Antenna 13、Onboard D-RTK antennas 19、spray Tank outlet 13、mot protective cover 20、frame arms 14、Arm folding parts 21、Landing Gear 15、the arm fixed parts 22、Terrain Following Radar 16、flow meter... -
Page 7: Remote Control Structure Introduction
5.Remote control structure introduction 8、handle 1、Antennas 9、Right control sticks 2、Base station antenna 10、spray/spread button 3、Left control sticks 11、M+ right lateral shift 4、Radar button 12、SIM slot 5、M+ Left lateral shift 13、speaker 6、Power 14、Type-c port 7、Touchscreen Stick model（Default American hand） Take the "American hand" as an example: the left sticks control the flight altitude and direction, and the right sticks controls the forward, backward and left and right flight direction of the unmanned aircraft Powering the remote controller on and off:Press and hold the remote control power button... -
Page 8: Logout, Real-Name Verified, Operator Certification
6.Logout, Real-name Verified, Operator Certification Step 1:Register and log in to your account The registration invitation code defaults to "000000" and is registered under AGR. If the user purchases the drone through a dealer, they are required to fill in the dealer invitation code. -
Page 9: Ⅱuse Drone
ⅡUse drone 1.Unfold the drone Lift the arm, press the folding latch, and unfold the drone... - Page 10 （1） Spread blade （2） Loosen the fixing nut，Unfold the centrifugal nozzle...
-
Page 11: Turn On The Remote Control
2.Turn on the remote control Take the "American hand" as an example: the left sticks control the flight altitude and direction, and the right sticks controls the forward, backward and left and right flight direction of the unmanned aircraft Powering the remote controller on and off:Press and hold the remote control power button to turn on the device,and open the“smart fly”... -
Page 12: Insert The Intelligent Battery
4.Activate Drone (1) Connect drone（Insert Battery First） Open the AGR APP，enter the main interface，click No drone connected. - Page 13 (2)Activate the network RTK Mobile base station version is not equipped with network RTK account;If you need to use the network RTK function, you can turn on the "Ntrip mode" switch in the RTK setting interface and return to the main interface to configure account information. The RTK setting click ，Click on top right corner“...”(More Settings button),Enter the aircraft...
-
Page 14: Check Before Flight
Step 6: Calibrate the magnetic compass. Enter the operation interface of the AGR APP, click the More Settings button in the upper right corner, enter the Drone settings, enter the sensor interface, click Magnetic... -
Page 15: Step 8: Weighing Calibration
In the following cases, it is necessary to perform magnetic compass calibration to ensure that the flight direction is correct, otherwise flight safety accidents may occur: After assembling the aircraft, make sure to perform a magnetic compass calibration. When replacing the GPS module and moving more than 100 kilometers from the previous take-off point, make sure to calibrate the magnetic compass. -
Page 16: Checking Before Taking Off
Step 9: Spray calibration Add 35L clean water into the spray Tank, click to spray calibration, the system will record the maximum flow rate of the pump When the flow rate is too low, check whether the filter is blocked 6.Checking before Taking off (1) User faces the tail of drone. - Page 17 （4）Unlock and take off Execute the toe in action of the left and right joysticks, the drone will carry out the unlock alarm, the motor indicator flashes, the drone unlocks after 3 seconds, and the propeller will rotate at idle speed. Push the throttle stick up and the drone can take off. Toe in action unlocking (USA hand, JP hand) Push the throttle up to take off (E.g:USA hand ) Toe out action unlocking (Chinese hand)
-
Page 18: Start Working
Pull down on the throttle to lock(E.g:USA hand ) Toe out action to lock (USA hand, JP hand) Toe in action to lock (Chinese hand) When the drone is flying in the air, please do not toe out the stick, otherwise the drone will stop the propeller in the air and cause a crash. -
Page 19: Toggle The Spreading Mode
the route operation→ select the mapped plot to be operated→ edit the plot parameters→ click "Execute operation" → set the operation parameters→ upload the route→ self-test before the operation→ start the route autonomous operation→ the route execution is completed→ pop-up window to view the operation effect confirmation→ click "Confirm" to end the flight. -
Page 20: Ⅲcleaning,Maintenance,And Care After Operations
Install the spreading system on the unmanned drone according to the direction in the figure, and then connect the power cord of the spreader to the over-current protection module, and the threaded plug must be tightened, otherwise it will lead to poor contact of the plug or short circuit due to insufficient sealing into the water Step 4: Install the transparent bezel. -
Page 21: Ⅳsafety Parking Steps
which may corrode the centrifugal nozzles and pipelines. (2) Open the water outlet of the pesticide tank, clean the filter, ensure no blockages, and soak the filter in water for 12 hours. (3) Ensure the integrity of the aircraft structure and wash it directly with water. It is recommended to use a spray water gun to wash the aircraft, then clean the aircraft with a soft brush or damp cloth, and finally twist a dry cloth to dry the water stains (4) If there is dust on the motor or propeller surface, or if there is pesticide residue, it is recommended to... - Page 22 The user sets the remote control loss behavior in the AGR APP: return home or hover. The runaway return home function will only take effect when it is set to return home.
-
Page 23: Ⅶdisclaimer
AGR (or local current laws and regulations, It is used by persons with an unmanned aerial system operating license approved by the policy. Do not let children touch this product, please be careful when operating in scenes where children are present. -
Page 24: Ⅷ Factory Default Parameters
10. To the extent permitted by law, AGR reserves the right of final interpretation and modification of the above terms. AGR has the right to update, revise or terminate the terms of the “user guide” through AGR's official website, online APP, etc. without prior notice. - Page 25 Spraying System Technical Specifications Operation Tank Rated Capacity: 50L Item NO.：3WWDZ-50A Material of Pesticide Tank: HDPE Product Name：B100 Agriculture Drone Nozzles Flight Control System Nozzle Type: Centrifugal FC model：AG6 Quantity: 2 Included modules:Main controller, front HUB board, Length of Spray Rod: 1620mm...
- Page 26 Remote Control H12 PRO Terrain Radar Built-in Battery: 4.2 Lithium Battery Transmitting Frequency: 24.00 -24.25 GHz Battery Capacity: 20000mAh Transmitting Power: 12dBm Operating Environment Temperature: -10°C Antenna Gain: 14.8 dB to 55°C Ranging Range: 0.5-25m Storage Temperature: -25℃ to 70℃ Precision: ±0.1m Frequency Band: 2.400-2.483GHz Obstacle Avoidance Radar...
