  • Page 1 BVMM-HD Heavy-Duty VESA Monitor Mount with Baby Receiver INSTRUCTIONS...

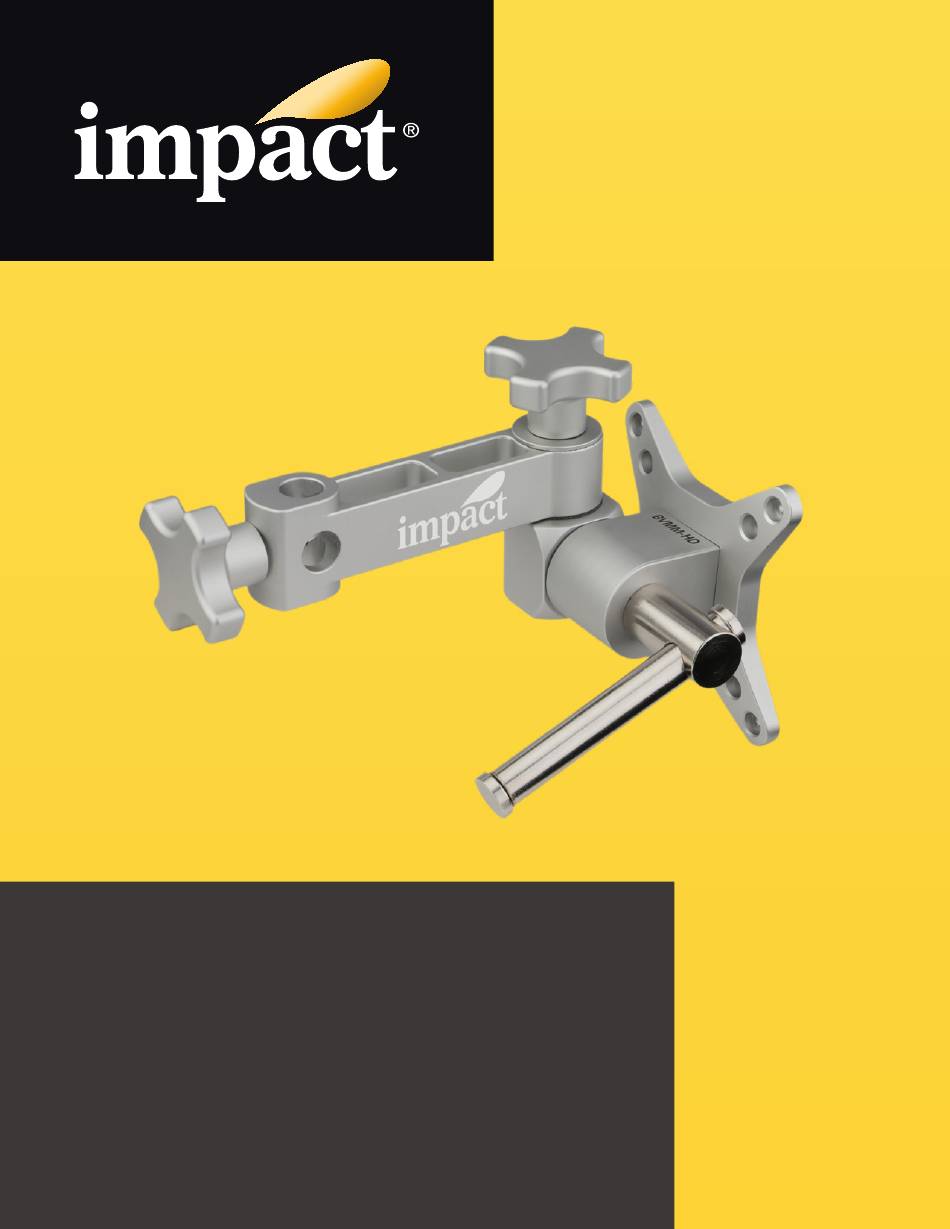

  • Page 2 Introduction Thank you for choosing Impact. The Impact BVMM-HD will securely mount a large professional studio monitor that weighs up to 75 pounds to a light stand or any grip gear with a 5/8-inch baby pin. This sturdy monitor mount features 75 and 100 mm VESA configurations, and mounting hardware is included.

  • Page 3: Specifications

    Specifications Maximum Load 75 lb. (34 kg) Mount Type 5/8 in. (16 mm) baby receiver VESA Compatibility 75 × 75 mm 100 × 100 mm Material Aluminum Steel Dimensions (L × H × D) 9 × 6 × 5.75 in. (22.9 × 15.2 × 14.6 cm) Weight 3.74lb (1.7kg) Contents Include...

  • Page 4: Attaching The Monitor

    2. Place the VESA plate on the back of the monitor. 3. Place a washer on each of the screws, and attach the BVMM-HD with a Phillips screwdriver. Important! A snug fit is essential for a secure monitor mount. If the monitor’s VESA holes are shallow and won’t allow the screws to form a tight connection,...
  • Page 5 Mounting the Monitor to a C-stand or Baby Pin Performing this operation with two people is recommended. 1. Loosen the locking knob and fit the monitor mount onto the baby pin until the pin is fully inserted into the receiver. 2.

  • Page 6: Adjusting The Monitor

    Adjusting the Monitor Use the slide handle to adjust the monitor’s tilt angle. Use the knob to adjust swivel. Note: To help store or transport the mount, unscrew the slide handle’s end cap, and remove the slide handle from the mount if necessary.

  • Page 7: One-Year Limited Warranty

    One-Year Limited Warranty This Impact product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider’s responsibility with respect to this limited warranty shall be limited solely to repair...
