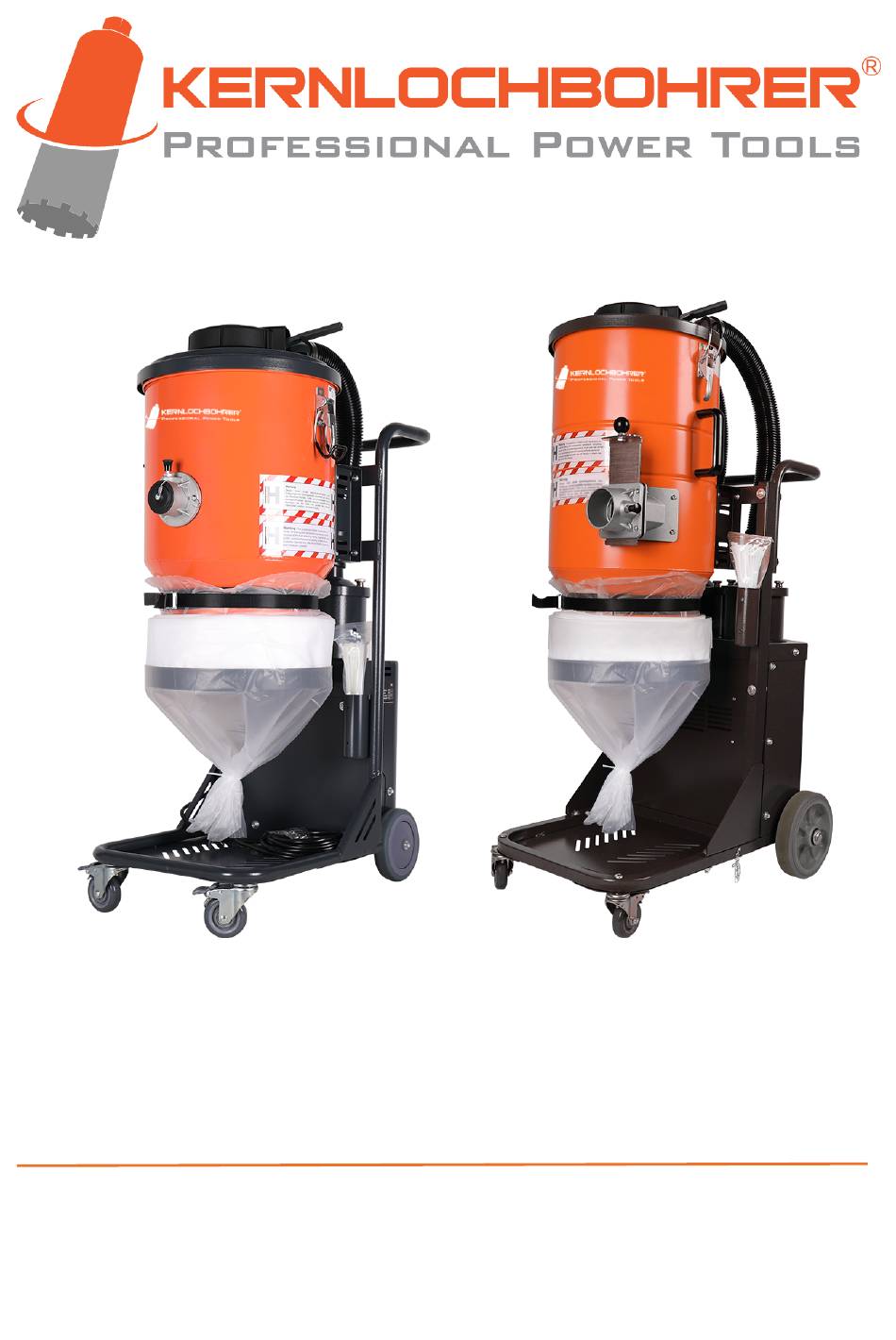

- Page 1 Operating instructions Dry vacuum cleaner TS-1000/PRO TS-2000/PRO Kernlochbohrer GmbH Geigersbühlweg 52 72663 Großbettlingen Tel. 07022-5034900 E-mail: info@kernlochbohrer.com Version 0 1. Output 05/2023...
-
Page 2: Table Of Contents
Mounting the accessories Function Automatic start function Filter cleaning Dust storage system Filter change Main filter HEPA filter Service Warranty Problem solving Technical data Packing List TS-1000/PRO Exploded view TS-1000/PRO Packing List TS-2000/PRO Exploded view TS-2000/PRO EC Declaration of Conformity... -
Page 3: Introduction
Introduction Thank you for choosing the TS-1000/PRO / TS-2000/PRO dry vacuum cleaner from Kernlochbohrer GmbH. This is a high quality product based on the latest technology. We hope that this equipment will be to your satisfaction and meet your expectations. We are constantly striving to improve our products in our product segment and will continue to supply the market with new equipment. -
Page 4: Safety Regulations
TS-1000/PRO and TS-2000/PRO dry vacuums are two-stage dust collectors, primarily with an F8 conical filter, secondarily with 1/2/3 H13 HEPA filters. Each of the HEPA filters is individually tested with efficiency > 99.995%@0.3µm. Designed for cleaning construction areas and for connection to electrical machines such as drills, grinders, etc. - Page 5 5. If the power supply cable is damaged, the device must no longer be used. 6. Please ensure that the mains connection cable is not damaged by being run over, squeezed, pulled and the like. 7. Couplings of power supply or device connection cables must be at least splash- proof.
- Page 6 15. Do not aspirate aggressive liquids/solids (acids, alkalis, solvents, etc.). 16. The device must not be used in the vicinity of flammable gases and substances. 17. Do not operate the device including accessories if: Device shows visible damage (cracks/breaks), the mains connection cable is defective or shows cracking or aging, there is suspicion of an invisible defect (after a fall).
- Page 7 25. When performing maintenance and repair work, all contaminated items that cannot be satisfactorily cleaned must be disposed of. Such items must be disposed of in impermeable bags in accordance with the applicable regulations for the disposal of such waste. 26.
-
Page 8: Environmental Protection
34. Be especially careful when cleaning stairs. 35. Do not use the dry vacuum cleaner without dust bag and/or filters. Replace the collection system and/or filters as described in the manual. 36. If you use an extension cord, make sure that the cord is suitable for this machine and that the extension has the same cross-section as the supply line of the dry vacuum cleaner. -
Page 9: Grounding
Grounding The vacuum cleaner must be grounded. Should a malfunction or failure occur, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. The vacuum cleaner is equipped with a cord, with an equipment grounding conductor and grounding plug. -
Page 10: Mounting The Accessories
If any of the above parts are missing, please contact Kernlochbohrer GmbH. For models where the front rollers are not yet mounted due to packaging restrictions, mount the front rollers with the use of bolt or nut and washer included in the package depending on the application. - Page 11 Caution! Before connecting the power supply, please make sure that the voltage matches the nameplate on the device. 1. Make sure that the electrical plug and the socket match 2. Make sure that the hose and inlet fit together. 3. Connect the accessories and the hose end Note: Switch on the machine until the motor has completely run up.
-
Page 12: Automatic Start Function
Automatic start function If you use the dry vacuum cleaner together with another machine, there is a socket on the dry vacuum cleaner. Connect the machine to be operated to this socket. Then start the machine to be operated, the vacuum cleaner will start after approx. 1-2 seconds. -
Page 13: Dust Storage System
Dust storage system The dry vacuum cleaner is equipped with a bag hose system for effective dust storage. The bag hose system is a 22m long plastic hose that can be divided into bags and is attached to the machine with a cable tie. To install a new bag hose: Open the fastening strap with the remaining piece of the bag hose. -
Page 14: Filter Change
Filter change Danger of dust spreading - Use personal protective equipment! When changing the filter, dust that is harmful to health may be dispersed. Therefore, the user should wear protective goggles, protective gloves and a respiratory mask of protection class FFP3. Caution! Remember to turn off the power and unplug the unit from the wall outlet before performing any maintenance. -
Page 15: Service
Important: HEPA filter cannot be cleaned, if you try to do so, it could be destroyed. When installing the replacement filter, make sure not to touch the inside of the filter. Any kind of force/damage on the inside of filter media will destroy the new filter. Service 1. -
Page 16: Warranty
Warranty In accordance with our general terms of delivery, a warranty period for material defects of 12 months applies in business transactions with companies (proof by invoice or delivery bill). Damage caused by natural wear and tear, overloading or improper handling shall remain excluded from this. Damage caused by material or manufacturer defects will be remedied free of charge by repair or replacement. -
Page 17: Technical Data
Technical data Data Unit TS-1000/PRO TS-2000/PRO Voltage 230V 230V Power (max) Current (UL) Air flow (max) m³/h Negative pressure (max) inch Main pipe 4m x D38 7.5m x D50 Admission Pre filter EN 779-F8 % @1µm 99.5 99.5 Pre filter area HEPA filter EN1833-H13 99.99... -
Page 18: Packing List Ts-1000/Pro
Packing list TS-1000/PRO No. Description Quantity Unit TS-1000/PRO Dust collector Piece ᴓ 38 Vacuum cleaner tube Piece ᴓ 38 EVA hose Meter ᴓ 38 Full tube cuff Piece ᴓ 38 Hose sleeve Piece ᴓ 38 Floor brush Piece... -
Page 19: Exploded View Ts-1000/Pro
Exploded view TS-1000/PRO No. Designation Quantity Size Motor set TS-1000/PRO Carriage complete TS-1000/PRO Collector Connection plate Screw M6*12 Mother Storage container for cable ties Screw M10*60... - Page 20 Washer Lock nut Front wheel 3’’...
- Page 21 Collection container TS-1000/PRO...
- Page 22 No. Designation Quantity Size Plastic cover Cover TS-1000/PRO Lever (for jet pulse filter cleaning) Mother Lever holder Screw M6*60 Damper Screw M6*12 Mother Quick release TS-1000/PRO tank Index Plunger D50 Inlet Inlet gasket complete set Sealing ring for D50 inlet...
- Page 23 D50 Antistatic hose sleeve D50 EVA antistatic hose D50*520mm TS-1000/PRO Main filter Hose clamp 40-63mm Rubber ring...
-
Page 24: Packing List Ts-2000/Pro
Motor kit TS-1000-PRO Description Quantit Size TS-1000/PRO engine cowling Rubber ring Mother M6*12 Motor set Switch Plug PG11 3*1.5 8 meters length Cable with power plug -RVV-10A power plug TS-1000/PRO engine cowling Wheel 8’’ Mother M12*100... -
Page 25: Exploded View Ts-2000/Pro
Description Quantity Size Mutter HEPA filter cover H13 HEPA-Filter HEPA filter cover Mother Damper Single-phase motor 240V 1200W Screws-1 M6-76.5 TS Motor Hard Drive... - Page 26 Screws-2 M6-96.5 Seal D98-78-15...
- Page 27 Packing list TS-2000/PRO No. Description Quantity Unit TS-2000/PRO Dust collector Piece ᴓ 50 S vacuum cleaner tube Piece ᴓ 70/50 reducer Piece ᴓ 50 EVA hose Meter ᴓ 50 Hose sleeve Piece ᴓ 50 Floor brush Piece...
- Page 28 Exploded view TS-2000/PRO...
- Page 29 No. Designation Quantity Size Motor set TS-2000/PRO TS-2000/PRO Carriage complete Mother Screw M6*60 TS-2000/PRO right pedestal Support for connection plate Connection plate TS-2000/PRO Collector TS-2000/PRO left pedestal Storage container for cable ties Mother Screw M6*12 Screw M10*60 Washer Mother Front wheel 3”...
- Page 30 Collection container TS-2000/...
-
Page 31: Ec Declaration Of Conformity
No. Designation Quantity Size Plastic cover Lid TS-2000/PRO Lever (for jet pulse filter cleaning) Mother Lever holder Screw M6*60 Damper Screw M6*12 Mother Quick release TS-2000/PRO tank D70 Inlet Bracket Inlet gasket complete set Hexagon head screw M6*60 Endless bag holder Mother M8*15 Hose clamp... - Page 33 Motor kit TS-2000-PRO Description Quantit Size TS-2000/PRO Engine Cowling Motor set Connection PG11 3*1.5 8 meters length Cable with power plug -RVV-10A plug Baffle TS-2000/PRO Front engine cowling TS-2000/PRO Rear engine cowling Vacuum meter Switch...
- Page 34 Hour counter Screw M6*12...
- Page 35 Description Quantity Size Mother HEPA filter cover H13 HEPA-Filter HEPA filter cover Mother Damper Single-phase motor 240V 1000W Screws-1 M6-76.5 TS motor fixing plate Screws-2 M6-96.5...
- Page 36 Seal D98-78-15 Cotton filter D78-8...
- Page 37 EC Declaration of Conformity The manufacturer/marketer Kernlochbohrer GmbH Geigersbühlweg 52 72663 Großbettlingen hereby declares that the following product Product name: dry vacuum cleaner Type: TS-1000/PRO TS-2000/PRO NTS-38/HEPA complies with all relevant provisions of the applied legal regulations (hereinafter) - including their amendments in force at the time of the declaration.
