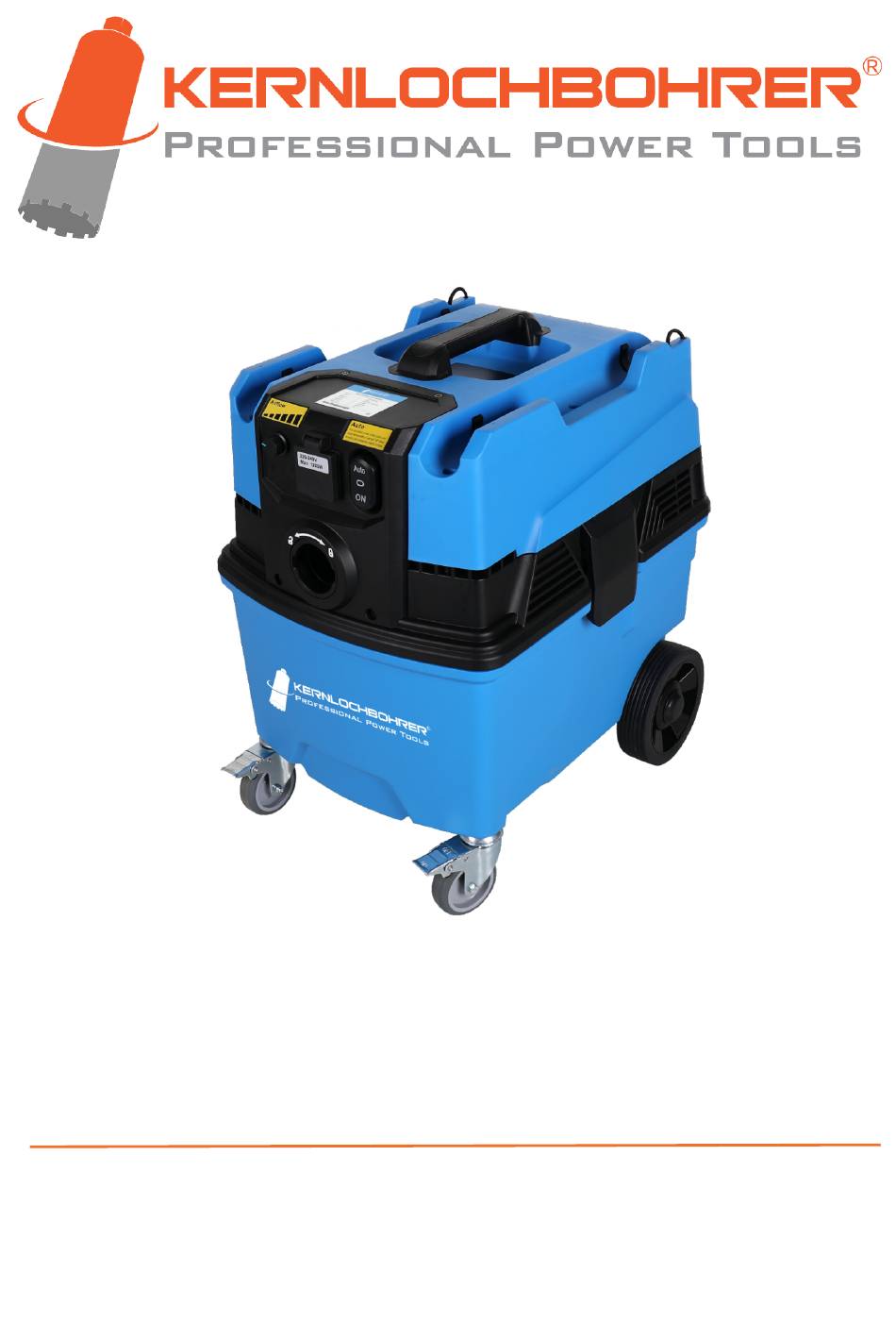

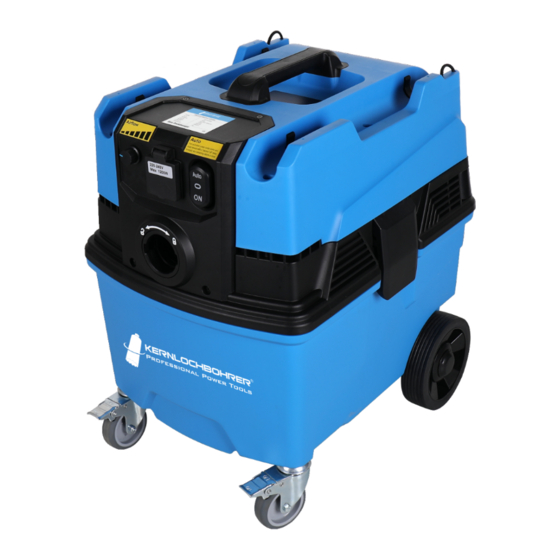

- Page 1 Operating instructions Wet-dry vacuum cleaner NTS-38/HEPA Kernlochbohrer GmbH Geigersbühlweg 52 72663 Großbettlingen Tel. 07022-5034900 E-Mail: info@kernlochbohrer.com Version 0 1. Output 05/2023...
-
Page 2: Table Of Contents
Content Introduction About this guide Note Explanation of symbols Safety regulations Environmental protection Grounding Commissioning Function Innovative car cleaning Cleaning, maintenance and storage Emptying the dust collection container Sensor for liquid level Filter change HEPA filter Service Warranty Problem solving Technical data Packing list Exploded view... -
Page 3: Introduction
Introduction Thank you for choosing the NTS-38/HEPA wet/dry vacuum cleaner from Kernlochbohrer GmbH. This is a high quality product based on the latest technology. We hope that this device is to your satisfaction and meets your expectations. We are constantly striving to improve our products in our product segment and will continue to supply the market with new equipment. -
Page 4: Note
Special attention should be paid to the section "Safety precautions". All spare parts and accessories used with this unit must be specified by Kernlochbohrer GmbH. Explanation of symbols Warning of general danger. Failure to observe these safety precautions and instructions may result in electric shock, fire and/or serious injury. - Page 5 3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- Page 6 Warning! 12. Do not suck in sparks or hot parts (e.g. metal chips, ash, etc.) with a temperature above 60°C - risk of explosion and fire! 13. Do not suck in aggressive liquids/solids (acids, alkalis, solvents, etc.). 14. The appliance must not be used near flammable gases and substances. 15.
- Page 7 21. Do not pull or carry the appliance by the cord, use the cord as a handle or pull the cord around sharp edges or corners. Do not run over the mains cable of the vacuum cleaner. Keep the cord away from hot surfaces. 22.
-
Page 8: Environmental Protection
Environmental protection Raw material recovery instead of waste disposal! To avoid transport damage, the unit must be delivered in sturdy packaging. Packaging as well as the unit and accessories are made of recyclable materials. The plastic parts of the unit are labelled according to the material. This enables environmentally friendly, sorted disposal via the collection facilities offered. -
Page 9: Function
Function The NTS-38/HEPA is suitable for the suction and separation of dry, non-flammable dust with an explosion limit value of 0.1mg/m³. The wet-dry vacuum cleaner is started by the switch. 1. Switch for controlling the engine speed 2. -
Page 10: Innovative Car Cleaning
Note: Switch off the appliance until the motor has come to a complete stop. Always unplug the appliance when working on the appliance or when the appliance is not working properly. After starting the wet-dry vacuum cleaner, the dust-laden air is sucked in at high speed via the suction hose through the inlet valve. -
Page 11: Cleaning, Maintenance And Storage
In rare cases, the filter may be clogged. In this case, we recommend deep cleaning the filter: - To do this, switch on the vacuum cleaner. - Cover the hose with your hand for approx. 60 seconds. If the suction power is still poor after this, the filters must be replaced. -
Page 12: Sensor For Liquid Level
Sensor for liquid level Remove the dust collection bag when using the NTS-38/HEPA as a wet hoover. The maximum water collection capacity is 20L. The wet-dry vacuum cleaner stops automatically when the max. water intake capacity is reached. Then turn the switch to "0". -
Page 13: Filter Change
Please clean the level sensor probes regularly. It is important that you keep the probe clean to prevent the automatic shut-off from working incorrectly or not at all. Filter change When changing the filter, dust hazardous to health may be stirred up. Therefore, the user should wear protective goggles, protective gloves and a respiratory mask of protection class FFP3. -
Page 14: Service
Service 1. When cleaning and maintaining the machine, you must switch off the machine and disconnect the machine from the mains supply 2. Avoid cleaning with a high-pressure cleaner. However, if this should happen, never spray into the suction engine or the opening of the engine cooling system. -
Page 15: Warranty
Warranty In accordance with our general terms and conditions of delivery, a warranty period of 12 months applies for material defects in business transactions with companies (proof by invoice or delivery note). Damage caused by natural wear and tear, overloading or improper handling shall remain excluded from this. Damage caused by material or manufacturer defects shall be remedied free of charge by repair or replacement. -
Page 16: Technical Data
Technical data Data Einheit NTS-38/HEPA Voltage 230V Power (max) Current (UL) Air flow (max) m³/h Negative pressure (max) inch Mbar Number of filters Piece Filter efficiency HEPA, >99.5%@0.3 µm Filter cleaning Self-cleaning function Adjustable air flow Quick start for power tools... -
Page 17: Packing List
Packing list Designation Number Specification D35 Hose sleeve 1-vacuum side 1 Piece D35 Threaded clamping head 2 Piece D35 bayonet coupling 2 Piece D35 Antistatic hose 4 metres Air flow adjustment ring 1 Piece D35 Hose cuff 2-grip side 1 Piece D35 reducer 1 Piece Joint nozzle... -
Page 18: Exploded View
Exploded view NTS-38/HEPA... - Page 19 Description Number Specification Sling bar Hose clamp Top cover Drive module 220V Air bonnet PCB of the control module Reserve valve assembly 220V Central coverage Panel Inlet cover strand Inlet cover Negative pressure indicator Switch for setting the airflow speed Main power switch 10A output socket Rocker switch...
- Page 20 No. Description Number Specification Dust collection container 3" universal wheel Hexagon socket bolt with half round head M10*40 Spring washer AC150 axle 6" rear wheel...
- Page 21 Self-cleaning system Description Number Specification Reversed air flap Sealing ring Air-recycling house 50KTYZ-230V Motor for speed reduction 8 Umdrehungen Motor driven assembly 4 Master controller LXW5-11G2 Hinge pin 5*80 Square cushion Sealing ring Air flap Air door pressure plate...
- Page 22 HEPA-Filter Description Number Specification Motor driven assembly 1 Motor driven assembly 2 Motor driven assembly 3 Hexagon head nylon screw M8*12 Tension spring Sealing ring Filter cover...
-
Page 23: Ec Declaration Of Conformity
EC Declaration of Conformity The manufacturer/marketer Kernlochbohrer GmbH Geigersbühlweg 52 72663 Großbettlingen hereby declares that the following product Product designation: Dry vacuum cleaner Type: TS-1000/PRO TS-2000/PRO NTS-38/HEPA complies with all relevant provisions of the applied legal regulations (hereinafter) - including their amendments in force at the time of the declaration.
