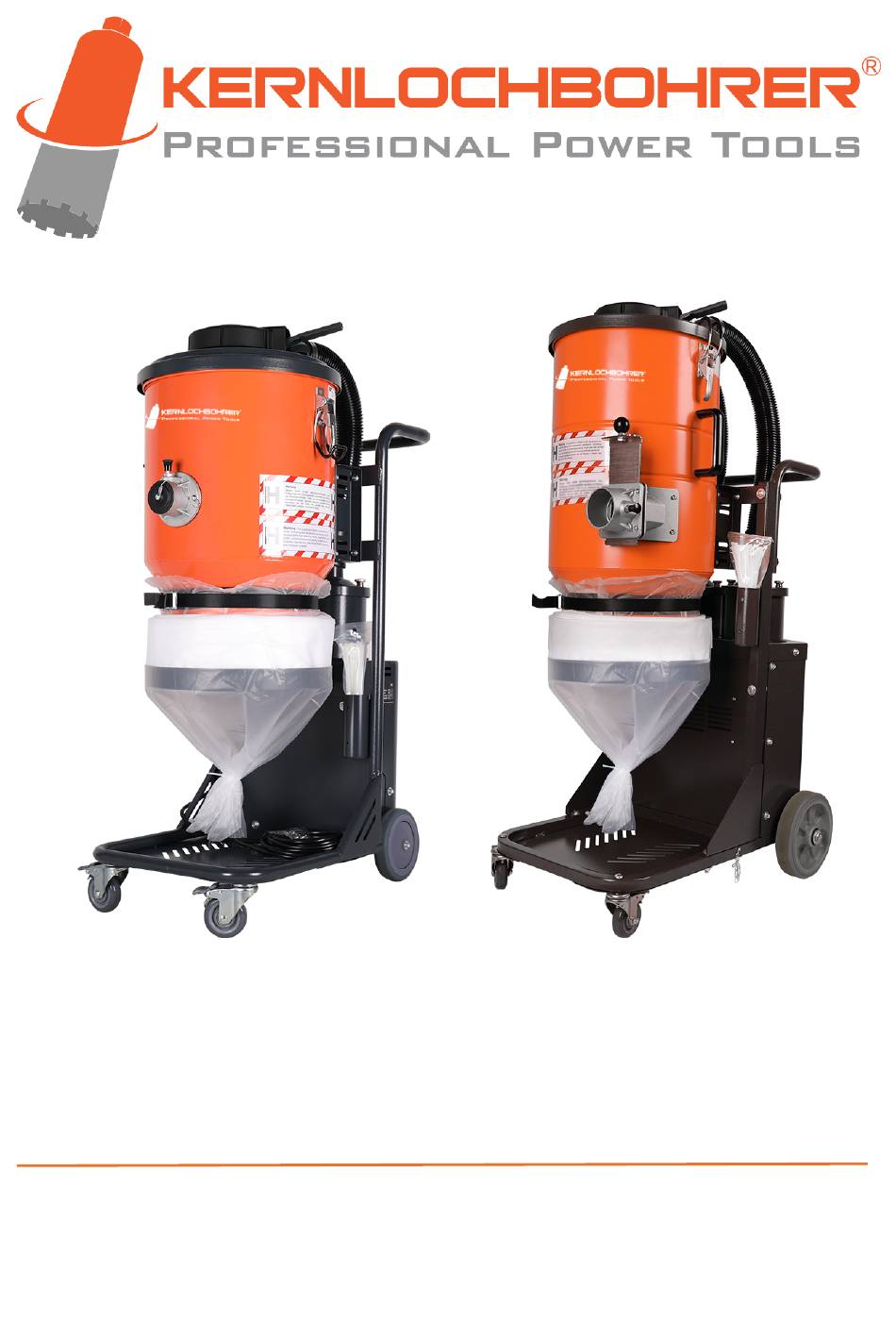

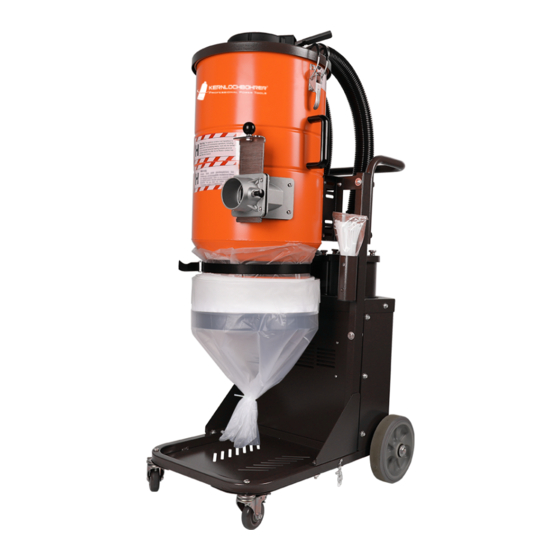

- Page 1 Operating instructions Dry vacuum cleaner TS-1000/PRO TS-2000/PRO Kernlochbohrer GmbH Geigersbühlweg 52 72663 Großbettlingen Tel. 07022-5034900 Email: info@kernlochbohrer.com Version 0 1. Output 05/2023...
-
Page 2: Table Of Contents
Mounting the accessories Function Automatic start function Filter cleaning Dust storage system Filter change Main filter HEPA filter Service Warranty Problem solving Technical data Packing List TS-1000/PRO Exploded view TS-1000/PRO Packing List TS-2000/PRO Exploded view TS-2000/PRO EC Declaration of Conformity... -
Page 3: Introduction
Introduction Thank you for choosing the TS-1000/PRO / TS-2000/PRO dry vacuum cleaner from Kernlochbohrer GmbH. This is a high quality product based on the latest technology. We hope that this device is to your satisfaction and meets your expectations. We are constantly striving to improve our products in our product segment and will continue to supply the market with new equipment. -
Page 4: Safety Regulations
Safety regulations Read all precautions and keep the operating instructions before using the ❖ appliance. Please follow the operating instructions carefully, as failure to observe these ❖ safety precautions and instructions may cause electric shock, fire and/or serious injury. 1. Check the appliance, cables and plugs before each use. Only have damage repaired by a qualified electrician in accordance with VDE. - Page 5 5. If the mains connection cable is damaged, the unit must no longer be used. 6. Please ensure that the mains connection cable is not damaged by being driven over, squeezed, tugged and the like. 7. Couplings of mains connection or device connection cables must be at least splash-proof.
- Page 6 15. Do not suck in aggressive liquids/solids (acids, alkalis, solvents, etc.). 16. The appliance must not be used near flammable gases and substances. 17. Do not operate the unit including accessories if: the unit shows visible damage (cracks/breaks), the mains connection cable is defective or shows cracks or ageing, there is suspicion of an invisible defect (after a fall).
- Page 7 25. When carrying out maintenance and repair work, all contaminated items that cannot be satisfactorily cleaned must be disposed of. Such items must be disposed of in impermeable bags in accordance with the regulations in force for the disposal of such waste. 26.
-
Page 8: Environmental Protection
34. Be especially careful when cleaning stairs. 35. Do not use the dry vacuum cleaner without dust bag and/or filters. Replace the collection system and/or filters as described in the manual. 36. If you use an extension cable, make sure that the cable is suitable for this machine and that the extension has the same cross-section as the supply line of the dry vacuum cleaner. -
Page 9: Grounding
Grounding The hoover must be earthed. Should a malfunction or failure occur, earthing provides a path of least resistance for electric current to reduce the risk of electric shock. The hoover is equipped with a cord, with an appliance grounding conductor and grounding plug. -
Page 10: Mounting The Accessories
If any of the above parts are missing, please contact Kernlochbohrer GmbH. For models where the front rollers are not yet mounted due to packaging restrictions, mount the front rollers with the use of bolt or nut and washer included in the package depending on the application. - Page 11 Caution! Before connecting the power supply, please make sure that the voltage corresponds to the type plate on the unit. 1. Make sure that the electrical plug and socket match 2. Make sure that the hose and inlet fit together. 3.
-
Page 12: Automatic Start Function
Automatic start function If you use the dry vacuum cleaner together with another machine, there is a socket on the dry vacuum cleaner. Connect the machine to be operated to this socket. Then start the machine to be operated, the hoover starts after approx. 1-2 seconds. When you switch off the machine to be operated, the hoover continues to run for approx. -
Page 13: Dust Storage System
Dust storage system The dry vacuum cleaner is equipped with a bag hose system for effective dust storage. The bag hose system is a 22m long plastic hose that can be divided into bags and is attached to the machine with a cable tie. To fit a new bag hose: Open the fastening strap with the remaining piece of the bag hose. -
Page 14: Filter Change
Filter change Danger of dust spreading - Use personal protective equipment! Harmful dust can be dispersed when changing the filter. Therefore, the user should wear protective goggles, protective gloves and a respiratory mask of protection class FFP3. Caution! Remember to switch off the unit and unplug it from the mains socket before carrying out any maintenance. -
Page 15: Service
Important: HEPA filters cannot be cleaned, if you try to do so, it could be destroyed. When installing the replacement filter, make sure not to touch the inside of the filter. Any kind of force/damage on the inside of filter media will destroy the new filter. Service 1. -
Page 16: Warranty
Warranty In accordance with our general terms and conditions of delivery, a warranty period of 12 months applies for material defects in business transactions with companies (proof by invoice or delivery note). Damage caused by natural wear and tear, overloading or improper handling shall remain excluded from this. Damage caused by material or manufacturer defects shall be remedied free of charge by repair or replacement. -
Page 17: Technical Data
Technical data Data Unit TS-1000/PRO TS-2000/PRO Voltage 230V 230V Power (max) Power (max) Air flow (max) m³/h Negative pressure (max) inch Main pipe 4m x D38 7.5m x D50 Admission Pre filter EN 779-F8 % @1µm 99.5 99.5 Pre filter area HEPA filter EN1833-H13 99.99... -
Page 18: Packing List Ts-1000/Pro
Packing list TS-1000/PRO Description Number Unit TS-1000/PRO dust collector Piece ᴓ 38 Vacuum cleaner tube Piece ᴓ 38 EVA hose Piece ᴓ 38 Full hose cuff Piece ᴓ 38 Hose cuff Piece ᴓ 38 Floor brush Piece... -
Page 19: Exploded View Ts-1000/Pro
Exploded view TS-1000/PRO... - Page 20 Collection container TS-1000/PRO...
- Page 21 No. Designation Number Size Plastic cover Cover TS-1000/PRO Lever (for jet pulse filter cleaning) Mother Lever holder Screw M6*60 Damper Screw M6*12 Mother Quick release TS-1000/PRO container Index Plunger D50 Inlet Inlet gasket complete set Sealing ring for D50 inlet...
- Page 22 D50 Antistatic hose sleeve D50 EVA antistatic hose D50*520mm TS-1000/PRO Main filter Hose clamp 40-63mm Rubber ring...
- Page 23 Motor kit TS-1000-PRO Description Numbe Size TS-1000/PRO Engine Cowling Rubber ring Mother M6*12 Motor set Switch Plug PG11 3*1.5 8 metre length Cable with mains plug -RVV-10A power plug TS-1000/PRO engine cowling Wheel 8’’ Mother M12*100...
-
Page 24: Packing List Ts-2000/Pro
Description Number Size Mother HEPA filter cover H13 HEPA filter HEPA filter cover Mother Damper Single-phase motor 240V 1200W Screws-1 M6-76.5 TS motor hard disk Screws-2 M6-96.5 Seal D98-78-15... -
Page 25: Exploded View Ts-2000/Pro
Packing list TS-2000/PRO No. Description Number Unit TS-2000/PRO dust collector Piece ᴓ 50 S hoover tube Piece ᴓ 70/50 reducer Piece ᴓ 50 EVA hose Metre ᴓ 50 Hose cuff Piece ᴓ 50 Floor brush Piece... - Page 26 Exploded view TS-2000/PRO...
- Page 27 No. Designation Number Size Motor set TS-2000/PRO TS-2000/PRO Trolley complete Mother Screw M6*60 TS-2000/PRO right pedestal Support for connection plate Connection plate TS-2000/PRO Collector TS-2000/PRO left pedestal Storage box for cable ties Mother Screw M6*12 Screw M10*60 Washer Mother Front wheel 3”...
- Page 28 Collection container TS-2000/PRO...
- Page 29 No. Designation Number Size Plastic cover Lid TS-2000/PRO Lever (for jet pulse filter cleaning) Mother Lever holder Screw M6*60 Damper Screw M6*12 Mother Quick release TS-2000/PRO Container D70 inlet Bracket Inlet gasket complete set Hexagon head screw M6*60 Endless bag holder Mother M8*15 Hose clamp...
- Page 30 Motor kit TS-2000-PRO No. Description Number Size TS-2000/PRO Engine Cowling Motor set Connection PG11 3*1.5 8 meter length Cable with mains plug -RVV-10A plug Baffle TS-2000/PRO Front engine cowling TS-2000/PRO Rear engine cowling Vacuum gauge Switch Hour counter Screw M6*12...
- Page 31 Description Number Size Mother HEPA filter cover H13 HEPA filter HEPA filter cover Mother Damper Single-phase motor 240V 1000W Screws-1 M6-76.5 TS motor fixing plate Screws-2 M6-96.5 Seal D98-78-15 Cotton filter D78-8...
-
Page 32: Ec Declaration Of Conformity
EC Declaration of Conformity The manufacturer/marketer Kernlochbohrer GmbH Geigersbühlweg 52 72663 Großbettlingen hereby declares that the following product Product designation: Dry vacuum cleaner Type: TS-1000/PRO TS-2000/PRO NTS-38/HEPA complies with all relevant provisions of the applied legal regulations (hereinafter) - including their amendments in force at the time of the declaration.
