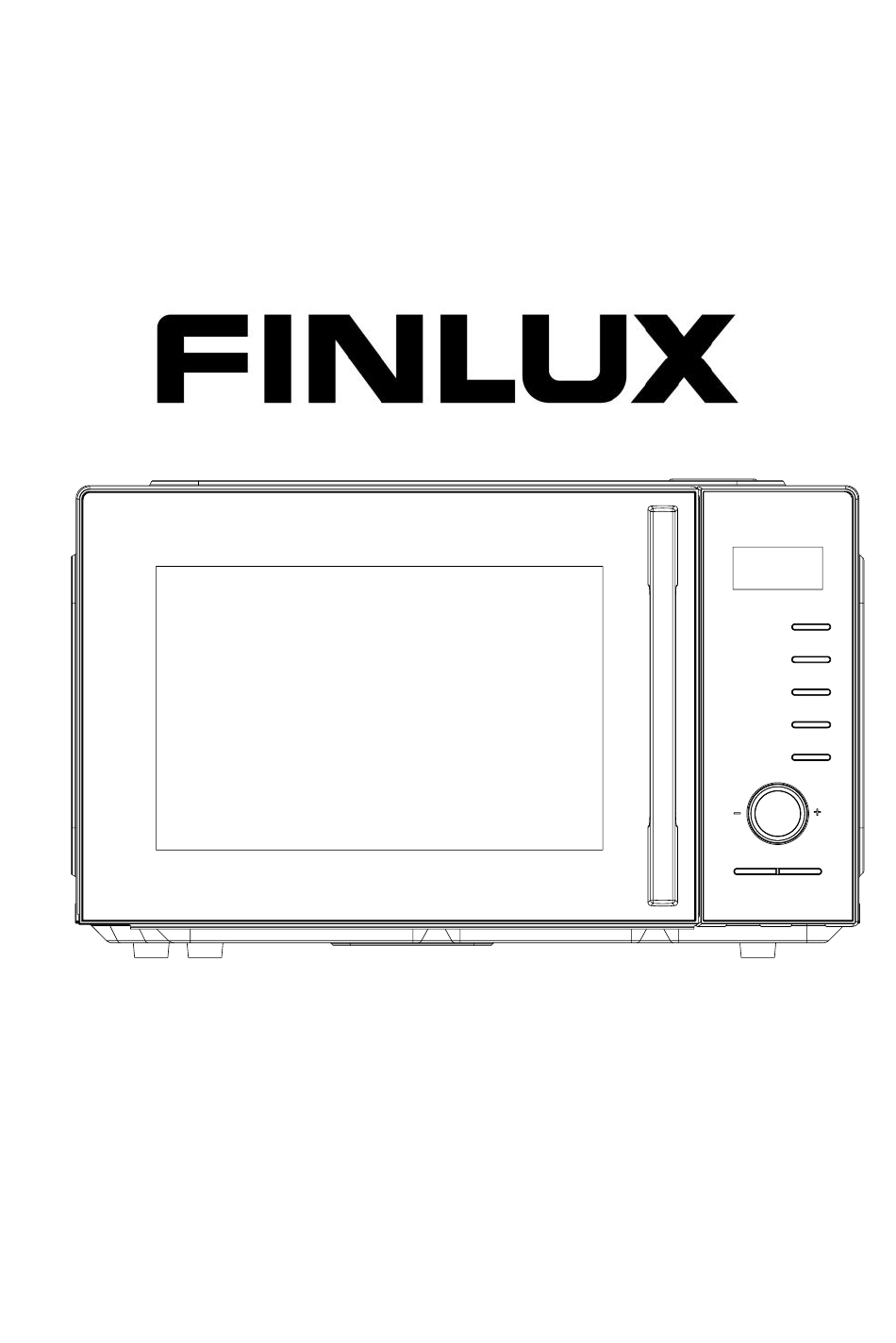

- Page 1 MICROWAVE OVEN INSTRUCTION MANUAL MODEL: FMO-2511D IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Household use only SAVE THESE INSTRUCTIONS...
-
Page 2: Important Safeguards
.IMPORTANT SAFEGUARDS …… …………… ……… WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a trained person. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation, which involves the removal of any cover, which gives protection against exposure to microwave energy. - Page 3 mm above the floor. Minimum height of free space necessary above the top surface of the oven: 100mm. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. CAUTION: HOT SURFACE 13.
-
Page 4: Microwave Oven Care
INSTALLATION… …………………………………………………..……… . … 1. Take out all the packing. If there is a safe film over the oven, tear it off before use. Check carefully for damage. If any, immediately notify dealer or send to the manufacturer’s service center. 2. -
Page 5: Tips For Cleaning
The oven should be cleaned regularly and any food deposits removed. a. Remove the power cord from the wall outlet before cleaning. After cooling products. Don't immerse the appliance in water or other fluids when cleaning. b. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. - Page 6 Details for cleaning door seals, cavity and adjacent parts: Exterior: Wipe the enclosure with a dampened soft cloth Door: Using a dampened soft cloth, wipe clean the door and window Wipe the door seals and adjacent parts to remove any spill or spatter Wipe the control panel with a slightly dampened soft cloth Interior walls:...
-
Page 7: Product Instruction
…… …………………....PRODUCT INSTRUCTION 1) Door lock Microwave oven door must be properly closed in order for it to operate 2) Viewing window Allow user to see the cooking status 3) Rotating ring The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating 4) Rotating axis The glass turntable sits on the axis;... - Page 8 geared in properly 6) Control panel See below in details (the control panel is subject to change without prior notice) 7) Waveguide cover It is inside the microwave oven, next to the wall of control panel. Never remove the waveguide cover...
-
Page 9: Operation Of Control Panel
…。 。 。 。 。 。 。 … ..OPERATION OF CONTROL PANEL... -
Page 10: Before Cooking
1. BEFORE COOKING The display lit up when plugged in power supply, then enter the standby state and display shows 1:00. 2. MICROWAVE FUNCTION There are five microwave power levels, 100P, 80P, 50P, 30P and 10P, respectively. Press the “Micro.” button continuously and select the desired microwave power. - Page 11 unintended operation of next time use. 3. DEFROST/CLOCK 3.1 DEFROST There are two defrost mode, dEF1 and dEF2, respectively. dEF1 for defrost by weight and dEF2 for defrost by time. Press this button to select defrost by weight or by time, and the display screen will display "dEF1"...
-
Page 12: Auto Cooking
e. Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again. 3.2 CLOCK (24-hour clock) In standby mode, press and hold down the “DEFROST/CLOCK” button for more than 3 seconds to enter the clock setting interface. At the same time, the display screen blinks in hours. - Page 13 Popcorn The optional weight is100g. Vegetable The optional weights are 200g, 400g and 600g. The optional weights are 1 cup, 2 cups or 3 cups, Beverage each one about 250ml. Meat The optional weights are 200g, 400g and 600g. Fish The optional weights are 200g, 400g and 600g.
-
Page 14: Child Lock Function
the display screen. Turn the knob to adjust the countdown time and the maximum time that can be set is 60 minutes. Press the "START/+30s" button to begins the countdown. An buzzing sound to notify completion of the countdown. 7. STOP In the process of cooking settings, can press “STOP”... - Page 15 Use this feature to lock the control panel when you are cleaning or so that children cannot use the oven unsupervised. All the buttons are rendered inoperable in this mode. 1) Set lock: In standby mode, press and hold down the "STOP" button for more than 3 seconds, the child lock function is locked, and all buttons of the microwave oven cannot be operated.
- Page 16 It should not be used when cooking meat or Plastic film chops over-temperature may do damage to the film ..… COOKING TIPS…… The following factors may affect the cooking result: Food arrangement Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly.
-
Page 17: Maintenance & Servicing
When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring. Microwave safe plastic wrap When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt Microwave safe plastic cookware Some microwave safe plastic cookware might not be suitable for... - Page 18 disconnection; short the negative terminal of H. V capacitor to the oven chassis (use a screwdriver) to discharge before touching. 2. During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth. ●...
