Summary of Contents for Julian Bowen Downton Velvet DOW003

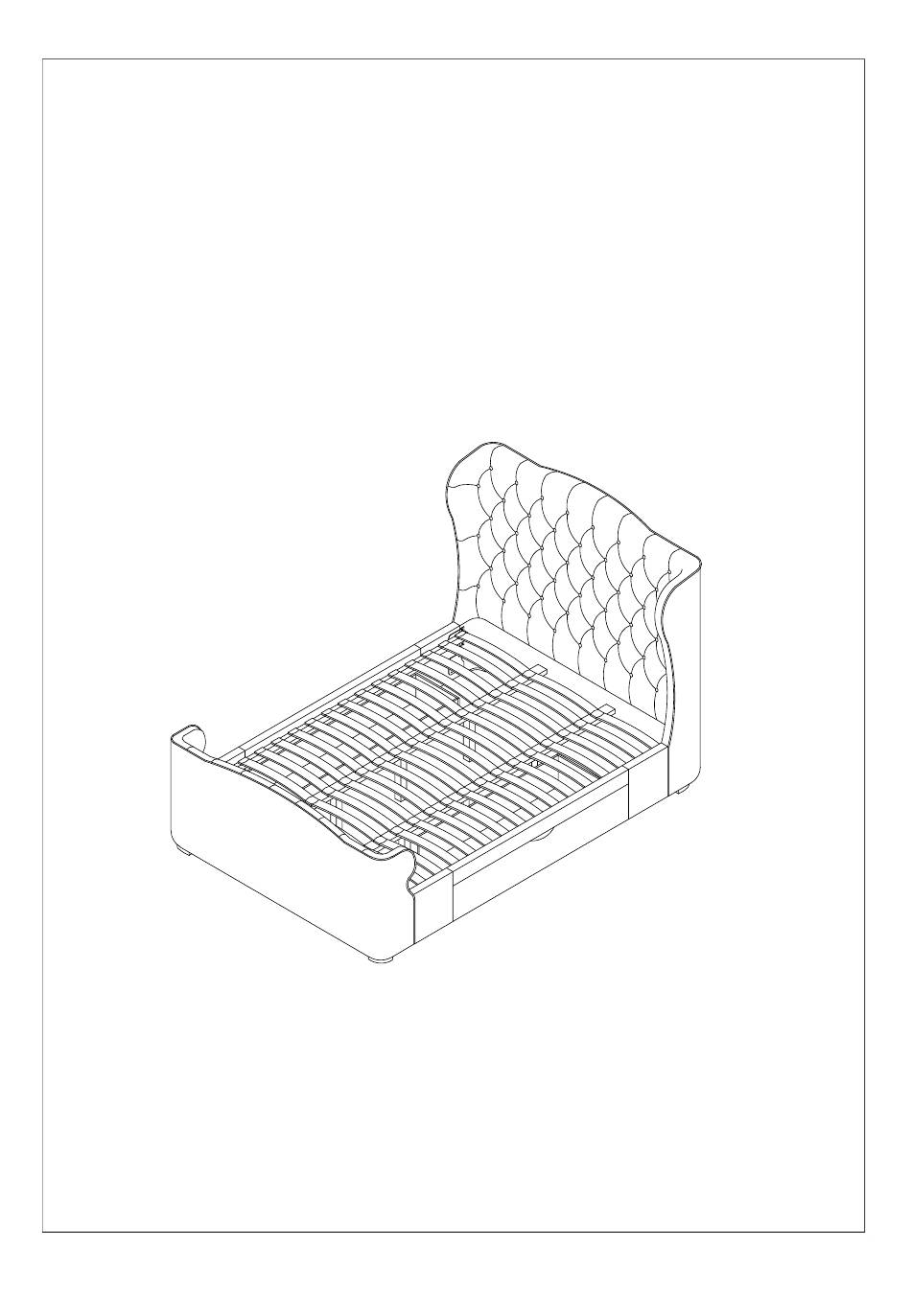

- Page 1 All manuals and user guides at all-guides.com FABRIC 2 DRAWER BED 180CM Assembly Instructions VERSION: 181217 DOW003...
- Page 2 All manuals and user guides at all-guides.com 03334 440180...
- Page 3 All manuals and user guides at all-guides.com Hardware Already inserted into Head & Foot Ends Non-Slip Pads Screw M5 x 70mm Allen Key (M5) Bolt M8 x 30mm Screw M4 x 20mm - 4 X - 6 X - 1 X +Spring Washer - 4 X +Flat Washer...
- Page 4 All manuals and user guides at all-guides.com...
- Page 5 All manuals and user guides at all-guides.com STEP 1 Ensure feet are in correct site ans securely attached using Part 13 A & B STEP 2 Please note that the Bolt (1) x 16 are prefixed into parts A & B STEP 3...
- Page 6 All manuals and user guides at all-guides.com STEP 4 A & B A & B STEP 5 ARROWS ON LABELS POINT TO EACH OTHER STEP 6 STEP 7 PUSH PUSH PUSH PUSH...
- Page 7 All manuals and user guides at all-guides.com STEP 8 Drawer Assembly . Important: Make sure when you fit the nuts that the hole is in the correct alignment. STEP 9 Part M x 3 STEP 10 Positions For Castors. FOLLOW LINE ON BACK OF DRAWER FACE PANEL STEP 11...
- Page 8 All manuals and user guides at all-guides.com 5mm from the floor with the added weight of the mattress and bedding. If the bed is to be moved, carefully lift the product rather than dragging to ensure that the centre legs do not become twisted and buckle.
