Summary of Contents for Julian Bowen DOW002

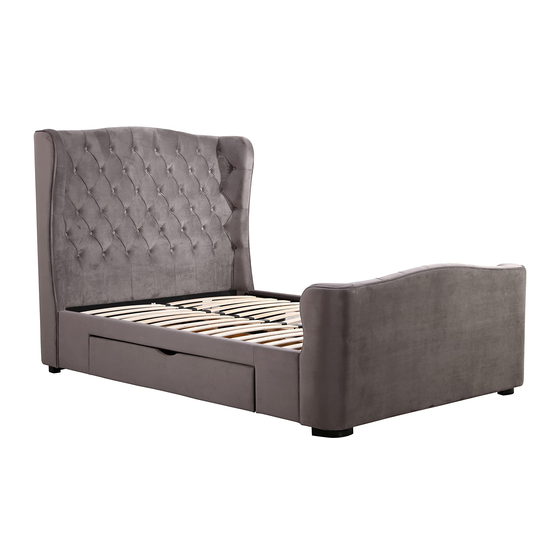

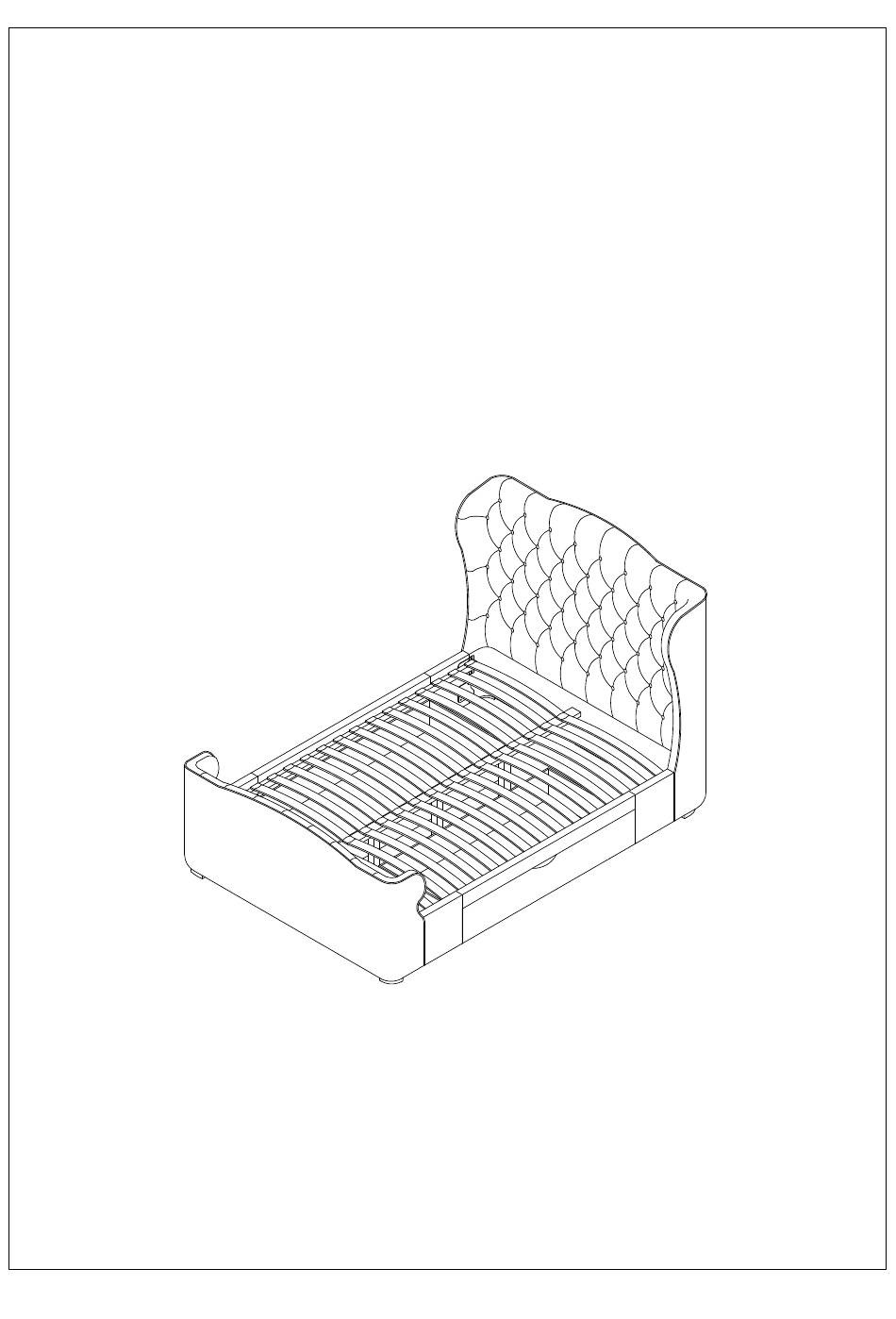

- Page 1 FABRIC 2 DRAWER BED 150CM Assembly Instructions VERSION: 180829 DOW002...
- Page 2 03334 440180...
- Page 3 Hardware Already inserted into Head & Foot Ends Screw M5 x 70mm Non-Slip Pads Allen Key (M5) Bolt M8 x 30mm Screw M4 x 20mm - 4 X - 3 X - 1 X +Spring Washer - 2 X +Flat Washer - 16 X Bolt M8 x 45mm Screw M5 x 50mm...
- Page 5 STEP 1 Ensure feet are in correct site ans securely attached using Part 13 A & B STEP 2 Please note that the Bolt (1) x 16 are prefixed into parts A & B STEP 3...
- Page 6 STEP 4 A & B A & B STEP 5 ARROWS ON LABELS POINT TO EACH OTHER STEP 6 STEP 7 PUSH PUSH PUSH...
- Page 7 STEP 8 Drawer Assembly . Important: Make sure when you fit the nuts that the hole is in the correct alignment. STEP 9 Part M x 3 STEP 10 Positions For Castors. FOLLOW LINE ON BACK OF DRAWER FACE PANEL STEP 11...
- Page 8 5mm from the floor with the added weight of the mattress and bedding. If the bed is to be moved, carefully lift the product rather than dragging to ensure that the centre legs do not become twisted and buckle. 03334 440180...
