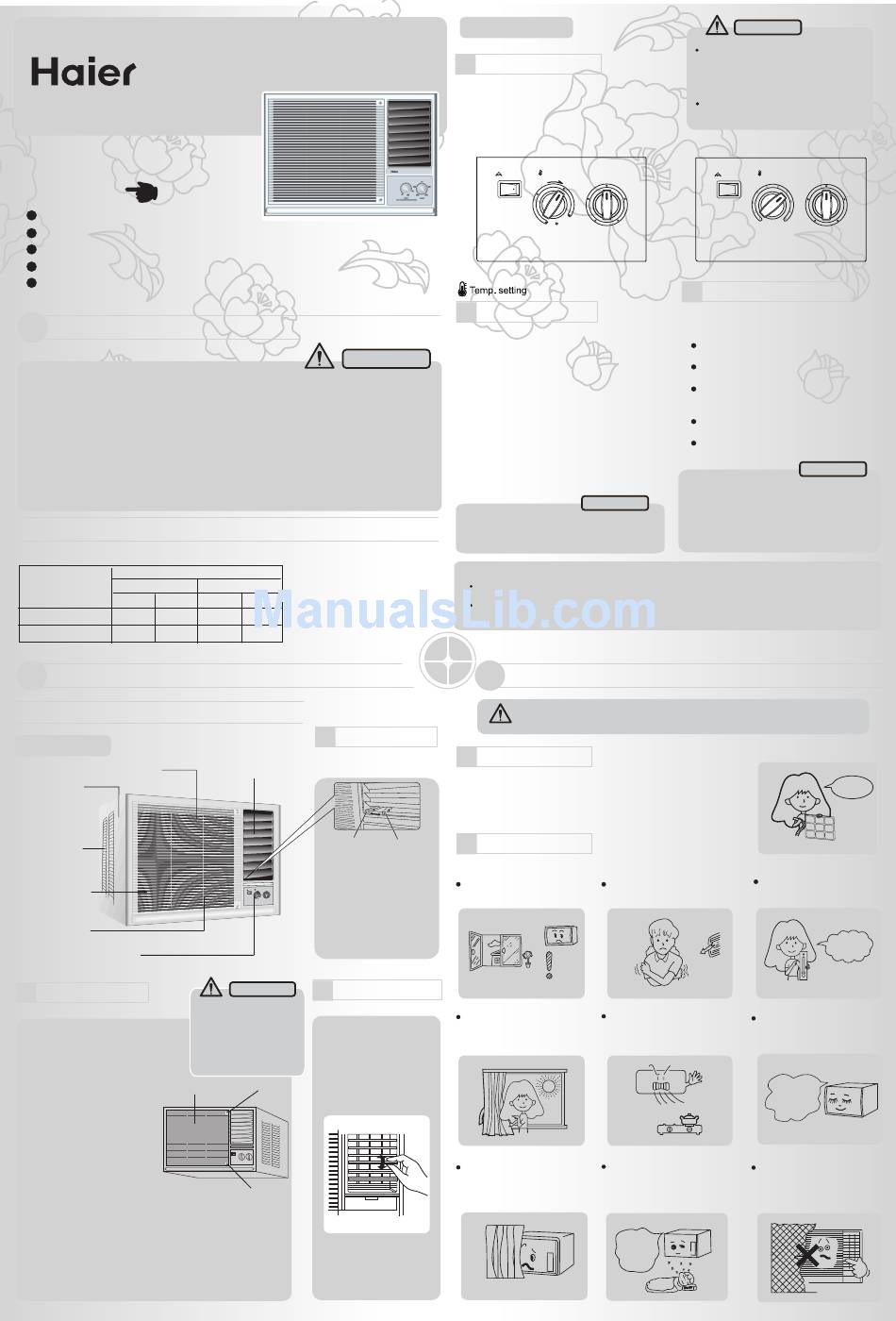

Haier HW-18CVA03 Operation Manual

HW-09CV03 HW-09CVA03
HW-12CV03 HW-12CVA03
HW-18CV03 HW-18CVA03
Please read this operation manual before using the air conditioner
Please keep it attentively
0010556533
CONTENTS
Safety precautions...................1
Air conditioner operation..........2
Care and Maintenance ............4
Air conditioner installation........5
Troubleshooting.......................7
1
SAFETY PRECAUTION
1.Do not install, remove and reinstall the unit yourself. Improper installation may cause leakage, electric
shock or fire. Please engage an authorized dealer or specialist for the installation work.
2.The room air conditioner must be earthed.
3.Do not touch or operate with wet hands.
4.Do not turn on the unit by inserting the power plug. Do not switch off the unit by pulling out the power
plug.
5.Do not insert sticks, fingers or other objects into the unit.
6.If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar
qualified person.
7.After installation, the power plug should be easily reached.
8.The wiring method should be in line with the local wiring standard.
OPERATION CONDITIONS
Applicable ambient temperature range:
Cooling
Indoor
W.B
D.B
o o
32 C 23 C
Max.Temperture:
Min.Temperture:
o o
18 C 14 C
2
AIR CONDITIONER OPERATION
PART INDENTIFICATION
Machine body
Front panel
Machine body
Air inlet
(outdoor side)
Air filter (inside)
Air inlet
(indoor side)
Operation panel
2
Air filter cleaning
When dirt accumulates on air filter, air
circulation will be blocked, which causes
poor cooling. It is advisable to clean air
filter every two weeks for longer operation.
Air filter(inside)
Take out the air filter
1.Loose the air inlet by pushing
"PUSH" at both edges as
shown.
2.Open the air inlet.
3.Remove the air filter.
Clean the filter
1.Gently flap the dirt off the air filter.
2.Carefully wash air filter in warm water(below 40°C).To
obtain better cleaning effect,soap water or neutral
detergent may be used.
3.Flush air filter carefully with clean water after removing
dirt.Let it dry completely.
Installation of filter
1.Replacing the air filter.
2.Push the air inlet marked with "PUSH" until you hear a
click.
ROOM AIR CONDITIONER
OPERATION MANUAL
CAUTION
Outdoor
D.B W.B
o o
43 C 26 C
D.B :Dry Bulb Temperature
o
18 C /
W.B :Wet Bulb Temperature
1
Ventilation
(For model HW-18CV03
Air outlet
HW-18CVA03 only)
(indoor side)
CLOSE
The ventilation lever must be
CLOSE position in order to
maintain the best cooling
conditions. When fresh air is
Mode selection
Auto swing Temp. setting OFF
COOL
6
OFF ON 3 LO HI
fan fan necessary in the room, set the
9
Test LO HI
1 run cool cool
Wait 3 minutes before restarting.
ventilation lever to the OPEN
position. The damper is
opened and room air is
exhausted.
3
Airflow Direction
CAUTION
Before cleaning, turn off
the power.
Do not circumgyrate the
Airflow Direction Vane
front panel any more than
°
The Vertical Airflow Direction
90 to the unit or damage
to the tabs may occur. Vane is manually controlled
by positioning the vane to
discharge the air upward,
PUSH
downward or straight out.
PUSH
The horizontal air direction is
adjusted by setting the
AUTO SWING switch to the
ON position.
Operation Guide
1
Auto swing switch
When the swith is set to "ON", vertical louver
will swing from side to side, delivering gentle
air thus making you feel very comfortable.
When it is set to "OFF", vertical louver will
stop at position.
Temp. setting
Auto swing
COOL
6
OFF ON
3
Test
1
run
Wait 3 minutes before restarting.
HW-09CV03 HW-09CVA03
HW-12CV03 HW-12CVA03
2
Thermostat switch
This switch controls the preset indoor
temperature to make the air conditioner start or
stop automatically, so as to reduce power
consumption and operate the system both
comfortably and economically.
Operate the switch as follows: Temp.
decreases as the switch is turned form "1" to
"9". Temp. increases as the switch is turned
from "9" to "1".
"Test run" mode.
(For model HW-09CV03, HW-12CV03,
HW-09CVA03, HW-12CVA03 only)
When switch set to this position, air-con will
run continuously regardless of temp. setting.
Don't use test run for normal operation.
The compressor stops running when the set
temperature is reached but the fan continues to
operate to keep an even indoor temperature.
Note:
It is advisable not to keep
mode,otherwise , condensate water might occur.
Don't move the vertical
AUTO SWING switch
1 3
2
4
3
CARE AND MAINTENANCE
Always turn off the air conditioner and the main power supply before clean the unit.
Switch off the power supply if the unit is not going to be used for a long period of time.
1
Air filter cleaning
It is advisable to clean air filter every two weeks for
longer operation.
(You will find how to clean the filter on page 2 .)
2
Notes
OPEN
Avoid opening doors and windows
unless necessary.
Use curtain or blind
Direct sunlight may reduce cooling
effect, always use window curtain.
Don't hang clothes in the vicinity
of air inlet. This will decrease
cooling effect and cause abnormal
operation.
In cooling mode, after you turn
thermostat switch counter-clockwise,do
not turn it back until at least 3 minutes
have elapsed.Otherwise, the fuse may
blow due to overload.
Do not exceed the selection range.
Mode selection
Auto swing
OFF
OFF
LO HI
fan fan
9
LO HI
cool cool
WAIT THREE MINUTES BEFORE RESTARTING
HW-18CV03 HW-18CVA03
3
Mode selection switch
Mode switch controls the fan motor speed.
Cooling speed or fan speed.
When set to "HI fan", fan motor runs at high
speed to blow out strong air.
When set to "LO fan", fan motor runs at low
speed to blow out gentle air.
When set to "HI cool", air-con will start
cooling at high speed, blowing out strong
air.
When set to "LO cool", air-con will start
cooling at low speed, blowing out gentle air.
When set to "OFF", air conditioner stops
running.
When mode selection switch is shifted to "HI
fan" or "LO fan", air-con will only blow out air
HINTS
without cooling.While the air conditioner
running, its mode selection shouldn't be shifted
frequently between "HI fan" and "HI cool", "LO
fan" and "LO cool".
horizontal flap at downward position for a long time in COOLor FAN
flap with hand in order to avoid the vertical flap abnormal, using the
to adjust the move of vertical flap.
Don't be exposed to cold air for
a long time.
Keep heat source away from
air conditioner.
Temperature should be set properly
when there are infant,child, the
aged or disabled in the room.
Baby has
gone sleep,
better to adjust
suitable temp.
CAUTION
Temp. setting Mode selection
OFF
ON
LOW HIGH
FAN FAN
MIN MAX
LOW HIGH
COOL COOL
COOL COOL
HINTS
Cleaning of the
air filter
Set temp . a little bit higher
before going to bed.
Proper
temperature
After unit stops, don't restart it
until 3 min. have elapsed.
OK! Enjoy a
3-min nap
Before operating mode
selection switch, check that if
the air inlet or outlet have been
blocked.
