Rear Panel - Spectracom VelaSync Quick Reference Manual

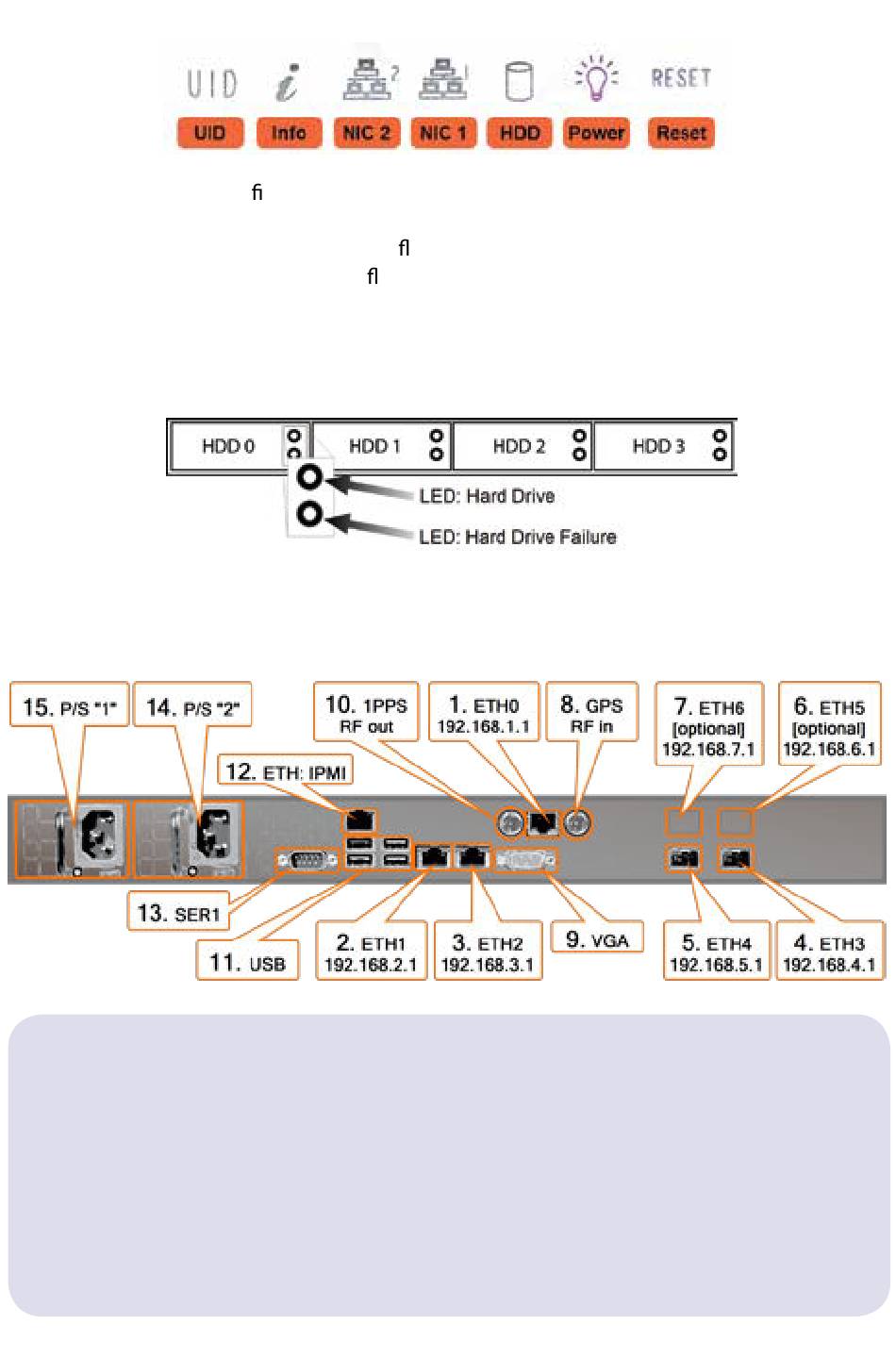

LEDs
�
UID: Blue Unit Identi er LED (also on unit rear panel)
�
Info (red): Blinking fast: Fan fail; slow blinking: Power fail; solid red: CPU overheat
�
NIC2, 1: Activity on GLAN 1,2 when ashing
�
HDD: IDE channel activity when ashing
�
Power: Power is applied to power supplies
Hard Disks
|

Rear Panel

1./2./3. ..............................................................................................................................1GbE ports (RJ-45)
4./5. .................................................................................................................................10 GbE ports (SFP+)
6./7. .....................................................................optional 10 GbE, or 40 GbE ports (SFP+, or QSFP+)
8. ..............................................................................................................................GPS antenna connector
9. .....................................................................................................................................................................VGA
10. ........................................................................................................................................................... PPS Out
11. ...........................................................................................................................................................USB (4x)
12. ...................................................................................................................................................................IPMI
13. ................................................................................................................................................................ Serial
14. ................................................................................................................................................power supply
15. ................................................................................................................................................power supply
VelaSync Quick Reference Guide
™
3
