Homelegance SH2216BK-1 Assembly Instruction

Thank you for purchasing this product. Please take time to read and follow the instructions below. Check that you have all parts and hardware before assembly.
Parts apparently missing are often found in the packing materials. If you do not have all the parts listed, have your dealer contact us and they will be sent to you
immediately.
It is recommended to install protective pads under all legs and supports to avoid damage or scratches when placing furniture on a wood floor
or other hard surface, and to limit indentation and prevent discoloration if placing on carpet.
ITEM
DESCRIPTION
A
HEADBOARD BOX
HEADBOARD LEG -
B
LEFT
HEADBOARD LEG -
C
RIGHT
HEADBOARD FRONT
D
PANEL (WITH ACRYLIC)
E SIDE RAIL - LEFT
F
SIDE RAIL - RIGHT
G
SLAT
H CENTRE SUPPORT LEG
I
FOOTBOARD
SIDE RAIL SUPPORT
J
LEG
**DO NOT TIGHTEN BOLTS UNTIL COMPLETELY ASSEMBLED
STEP 1
This step needs to be done four times.
ASSEMBLY INSTRUCTION

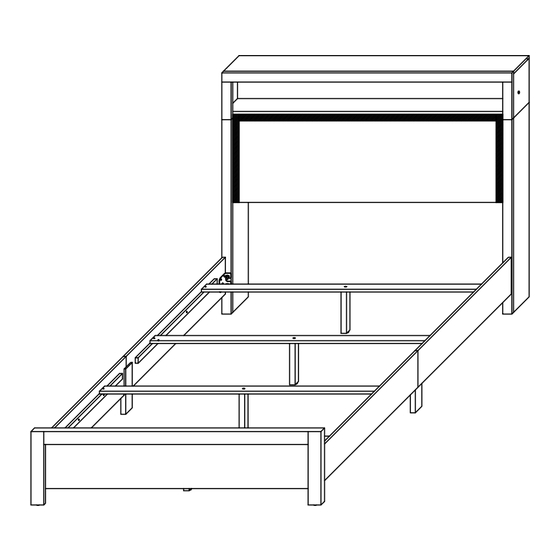

SH2216BK-1 QUEEN BED
PARTS LIST
SKETCH
ITEM
QTY DESCRIPTION
JCBB SCREW
1
1 PC
M8 x 16MM
JCBC SCREW
2
1 PC
M6 x 30MM
JCBC SCREW
3
1 PC
M6 x 40MM
SPRING WASHER
4
1 PC
M6 x 13MM
FLAT WASHER
2 PCS 5
M6 x 19MM
CSK C/B SCREW
6
2 PCS
(M4 x 32MM)
M4 ALLEN KEY (65MM)
7
4 PCS
M5 ALLEN KEY (65MM)
4 PCS 8
JCBB SCREW
9
1 PC
M8 x 30MM
SPRING WASHER
2 PCS 10
M8 x 14MM
FLAT WASHER
11
M8 x 22MM
7
3
HARDWARES LIST
SKETCH
G
H
QTY
8 PCS
8 PCS
8 PCS
12 PCS
12 PCS
8 PCS
1 PC
1 PC
8 PCS
8 PCS
8 PCS
PAGE 1 OF 4
