Reversing the Door Swing

Left/right door opening method:
This product provides the reversing of the left/right door opening. You
can select your preference of door opening by following the procedure to
make the change.
Dismantling:
1. Fix refrigerator door by sticking adhesive tape on
both sides to hold door in place.

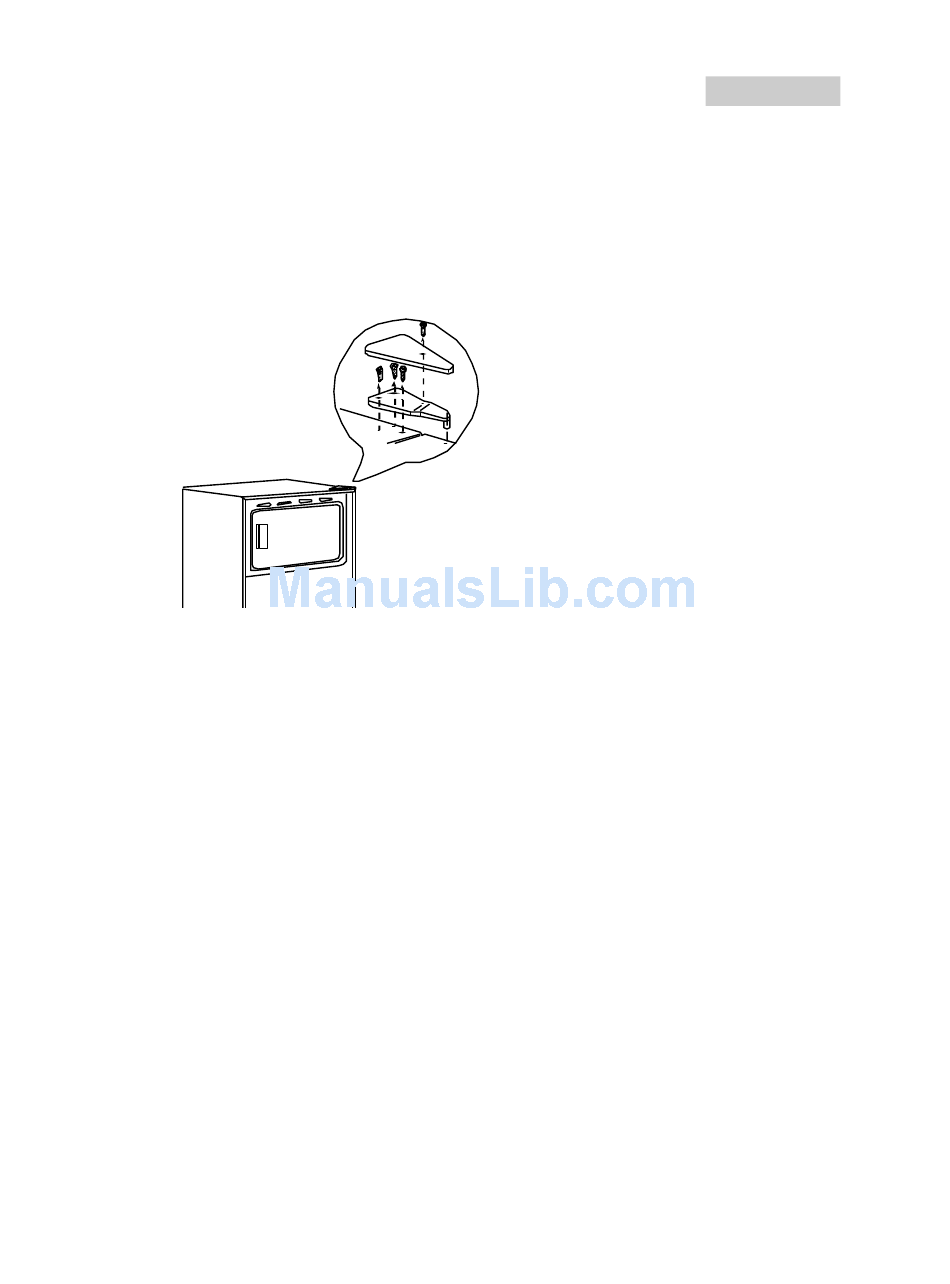

2. As shown in fig. 2, dismantle the hinge box cover on the
upper part of refrigerator door with a phillips head screwdriver.
Then remove the screws from the hinge. Take out the hinge by
pulling it vertically, and keep it in a safe place.
3. Remove the adhesive tape on refrigerator door,
lift and take down refrigerator door, and carefully put it aside.
(see fig. # 2)
English
fig. # 2
