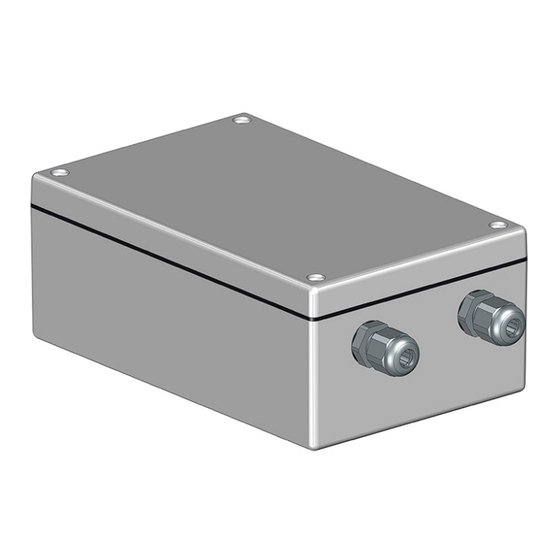

- Page 1 V9901 PRESSALIT CONNECT – Operation and maintenance manual...
- Page 2 The guarantee covers faults or defects in material or manufacture within a period of 5 years. Products are subject to minor technical modifications and design deviations. E. & O.E.
- Page 3 SCT2000 / SCT2100: R8571218000, R8581218000, R8591218000, R8571418000, R8581418000, R8591418000 SCT3000: R8572313, R8572318, R8582313, R8582318, R8592313, R8592318 CT4000 / CT4100: R8574572000, R8584572000, R8594572000, R8575572000, R8585572000, R8595572000 NOTICE The V9901 unit must be installed from the factory when ordering the shower and/or changing table. It cannot be retrofitted.
- Page 4 Ingress protection rating: IPX6 Water projected in powerful jets—from a nozzle size up to 12.5 mm/0.49” — against the product from any direction shall have no harmful effects. Connect by Pressalit The related product contains Pressalit Connect YXXX YY-MM-DD Connect id: xxxx...
-
Page 5: Table Of Contents
Connect by Pressalit features ........ -
Page 6: Symbols Used In This Manual
Symbols used in this manual The following symbols are used in this manual as well as the associated documentation supplied with the product. WARNING indicates a potentially WARNING hazardous situation which, if not avoided, could result in death or serious injury. CAUTION indicates a potentially CAUTION hazardous situation which, if not... -
Page 7: General Safety
• The information in this manual is based on correct fitting of the product in accordance with our mounting instruction. • Pressalit cannot be held liable if the product is used in any way which differs from that described in the guide. -
Page 8: System Overview
System overview ② ③ ④ ⑤ ① ⑥ Product- Unit number V6374 Load Cell V6375 Connection Box PU6507 LA40 Motor T4361 Hand Control V6342 Control Box, Transformer CA63 T4349-1 Signal Box... -
Page 9: Intended Use
This product is designed to be integrated into the following shower or changing table models: SCT 2000/2100, SCT 3000, and CT 4000/4100. It enables these shower and changing tables to connect to the Connect by Pressalit digital data collection system. -
Page 10: Configuration
Configuration Each Connect box has a unique ID, which can be used to connect the box to the Connect by Pressalit website. This unique ID can be found on the product label: Connect ID. -
Page 11: Maintenance
Cleaning • The Connect by Pressalit box is situated behind the cover of the shower/ changing table. Please refrain from cleaning the Connect by Pressalit box. If you need guidance on cleaning the shower/changing table itself, refer to the dedicated user manual provided for that product. -
Page 12: Product Label
Product label Connect by Pressalit The related product contains Pressalit Connect YXXX YY-MM-DD Connect id: xxxx P:X W CAN ICES-003(B)/ NMB I:XXA Contains IC: 10224A-2019BG95M3 IPXX U:XXXV Contains FCC ID: XMR201910BG95M3 This device complies with part 15 of the FCC Rules. - Page 13 Type BF applied part Part of the product in normal use necessarily comes into physical contact with the patient to perform its function The product complies with requirements of IEC 60601-1 to provide protection against electric shock. Do not dispose as unsorted municipal waste. The product should be collected separately and returned to the designated recycling service.
-
Page 14: Electromagnetic Compatibility
Electromagnetic compatibility The device is suitable for use at home, at daycare centres, at day centres for persons with physical or mental disabilities or at hospitals except near active HF surgical equipment and RF shielded rooms with medical systems for magnetic resonance imaging with high intensity of electromagnetic disturbances. -
Page 15: Electromagnetic Immunity
Electromagnetic immunity Electrostatic discharge The product must not be affected by electrical discharge between a person and the product in such a way as to initiate actions or render components defective. Test Immunity test level standard EN 61000-4-2 +/- 8 kV contact +/- 2, 4, 8, 15 kV air Radiated RF electromagnetic field The product must not be affected by radiating RF signals,... - Page 16 Immunity to proximity fields from RF wireless communication equipment The product must not be affected by radiating RF signals, for example from a mobile phone or radio, that could cause the product to take action or to make components defective. Test Immunity test level standard...
-
Page 17: Electromagnetic Emission
Electromagnetic emission Conducted RF emission The product must not send too much noise into the grid. This could lead to a disruption of other products. Test standard Emission test class and group EN 55011 Class B, group 1 Radiated RF emission The product must not emit RF signals in the room. -
Page 18: Radio Exposure
Manufacturers typically provide recommendations for safely operating their devices near wireless or magnetic products to mitigate interference risks. If you suspect Connect by Pressalit is interfering with your medical device, discontinue use immediately. Certain medical devices, such as implantable pacemakers and defibrillators, may contain sensors sensitive to magnets and radios when in close proximity. - Page 19 • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.
-
Page 20: Technical Data
Technical data Electrical proporties 1W, 18-42V, 0,05-0,02 A Ingress protection rating IPX6 Materials ABS, flame retardant class 94V-0 & electrical components Environmental factor Temperature 5°C to 40°C ( 41°F to 104°F) Relative humidity 20% to 70% @ 30°C (86°F) Atmospheric pressure 700 to 1060 hPa Meters above sea level Max. -
Page 21: Trouble-Shooting
Contact Pressalit or your supplier if the problem cannot be remedied. Do not attempt to repair the product yourself, as this will invalidate the guarantee. Do not attempt to open the Connect by Pressalit box for trouble-shooting. - Page 22 Pressalitvej 1 8680 Ry Denmark Tel. : +45 8788 8788 Fax : +45 8788 8789 E-mail : pressalit@pressalit.com pressalit.com Visit our website to find your local dealer and get further information about Pressalit and our solutions for bathrooms and kitchens.
