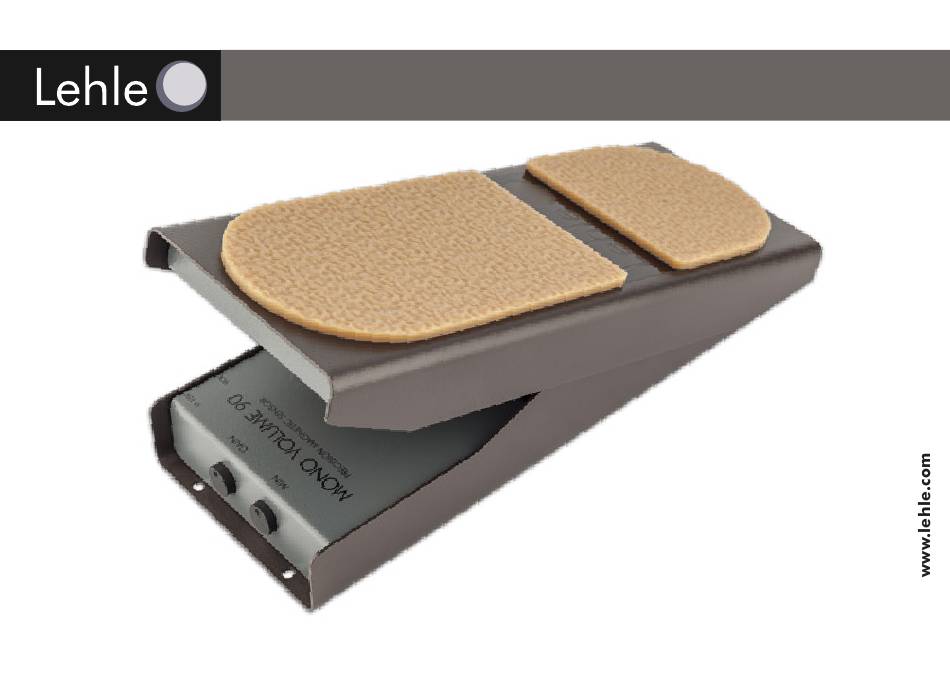

- Page 1 Lehle Mono Volume 90 User Manual Lehle GmbH • Grenzstr. 153 • D-46562 Voerde • Germany • Tel +49 (0) 2855 850070...
- Page 2 Lehle Mono Volume 90 has been made and tested in Germany. To make sure that you can enjoy your Lehle Mono Volume 90 for a long time, it is of extremely robust design and construction. If you should nonetheless have a problem, or simply a question, just mail me or a member of the Lehle team at: support@lehle.com...
-
Page 3: Table Of Contents
General description ........................4 Typical uses: - Lehle Mono Volume as a classic volume pedal ............10 - Lehle Mono Volume with two amps ............... 11 - Lehle Mono Volume to blend effects ................12 Lehle Mono Volume 90 signal flow diagram ................14... -
Page 4: Introduction
110 dB. The volume control of the after Edwin Hall, to measure the strength of magnetic Lehle Mono Volume 90 ranges from -92 dB to 0 dB fields. In the Lehle Mono Volume 90 the Hall sensor, - so from a virtually muted level to the same volume. -
Page 5: Technical Data
Technical data Weight: 1,690 g Length: 26 cm (10.24‘‘) Width: 10 cm (3.94‘‘) Overall height: 6.6 cm (2.6‘‘) Voltage: 9 - 15 V DC or 7 - 12 V AC Power consumption: 40 mA Frequency range: 35 Hz - 125 kHz (-3/ +0,4 dB) THD: <... -
Page 6: General Description
General description... - Page 7 DIR Out will provide a signal for signal. the tuner. The gain control influences the maximum volume of the Lehle Mono Volume 90. The gain control 3. VOL Output knob is recessed into the housing. It can be easily Connect your target device here.
- Page 8 Use the MIN Control to adjust the minimum level of your Lehle Mono Volume 90. tently disturbed on stage or during transportation. With the gain control closed up to the stop (7 In the heel position the output signal on the VOL o’clock position) and the pedal in level position,...
- Page 9 Turn this screw to adjust the feel of the pedal. You can use the fixing screws supplied with the Lehle Mono Volume 90 to fix it to a base plate (or to a pedal If you turn this screw clockwise, you tighten the brake.
- Page 10 Lehle Tip: In case you prefer a Velcro solution for your Mono Volume 90 and the screw head, to protect pedal board we recommend to write down the the paint. serial number of the pedal for eventual support Now you can turn in the remaining two screws matters before covering it.
-
Page 11: Typical Uses
Typical uses... -
Page 12: Lehle Mono Volume 90 As A Classic Volume Pedal
3. Connect the VOL jack (3) to the input of your amp. 4. Adjust the maximum volume using the Gain control (5). 5. Use the MIN control (6) to set the volume you want the Lehle Mono Volume 90 to put out in heel position. 6. There you go! -
Page 13: Lehle Mono Volume 90 With Two Amps
DIR Out is always on, while the second amp can be faded in and out smoothly via the VOL Out. Using the Lehle P-Split II, as shown here between the VOL output and the sec- ond amplifier is optional. In case ground loops or phase cancellations occur, these will be eliminated effectively by using the Lehle P-Split II. -
Page 14: Lehle Mono Volume 90 To Blend Effects
3. Connect the VOL jack (3) to the input of the Lehle P-Split II. 4. Connect the ISO output of the Lehle P-Split II with the input of your second amp. 5. Use the MIN control (6) to set the volume you want the Lehle Mono Volume 90 to put out on VOL Out to amp 2 in heel position. - Page 15 Lehle Parallel L. Lehle Mono Volume 90. However, you will need 5. Connect the output of the Lehle Parallel L to a mixer - in our example, we are using a Lehle the amp. Parallel L.
-
Page 16: Lehle Mono Volume 90 Signal Flow Diagram
Lehle Mono Volume 90 signal flow diagram...
