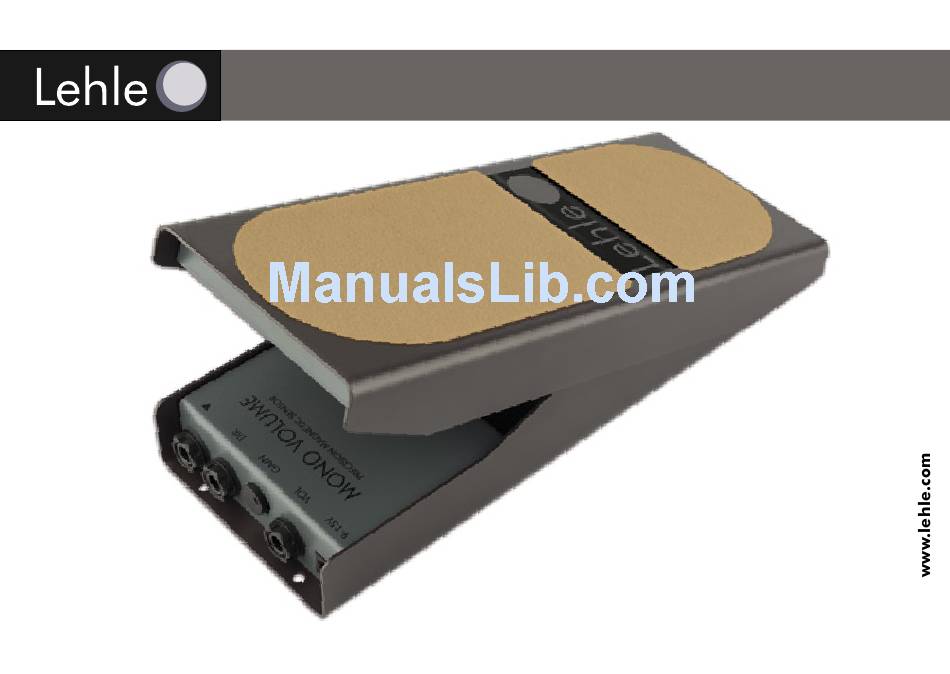

- Page 1 Lehle Mono Volume User Manual Lehle GmbH • Grenzstr. 153 • D-46562 Voerde • Germany • Tel +49 (0) 2855 850070...
- Page 2 Mono Volume comprises only the very best components. Every module of your Lehle Mono Volume has been made and tested in Germany. To make sure that you can enjoy your Lehle Mono Volume for a long time, it is of extremely robust design and construction. If you should nonetheless have a problem, or simply a question, just mail me or a member of the Lehle team at: support@lehle.com...
-
Page 3: Table Of Contents
Technical data ........................... 3 General description ........................4 Typical uses - Lehle Mono Volume as a classic volume pedal ............... 9 - Lehle Mono Volume with two amps ................10 - Lehle Mono Volume to blend effects ................11 Lehle Mono Volume signal flow diagram ................14... - Page 4 In the Lehle supply socket of the pedal is rectified, then filtered, Mono Volume the Hall sensor, which is made in stabilized and doubled to 18 V, thus achieving a Germany, is accurately calibrated to the built-in total dynamic range of 110 dB.
-
Page 5: Technical Data
Technical data Weight: 1,620 g Length: 26 cm (10.24‘‘) Width: 10 cm (3.24‘‘) Overall height: 6.6 cm (2.6‘‘) Voltage: 9 - 15 V DC or 7 - 12 V AC Power consumption: 50 mA Frequency range: 50 Hz - 100 kHz (all controls in middle position) THD: <... -
Page 6: General Description
General description... - Page 7 (violins with pickup systems). The input im- recessed into the housing. It can be easily turned pedance of the Lehle Mono Volume is approx. 2 by placing your fingertip in the top depression, MOhm. It does not matter whether the connected...
- Page 8 5. External power supply Connect your external power supply here (9-15 V DC or 7-12 V AC). For the Lehle Mono Volume an external power supply is required. This should provide a minimum of 9 V and no more than 15 V DC, but alternatively you can also connect an AC voltage source with more than 7 V or up to 12 V.
- Page 9 Lehle You can use the fixing screws supplied with the Lehle Mono Volume and the screw head, to protect the Mono Volume to fix it to a base plate (or to a pedal paint. board, for example).
-
Page 11: Typical Uses
Typical uses... -
Page 12: Lehle Mono Volume As A Classic Volume Pedal
Lehle Mono Volume as a classic volume The main purpose of the Lehle Mono Volume pedal certainly is adjusting the volume of the connected instrument. The DIR output can be used for a tuner to silently tune the instrument with the VOL output volume turned down. -
Page 13: Lehle Mono Volume With Two Amps
DIR out is always on, while the second amp can be faded in and out smoothly via the VOL out. Using the Lehle P-Split II, as shown here between the VOL output and the second amplifier is optional. In case ground loops or phase cancellations occur, these will be eliminated effectively by using the Lehle P-Split II. -
Page 14: Lehle Mono Volume To Blend Effects
5. If now hum or noise occurs when the pedal is in level position, we recommend using the Lehle P-Split II. 6. To include the Lehle P-Split II, take the plug from the input of the second amp and connect it to the input of the Lehle P-Split II. - Page 15 Lehle Parallel M. Lehle Mono Volume. However, you will need 5. Connect the output of the Lehle Parallel M to a mixer - in our example, we are using a Lehle the amp. Parallel M. 6. Adjust the maximum volume for the input of your effects unit with the gain controller.
-
Page 16: Lehle Mono Volume Signal Flow Diagram
Lehle Mono Volume signal flow diagram...
