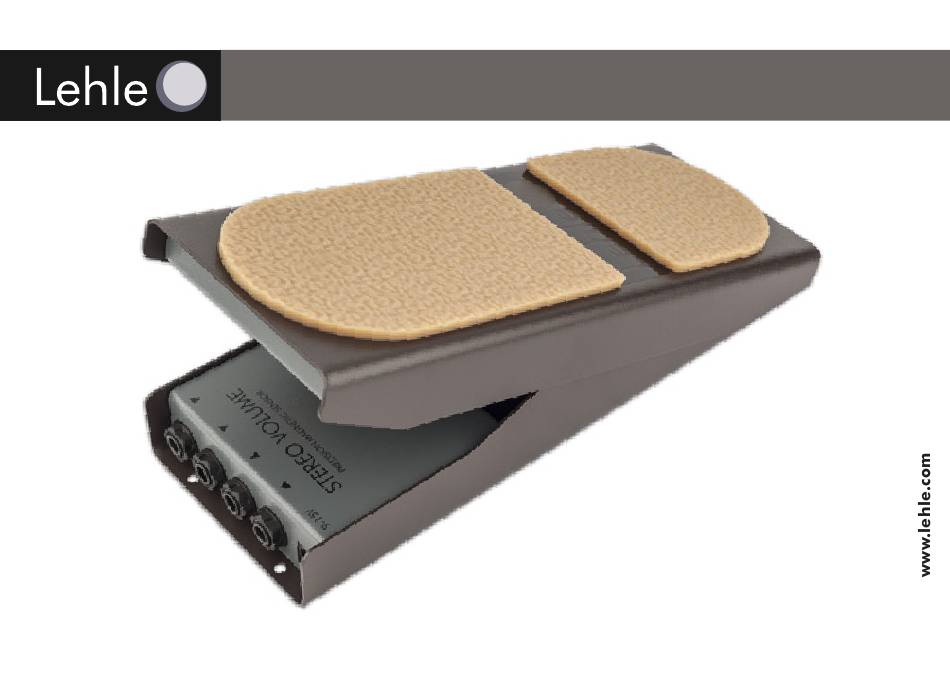

- Page 1 Lehle Stereo Volume User Manual Lehle GmbH • Grenzstr. 153 • D-46562 Voerde • Germany • Tel +49 (0) 2855 850070...
- Page 2 Stereo Volume comprises only the very best components. Every module of your Lehle Stereo Volume has been made and tested in Germany. To make sure that you can enjoy your Lehle Stereo Volume for a long time, it is of extremely robust design and construction. If you should nonetheless have a problem, or simply a question, just mail me or a member of the Lehle team at: support@lehle.com...
-
Page 3: Table Of Contents
Technical data ........................... 3 General description ........................4 Typical uses - Lehle Stereo Volume as a classic volume pedal for keyboards, synthesizers, samplers or any kind of stereo-sources ................. 10 - Lehle Stereo Volume controlling the master volume with stereo effects and distributing it to two amps................... -
Page 4: Introduction
The Lehle Stereo Volume is a volume pedal pedance always stay the same, ensuring that there equipped with a precise magnetic sensor enabling will be no damping of higher frequencies as with it to operate almost wear-free. This sensor uses the potentiometers. -
Page 5: Technical Data
Technical data Weight: 1,680 g Length: 26 cm (10.24‘‘) Width: 10 cm (3.94‘‘) Overall height: 6.6 cm (2.6‘‘) Voltage: 9 - 15 V DC or 7 - 12 V AC Power consumption: 62 mA Frequency range: 20 Hz - 100 kHz (+/- 0,2 dB) THD: <... -
Page 6: General Description
General description... - Page 7 The input impedance of the Lehle If the OUT 2 jack remains free whilst both inputs are Stereo Volume is approx. 2 MOhm. It does not connected, the Lehle Stereo Volume merges the matter whether the connected signal has high or input signals and sends them to OUT 1.
- Page 8 or up to 12 V. The polarity is not relevant. The 6. Pedal Feel voltage supplied is internally rectified, filtered, Turn this screw to adjust the feel of the pedal. stabilized and then brought to 18 V. If you turn this screw clockwise, you tighten the brake.
- Page 10 You can use the fixing screws supplied with the Lehle ing holes under the screw heads of the screws Stereo Volume to fix to it to a base plate (or to a pedal already screwed in. Make sure that the washers board, for example).
-
Page 11: Typical Uses
Typical uses... -
Page 12: Lehle Stereo Volume As A Classic Volume Pedal For Keyboards, Synthesizers, Samplers Or Any Kind Of Stereo-Sources
1. Connect your keyboard, your synthesizer, sampler or an other stereo source to the input sockets (1 and 2) of the Lehle Stereo Volume. 2. Connect the outputs (3 and 4) of your Lehle Stereo Volume to a stereo input of your mixer or use two mixer channels with hard panning. -
Page 13: Lehle Stereo Volume Controlling The Master Volume With Stereo Effects And Distributing It To Two Amps
2. Connect your amplifier to OUT 1 (3). 3. Connect OUT 2 (4) with the input jack of the Lehle P-Split II. 4. Connect the ISO output of Lehle P-Split II with the input of the second amp. 5. Now press the ground switch of the Lehle... -
Page 14: With Two Amps
P-Split II and find out in which position you Lehle Stereo Volume as volume pedal for have the least noise. In order to eliminate phase guitars or basses with stereo-outputs for use cancellation, press the phase switch. with two amps 6. - Page 15 Many instruments offer separate output jacks for Lehle P-Split II. neck- and bridge-pickups. Others have separate 4. Connect the ISO output of Lehle P-Split II with outputs for magnetic- and piezo-pickups. With the the input of the second amp. Now press the...
-
Page 16: Lehle Stereo Volume Controlling The Effects Signals
Stereo effects unit IN R → Mixer return R How to do this: 1. Connect the auxiliary outputs of your mixer to the input sockets (1 and 2) of the Lehle Stereo Volume. 2. Connect the outputs (3 and 4) of the Lehle Stereo Volume with the inputs of your stereo effects unit. -
Page 17: Lehle Stereo Volume Controlling Guitars Or Basses With Mono-Outputs, Using Two Amps
Lehle Stereo Volume controlling guitars or If the input socket IN 2 remains free, the Lehle basses with mono-outputs, using two amps Stereo Volume sends the input signal from IN 1 not only to OUT 1 but also to OUT 2. Thus, a... - Page 18 Now press the ground switch of the Lehle P-Split II and find out in which position you have the least noise. In order to eliminate phase cancellation, press the phase switch. 5. There you go!
-
Page 19: Lehle Stereo Volume Controlling The Master Volume With Two Signals, Summing It On One Amp
Input IN 2 → Sound source 2 Output OUT 1 → Amplifier How to do this: 1. Connect your sound sources to the input jacks (1 and 2) of your Lehle Stereo Volume. 2. Connect an amplifier to output OUT 1. 3. There you go! -
Page 20: Lehle Stereo Volume Signal Flow Diagram
Lehle Stereo Volume signal flow diagram Hall-Sensor OUT 1 IN 1 VCA 1 OUT 2 IN 2 VCA 2...
