Summary of Contents for CPS BLACKMAX VPBM4V

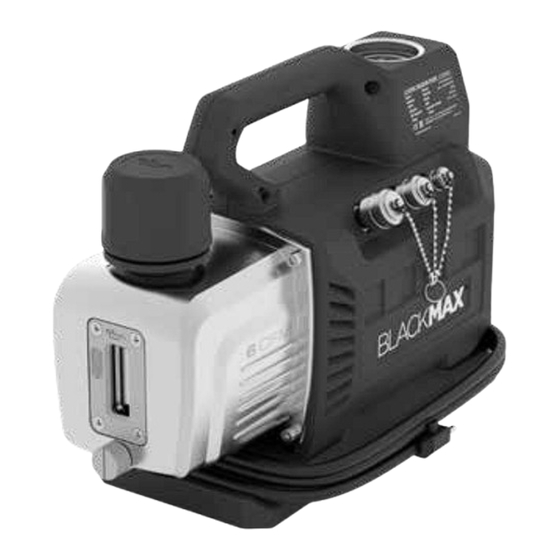

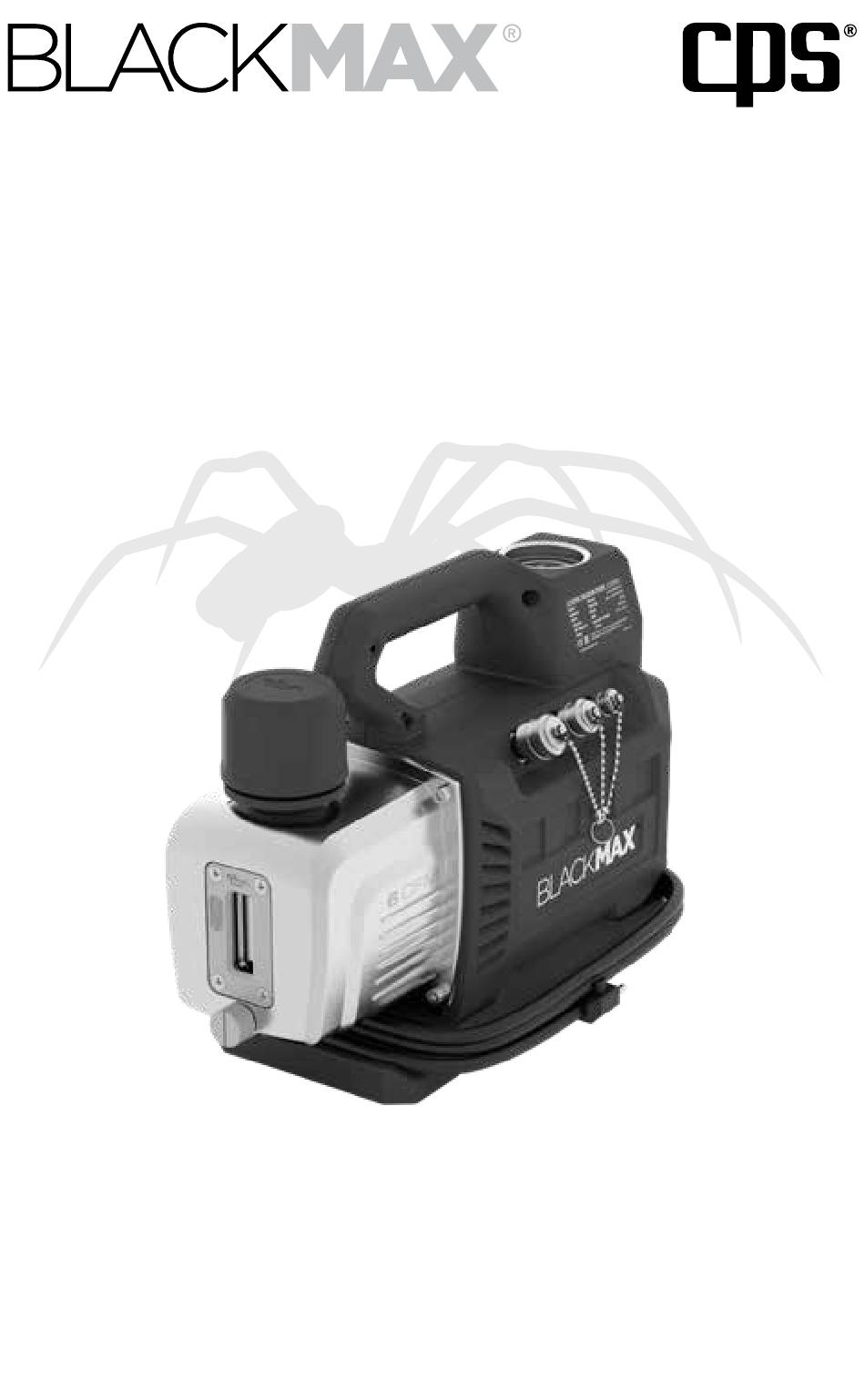

- Page 1 VPBM4V, VPBM6V, VPBM8V, VPBM12V Variable Speed, Two Stage, Ignition Proof Vacuum Pumps Custom Designed For HVACR Professionals OWNER’S MANUAL (English) Latest updates: www.cpsproducts.com (100-240VAC @ 50/60 Hz) TO BE OPERATED BY QUALIFIED PERSONNEL ONLY...
-
Page 2: Table Of Contents
CONTENTS General Safety Instructions ....................3 Additional Safety Instructions For HVAC/R Systems Containing Class A2, A2l & A3 Refrigerants ..................3-4 ASHRAE Standard 34 Refrigerant Safety Classification ............4 Agency Approvals, Standards .....................5 Overview ..........................5 Key Features / Benefits ......................6 Specifications ........................7 Vacuum Pump Layout ......................8 Initial Preparation .......................9 Quick Start Guide ....................... -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS Please read, follow and understand the contents of this entire manual, with special attention given to Danger, Warning and Caution statements. WARNING SYMBOLS AND DEFINITIONS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. -
Page 4: Ashrae Standard 34 Refrigerant Safety Classification
SAFETY (CONT’D) DANGER meter) perimeter around the refrigeration equipment being serviced and should have NO SMOKING and other hazardous signs posted. Local supervisor should be notified of the zone’s existence. ASHRAE STANDARD 34 REFRIGERANT SAFETY CLASSIFICATION Lower Toxicity Refrigerants* Higher Flammability Lower Flammability No Flame Propagation *No identified toxicity at concentrations less than or equal to 400 PPM... -
Page 5: Agency Approvals, Standards
AGENCY APPROVALS, STANDARDS CE & UKCA - Tested to UL 12.12.01 Methods For Ignition Proof Requirements Per UL1963 Supplement SB. EMC (Electro-Magnetic Compatibility): EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-6-1:2019; EN IEC 61000-6-3:2021 OVERVIEW In an AC or refrigeration system, moisture with oil forms sludge, while moisture mixed with refrigerant forms hydrofluoric and hydrochloric acids all of which can permanently damage a system. -
Page 6: Key Features / Benefits
KEY FEATURES / BENEFITS FEATURE BENEFIT • Low power start up, lower weight, longer • Variable speed, brushless, DC motor pump life • Deeper ultimate vacuum vs. single stage • Two stage units • Ignition proof design • Safer operation •... -
Page 7: Specifications
SPECIFICATIONS VPBM4V VPBM6V VPBM8V VPBM12V BLACKMAX Model # Maximum Free Air Displacement 4 CFM 6 CFM 8 CFM 12 CFM (@ 3200 RPM) Stages Ultimate Vacuum 15 Microns Refrigerant Class Compatible With Residual A1, A2L, A2, A3 Refrigerants (Not A Recovery Machine) Tested To UL12.12.01 Methods For Ignition Proof Requirements Ignition Proof Construction Per UL1963 Supplement SB... -
Page 8: Vacuum Pump Layout
VACUUM PUMP LAYOUT Analog Vacuum Gauge Specifications Label Intake Ports: 1/4 ˝ 3/8 ˝ 1/2 ˝ Stainless Steel Chain Power Cord with Plug Clip At End Closed, Hoist Type Handle Knurled 2nd Stage Gas Ballast Valve (Plated Brass) Ignition Proof ON/OFF Switch. Flashing Green: Connected To Power Oil Reservoir Solid Green: Pump &... -
Page 9: Initial Preparation
INITIAL PREPARATION IMPORTANT! If recovering Class A2, A2L, or A3 refrigerants, with a recovery machine read ADDITIONAL SAFETY INSTRUCTIONS ON PAGE 3 & 4 OF THIS MANUAL. 1. Thoroughly read this manual on the additional safety procedures required when servicing AC or refrigeration systems using Class A2L through A3 refrigerants. 2. -
Page 10: Quick Start Guide
Solid Green Pump operating 7. If pressure is above 2 PSIG, run recovery operation first (Use a CPS Pro-Set Recovery Machine for fastest results). 8. Press the Tactile Power Switch on pump housing to turn pump ON (LED will become CONSTANT GREEN) and the pump motor (and fan) will turn ON. -
Page 11: Second Stage Gas Ballast Valve Operation
DECAY TEST. This routine will determine if Vacuum Pressure holds between PRESET LOW and HIGH VALUES for a PRESET TIME. We recommend that technicians use a CPS brand vacuum gauge such as the VG200, or the VG200W (wireless). TIME/TARGET TESTS... -
Page 12: Oil Change Frequency
APPENDIX OIL CHANGE FREQUENCY • After the pump runs for a total of 4 hours (on one or more jobs), CPS recommends replacing the oil with fresh CPS brand Premium Vacuum Pump Oil or when: • Oil becomes contaminated (condensation, particles) or is discolored. -
Page 13: Troubleshooting Guide
APPENDIX OIL CHANGE PROCEDURE (CONT’D) 6. Add fresh Pro-Set Premium Vacuum Pump Oil (by CPS) until level is between the MAX and MIN lines on the pump housing. See page 7 in this Owner’s Manual for the correct amount of oil for the model(s) you own. -
Page 14: Storage
2. Cold weather intake fitting open for 1 minute 3. Dirty oil Drain and replace oil (Pro-Set brand by CPS) STORAGE Ideal storage is dry and well ventilated in a climate controlled building. Humidity should be less than 80%. Temperature should range between 0°F to 150°F (-17.7°C to 65.5°C). Drastic changes in moisture and temperature should be avoided. -
Page 15: Warranty
Please contact us, if you have any technical issues during registration of your product. VPBM Serial # (See Underside Of Pump Base) ____________ Date Of Purchase (Month, Day, Year)______________ LOCATIONS CPS PRODUCTS, INC. U.S.A. (Headquarters) CPS PRODUCTS N.V Krijgsbaan 241, 2070 Zwijndrecht, Belgium 3600 Enterprise Way, Miramar, Florida 33025, USA Tel: 323.281.3040... - Page 16 www.cpsproducts.com #79-193 Rev. A...
