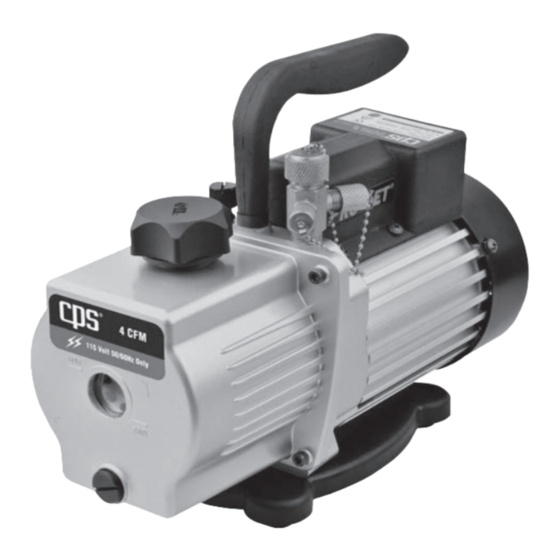

CPS Pro-Set VPC Series Operation Manual
Dual stage vacuum pump
Hide thumbs
Also See for Pro-Set VPC Series:
- Operation manual (44 pages) ,
- Operation manual (48 pages)
Advertisement
Advertisement
Table of Contents
Related Manuals for CPS Pro-Set VPC Series
Summary of Contents for CPS Pro-Set VPC Series
- Page 1 VACUUM PUMP SERIES VP & VPC SINGLE - DUAL STAGE VACUUM PUMPS OPERATION MANUAL...
-
Page 2: Table Of Contents
Routine Maintenance Specifications Operation 6-10 Troubleshooting Chart Introduction Thank you for purchasing the CPS Pro-Set VP vacuum pump series. Our vacuum ® ® pumps are specifically designed for the air-conditioning and refrigeration service industry. The VP and VPC series both utilize an electrical motor and oil filled rotary vacuum pump cartridge construction. -
Page 3: General Information
GENERAL INFORMATION General Safety Instructions ONLY QUALIFIED SERVICE PERSONNEL SHOULD OPERATE THIS UNIT. SOME COUN- TRIES MAY REQUIRE THE USER TO BE LICENSED. PLEASE CHECK WITH YOUR LOCAL GOVERNMENT AGENCY. DANGER - Avoid breathing refrigerant CAUTION - Avoid breathing refriger- vapors and lubricant vapor or mist. -
Page 4: Specifications
GENERAL INFORMATION Specifications * “Blank” = Dual voltage (110-120 / 220 50/60Hz E = 220-240V 50/60Hz J = 100V 50/60Hz U = 115V 50/60Hz Model Number VPC2S* VPC4S* VP2S* VP4S* VP6S* Stages Motor Size (HP) RPM @ 50/60Hz 2880 / 3440 2880 / 3440 1440 / 1720 2880 / 3440... - Page 5 GENERAL INFORMATION Specifications * “Blank” = Dual voltage (110-120 / 220 50/60Hz E = 220-240V 50/60Hz J = 100V 50/60Hz U = 115V 50/60Hz Mode Number VPC2D* VP2D* VP4D* VP6D* VP8D* VP10D* VP12D* Stages Motor Size (HP) RPM @ 50/60Hz 2880 / 3440 1440 / 1720 2880 / 3440...
-
Page 6: Operation
Gas Ballast (Two Stage Only) Inlet Ports Exhaust / Oil Refill Cap Fan Inlet Motor Oil Sightglass Rubber Base Oil Reservoir Oil Drain Unit consists of: • Pro-Set model vacuum pump ® • CPS vacuum pump oil ® • Operational manual. -
Page 7: Vp & Vpc Series Parts
Sure Grip Handle Electrical Box Exhaust / Oil Refill Cap Inlet Ports Fan Inlet Oil Sightglass Rubber Base Oil Reservoir Oil Drain Unit consists of: • Pro-Set model vacuum pump ® • CPS vacuum pump oil ® • Operational manual. -
Page 8: Initial Preparation
OPERATION Initial Preparation 1. If the vacuum pump is equipped with a dual voltage motor, make sure the voltage selector switch is set for the desired voltage operation. 2. The vacuum pump is shipped without oil in the reservoir. Remove the exhaust/oil fill cap and add oil until it is seen in the middle of the oil sight glass. -
Page 9: Routine Maintenance
It is recommended to change the vacuum pump oil after 50 hours of usage. The purity of the oil will determine the final vacuum level achieved. Always use the CPS recommended vacuum pump oil (VPOQ / VPOP / VPOG). The oil provided with the pump has been specially blended to maintain maximum visosity at normal running temperatures as well as cold weather starts. -
Page 10: Troubleshooting Chart
OPERATION Troubleshooting Chart Condition Possible Problem Solution 1. Bad bearings. 1. Replace motor. 2. Loose motor bolts. 2. Tighten bolts. Unusually noisy 3. Coupling drive. 3. Adjust or replace coupling. 4. Dirty, low, or improper oil. 4. Replace oil. 5. Air leaks in connections. 5.
