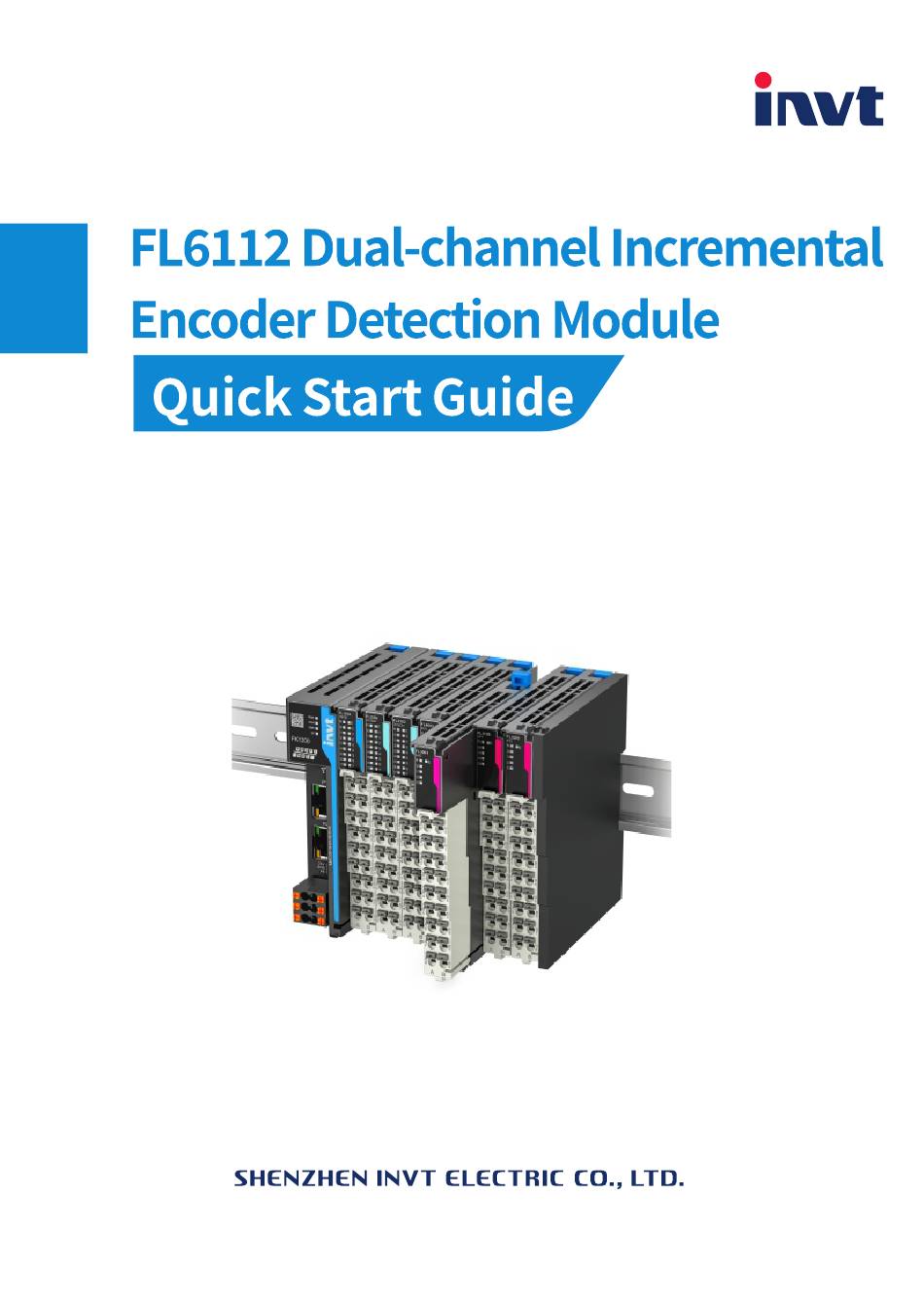

INVT FL6112 Quick Start Manual

INVT FL6112 Quick Start Manual

Dual-channel incremental encoder detection module
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FL6112 and is the answer not in the manual?

Questions and answers

Related Manuals for INVT FL6112

Summary of Contents for INVT FL6112

  • Page 2 The module supports speed measurement and frequency measurement.  This guide briefly describes the interface, wiring examples, cable specifications, usage examples, common parameters, and common faults and solutions of the INVT FL6112 dual-channel incremental encoder detection module. Audience Personnel with electrical professional knowledge (such as qualified electrical...
  • Page 3 FL6112 dual-channel incremental encoder detection module Preface Change history The manual is subject to change irregularly without prior notice due to product version upgrades or other reasons. Change description Version Release date First release. V1.0 July 2024...

  • Page 4: Table Of Contents

    FL6112 dual-channel incremental encoder detection module Contents Contents 1 Specifications ........................1 2 Interface description ......................4 3 Wiring examples ........................5 4 Cable specifications ......................6 5 Application example ......................7 Appendix A Parameter description ..................11 Appendix B Fault code ......................13...

  • Page 5: Specifications

    FL6112 dual-channel incremental encoder detection module Specifications 1 Specifications Item Specifications External input 24VDC (-15% – +20%) rated voltage External input 0.5A rated current Backplane bus rated output 5VDC (4.75VDC–5.25VDC) voltage Power supply Backplane bus current 140mA (Typical value) consumption...
  • Page 6 FL6112 dual-channel incremental encoder detection module Specifications Item Specifications Digital input On: The input signal is valid. Green signal detection Off: The input signal is invalid. Digital output On: Enable output. Green signal indication Off: Disable output. Connected Incremental encoder...
  • Page 7 FL6112 dual-channel incremental encoder detection module Specifications Item Specifications variable Update time of Four levels: 20ms, 100ms, 500ms, 1000ms measurement function Gating function Software gate Certification CE, RoHS Ingress protection (IP) IP20 rating Working -20°C–+55°C temperature Working humidity 10%–95% (no condensation)

  • Page 8: Interface Description

    FL6112 dual-channel incremental encoder detection module Interface description 2 Interface description Schematic diagram Left signal Left terminal Right terminal Right signal Pin Name Description Specifications Channel 0 encoder A-phase input 1. Internal impedance: 3.3kΩ Channel 1 encoder A-phase input 2. 12–30V voltage input is...

  • Page 9: Wiring Examples

    FL6112 dual-channel incremental encoder detection module Wiring examples 3 Wiring examples Encoder 注意： DI and Encoder DI and Encoder 编码器线缆需采用屏蔽线。 端子PE需通过线缆良好接地 尽量避免编码器线缆与动力 编码器输入与数字量输入共 Load 当采用模块给编码器供电时 与VO短接；PNP型编码器输 当采用外部电源给编码器供 将SS与外部电源正极短接； Power in 部电源负极短接。 Note: The shielded cable should be used as the encoder cables.

  • Page 10: Cable Specifications

    FL6112 dual-channel incremental encoder detection module Cable specifications 4 Cable specifications Cable diameter Cable material Crimping tool Tubular cable lug 0.75 Use a proper crimping plier. Note: The cable diameters of the tubular cable lugs in the preceding table is only for reference, which can be adjusted based on actual situations.

  • Page 11: Application Example

    FL6112 dual-channel incremental encoder detection module Application example 5 Application example This chapter takes CODESYS as an example to introduce the usage of the product. Step 1 Add the FL6112_2EI device. Step 2 Choose Startup Parameters, set the counter, filtering mode, encoder resolution, and counter preset values based on the actual needs, with a filter unit of 0.1μs.
  • Page 12 FL6112 dual-channel incremental encoder detection module Application example Cntx Cfg(x=0,1) is the counter configuration parameter of type UINT. Taking the counter 0 configuration as an example, the data definition can be found in the parameter description. Name Description 00: A/B phase quadruple frequency; 01: A/B phase Bit1–bit0...
  • Page 13 FL6112 dual-channel incremental encoder detection module Application example Cntx Ratio(x=0,1) is the encoder resolution (number of pulses fed back from one revolution, i.e. the pulse increment between two Z pulses). Assuming the resolution labeled on the encoder is 2500P/R, the Cnt0 Ratio should be set to 10000 since the Cnt0 Cfg is configured as A/B phase quadruple.
  • Page 14 FL6112 dual-channel incremental encoder detection module Application example According to the configuration value 788 of Cnt0 Cfg mentioned above (enabling DO to output pulse 8ms when the comparison is consistent), when the count value Cnt0_Val is equal to 1000000, DO0 will output 8ms.

  • Page 15: Appendix A Parameter Description

    FL6112 dual-channel incremental encoder detection module Parameter description Appendix A Parameter description Parameter name Type Description Configuration parameter for counter 0: Bit1–bit0: Channel mode configuration 00: A/B phase quadruple frequency; 01: A/B phase double frequency; 10: A/B phase rated frequency; 11: Pulse+direction (high level, positive) Bit3–bit2: Frequency measurement period...
  • Page 16 FL6112 dual-channel incremental encoder detection module Parameter description Parameter name Type Description 2EI Cnt1 PresetVal DINT Counter 1 preset value. Control parameter for counter 0. Bit0: Enable counting, valid at high levels Bit1: Clear counting, valid at the rising edge...

  • Page 17: Appendix B Fault Code

    FL6112 dual-channel incremental encoder detection module Fault code Appendix B Fault code Fault Fault code code Fault type Solution (hexadecimal) (decimal) Ensure the correct mapping Module configuration between module network 0x0001 fault configuration and physical configuration. Incorrect module Ensure that module parameter...
  • Page 18 FL6112 dual-channel incremental encoder detection module Fault code Fault Fault code code Fault type Solution (hexadecimal) (decimal) Ensure that the output of 0x0024 Output fault on channel 1 channel 1 has no short circuit or open circuit. Ensure that the signal source...
  • Page 19 6 6 0 0 1 - 0 1 3 3 8...
