TriangleTube Capella Series Owner's Manual & Warranty

Hide thumbs

Advertisement

Table of Contents

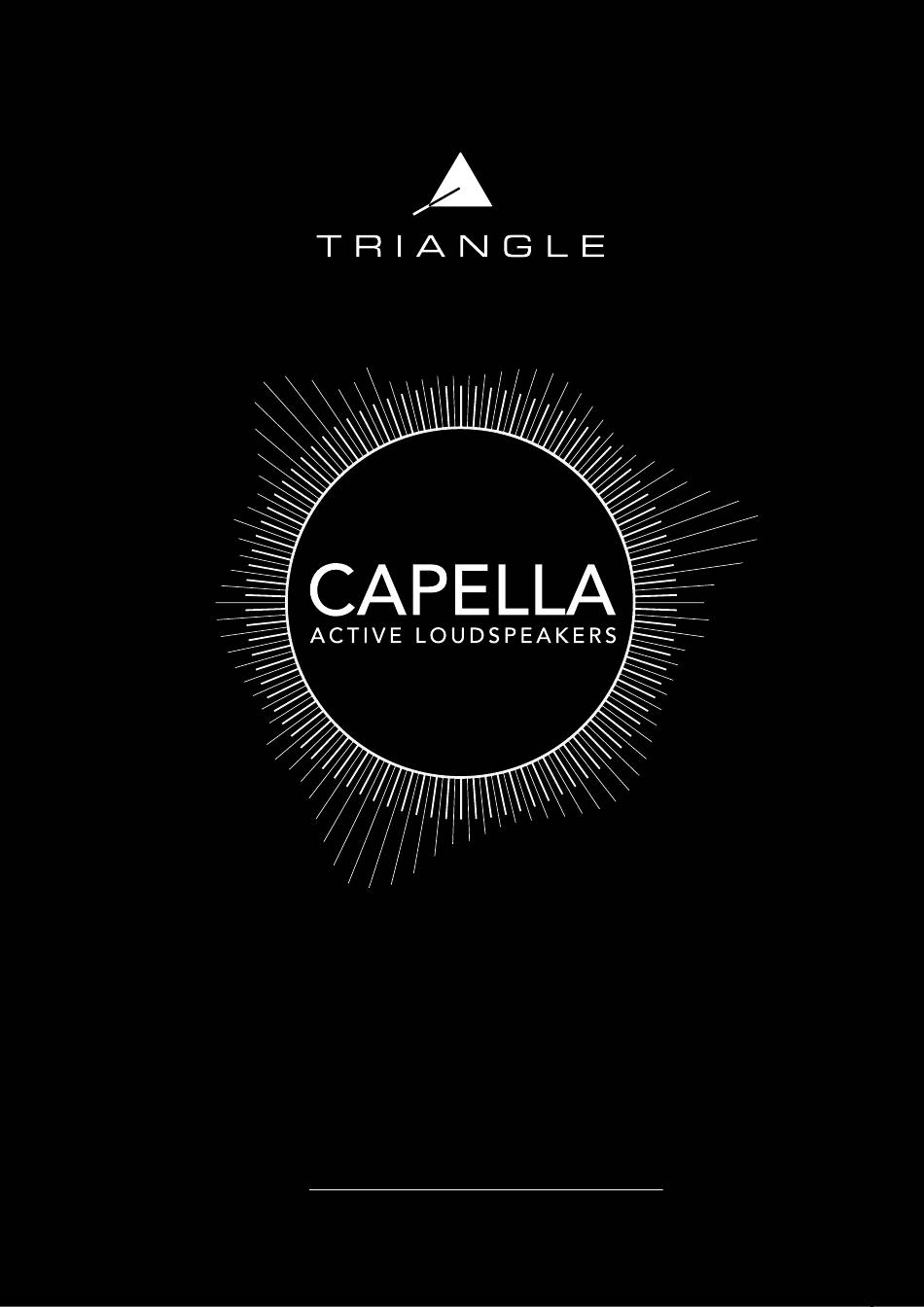

Owner's manual & Warranty
TRIANGLE Hi-Fi
475 Avenue Flandres Dunkerque 02200 Villeneuve-Saint-Germain - FRANCE
1
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Capella Series and is the answer not in the manual?

Questions and answers

Related Manuals for TriangleTube Capella Series

Summary of Contents for TriangleTube Capella Series

  • Page 1 Owner’s manual & Warranty TRIANGLE Hi-Fi 475 Avenue Flandres Dunkerque 02200 Villeneuve-Saint-Germain - FRANCE...
  • Page 3 CONTENTS USER MANUAL - ENGLISH 1. Installation precautions / Warnings 2. Unpacking 3. Description of the speakers 4. Description of the Stereo Hub 5. Description of the remote 6. Initial system startup p.10 Setting up the Stereo Hub p.11 Setting up the speakers p.12 7.
  • Page 4 USER MANUAL ENGLISH The TRIANGLE team appreciates the trust you place in our brand. For optimal use and perfect sound reproduction of your CAPELLA system, please read the instructions in this manual. CAPELLA System Models: CAPELLA: TEA8_BL, TEA8_BU, TEA8_BW, TEA8_BX, TEA8_BY, TEA8_BZ, TEA8_CA...
  • Page 5 1. INSTALLATION PRECAUTIONS / WARNINGS INSTALLATION PRECAUTIONS BEFORE THE INSTALLATION Before making any connections, make sure the speakers and the Stereo Hub are switched off. Always disconnect power cables from the mains before removing or connecting cables. Do not plug them back in before all connections are made. MOVING THE SYSTEM Always remove the power cord and disconnect the cables between all components when moving the device.
  • Page 6 2. UNPACKING Remove the speakers, grilles and accessory box from the packaging. If you notice any defects in one of the elements, please get in touch with your reseller. Before disposing of the packaging*, make sure there is nothing left inside. Includes : 2 x CAPELLA speakers.
  • Page 7 3. DESCRIPTION OF THE SPEAKERS The Capella active speakers each feature their own amplification (2x50 watts per speaker). This means they can receive music from any WiSA transmitter at a resolution of 24bits/96Khz. DROITE RIGHT USER MANUAL DROITE RIGHT USER MANUAL 1.
  • Page 8 4. DESCRIPTION OF THE STEREO HUB The Stereo Hub is not only a wireless audio transmitter, but also a Hi-Fi preamplifier streamer. It features WiSA wireless technology, allowing high-resolution transmission from your source to your speakers, with no noticeable latency. Connect a wide range of sources to the back of the device or use the Stereo Hub’s streamer function with Google Cast / Apple Airplay / Spotify Connect / Roon Ready / DLNA / Bluetooth compatibility.
  • Page 9 5. DESCRIPTION OF THE REMOTE The remote control supplied with your CAPELLA system operates via radio frequency. You do not need to point it towards the Stereo Hub to control it. It has a range of 15 meters, even across obstacles. Featuring a motion sensor, you can visually check the sound level and the selected source Remote control pairing - See page 15 or 25 depending on the method used.

  • Page 10: Initial System Start-Up

    6. 6. INITIAL SYSTEM STARTUP To make setup as easy as possible, your CAPELLA system is already pre-configured. We have paired your remote control and speakers. (If you have restored your system to factory settings, please go directly to page 13) To assist you, a video of each installation step is available by scanning the QR code below :...
  • Page 11 6.A SETTING UP THE STEREO HUB WISA SERVICE PAIRING 1.Place the batteries in your remote control 5.The Stereo Hub begins its startup sequence. using the supplied key. Please wait until it is finished. This is how it works: the Ensure that the polarity is correct. WiSA LED remains switched off for 50 seconds, then flashes for 20 seconds before switching off again.
  • Page 12 6.B SETTING UP THE SPEAKERS 1.Refer to the label on the back of your speakers 4.Your system is now configured, and you can to find out whether they should be positioned to enjoy the Bluetooth* source or any other physical the left or right of your listening position.
  • Page 13 7. STARTING UP THE SYSTEM AFTER A RESET Resetting your CAPELLA system requires a complete reconfigura- tion, please follow these steps carefully. To assist you, a video of each installation step is available by scanning the QR code below: To make setup as easy as possible, we recommend you direct your Stereo Hub and speakers towards you, as shown in the image above.
  • Page 14 7.A SETTING UP THE STEREO HUB WISA SERVICE PAIRING 1.Place the batteries in your remote control 5.The Stereo Hub begins its startup sequence. using the supplied key. Please wait until it is finished. This is how it works: the Ensure that the polarity is correct. WiSA LED remains switched off for 50 seconds, then flashes for 20 seconds before switching off again.
  • Page 15 7.B REMOTE CONTROL PAIRING 4 sec 60 sc 1.Press and hold the control buttons and wait for the WiSA LED to stop “PAIRING” button on the back of the Stereo Hub flashing. Your remote control and your Stereo Hub until the WiSA LED starts flashing rapidly. Release are paired.
  • Page 16 7.C SPEAKERS PAIRING 1.Connect your speakers to your AC outlet using When the LED switches off, the startup the supplied power cables. sequence is complete. 2.The speaker startup sequence begins. The STATUS LED flashes orange, then turns off and lights up blue for a moment, before turning...
  • Page 17 7.C SPEAKERS PAIRING 4 sec 60 sc 2-4 sec 4.Press the “PAIR” button on each speaker for 3-4 5.Briefly press the “PAIRING” button at the back of seconds, then wait for the LEDs to start flashing the Stereo Hub. The WiSA LED then starts flashing orange rapidly slowly.
  • Page 18 8. CONNECTING THE STEREO HUB TO THE WI-FI VIA GOOGLE Apple Android 1.The Wi-Fi LED on the front panel flashes 3.Download the “Google Home”* app on your rapidly, indicating that the “Wi-Fi configuration” smartphone or tablet and follow the instructions mode has been activated.
  • Page 19 8. CONNECTING THE STEREO HUB TO THE WI-FI VIA GOOGLE HOME 3a. Go to the “Devices” tab and 3b. . Choose “Google Nest or 3c. Choose “Home” and click on 3d. Once the Stereo Hub is detec- click on “Add device”. partner device”.
  • Page 20 9. THE TRIANGLE CAPELLA APP Apple Android 2.Launch your app, then click on the icon 1.Go to the App Store (Apple) or Google Play corresponding to your system Store (Android) and download the app : «TRIANGLE CAPELLA» If your CAPELLA system does not appear on the app, restart your Stereo Hub by disconnecting / reconnecting the power supply and wait for the star-...
  • Page 21 9.A DESCRIPTION OF THE HOMEPAGE The homepage represented by the icon, is used as a playback page. It also lets you select the source, set the volume and access parameters. Settings Stereo Hub On/Off Source selection Volume control Illustration of the song Playback slider (only available with some strea-...
  • Page 22 9.B SETTINGS Click the icon to access the settings: Resetting the Remote control Stereo Hub pairing Send a message to Maximum volume report a problem Pairing WiSA devices setting Update...
  • Page 23 9.C SPEAKER SETTINGS a.Stereo settings When you first use your speakers, they are already configured in stereo. Refer to the labels on the back of the speakers to know how to position them. You can move on to the next step. If you have reset your system to factory settings, both speakers are configured and assigned as “Left speakers”.
  • Page 24 9.C SPEAKER SETTINGS b. Setting the mode and distance Press the left and right speaker icons successively to access the settings. Size Large: This mode is recommended for your CAPELLA system if you do not have a subwoofer. Size Small : Use this mode if you have a subwoofer or wish to limit the low frequencies of your...
  • Page 25 9.C SPEAKER SETTINGS c. Level adjustments Press “Speaker levels” to access the adjustments. Sound level adjustment of your speakers according to your listening position. Place yourself on Then validate your po- Select the left and your listening posi- sition by clicking on right speaker icon, tion.
  • Page 26 9.D INTRODUCTION TO “EQ” FUNCTIONS The CAPELLA app can be used to perform an acoustic calibration of your system, followed by various sound adjustments. CAPELLA is an intel- ligent audio system that adapts to your environment, while giving you the freedom to make precise adjustments to match your personal preferences.
  • Page 27 9.E DESCRIPTION ON THE EQ Indicates the microphone selected for the measurement (iPhone or ZEN microphone)*. Graph showing “The frequency Response” of your speakers “Room EQ” “Manual EQ” Manual Automatic calibration of your adjustments (see page 32). system (see page 28).. Use this button to enable or Use this button to enable disable...
  • Page 28 9.F ROOM EQ “Room EQ” automatically calibrates your system according to the acoustic limitations of your room. As they propagate, the audible frequencies from 20Hz to 20kHz cause a variety of phenomena with varying degrees of impact on your listening experience. To explain these phenomena simply, we can characterize them in 4 diffraction zones, each zone being de- fined by a frequency band: (example for a medium-sized room) •...
  • Page 29 9.F ROOM EQ To learn how to use and configure the ZEN microphone, please refer to the appendix 2 page 69 before starting your measurements. At the start of the test, your speakers will emit a pink noise; you will then need to move around your room with your microphone, following a few simple rules.
  • Page 30 9.F ROOM EQ When taking measurements, follow the recommendations below: Move around the room with the microphone to cover the entire room, positioning it at Î different heights. Keep within 1.5m of your speakers. Make circular movements with your arm. Î...
  • Page 31 9.F ROOM EQ With your microphone, start taking measurements in different parts of the room, as described above. Î Then click on “Begin”, the LED on your ZEN microphone turns red. The speakers start producinga Î constant pink noise, and you have 60 seconds to take as many measurements as possible. If you think you have covered the entire room, you can stop the operation as soon as the “Stop”...
  • Page 32 9.G MANUAL EQ The “Manual EQ” function lets you fine-tune your speakers. The various settings available have a direct effect on your CAPELLA system’s response curve. You can adjust these settings while listening to a song, and see the correction made by enabling or disabling the function. To ensure optimum use, it is best to have a basic understanding of the frequencies used and their functions.
  • Page 33 9.G MANUAL EQ Musical instruments navigate these different ranges. Here is a diagram showing the respective frequency ranges:...
  • Page 34 9.G MANUAL EQ (SUITE) Practice • Click on the “Manual EQ” icon. • Then click on “+”. A curve appears with a drop-down menu showing different types of filters. Let’s look at each of these settings one by one, then explain their functions. Parametric EQ: “Parametric EQ”...
  • Page 35 9.G MANUAL EQ • Click on “Parametric EQ”. A yellow line appears on the graph: this is the theoretical frequency response of your speaker when a pink noise passes through it. • Click on “F” for frequency, to adjust between 10Hz and 20kHz. In our example, we will set it to 2800Hz (the ear’s resonant frequency range), then confirm with “...
  • Page 36 9.G MANUAL EQ Low shelving : “Low shelving” allows you to increase or decrease the low end of the frequency spectrum. The low register will be directly affected. This setting adjusts the overall level of low frequencies. • Click “Low shelving”. •...
  • Page 37 9.G MANUAL EQ High shelving : “High shelving” allows you to increase or decrease the high end of the frequency spectrum. The high fre- quency register will be directly affected. This setting adjusts the overall level of high frequencies. Click “High shelving”. Î...
  • Page 38 9.G MANUAL EQ 12dB highpass : The “12dB highpass” defines a highpass filter with a raw slope at 12dB/Oct. This means setting the frequen- cy at which your speakers will start to operate in the low frequencies, with very little drag on frequencies be- low the set frequency.
  • Page 39 9.G MANUAL EQ • Save your setting in your “Presets” by pressing and holding the number 1/2/3 if you are satisfied with your setting 6dB highpass : The “6dB highpass” defines a highpass filter with a gentle slope at 6dB/Oct. This means setting the fre- quency at which your speaker will start to operate in the low frequencies, with a softer cut-off on frequencies below the set frequency than a 12dB/Oct filter.
  • Page 40 9.G MANUAL EQ (SUITE) • Click on “6dB highpass”. • Then click on the frequency and set the start of this filter. For example, we have a medium-sized room, so we will apply a 50Hz filter. This filter prevents all lower frequencies, which are difficult to reproduce due to the numerous resonances linked to the dimensions of our room.
  • Page 41 9.G MANUAL EQ Perform a listening session, then activate/deactivate each of these filters individually to assess their effectiveness. We recommend that you save this setting by pressing and holding one of the “Presets”. If you wish to change this setting, press and hold the selected “Preset” again, then copy this setting to the “Editor.”...
  • Page 42 10. CONNECTING SOURCES TO THE STEREO Connecting with Wi-Fi Depending on the brand of your smartphone or tablet, the connection protocol differs. If you have an iPhone/ iPad from Apple, Airplay or Google Cast connections are available. If you have an Android, only Google Cast connection will be possible.
  • Page 43 10.A1 SPOTIFY CONNECT The Spotify streaming service offers its own solution*, independent of Google Cast or Airplay, called Spotify Connect. The connection method is similar for IOS & ANDROID. * You can still connect via Google Cast or Airplay, but the quality will be inferior. APPLE ANDROID 1.
  • Page 44 10.A2 ROON READY Roon offers a complete solution for managing your music stored on your local network or computer. It offers the added advantage of being able to reference all your music and streaming services in a single library, and to obtain a host of information about your tracks and artists.
  • Page 45 10.A2 ROON READY Follow the instructions below to use Roon on your smartphone or tablet: APPLE ANDROID 1. Install the ROON app on your smartphone/tablet. 2. Start your Roon app. 3. Then click on the “ ” icon located on the lower left. 4.
  • Page 46 10.A3 DEEZER The Deezer streaming service offers an Airplay or Google Cast connection on Apple. On Android, only the Google Cast connection is available. APPLE ANDROID • Launch your Deezer app from your smartphone or tablet. • Then click on the “ ”...
  • Page 47 10.A4 APPLE MUSIC The Apple Music streaming service for owners of Apple smartphones/tablets works via Airplay. APPLE 1. Launch your Apple Music app from your smartphone or tablet. 2. Then click on the “ ” icon located in the bottom center. 3.
  • Page 48 10.A5 QOBUZ The Qobuz streaming service offers an Airplay or Google Cast connection on Apple. On Android, only the Google Cast connection is available. APPLE 1. Launch your Qobuz app from your smartphone or tablet. 2. Then click on the “ ”...
  • Page 49 10.A5 QOBUZ ANDROID 1. Launch your Qobuz app from your smartphone or tablet. 2. Then click on the “ ” icon located on the top right. 3. Select your CAPELLA system from the list. 4. The “ ” icon on the lower left indicates that your system is connected. 5.
  • Page 50 10.A6 TIDAL The Qobuz streaming service offers an Airplay or Google Cast connection on Apple. On Android, only the Google Cast connection is available.. APPLE 1. Launch your Tidal app from your smartphone or tablet. 2. Then click on the “ ”...
  • Page 51 10.A6 TIDAL ANDROID 1. Launch your Tidal app from your smartphone or tablet. 2. Then click on the “ ” icon located on the top right. 3. Select your CAPELLA system from the list. 4. The “ ” icon on the upper right indicates that your system is connected. 5.
  • Page 52 10.A7 AMAZON MUSIC The Amazon Music streaming service offers an Airplay or Google Cast connection on Apple. On Android, only the Google Cast connection is available. APPLE 1. Launch your Amazon Music app from your smartphone or tablet. 2. Then click on the “ ”...
  • Page 53 10.A7 AMAZON MUSIC ANDROID 1. Launch your Amazon Music app from your smartphone or tablet. 2. Then click on the “ ” icon located in the bottom center. 3. Select your CAPELLA system from the list. 4. The “ ” icon in the bottom center indicates that your system is connected. 5.
  • Page 54 10.A8 YOUTUBE MUSIC The YouTube Music streaming service offers an Airplay or Google Cast connection on Apple. On Android, only the Google Cast connection is available. APPLE 1. Launch your YouTube Music app from your smartphone or tablet. 2. Then click on the “ ”...
  • Page 55 10.A8 YOUTUBE MUSIC ANDROID 1. Launch your YouTube Music app from your smartphone or tablet. 2. Then click on the “ ” icon located on the top right. 3. Select your CAPELLA system from the list. 4. The “ ” icon on the upper right indicates that your system is connected. 5.
  • Page 56 9.A9 YOUTUBE VIDEO The YouTube streaming service offers an Airplay connection for Apple only. APPLE 1. Launch your YouTube app from your smartphone or tablet. 2. Then click on the “ ” icon located on the top right. 3. Select “Airplay” as your connection mode. 4.
  • Page 57 10.A10 TUNE IN The online radios and TuneIn service offer an Airplay or Google Cast connection on Apple. On Android, only the Google Cast connection is available. APPLE 1. Launch your TuneIn app from your smartphone or tablet. 2. Then click on the “ ”...
  • Page 58 10.A10 TUNE IN ANDROID 1. Launch your TuneIn app from your smartphone or tablet. 2. Then click on the “ ” icon located on the lower left. 3. Select your CAPELLA system from the list. 4. The “ ” icon on the lower left indicates that your system is connected. 5.
  • Page 59 10.B CONNECTION VIA BLUETOOTH Sampling: 48kHz/16bits With this connection, you can send music wirelessly using Bluetooth technology. The CAPELLA System Lets you play music from any Bluetooth-enabled source: smartphone, tablet, computer... To do so: Switch on your CAPELLA system by pressing on your remote control.
  • Page 60 10.C CONNECTION VIA HDMI Sampling: 192kHz/24bits HDMI The HDMI input connects your TV to your Stereo Hub. To do so: Make sure your TV and your HDMI cable are compatible with the HDMI ARC technology. Î Then connect your HDMI cable to the input of your Stereo Hub and to the HDMI ARC input of your Î...
  • Page 61 10.D CONNECTION VIA USB USB-AUDIO USB-A Sampling: 192kHz/24bits (USB-B) USB-C USB-AUDIO (USB-B) The USB-AUDIO input allows you to connect your Stereo Hub to a computer. You can use a USB-A or USB-C to USB-B cable. Connect the USB cable between your Stereo Hub and your computer. Î...
  • Page 62 10.E1 CONNECTION VIA AN OPTICAL CABLE Sampling: 192kHz/24bits OPT1/2/3 (SPDIF) USB-A The 3 optical inputs (OPT1) allow you to connect audio devices with optical outputs to your Stereo Hub: TV,CD player, DVD player... To do so: USB-C Connect your optical cable from the rear of the Stereo Hub to the “OPTICAL” input on your device. Î...
  • Page 63 10.F CONNECTION VIA RCA (TURNTABLE/ CD PLAYER/...) Optical sampling: 96kHzkHz/24bits CD PISTE 1 The LINE input can be used to connect a pre-amplified turntable, CD player or any other source with RCA outputs. Connect the source’s RCA cable to the “Line” input of your Stereo Hub. Î...
  • Page 64 11. CONNECTING SOURCES WITHOUT THE STEREO HUB 11.A CONNECTION VIA RCA SOURCE DROITE RIGHT USER MANUAL Use the “pre-amp” output of your integrated amplifier or the “amp” output of your preamp: Connect the source’s RCA cables to the “Line IN” input of the speakers. Î...
  • Page 65 11.B CONNECTION VIA WiSA SOURCE DROITE RIGHT USER MANUAL Some sources, like TVs/streamers/consoles, have WiSA compatibility. This means you do not need the Stereo Hub and can connect your source directly to your speakers. To do this: Connect your speakers using the supplied power cables. Î...
  • Page 66 12.APPENDIX...

  • Page 67: Appendix 1: Connecting The Stereo Hub To The Wi-Fi Via

    APPENDIX 1: CONNECTING THE STEREO HUB TO THE WI-FI VIA Here is another method to connect your CAPELLA system to the Wi-Fi if your region does not allow the use of Google-Home ARNING: the Google Cast connection will not be supported, only AirPlay connections and the Spotify Connect and Roon Ready streaming services work with this method.
  • Page 68 APPENDIX 1: CONNECTING THE STEREO HUB TO THE WI-FI VIA THE IP 4. You will be taken to the next page where two actions are requested: a. Customize your system name : 192.168.43.1 Device Name Airplay password Apply Stereo_Hubxxxxx Save Network Password Wireless Mode...

  • Page 69: Appendix 2: Zen Microphone

    APPENDIX 2: ZEN MICROPHONE For the best measurement results, we recommend using the ZEN microphone with Bluetooth & Wi-Fi wireless technology. This microphone is compatible with Apple & Android smartphones. It collects the data, then transmits it to the CAPELLA app to analyze and calculate the correction to be made. *However, it is possible to take measurements directly from an iPhone superior to the 6s generation.
  • Page 70 APPENDIX 2: ZEN MICROPHONE Installation : 1. Make sure your CAPELLA system is On and connected to the Wi-Fi network. 2. Switch on your ZEN microphone by simply pressing the “Action” button (make sure it is properly charged beforehand). The white LED flashes rapidly, indicating that the microphone is ready for setup.

  • Page 71: Appendix 3: Left And Right Speaker Assignment

    APPENDIX 3: LEFT AND RIGHT SPEAKER ASSIGNMENT Speaker Speaker LEFT RIGHT 1.Press and release three times quickly the “PAI- 3.Press the left or right source selection arrow to RING” button on the back of the Stereo Hub until switch to the second speaker, then repeat the ope- the WiSA LED starts flashing rapidly.
  • Page 72 CAPELLA Technical specifications CAPELLA System Type Bass-reflex active speaker Tweeter with a 1 inch magnesium alloy dome Driver diameters 6 inch midrange/bass driver in cellulose pulp Bandwidth 42 Hz - 22 KHz System power 2 x 100W RCA x1 / Optique x3 / USB audio x1 / Aux jack - optique x1 / HDMI (ARC-CEC) x1 / Coax x1 Stereo Hub inputs Streaming: Bluetooth 4.2 / Google Cast / Airplay /...

  • Page 73: How To Contact Us

    HOW TO CONTACT US? CAPELLA@trianglehifi.com...

  • Page 74: Safety Instructions

    SAFETY INSTRUCTIONS WARNING: Read carefully all the safety instructions before using the device . • Keep these safety instructions for future reference. • Do not use this apparatus near water or liquid. • Only clean with a dry and soft cloth. •...

  • Page 75: Warranty

    WARRANTY Thanks for buying a TRIANGLE CAPELLA system. We want you to enjoy your purchase to the fullest. The first step is an easy registration of your products. By doing this, you will benefit from helpful tips, products support, special offers and 1-year additional warranty on your TRIANGLE speakers.
