  • Page 1                                             Spectra PowerTwin M V2.0 Series Monitors | Standard Display  User Manual Version 1.00 – October 2023    ...
  • Page 2: Table Of Contents

    1.2.1 Spectra PowerTwin M‐08 Series ................  1 1   1.2.2 Spectra PowerTwin M‐10 Series ................  1 4   1.2.3 Spectra PowerTwin M‐10H Series  ................  1 7   1.2.4 Spectra PowerTwin M‐12H Series  ................  2 0   1.2.5 Spectra PowerTwin M‐15 Series ................  2 3  ...
  • Page 3 1.4.4 Spectra PowerTwin M‐12H Series  ................  4 3   1.4.5 Spectra PowerTwin M‐15 Series ................  4 5   1.4.6 Spectra PowerTwin M‐15W Series ................  4 5   1.4.7 Spectra PowerTwin M‐17 Series ................  4 6   1.4.8 Spectra PowerTwin M‐19 Series ................  4 6  ...
  • Page 4: Preface

    Acknowledgement   All registered trademarks and product names mentioned herein are used for identification purposes  only and may be trademarks and/or registered trademarks of their respective owners.  Disclaimer This manual is intended to be used as a practical and informative guide only and is subject to change  without  notice.  It  does  not  represent  a  commitment  on  the  part  of  Spectra.  This  product  might  include  unintentional  technical  or  typographical  errors.  Changes  are  periodically  made  to  the  information herein to correct such errors, and these changes are incorporated into new editions of  the publication.    Declaration of Conformity FCC ...
  • Page 5: Product Warranty Statement

       Customers must collect all the information about the problems encountered and note  anything abnormal and describe the problems on the “Spectra Service Form” for the  RMA number apply process.   Charges  may  be  incurred  for  certain  repairs.  Spectra  will  charge  for  repairs  to  products whose warranty period has expired. Spectra will also charge for repairs to  products  if  the  damage  resulted  from  acts  of  God,  environmental  or  atmospheric  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display...
  • Page 6: Technical Support And Assistance

        This indication provides additional information to complete a task easily.   (Cette indication fournit des informations supplémentaires pour effectuer facilement une tâche.) Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 6 ...
  • Page 7: Safety Precautions

    14. CAUTION: Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of  Used Batteries According to the Instructions.  ATTENTION: Risque d'explosion si la batterie est remplacée par un type incorrect. Mettre au  rebus les batteries usagées selon les instructions.  15. Equipment intended only for use in a RESTRICTED ACCESS AREA.  16. Output  of  the  external  power  source  shall  be  complied  with  ES1,  PS3  requirements,  output  rating between 9‐48 VDC, minimum 5‐1A, with minimum rated maximum ambient temperature  70°C, and has to be evaluated according to UL/IEC/EN 60950‐1 and/or UL/IEC/EN 62368‐1. If  need further assistance, please contact Spectra for further information.  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 7 ...
  • Page 8: Package Contents

    VGA Cable  1  Power Terminal Block Connector (Female)  1    Screw Pack 1  Panel Mounting Kit (The quantity varies with the size of the display  1  module, please refer to the datasheet for the actual quantity)  Note: Notify your sales representative if any of the above items are missing or damaged.                              Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 8 ...
  • Page 9: Chapter 1 Product Introductions

                                  Chapter 1 Product Introductions   Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 9 ...
  • Page 10: Overview

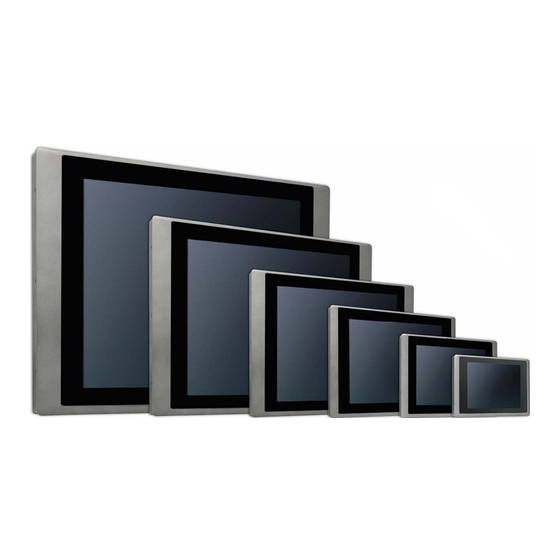

    1.1 Overview The Spectra PowerTwin M series modular industrial touch monitors are suitable for the display requirements  of equipment HMI and production process visualization in harsh on‐site applications. The wide selection of  screen sizes and touch options are just some of the features. The patented CDS (Convertible Display System)  technology  makes  field  side  maintenance  easier  and  enables  simpler  upgrades  in  the  future.  The  Spectra  PowerTwin M series supports digital and analog signal inputs, including HDMI, DisplayPort and VGA. It also  has a multi‐language OSD and supports multiple installation methods, including panel, VESA, and rack mount,  so the monitor can adapt to deployment in a variety of application scenarios.    •  8.4~24” TFT‐LCD with Resistive 5‐wire / Projected Capacitive Touch  •  Designed with Aluminum Die‐Casting Front Frame  •  Various Video Input Interfaces: 1x VGA, 1x HDMI, 1x DisplayPort Input  •  Support USB & RS‐232 Interfaces for Touch Function  •  OSD Control keys for Brightness Adjustment  •  Convertible Display System (CDS) Supported  •  True Flat IP65 Front Panel Protection  •  Support Panel / VESA / Rack Mount ...
  • Page 11: Specifications

    • 1.58kg  Weight  • Die‐Casting Flat Surface  Mechanical Construction  Environment  • IP 65 Compliant  Front Panel Protection  • ‐20°C to 70°C (with Industrial Grade peripherals; Ambient with air flow)  Operating Temperature  • ‐30°C to 80°C  • ‐20°C to 70°C  Storage Temperature  • 80% RH @ 50°C (Non‐condensing)  • 85% RH @ 50°C (Non‐condensing)  Relative Humidity  • CE, UKCA, FCC, ICES‐003 Class A  EMC  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 1 ...
  • Page 12 Protection  • Protection Range: 51‐58V  Over Voltage Protection  • Protection Type: shut down operating voltage, re‐power on at the present level to recover  • 15A  Over Current Protection  • 1,217,359 hrs  MTBF  • ‐ Database: Telcordia SR‐332 Issue 3, Method 1, Case 3  Environment  • ‐20°C to 70°C  • Ambient with air flow  Operating Temperature  • According to IEC60068‐2‐1, IEC60068‐2‐2, IEC60068‐2‐14  • ‐20°C to 75°C  Storage Temperature  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 2 ...
  • Page 13 • 95%RH @ 70°C (non‐Condensing)  Relative Humidity  • Operating, 15 Grms (according to IEC60068‐2‐27)  Shock  • Operating, 1.5 Grms, 5‐500 Hz, 3 Axes  (according to IEC60068‐2‐64)  Vibration  • Operating, 1 Grms, 10‐500 Hz, 3 Axes  (according to IEC60068‐2‐6)  • CE, UKCA, FCC, ICES‐003 Class A  EMC  • EN61000‐6‐4, EN61000‐6‐2 (24VDC Input Only)  • UL, cUL, CB, IEC, EN 62368‐1  Safety  * Product Specifications and features are for reference only and are subject to change without prior  notice. For more information, please refer to the latest product datasheet from our website.     Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 3 ...
  • Page 14: Spectra Powertwin M-10 Series

    Dimension (WxDxH)  Weight  • 2.24 kg  • Die‐Casting Flat Surface  Construction  Environment  • IP 65 Compliant  Front Panel Protection  Operating Temperature  • Ambient with Air flow: ‐20°C to 75°C    • Ambient with Air flow: ‐10°C to 70°C  (with Industrial Grade Peripherals)  (with Industrial Grade Peripherals)  • ‐30°C to 80°C  Storage Temperature  • 80% RH @ 40°C (Non‐condensing)  Relative Humidity  • CE, UKCA, FCC, ICES‐003 Class A  EMC  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 4 ...
  • Page 15 Protection  • Protection Range: 51‐58V  Over Voltage Protection  • Protection Type: shut down operating voltage, re‐power on at the present level to recover  • 15A  Over Current Protection  • 1,217,359 hrs  MTBF  • ‐ Database: Telcordia SR‐332 Issue 3, Method 1, Case 3  Environment  • ‐20°C to 70°C  • Ambient with air flow  Operating Temperature  • According to IEC60068‐2‐1, IEC60068‐2‐2, IEC60068‐2‐14  • ‐20°C to 75°C  Storage Temperature  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 5 ...
  • Page 16 • 95%RH @ 70°C (non‐Condensing)  Relative Humidity  • Operating, 15 Grms (according to IEC60068‐2‐27)  Shock  • Operating, 1.5 Grms, 5‐500 Hz, 3 Axes  (according to IEC60068‐2‐64)  Vibration  • Operating, 1 Grms, 10‐500 Hz, 3 Axes  (according to IEC60068‐2‐6)  • CE, UKCA, FCC, ICES‐003 Class A  EMC  • EN61000‐6‐4, EN61000‐6‐2 (24VDC Input Only)  • UL, cUL, CB, IEC, EN 62368‐1  Safety  * Product Specifications and features are for reference only and are subject to change without prior  notice. For more information, please refer to the latest product datasheet from our website.     Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 6 ...
  • Page 17: Spectra Powertwin M-10H Series

    Dimension (WxDxH)  Weight  • 2.24 kg  • Die‐Casting Flat Surface  Construction  Environment  • IP 65 Compliant  Front Panel Protection  Operating Temperature  • Ambient with Air flow: ‐20°C to 75°C    • Ambient with Air flow: ‐10°C to 70°C  (with Industrial Grade Peripherals)  (with Industrial Grade Peripherals)  • ‐30°C to 80°C  Storage Temperature  • 80% RH @ 40°C (Non‐condensing)  Relative Humidity  • CE, UKCA, FCC, ICES‐003 Class A  EMC  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 7 ...
  • Page 18 Protection  • Protection Range: 51‐58V  Over Voltage Protection  • Protection Type: shut down operating voltage, re‐power on at the present level to recover  • 15A  Over Current Protection  • 1,217,359 hrs  MTBF  • ‐ Database: Telcordia SR‐332 Issue 3, Method 1, Case 3  Environment  • ‐20°C to 70°C  • Ambient with air flow  Operating Temperature  • According to IEC60068‐2‐1, IEC60068‐2‐2, IEC60068‐2‐14  • ‐20°C to 75°C  Storage Temperature  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 8 ...
  • Page 19 • 95%RH @ 70°C (non‐Condensing)  Relative Humidity  • Operating, 15 Grms (according to IEC60068‐2‐27)  Shock  • Operating, 1.5 Grms, 5‐500 Hz, 3 Axes  (according to IEC60068‐2‐64)  Vibration  • Operating, 1 Grms, 10‐500 Hz, 3 Axes  (according to IEC60068‐2‐6)  • CE, UKCA, FCC, ICES‐003 Class A  EMC  • EN61000‐6‐4, EN61000‐6‐2 (24VDC Input Only)  • UL, cUL, CB, IEC, EN 62368‐1  Safety  * Product Specifications and features are for reference only and are subject to change without prior  notice. For more information, please refer to the latest product datasheet from our website.     Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 9 ...
  • Page 20: Spectra Powertwin M-12H Series

    Dimension (WxDxH)  Weight  • 3.16 kg  • Die‐Casting Flat Surface  Construction  Environment  • IP 65 Compliant  Front Panel Protection  Operating Temperature  • Ambient with Air flow: ‐20°C to 75°C    • Ambient with Air flow: ‐20°C to 80°C  (with Industrial Grade Peripherals)  (with Industrial Grade Peripherals)  • ‐30°C to 80°C  Storage Temperature  • 80% RH @ 40°C (Non‐condensing)  Relative Humidity  • CE, UKCA, FCC, ICES‐003 Class A  EMC  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 0 ...
  • Page 21 Protection  • Protection Range: 51‐58V  Over Voltage Protection  • Protection Type: shut down operating voltage, re‐power on at the present level to recover  • 15A  Over Current Protection  • 1,217,359 hrs  MTBF  • ‐ Database: Telcordia SR‐332 Issue 3, Method 1, Case 3  Environment  • ‐20°C to 70°C  • Ambient with air flow  Operating Temperature  • According to IEC60068‐2‐1, IEC60068‐2‐2, IEC60068‐2‐14  • ‐20°C to 75°C  Storage Temperature  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 1 ...
  • Page 22 • 95%RH @ 70°C (non‐Condensing)  Relative Humidity  • Operating, 15 Grms (according to IEC60068‐2‐27)  Shock  • Operating, 1.5 Grms, 5‐500 Hz, 3 Axes  (according to IEC60068‐2‐64)  Vibration  • Operating, 1 Grms, 10‐500 Hz, 3 Axes  (according to IEC60068‐2‐6)  • CE, UKCA, FCC, ICES‐003 Class A  EMC  • EN61000‐6‐4, EN61000‐6‐2 (24VDC Input Only)  • UL, cUL, CB, IEC, EN 62368‐1  Safety  * Product Specifications and features are for reference only and are subject to change without prior  notice. For more information, please refer to the latest product datasheet from our website.     Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 2 ...
  • Page 23: Spectra Powertwin M-15 Series

    Physical  • 408 x 312.4 x 59.2 mm  Dimension (WxDxH)  Weight  • 4.36 kg  • Die‐Casting Flat Surface  Construction  Environment  • IP 65 Compliant  Front Panel Protection  • Ambient with Air flow: 0°C to 65°C (with Industrial Grade Peripherals)  Operating Temperature  • ‐20°C to 65°C  Storage Temperature  • 80% RH @ 40°C (Non‐condensing)  Relative Humidity  • CE, UKCA, FCC, ICES‐003 Class A  EMC  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 3 ...
  • Page 24 Protection  • Protection Range: 51‐58V  Over Voltage Protection  • Protection Type: shut down operating voltage, re‐power on at the present level to recover  • 15A  Over Current Protection  • 1,217,359 hrs  MTBF  • ‐ Database: Telcordia SR‐332 Issue 3, Method 1, Case 3  Environment  • ‐20°C to 70°C  • Ambient with air flow  Operating Temperature  • According to IEC60068‐2‐1, IEC60068‐2‐2, IEC60068‐2‐14  • ‐20°C to 75°C  Storage Temperature  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 4 ...
  • Page 25 • 95%RH @ 70°C (non‐Condensing)  Relative Humidity  • Operating, 15 Grms (according to IEC60068‐2‐27)  Shock  • Operating, 1.5 Grms, 5‐500 Hz, 3 Axes  (according to IEC60068‐2‐64)  Vibration  • Operating, 1 Grms, 10‐500 Hz, 3 Axes  (according to IEC60068‐2‐6)  • CE, UKCA, FCC, ICES‐003 Class A  EMC  • EN61000‐6‐4, EN61000‐6‐2 (24VDC Input Only)  • UL, cUL, CB, IEC, EN 62368‐1  Safety  * Product Specifications and features are for reference only and are subject to change without prior  notice. For more information, please refer to the latest product datasheet from our website.     Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 5 ...
  • Page 26: Spectra Powertwin M-15W Series

    Touch Type  Physical  • 420 x 254 x 66.2 mm  Dimension (WxDxH)  Weight  • 4.25 kg  • Die‐Casting Flat Surface  Construction  Environment  • IP 65 Compliant  Front Panel Protection  Operating Temperature  • Ambient with Air flow: 0°C to 60°C (with Industrial Grade Peripherals)  • ‐20°C to 60°C  Storage Temperature  • 80% RH @ 40°C (Non‐condensing)  Relative Humidity  • CE, UKCA, FCC, ICES‐003 Class A  EMC  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 6 ...
  • Page 27 Protection  • Protection Range: 51‐58V  Over Voltage Protection  • Protection Type: shut down operating voltage, re‐power on at the present level to recover  • 15A  Over Current Protection  • 1,217,359 hrs  MTBF  • ‐ Database: Telcordia SR‐332 Issue 3, Method 1, Case 3  Environment  • ‐20°C to 70°C  • Ambient with air flow  Operating Temperature  • According to IEC60068‐2‐1, IEC60068‐2‐2, IEC60068‐2‐14  • ‐20°C to 75°C  Storage Temperature  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 7 ...
  • Page 28 • 95%RH @ 70°C (non‐Condensing)  Relative Humidity  • Operating, 15 Grms (according to IEC60068‐2‐27)  Shock  • Operating, 1.5 Grms, 5‐500 Hz, 3 Axes  (according to IEC60068‐2‐64)  Vibration  • Operating, 1 Grms, 10‐500 Hz, 3 Axes  (according to IEC60068‐2‐6)  • CE, UKCA, FCC, ICES‐003 Class A  EMC  • EN61000‐6‐4, EN61000‐6‐2 (24VDC Input Only)  • UL, cUL, CB, IEC, EN 62368‐1  Safety  * Product Specifications and features are for reference only and are subject to change without prior  notice. For more information, please refer to the latest product datasheet from our website.     Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 8 ...
  • Page 29: Spectra Powertwin M-17 Series

    • IP 65 Compliant  Front Panel Protection  Operating Temperature  • Ambient with Air flow:    • Ambient with Air flow:    • Ambient with Air flow:    ‐20°C to 75°C (with Industrial  ‐20°C to 80°C (with Industrial  ‐30°C to 85°C (with Industrial  Grade Peripherals)  Grade Peripherals)  Grade Peripherals)  • ‐30°C to 80°C  Storage Temperature  • 80% RH @ 40°C (Non‐condensing)  Relative Humidity  • CE, UKCA, FCC, ICES‐003 Class A  EMC  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 9 ...
  • Page 30 Protection  • Protection Range: 51‐58V  Over Voltage Protection  • Protection Type: shut down operating voltage, re‐power on at the present level to recover  • 15A  Over Current Protection  • 1,217,359 hrs  MTBF  • ‐ Database: Telcordia SR‐332 Issue 3, Method 1, Case 3  Environment  • ‐20°C to 70°C  • Ambient with air flow  Operating Temperature  • According to IEC60068‐2‐1, IEC60068‐2‐2, IEC60068‐2‐14  • ‐20°C to 75°C  Storage Temperature  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 0 ...
  • Page 31 • 95%RH @ 70°C (non‐Condensing)  Relative Humidity  • Operating, 15 Grms (according to IEC60068‐2‐27)  Shock  • Operating, 1.5 Grms, 5‐500 Hz, 3 Axes  (according to IEC60068‐2‐64)  Vibration  • Operating, 1 Grms, 10‐500 Hz, 3 Axes  (according to IEC60068‐2‐6)  • CE, UKCA, FCC, ICES‐003 Class A  EMC  • EN61000‐6‐4, EN61000‐6‐2 (24VDC Input Only)  • UL, cUL, CB, IEC, EN 62368‐1  Safety  * Product Specifications and features are for reference only and are subject to change without prior  notice. For more information, please refer to the latest product datasheet from our website.     Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 1 ...
  • Page 32: Spectra Powertwin M-19 Series

    • 510 x 389.3 x 63.2 mm  Dimension (WxDxH)  Weight  • 6.96 kg  • Die‐Casting Flat Surface  Mechanical Construction  Environment  • IP 65 Compliant  Front Panel Protection  Operating Temperature  • Ambient with Air flow: 0°C to 50°C (with Industrial Grade Peripherals)  Storage Temperature  • ‐20°C to 60°C    Relative Humidity  • 80% RH @ 50°C (Non‐condensing)  • CE, UKCA, FCC, ICES‐003 Class A  EMC  • UL, cUL, CB  Safety  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 2 ...
  • Page 33 Protection  • Protection Range: 51‐58V  Over Voltage Protection  • Protection Type: shut down operating voltage, re‐power on at the present level to recover  • 15A  Over Current Protection  • 1,217,359 hrs  MTBF  • ‐ Database: Telcordia SR‐332 Issue 3, Method 1, Case 3  Environment  • ‐20°C to 70°C  • Ambient with air flow  Operating Temperature  • According to IEC60068‐2‐1, IEC60068‐2‐2, IEC60068‐2‐14  • ‐20°C to 75°C  Storage Temperature  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 3 ...
  • Page 34 • 95%RH @ 70°C (non‐Condensing)  Relative Humidity  • Operating, 15 Grms (according to IEC60068‐2‐27)  Shock  • Operating, 1.5 Grms, 5‐500 Hz, 3 Axes  (according to IEC60068‐2‐64)  Vibration  • Operating, 1 Grms, 10‐500 Hz, 3 Axes  (according to IEC60068‐2‐6)  • CE, UKCA, FCC, ICES‐003 Class A  EMC  • EN61000‐6‐4, EN61000‐6‐2 (24VDC Input Only)  • UL, cUL, CB, IEC, EN 62368‐1  Safety  * Product Specifications and features are for reference only and are subject to change without prior  notice. For more information, please refer to the latest product datasheet from our website.     Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 4 ...
  • Page 35: Spectra Powertwin M-21W Series

    • 550 x 330.5 x 63.2 mm  Dimension (WxDxH)  Weight  • 5.56 kg  • Die‐Casting Flat Surface  Mechanical Construction  Environment  • IP 65 Compliant  Front Panel Protection  Operating Temperature  • Ambient with Air flow: 0°C to 60°C (with Industrial Grade Peripherals)  Storage Temperature  • ‐20°C to 60°C    Relative Humidity  • 80% RH @ 40°C (Non‐condensing)  • CE, UKCA, FCC, ICES‐003 Class A  EMC  • UL, cUL, CB  Safety  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 5 ...
  • Page 36 Protection  • Protection Range: 51‐58V  Over Voltage Protection  • Protection Type: shut down operating voltage, re‐power on at the present level to recover  • 15A  Over Current Protection  • 1,217,359 hrs  MTBF  • ‐ Database: Telcordia SR‐332 Issue 3, Method 1, Case 3  Environment  • ‐20°C to 70°C  • Ambient with air flow  Operating Temperature  • According to IEC60068‐2‐1, IEC60068‐2‐2, IEC60068‐2‐14  • ‐20°C to 75°C  Storage Temperature  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 6 ...
  • Page 37 • 95%RH @ 70°C (non‐Condensing)  Relative Humidity  • Operating, 15 Grms (according to IEC60068‐2‐27)  Shock  • Operating, 1.5 Grms, 5‐500 Hz, 3 Axes  (according to IEC60068‐2‐64)  Vibration  • Operating, 1 Grms, 10‐500 Hz, 3 Axes  (according to IEC60068‐2‐6)  • CE, UKCA, FCC, ICES‐003 Class A  EMC  • EN61000‐6‐4, EN61000‐6‐2 (24VDC Input Only)  • UL, cUL, CB, IEC, EN 62368‐1  Safety  * Product Specifications and features are for reference only and are subject to change without prior  notice. For more information, please refer to the latest product datasheet from our website.     Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 7 ...
  • Page 38: Spectra Powertwin M-24W Series

    • Ambient with Air flow:    ‐10°C to 60°C (with Industrial  ‐20°C to 70°C (with Industrial Grade Peripherals)  Grade Peripherals)  Storage Temperature  • ‐20°C to 70°C    • ‐30°C to 80°C  Relative Humidity  • 80% RH @ 50°C (Non‐condensing)  Vibration  • ‐‐  • Operating, 1 Grms, 10‐500  • ‐‐  Hz, 3 Axes  (w/ P2102E only, according to  IEC60068‐2‐6)  • CE, UKCA, FCC, ICES‐003 Class A  EMC  • UL, cUL, CB  Safety  • ‐‐  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 8 ...
  • Page 39 Protection  • Protection Range: 51‐58V  Over Voltage Protection  • Protection Type: shut down operating voltage, re‐power on at the present level to recover  • 15A  Over Current Protection  • 1,217,359 hrs  MTBF  • ‐ Database: Telcordia SR‐332 Issue 3, Method 1, Case 3  Environment  • ‐20°C to 70°C  • Ambient with air flow  Operating Temperature  • According to IEC60068‐2‐1, IEC60068‐2‐2, IEC60068‐2‐14  • ‐20°C to 75°C  Storage Temperature  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 9 ...
  • Page 40 • 95%RH @ 70°C (non‐Condensing)  Relative Humidity  • Operating, 15 Grms (according to IEC60068‐2‐27)  Shock  • Operating, 1.5 Grms, 5‐500 Hz, 3 Axes  (according to IEC60068‐2‐64)  Vibration  • Operating, 1 Grms, 10‐500 Hz, 3 Axes  (according to IEC60068‐2‐6)  • CE, UKCA, FCC, ICES‐003 Class A  EMC  • EN61000‐6‐4, EN61000‐6‐2 (24VDC Input Only)  • UL, cUL, CB, IEC, EN 62368‐1  Safety  * Product Specifications and features are for reference only and are subject to change without prior  notice. For more information, please refer to the latest product datasheet from our website. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 0 ...
  • Page 41: External Layout

    1.3 External Layout 1.3.1 Front 1.3.2 Rear 1.3.3 Left 1.3.4 Right Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 1 ...
  • Page 42: Dimensions

    1.4 Dimensions 1.4.1 Spectra PowerTwin M‐08 Series   1.4.2 Spectra PowerTwin M‐10 Series   mm  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 2 ...
  • Page 43: Spectra Powertwin M-10H Series

    1.4.3 Spectra PowerTwin M‐10H Series   mm  1.4.4 Spectra PowerTwin M‐12H Series   mm  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 3 ...
  • Page 44 Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 4 ...
  • Page 45: Spectra Powertwin M-15 Series

    1.4.5 Spectra PowerTwin M‐15 Series   mm  1.4.6 Spectra PowerTwin M‐15W Series       mm  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 5 ...
  • Page 46: Spectra Powertwin M-17 Series

    1.4.7 Spectra PowerTwin M‐17 Series   mm  1.4.8 Spectra PowerTwin M‐19 Series   mm  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 6 ...
  • Page 47: Spectra Powertwin M-21W Series

    1.4.9 Spectra PowerTwin M‐21W Series   mm  1.4.10 Spectra PowerTwin M‐24W Series   mm  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 7 ...
  • Page 48: Chapter 2 Introduction To Switches And Connectors On Monitor Module

                                  Chapter 2 Introduction to Switches and Connectors on Monitor Module Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 8 ...
  • Page 49: Switches And Connectors Location

    An  HDMI  connector  used  to  connect  the  monitor  to  the  system  graphics  HDMI  interface.  DP  A DP connector used to connect the monitor to the system graphics interface.  This is a COM Port for Touch Panel Connector (Resistive Touch Only), a standard  COM  RS‐232 DB‐9 female touch panel connector used to connect the monitor to the  system interface.  This  is  a  USB  Port  for  Touch  Panel  Connector,  a  standard  USB  touch  panel  USB2.0  connector used to connect the monitor to the system interface.  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 9 ...
  • Page 50: Right Panel

    Press  this  button  to  turn  on/off  the  OSD  main  menu.  Press  this  button  to  activate selected items.  OSD (On Screen Display) Function:  Auto  Press to auto adjust the optimal frequency of horizontal and vertical.  OSD (On Screen Display) Function:  LCD On/Off  Press to turn‐on or turn‐off the display.  Power LED  Indicates the power status of the monitor.  Standby LED  Indicates the power status of the monitor.  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 0 ...
  • Page 51: Osd Function Description

    D1: HDMI  • Volume  • Mute  • Audio Source  • Exit  • Reset • Menu Time • OSD H Position • OSD V Position • Language • Transparency • Rotate • Exit Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 1 ...
  • Page 52 Base on LCD type information  Exit the main menu    * If using HDMI or DisplayPort connection, all options within the "Display" menu are unavailable.     Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 2 ...
  • Page 53: Chapter 3 System Setup

                                  Chapter 3 System Setup   Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 3 ...
  • Page 54: Installing Cds Mount

    This  chapter  takes  the  convertible  monitor  module  and  display  module  (15C)  for  demonstration  purposes. Step 1. Locate the module connector slot and loosen the 1 screw.    Step 2. Turn over the module and loosen 2 screws at the back of the connector cover.  Step 3. Locate the male connector (on the display module).  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 4 ...
  • Page 55 Step  4.  Locate  the  female  connector  on  the  Convertible  Monitor  Module  and  then  connect  the  modules.                    Step 5. Have the studs screwed to the display module through the holes of the Convertible Monitor  Module.  Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 5 ...
  • Page 56: Installing Vesa Mount

    3.2 Installing VESA Mount This  chapter  takes  the  convertible  monitor  module  and  display  module  (15C)  for  demonstration  purposes. The following picture indicates the VESA mounting hole pattern on the top side of monitor  module, which is compliant with the VESA mounting standard.    Step 1. Put on the VESA stand, aligning the holes on the stand with the holes on the top side of  monitor module.    Step 2. Fasten the eight screws as indicated to securely mount the assembled modules onto a VESA  stand.    Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 6 ...
  • Page 57: Installing Panel Mount

    3.3 Installing Panel Mount Step 1. Accessories provided by Spectra are as below. Before assembly, please prepare panel mount  PPC and customer’s fixture. (Please note that the quantity of mounting kits varies with the size of  the display module, please refer to the datasheet for the actual quantity)                        Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 7 ...
  • Page 58     Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 8 ...
  • Page 59 Step 2. All mounting kits displayed are to be inserted into holes.    Step 3. Installation preparation and steps.    Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 9 ...
  • Page 60       Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 0 ...
  • Page 61     Step 4. Apply all mount kits to the rest of holes. And you have completed the panel mount  installation, as shown below.      Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 1 ...
  • Page 62: Installing Optional Accessories

    3.4 Installing Optional Accessories   3.4.1 19” Rackmount‐Kit   1. Locate the screw holes on the PC or monitor module.          2. Put on the rack mount base and fasten the screws.      Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 2 ...
  • Page 63   Left            Right                Bottom    4. Assemble two rack mount brackets by fastening 4 screws (M5x12), flat washers and hex nuts at  each side.    For 21” Panel  PC series     Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin-M V2.0 | Standard Display 3 ...
  • Page 64       Spectra GmbH & Co. KG Spectra GmbH & Co. KG Spectra (Schweiz) AG Mahdenstr. 3  Gewerbepark Ost 1  Flugplatzstr. 5  72768 Reutlingen  4621 Sipbachzell (Wels)  8404 Winterthur  Germany  Austria  Switzerland  Phone +49 (0) 7121 1432‐10  Phone +43 (0) 7240 20190  Phone +41 (0) 43 27710‐50  E‐Mail spectra@spectra.de  E‐Mail info@spectra‐austria.at  E‐Mail info@spectra.ch  Web    www.spectra.de  Web    www.spectra‐austria.at  Web    www.spectra.ch ...
