SPECTRA POWERTWIN
M‐SERIES
USER MANUAL
Version 1.1 – July 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWERTWIN M Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Spectra POWERTWIN M Series

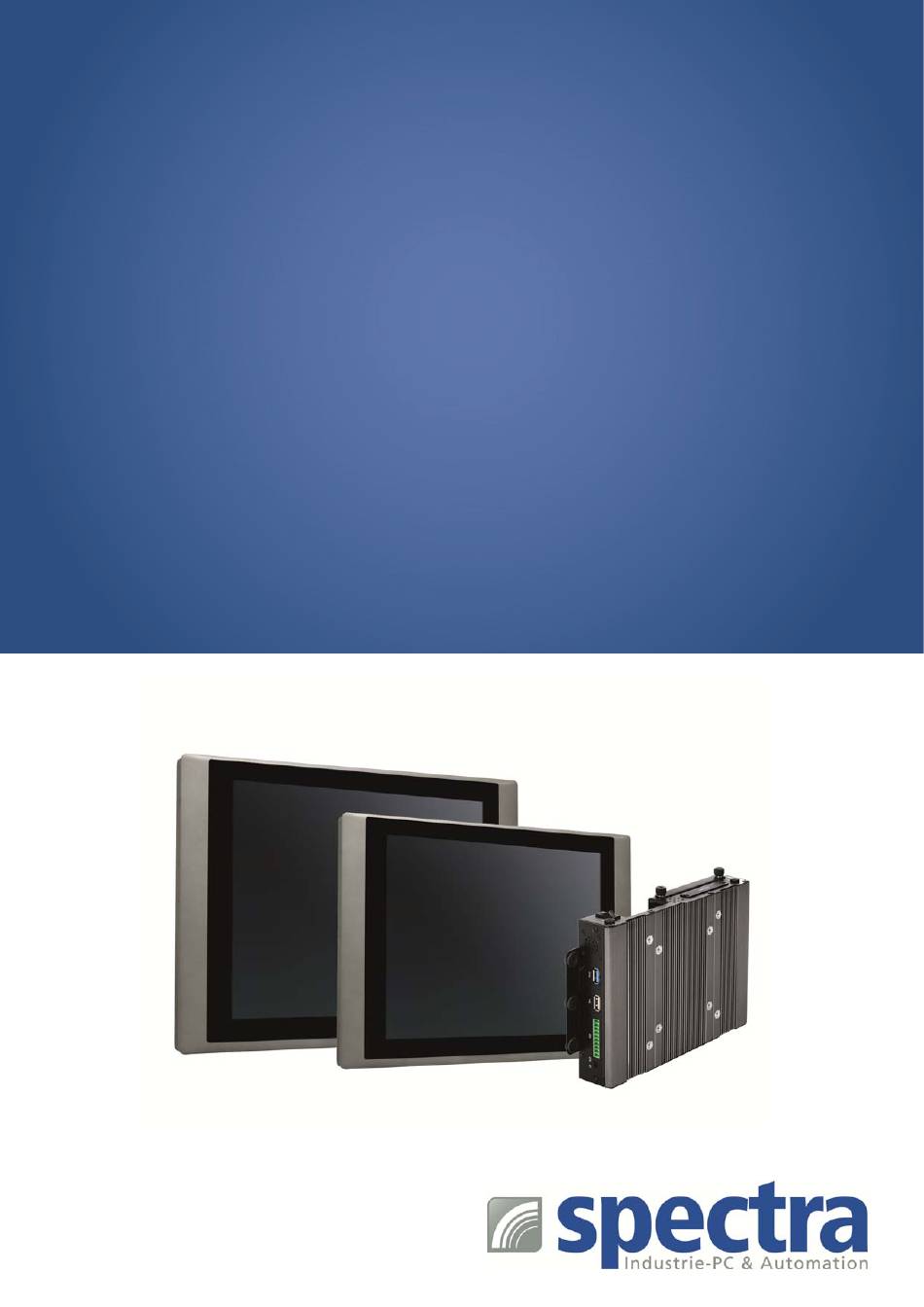

  • Page 1 SPECTRA POWERTWIN  M‐SERIES USER MANUAL Version 1.1 – July 2015...
  • Page 2: Table Of Contents

    Package Contents ………….…………………………………….……….……………07 Ordering Information ………….………………………………….……….……………10 Optional Accessory ………..…...……………………………………......10 Chapter 1 Displays specifications 1.1 Overview ……………………………………………………….…...…..12 1.1.1 Spectra PowerTwin M08...……………….…...…………..…..13 1.1.2 Spectra PowerTwin M10...……………….…...…………..…..14 1.1.3 Spectra PowerTwin M12...……………….…...……….….…..15 1.1.4 Spectra PowerTwin M15...……………….…...…………..…..16 1.1.5 Spectra PowerTwin MW15...………………...…......17 1.1.6 Spectra PowerTwin M17...……………….…...………...…..18 1.1.7 Spectra PowerTwin M19...……………….…...……..….…..19...
  • Page 3: Revision

    2015/07/01 Copyright Notice © 2015 by Spectra GmbH & Co. KG. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Spectra GmbH &...
  • Page 4: Product Warranty Statement

    Before sending your product in, you will need to fill in Spectra RMA Request Form and obtain a RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service.
  • Page 5: Technical Support And Assistance

    This indication alerts operators to an operation that, if not strictly observed, may result in safety hazards to personnel or damage to equipment. This indication provides additional information to complete a task easily. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerTwin M‐Series July 2015...
  • Page 6: Safety Precaution

     The equipment has been dropped and damaged.  The equipment has obvious signs of breakage. 14. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerTwin M‐Series July 2015...
  • Page 7: Package Contents

    Prefaces Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Spectra PowerTwin M08 Item Description Q’ty Spectra PowerTwin M08 User manual & Driver/Utility DVD USB Cable VGA Cable Power Terminal Block Connector (Female) Screw Pack Panel Mounting Kit Power adapter & Power cord Spectra PowerTwin M10 Item Description Q’ty...
  • Page 8 Spectra PowerTwin M15 Item Description Q’ty Spectra PowerTwin M15 User manual & Driver/Utility DVD USB Cable VGA Cable Power Terminal Block Connector (Female) Screw Pack Panel Mounting Kit Power adapter & Power cord Spectra PowerTwin MW15 Item Description Q’ty Spectra PowerTwin MW15 User manual & Driver/Utility DVD USB Cable VGA Cable Power Terminal Block Connector (Female) Screw Pack Panel Mounting Kit Power adapter & Power cord Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerTwin M‐Series July 2015...
  • Page 9 Spectra PowerTwin M17 Item Description Q’ty Spectra PowerTwin M17 User manual & Driver/Utility DVD USB Cable VGA Cable Power Terminal Block Connector (Female) Screw Pack Panel Mounting Kit Power adapter & Power cord Spectra PowerTwin M19 Item Description Q’ty Spectra PowerTwin M19 User manual & Driver/Utility DVD USB Cable VGA Cable Power Terminal Block Connector (Female) Screw Pack Panel Mounting Kit Power adapter & Power cord Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerTwin M‐Series July 2015...
  • Page 10: Ordering Information

    Ordering Information Model No. Product Description 8,4" Panel‐Monitor, 4:3, R‐Touch, with 1x USB, 1x COM,  Spectra PowerTwin M08RL 1x VGA, 1x DVI‐D and 1x DisplayPort  10,4" Panel‐Monitor, 4:3, Cap‐Touch, with 1x USB, 1x COM,  Spectra PowerTwin M10C 1x VGA, 1x DVI‐D and 1x DisplayPort  10,4" Panel‐Monitor, 4:3, R‐Touch, with 1x USB, 1x COM, Spectra PowerTwin M10RL 1x VGA, 1x DVI‐D and 1x DisplayPort   12,1" Panel‐Monitor, 4:3, Cap‐Touch, with 1x USB, 1x COM,  Spectra PowerTwin M12C 1x VGA, 1x DVI‐D and 1x DisplayPort  12,1" Panel‐Monitor, 4:3, R‐Touch, with 1x USB, 1x COM,  Spectra PowerTwin M12RL 1x VGA, 1x DVI‐D and 1x DisplayPort   15" Panel‐Monitor, 4:3, Cap‐Touch, with 1x USB, 1x COM,  Spectra PowerTwin M15C 1x VGA, 1x DVI‐D and 1x DisplayPort  15" Panel‐Monitor, 4:3, R‐Touch, with 1x USB, 1x COM,  Spectra PowerTwin M15RL 1x VGA, 1x DVI‐D and 1x DisplayPort  15,6" Panel‐Monitor, 16:9, Cap‐Touch, with 1x USB, 1x COM,  Spectra PowerTwin MW15C 1x VGA, 1x DVI‐D and 1x DisplayPort  15,6" Panel‐Monitor, 16:9, R‐Touch, with 1x USB, 1x COM,  Spectra PowerTwin MW15RL 1x VGA, 1x DVI‐D and 1x DisplayPort ...
  • Page 11: Chapter 1 Displays Specifications

    Chapter 1 DISPLAYS SPECIFICATIONS...
  • Page 12: Overview

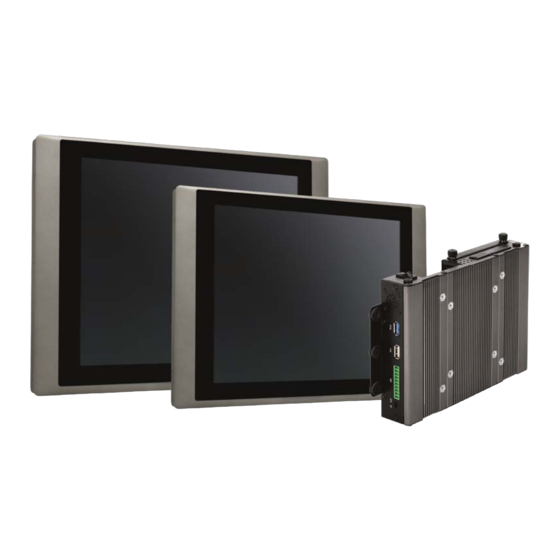

    1.1 Overview The Spectra PowerTwin Series is LCD display module with resistive 5-wire or projected capacitive touch screen. The Series features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, The Spectra PowerTwin allows you to configure, upgrade and maintain your Convertible Display System easily.
  • Page 13: Spectra Powertwin M08

    • Pixel Pitch (mm): 0.213 (H) x 0.213 (V) • Viewing Angle (H-V): 150 / 130 • Backlight MTBF: 30000 hrs (LED Backlight) Touch • Resistive 5-wire Touch for Spectra PowerTwin M08RL Environment • Operating Temperature: Ambient with Air Flow: -10°C to 60°C (with Industrial Grade Peripherals) •...
  • Page 14: Spectra Powertwin M10

    • Viewing Angle (H-V): 160 / 130 • Backlight MTBF: 50000 hrs (LED Backlight) Touch • Resistive 5-wire Touch for Spectra PowerTwin M10RL Only • Projected Capacitive Touch for Spectra PowerTwin M10C Only Environment • Operating Temperature: Ambient with Air Flow: -10°C to 60°C (with Industrial Grade Peripherals) •...
  • Page 15: Spectra Powertwin M12

    • Viewing Angle (H-V): 160 / 140 • Backlight MTBF: 50000 hrs (LED Backlight) Touch • Resistive 5-wire Touch for Spectra PowerTwin M12RL Only • Projected Capacitive Touch for Spectra PowerTwin M12C Only Environment • Operating Temperature: Ambient with Air Flow: -10°C to 60°C (with Industrial Grade Peripherals) •...
  • Page 16: Spectra Powertwin M15

    • Viewing Angle (H-V): 160 / 160 • Backlight MTBF: 50000 hrs (LED Backlight) Touch • Resistive 5-wire Touch for Spectra PowerTwin M15RL Only • Projected Capacitive Touch for Spectra PowerTwin M15C Only Environment • Operating Temperature: Ambient with Air Flow: -10°C to 60°C (with Industrial Grade Peripherals) •...
  • Page 17: Spectra Powertwin Mw15

    • Viewing Angle (H-V): 170 / 160 • Backlight MTBF: 50000 hrs (LED Backlight) Touch • Resistive 5-wire Touch for Spectra PowerTwin MW15RL Only • Projected Capacitive Touch for Spectra PowerTwin MW15C Only Environment • Operating Temperature: Ambient with Air Flow: -10°C to 60°C (with Industrial Grade Peripherals) •...
  • Page 18: Spectra Powertwin M17

    • Viewing Angle (H-V): 170 / 160 • Backlight MTBF: 50000 hrs (LED Backlight) Touch • Resistive 5-wire Touch for Spectra PowerTwin M17RL Only • Projected Capacitive Touch for Spectra PowerTwin M17C Only Environment • Operating Temperature: Ambient with Air Flow: -10°C to 60°C (with Industrial Grade Peripherals) •...
  • Page 19: Spectra Powertwin M19

    • Viewing Angle (H-V): 170 / 160 • Backlight MTBF: 50000 hrs (LED Backlight) Touch • Resistive 5-wire Touch for Spectra PowerTwin M19RL Only • Projected Capacitive Touch for Spectra PowerTwin M19C Only Environment • Operating Temperature: Ambient with Air Flow: -5°C to 50°C (with Industrial Grade Peripherals) •...
  • Page 20: Mechanical Dimension

    1.2 Mechanical Dimensions Unit: mm Spectra PowerTwin M08 Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerTwin M‐Series July 2015...
  • Page 21 Unit: mm Spectra PowerTwin M10 Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerTwin M‐Series July 2015...
  • Page 22 Unit: mm Spectra PowerTwin M12 Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerTwin M‐Series July 2015...
  • Page 23 Unit: mm Spectra PowerTwin M15 Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerTwin M‐Series July 2015...
  • Page 24 Unit: mm Spectra PowerTwin MW15 Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerTwin M‐Series July 2015...
  • Page 25 Unit: mm Spectra PowerTwin M17 Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerTwin M‐Series July 2015...
  • Page 26 Unit: mm Spectra PowerTwin M19 Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerTwin M‐Series July 2015...
  • Page 27 Chapter 2 MODULE SPECIFICATIONS...
  • Page 28: Overview

    2.1 Overview PowerTwin-M-R11 is a monitor module which supports Convertible Display Systems (CDS) technology; it is compatible with Spectra PowerTwin Display Modules for different display sizes and touchscreens. PowerTwin-M-R11 offers both digital and analog signal input via three types of display interface: VGA, DVI-D and DisplayPort.
  • Page 29: Hardware Specification

    • Multi-language OSD Function Power • 1 x 3-pin Terminal Block Connector with Power Input 9~48VDC • 1 x Optional AC/DC 12V/5A, 60W Power Adapter Certification • CE • FCC Class A Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerTwin M‐Series July 2015...
  • Page 30: System I/O

    Use the rear panel standard RS-232 DB-9 female touch panel connector to connect the monitor to the DisplayPort system interface. The DisplayPort connector connects to a display device with DisplayPort interface. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerTwin M‐Series July 2015...
  • Page 31: Side (Left)

    Indicates the stand by mode of the monitor. Menu Press this button to turn on/off the OSD main menu. Press this button to activate selected items To increase the value of selected item. Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerTwin M‐Series July 2015...
  • Page 32: Top

    Chapter 1: Product Introductions 2.3.5 TOP VESA Mounting Hole These are mounting holes for VESA mount (75x75mm and 100x100mm) 2.4 Mechanical Dimensions Unit: mm Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerTwin M‐Series July 2015...
  • Page 33: Chapter 3 Osd Operation

    Chapter 3 OSD OPERATION...
  • Page 34: Function Description Of Osd

    Chapter 2: Jumpers and Connectors 3.1 Function Description of OSD Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerTwin M‐Series July 2015...
  • Page 35: Chapter 4 System Setup

    Chapter 4 SYSTEM SETUP...
  • Page 36 2. Turn over the unit to have the bottom side face up, loosen the 2 screws of the module connector bracket. The photos shows the male connector (on display module) and female connector (on PC module) Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerTwin M‐Series July 2015...
  • Page 37 3. Connect the modules. 4. Fasten the 6 screws to fix the PC module on the display module. . Spectra GmbH & Co. KG User Manual Version 1.1 vertrieb@spectra.de Spectra PowerTwin M‐Series July 2015...
  • Page 38 Spectra GmbH & Co. KG Sales Offices Mahdenstr. 3 North PC  06, 10‐31, 38‐39                          Phone +49 (0) 7121 14321‐48 72768 Reutlingen Center PC 32‐37, 40‐54, 56‐59  Phone +49 (0) 7121 14321‐23 Germany Southwest PC 55, 60‐69, 72, 75‐79, 87‐88  Phone +49 (0) 7121 14321‐55 +49 (0) 7121 14321‐0 PC 70‐71, 73‐74, 89 Phone +49 (0) 7121 14321‐80 Phone spectra@spectra.de Southeast PC 01‐04, 07‐09, 80‐86, 90‐99 Phone +49 (0) 7121 14321‐54 E‐Mail www.spectra.de Spectra GmbH & Co. KG Spectra (Schweiz) AG Gewerbepark Ost 1 Gewerbestr. 12a 4621 Sipbachzell (Wels) 8132 Egg/ZH Austria Switzerland Phone Phone +43 (0) 7240 20190 +41 (0) 43 2771050 E‐Mail E‐Mail info@spectra‐austria.at...
