Summary of Contents for Spectra PowerTwin M08

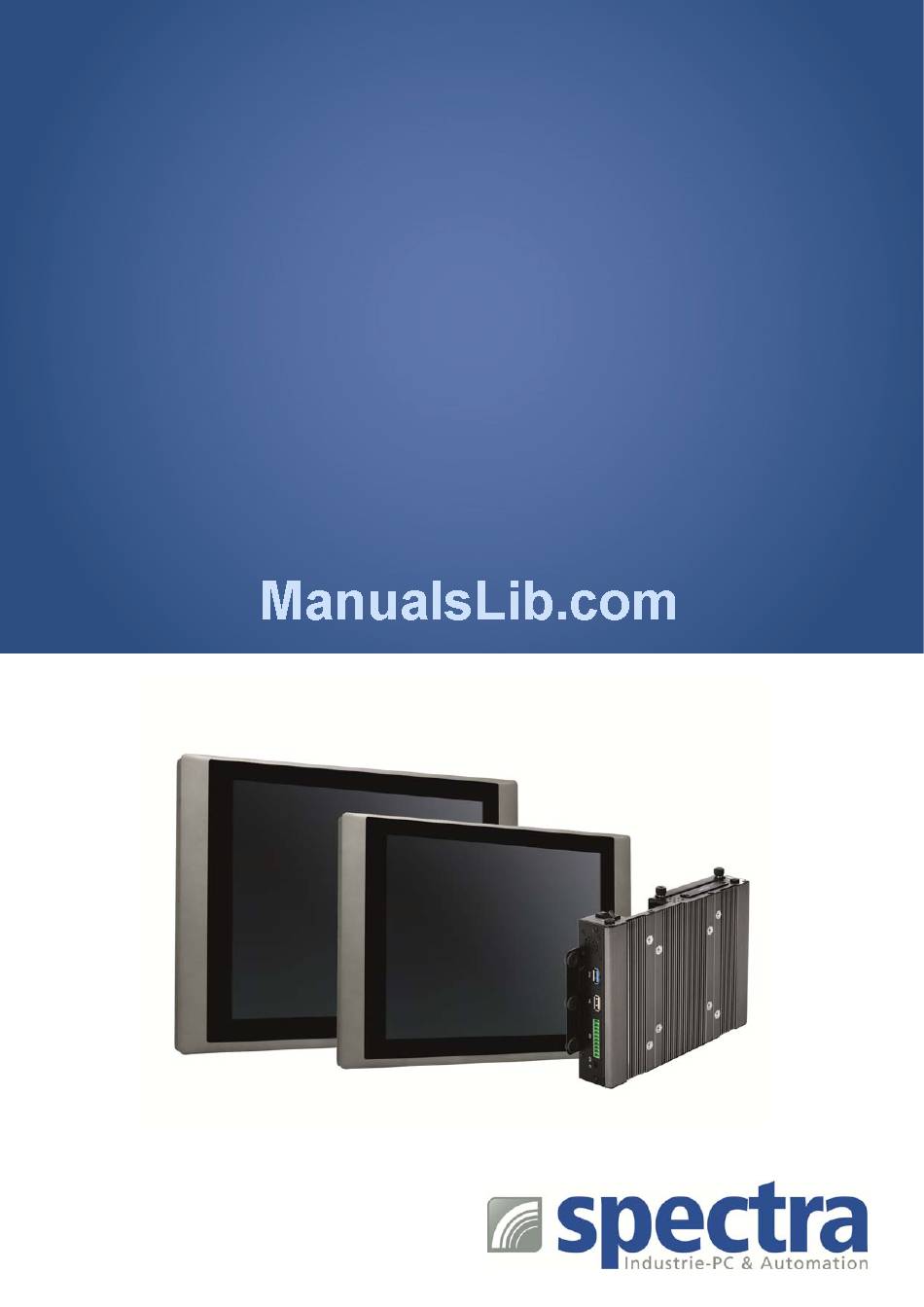

- Page 1 SPECTRA POWERTWIN M‐SERIES USER MANUAL Version 1.3 – May 2017...
-
Page 2: Table Of Contents
1.2.3 Side (Left) ………………………………….….………………... 28 1.2.4 Side (Right) ………………………………..….………………... 28 1.2.5 Top ………………………………..….………………………….. 29 Chapter 2 OSD Operation 2.1 Function Description of OSD …..…………………………………..30 Chapter 3 System Setup 3.1 Connecting with Spectra PowerTwin Display Module ….………..32 Spectra GmbH & Co. KG User Manual Version 1.3 vertrieb@spectra.de Spectra PowerTwin M‐Series... -
Page 3: Revision
Product Info and Mechanical Dimensions Added Copyright Notice © 2017 by Spectra GmbH & Co. KG. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Spectra GmbH &... -
Page 4: Product Warranty Statement
Before sending your product in, you will need to fill in Spectra RMA Request Form and obtain a RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service. -
Page 5: Technical Support And Assistance
This indication alerts operators to an operation that, if not strictly observed, may result in safety hazards to personnel or damage to equipment. This indication provides additional information to complete a task easily. Spectra GmbH & Co. KG User Manual Version 1.3 vertrieb@spectra.de Spectra PowerTwin M‐Series May 2017... -
Page 6: Safety Precaution
The equipment has been dropped and damaged. The equipment has obvious signs of breakage. 14. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Spectra GmbH & Co. KG User Manual Version 1.3 vertrieb@spectra.de Spectra PowerTwin M‐Series May 2017... -
Page 7: Package Contents
Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty Touch Monitor Panel Mounting Kit Utility DVD Driver Power Terminal Block Connector USB Cable VGA Cable Screw Pack Note: Notify your sales representative if any of the above items are missing or damaged. Optional Accessories Model No. Description DVI‐D Cable DVI‐D male to DVI‐D male Cable 1.8M Spectra GmbH & Co. KG User Manual Version 1.3 vertrieb@spectra.de Spectra PowerTwin M‐Series May 2017... -
Page 8: Ordering Information
17" TFT SXGA 5:4 Monitor with Resistive 5‐wire Touch, 1x USB, Spectra Power Twin M17RL 1x COM, 1x VGA, 1x DVI‐D and 1x DisplayPort 19" TFT SXGA 5:4 Monitor with Resistive 5‐wire Touch, 1x USB, Spectra Power Twin M19RL 1x COM, 1x VGA, 1x DVI‐D and 1x DisplayPort 21.5" TFT Full HD 16:9 Monitor with Resistive 5‐wire Touch, 1x USB, Spectra Power Twin MW21RL 1x COM, 1x VGA, 1x DVI‐D and 1x DisplayPort Model No. Product Description 10.4" TFT SVGA 4:3 Monitor with Projected Capacitive Touch, 1x USB, 1x COM, Spectra Power Twin M10C 1x VGA, 1x DVI‐D and 1x DisplayPort 12.1" TFT XGA 4:3 Monitor with Projected Capacitive Touch, 1x USB, 1x COM, Spectra Power Twin M12C 1x VGA, 1x DVI‐D and 1x DisplayPort 15" TFT XGA 4:3 Monitor with Projected Capacitive Touch, 1x USB, Spectra Power Twin M15C 1x COM, 1x VGA, 1x DVI‐D and 1x DisplayPort 15.6" TFT WXGA 16:9 Monitor with Projected Capacitive Touch, 1x USB, 1x Spectra Power Twin MW15C COM, 1x VGA, 1x DVI‐D and 1x DisplayPort 17" TFT SXGA 5:4 Monitor with Projected Capacitive Touch, 1x USB, Spectra Power Twin M17C 1x COM, 1x VGA, 1x DVI‐D and 1x DisplayPort 19" TFT SXGA 5:4 Monitor with Projected Capacitive Touch, 1x USB, Spectra Power Twin M19C 1x COM, 1x VGA, 1x DVI‐D and 1x DisplayPort 21.5" TFT Full HD 16:9 Monitor with Projected Capacitive Touch, 1x USB, 1x Spectra Power Twin MW21C COM, 1x VGA, 1x DVI‐D and 1x DisplayPort Spectra GmbH & Co. KG User Manual Version 1.3 vertrieb@spectra.de Spectra PowerTwin M‐Series May 2017... -
Page 9: Chapter 1 Product Introductions
Chapter 1 PRODUCT INTRODUCTIONS... -
Page 10: Overview
Chapter 1: Product Introductions 1.1 Overview The Spectra PowerTwin series provides 8.4” ~ 21.5” touch monitor with resistive 5-wire / projected capacitive touch monitor features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. -
Page 11: Spectra Powertwin M08
Chapter 1: Product Introductions 1.1.1 Spectra PowerTwin M08 Key Features • 8.4" TFT SVGA 4:3 LCD with Resistive 5-wire Touch • Designed with Aluminum Die-Casting Front Frame • 1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio •... - Page 12 Chapter 1: Product Introductions Dimension Unit: mm Spectra PowerTwin M08 Spectra GmbH & Co. KG User Manual Version 1.3 vertrieb@spectra.de Spectra PowerTwin M‐Series May 2017...
-
Page 13: Spectra Powertwin M10
• Operating Temperature: Ambient with Air Flow: -5°C to 60°C (with Industrial Grade Peripherals) Touch • Storage Temperature: -20°C to 70°C • Resistive 5-wire Touch for Spectra PowerTwin • Relative humidity: 90% RH @ 40°C M10RL Only (Non-Condensing) • Projected Capacitive Touch for Spectra PowerTwin •... - Page 14 Chapter 1: Product Introductions Dimension Unit: mm Spectra PowerTwin M10 Spectra GmbH & Co. KG User Manual Version 1.3 vertrieb@spectra.de Spectra PowerTwin M‐Series May 2017...
-
Page 15: Spectra Powertwin M12
• Operating Temperature: Ambient with Air Flow: -5°C to 60°C (with Industrial Grade Peripherals) Touch • Storage Temperature: -20°C to 75°C • Resistive 5-wire Touch for Spectra PowerTwin • Relative Humidity: 90% RH @ 40°C M12RL Only (Non-Condensing) • Projected Capacitive Touch for Spectra PowerTwin •... - Page 16 Chapter 1: Product Introductions Dimension Unit: mm Spectra PowerTwin M12 Spectra GmbH & Co. KG User Manual Version 1.3 vertrieb@spectra.de Spectra PowerTwin M‐Series May 2017...
-
Page 17: Spectra Powertwin M15
Environment • Operating Temperature: Ambient with Air Flow: Touch 0°C to 60°C (with Industrial Grade Peripherals) • Resistive 5-wire Touch for Spectra PowerTwin • Storage Temperature: -20°C to 65°C M15RL Only • Relative humidity: 80% RH @ 50°C • Projected Capacitive Touch for Spectra PowerTwin... - Page 18 Chapter 1: Product Introductions Dimension Unit: mm Spectra PowerTwin M15 Spectra GmbH & Co. KG User Manual Version 1.3 vertrieb@spectra.de Spectra PowerTwin M‐Series May 2017...
-
Page 19: Spectra Powertwin Mw15
• Operating Temperature: Ambient with Air Flow: 0°C to 60°C (with Industrial Grade Peripherals) Touch • Storage Temperature: -20°C to 60°C • Resistive 5-wire Touch for Spectra PowerTwin • Relative humidity: 80% RH @ 50°C MW15RL Only (Non-Condensing) • Projected Capacitive Touch for Spectra PowerTwin •... - Page 20 Chapter 1: Product Introductions Dimension Unit: mm Spectra PowerTwin MW15 Spectra GmbH & Co. KG User Manual Version 1.3 vertrieb@spectra.de Spectra PowerTwin M‐Series May 2017...
-
Page 21: Spectra Powertwin M17
• Operating Temperature: Ambient with Air Flow: -5°C to 60°C (with Industrial Grade Peripherals) Touch • Storage Temperature: -20°C to 70°C • Resistive 5-wire Touch for Spectra PowerTwin • Relative humidity: 80% RH @ 50°C M17RL Only (Non-Condensing) • Projected Capacitive Touch for Spectra PowerTwin •... - Page 22 Chapter 1: Product Introductions Dimension Unit: mm Spectra PowerTwin M17 Spectra GmbH & Co. KG User Manual Version 1.3 vertrieb@spectra.de Spectra PowerTwin M‐Series May 2017...
-
Page 23: Spectra Powertwin M19
• Operating Temperature: Ambient with Air Flow: 0°C to 50°C (with Industrial Grade Peripherals) Touch • Storage Temperature: -20°C to 60°C • Resistive 5-wire Touch for Spectra PowerTwin • Relative humidity: 80% RH @ 50°C M19RL Only (Non-Condensing) • Projected Capacitive Touch for Spectra PowerTwin •... - Page 24 Chapter 1: Product Introductions Dimension Unit: mm Spectra PowerTwin M19 Spectra GmbH & Co. KG User Manual Version 1.3 vertrieb@spectra.de Spectra PowerTwin M‐Series May 2017...
-
Page 25: Spectra Powertwin Mw21
• Operating Temperature: Ambient with Air Flow: 0°C to 60°C (with Industrial Grade Peripherals) Touch • Storage Temperature: -20°C to 60°C • Resistive 5-wire Touch for Spectra PowerTwin • Relative humidity: 80% RH @ 50°C MW21RL Only (Non-Condensing) • Projected Capacitive Touch for Spectra PowerTwin •... - Page 26 Chapter 1: Product Introductions Dimension Unit: mm Spectra PowerTwin MW21 Spectra GmbH & Co. KG User Manual Version 1.3 vertrieb@spectra.de Spectra PowerTwin M‐Series May 2017...
-
Page 27: System I/O
Use the rear panel standard RS-232 DB-9 female touch panel connector to connect the monitor to the DisplayPort system interface. The DisplayPort connector connects to a display device with DisplayPort interface. Spectra GmbH & Co. KG User Manual Version 1.3 vertrieb@spectra.de Spectra PowerTwin M‐Series May 2017... -
Page 28: Side (Left)
Indicates the stand by mode of the monitor. Menu Press this button to turn on/off the OSD main menu. Press this button to activate selected items. To increase the value of selected item. Spectra GmbH & Co. KG User Manual Version 1.3 vertrieb@spectra.de Spectra PowerTwin M‐Series May 2017... -
Page 29: Top
Chapter 1: Product Introductions 1.2.5 Top VESA Mounting Hole These are mounting holes for VESA mount (75x75mm and 100x100mm) Spectra GmbH & Co. KG User Manual Version 1.3 vertrieb@spectra.de Spectra PowerTwin M‐Series May 2017... -
Page 30: Chapter 2 Osd Operation
Chapter 2 OSD OPERATION... -
Page 31: Osd Function Description
V. Position Picture Color Temperature Green Blue Color Horizontal Vertical Transparency OSD Time Out OSD Settings Language Mute Input Reset Setup Spectra GmbH & Co. KG User Manual Version 1.3 vertrieb@spectra.de Spectra PowerTwin M‐Series May 2017... -
Page 32: Chapter 3 System Setup
Chapter 3 SYSTEM SETUP... -
Page 33: Connecting With Spectra Powertwin Display Module
1. Locate the module connector slot and loosen 1 screw. 2. Turn over the module and loose 2 screws at the back of the connector cover. The photos shows the male connector (on display module) and female connector (on PC module) Spectra GmbH & Co. KG User Manual Version 1.3 vertrieb@spectra.de Spectra PowerTwin M‐Series May 2017... - Page 34 Chapter 3: System Setup 3. Connect the modules. 4. Have the studs screwed to the display module through the holes of the PC module. Spectra GmbH & Co. KG User Manual Version 1.3 vertrieb@spectra.de Spectra PowerTwin M‐Series May 2017...
- Page 35 +49 (0) 7121 1432‐10 Southwest‐East 70‐71, 72520‐72699, 73‐74, 89 ‐185 Phone spectra@spectra.de Southeast 01‐04, 07‐09, 80‐86, 90‐99 ‐154 E‐Mail www.spectra.de Spectra GmbH & Co. KG Spectra (Schweiz) AG Gewerbepark Ost 1 Flugplatzstr. 5 4621 Sipbachzell (Wels) 8404 Winterthur Austria Switzerland Phone Phone +43 (0) 7240 20190 +41 (0) 43 2771050 E‐Mail E‐Mail info@spectra‐austria.at info@spectra.ch www.spectra‐austria.at www.spectra.ch All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo. All product specifications and information are subject to change without notice. © spectra 2017 Spectra GmbH & Co. KG User Manual Version 1.3 vertrieb@spectra.de Spectra PowerTwin M‐Series May 2017...
