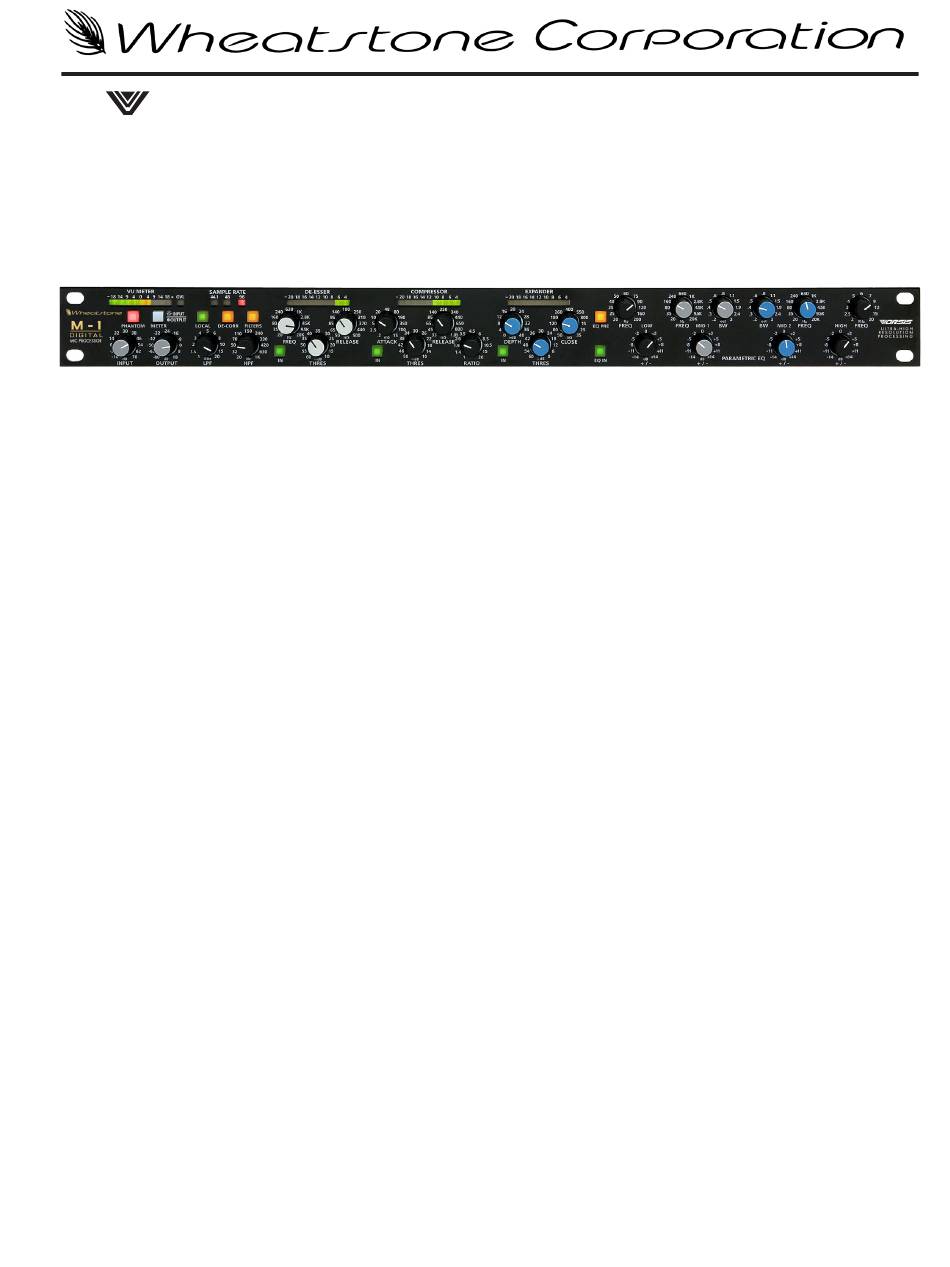

M-1 Digital Mic Processor
Please inspect the contents of the package to ensure that the following items are present:
- Wheatstone M-1 Unit
- M-1 Technical Manual and Software CD
- AC Power Cord
- Quick Start Guide
Install and Connect the M-1
1. Install the M-1 in the equipment rack using at least two rack screws. If only two screws
are used they must be installed in the bottom holes of the rack ears to prevent undue
stress on the front panel and possible bending.
2. Connect the microphone to the XLR female microphone input on the rear panel.
3. Connect either line level analog out or AES digital out XLR connector to your desired
signal path.
4. If using the M-1 GUI software connect rear panel Ethernet RJ-45 jack as appropriate
for your intended use:
a) for direct connection to PC use crossover CAT5 cable;
b) for connecting into your LAN use a straight through CAT5 cable from Ethernet
switch or HUB.
5. Connect the AC power cord to the M-1 rear panel connector and then plug it into AC
power. The M-1 unit will power up.
The M-1 microphone processor may be controlled via three different methods:
1. Full access to all controls using the front panel of the unit.
2. Full access to all controls using the standard GUI interface.
3. Selection of presets only using the Talent Control Interface.
Options 2 and 3 share the same methods for configuring hardware devices, therefore
the method for configuring one is the same as the other. Please refer to the instruction for
configuring the "full control" GUI (see Chapter 2 of the M-1 Technical Manual) in order to
configure the Talent Control Interface.
M-1 / Jun 2009
M-1 / June 2007
ULTRA-HIGH RESOLUTION PROCESSING
Quick Start Guide
- Qty 1
- Qty 1
- Qty 1
- Qty 1
R
M
! -
page 1
ead
e
Advertisement
Related Manuals for Wheatstone Corporation M-1
Summary of Contents for Wheatstone Corporation M-1
- Page 1 Install and Connect the M-1 1. Install the M-1 in the equipment rack using at least two rack screws. If only two screws are used they must be installed in the bottom holes of the rack ears to prevent undue stress on the front panel and possible bending.
- Page 2 DHCP addressing of other network connected devices as long as the IP address that is configured for the M-1 does not conflict with the address of any other device on the network. Please consult your friendly IT manager if necessary.
- Page 3 Now that the M-1 has its own TCP/IP identity, we must configure the GUI so that it can talk to the M-1. This is done by adding “devices” to the list of M-1’s that the GUI knows about. To do this, locate and click on the “Devices” button that is located along the right side of the GUI.
- Page 4 First, enter the same pet name that you used when you assigned the IP address to the M-1. The above dialog shows us adding a new device called “AirStu2,” noting that there is already a configured device showing in the Devices dialog box called AirStu1.
- Page 5 After this is done you may click “OK” on the Edit Device box. Then, in the Devices dialog box highlight (single left click) the M-1 device that you just added and click on “Select.” This step tells the GUI specifically which M-1 you want to connect to.
- Page 6 • If Lock mode is off and Local mode is selected when the remote GUI establishes a connection to the M-1, only the front panel controls will have control, but the GUI can still display changes made from the front panel.
