TrolMaster ThinkGrow ICL-300 Installation Manual

ICL-300 Installation Guide
There are 3 optional methods of installing the ICL-300 LED fixtures. The first method is simply to hang / support the
ICL from above using appropriate hardware. The 2nd method allows the ICL-300 to be secured to vertical tubing
provided by the user. The 3rd method utilizes the optional TSD-1 mounting stand. Below we will discuss the three
options in detail.

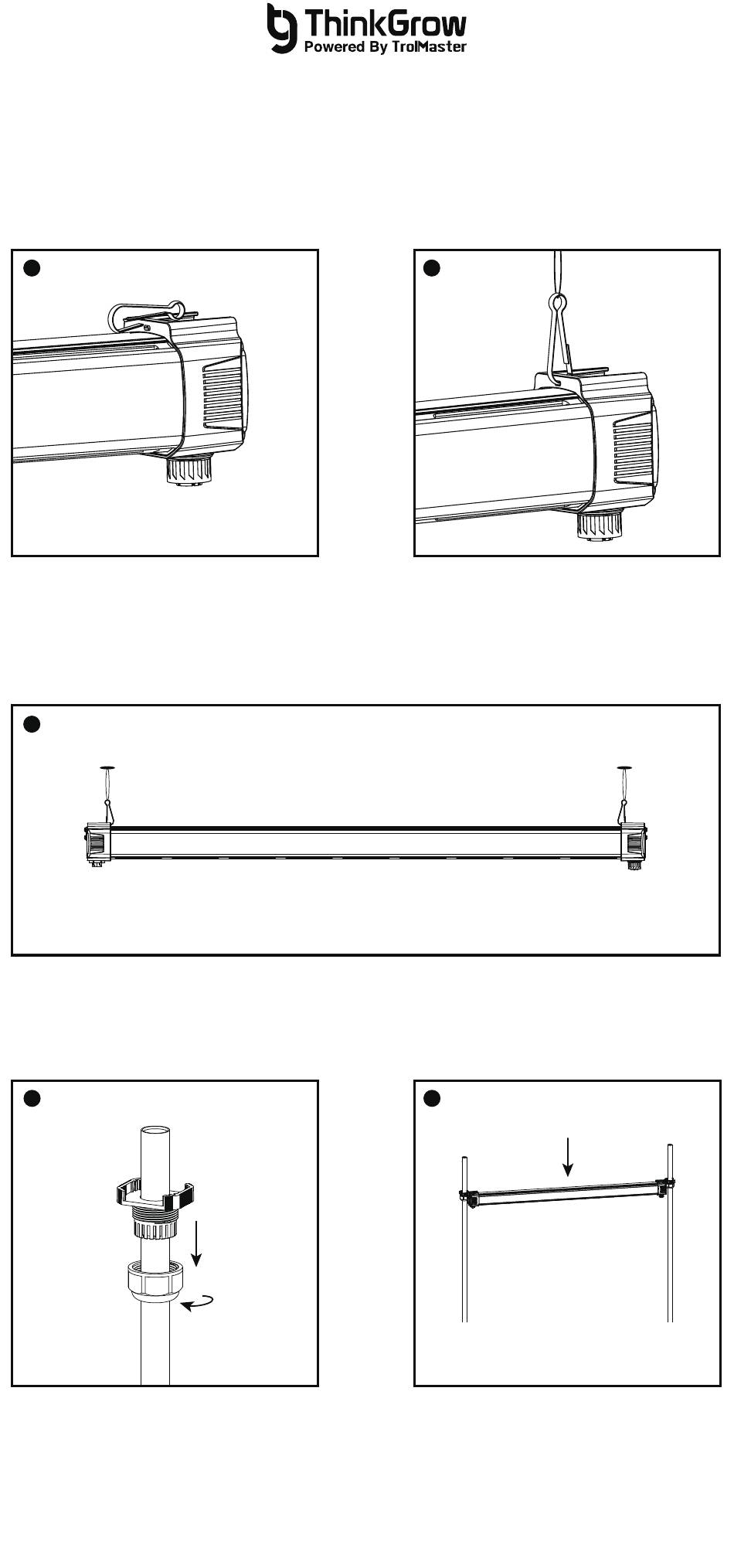

Option 1 - Hang the LED from Above
1
Step 1: Carefully insert the hooks into the two
mounting holes located on the opposing sides of
the light bar. Ensure that the hooks are firmly
secured in place, providing a secure connection
for the subsequent steps.
3
Step 3: Once the ICL-300 has been installed and is hanging freely, test the support mechanism
to ensure it is capable of supporting the full weight of the ICL-300.
Option 2 - Use user-provided tubing (¾ - 1" OD tubing)
1
Step 1: Utilize the two Collar Mounts which are
provided with each ICL-300 to securely fasten
the ICL-300 onto two PVC or metal pipes or
conduits with a diameter ranging from ¾" to 1" or
18mm to 25mm. Begin by loosening the screw
cap on the adjustment knob, allowing the tubes
to pass through the screw cap. Next you can
position both ends of the ICL-300 to the desired
orientation / height and secure it in place by
tightening the screw cap.
2
Step 2: The ICL-300 can be suspended from the
ceiling or from above using an appropriate
length of rope, wire rope or cable. Select a
secure mounting point using appropriate hanging
hardware. Exercise caution during this process to
ensure that the ICL-300 is correctly positioned
and securely fastened.
2
Step 2: To install the light bars, align the holes on
both sides of the ICL-300 light bar with the
vertical tubes. Align the mounting bracket on the
vertical tube, with the bracket on the ICL-300
to ensure a secure connection between the light
bar and the vertical tubes. It is essential to
conduct a thorough inspection to ensure proper
alignment and secure installation before
proceeding.
