HAWKEYE Climate Monitor & Logger (CM-1)
User Manual
GETTING STARTED
Thank you for purchasing the TrolMaster HAWKEYE Climate Monitor & Logger. This unit is a simple and
affordable way to monitor your grow room. To ensure safety, please read this instruction manual carefully
before installation and follow the instructions herein. lt wil provide detailed instructions and guidelines that
will help to set up the unit, and to understand the full capability of this unit. Any use or application of this
product, other than for its original intended purposes are prohibited. Store this manual in a secure place for
future reference.
OVERVIEW

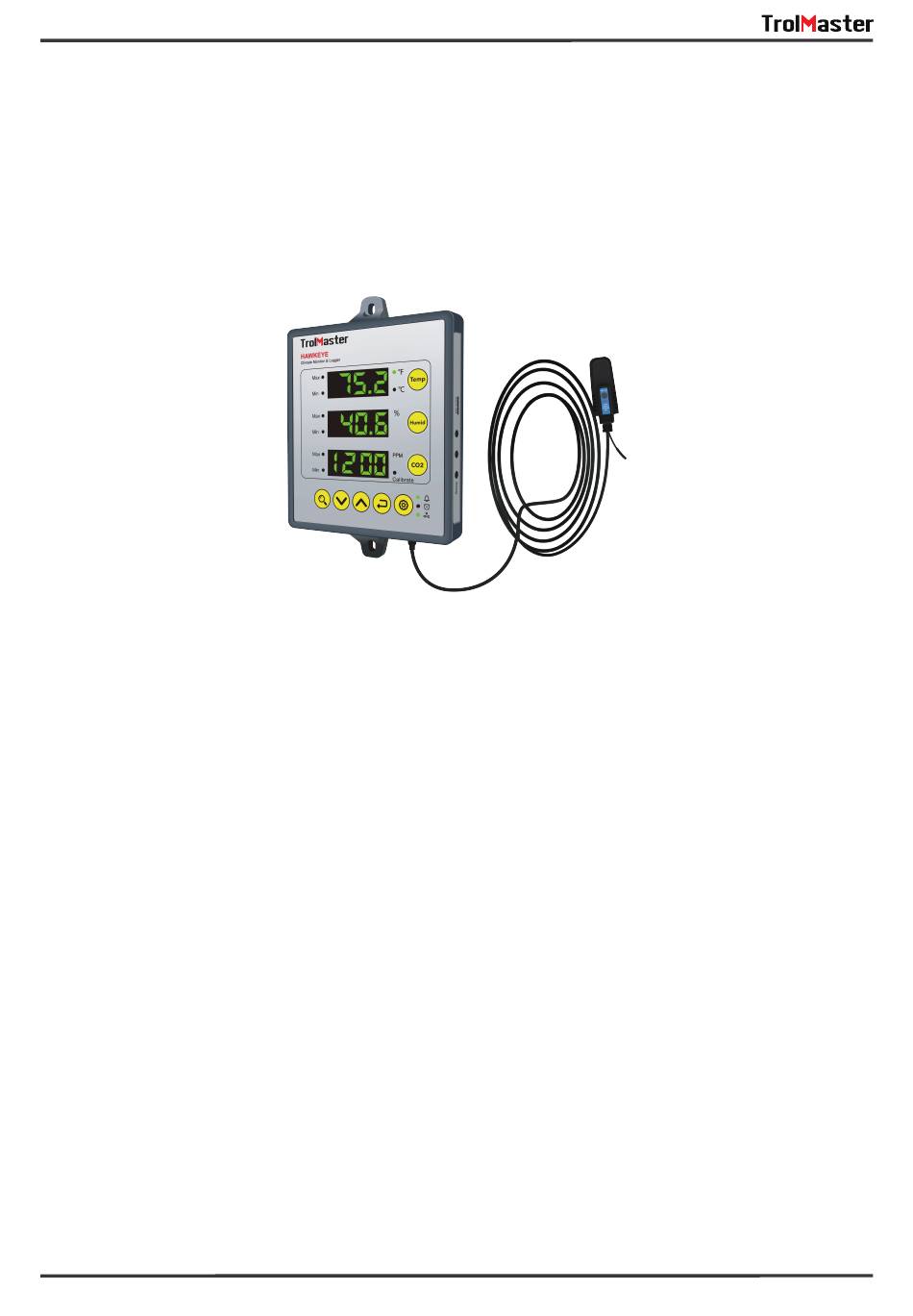

The front panel of the unit consists of three main LED screens for the display of temperature, humidity and
CO2 PPM status respectively. lt is easy to monitor your grow room by setting the max/min setpoint of
temperature, humidity and CO2 you desire. The built-in alarm will ring when the actual measured value
exceeds the setting range. Also, it features a connection to your network to use our TrolMaster app for your
Android,iOS smartphone or tablet, you can monitor the environment of your grow room anytime and
anywhere and have warnings sent to your phone if the growing environment exceeds your max/min
setpoint. The three-in-one remote Sensor with 16 feet long cable is placed in grow room to sense the
growing environment while the H AWKEYE Monitor can be positioned outside for easy reading and
monitoring.
