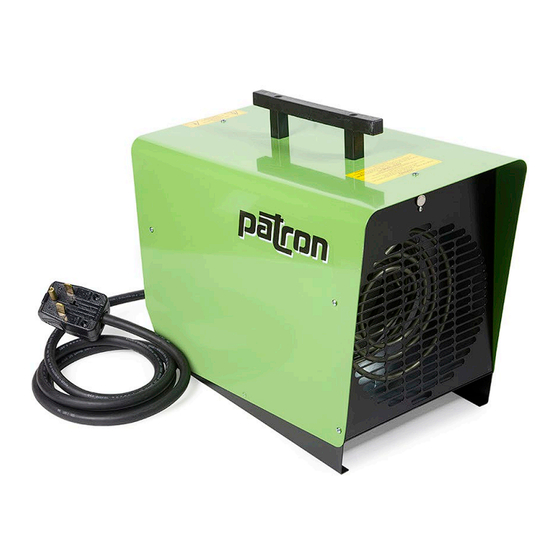

E6 ELECTRIC FAN HEATER
PRODUCT MANUAL
IMPORTANT
READ AND UNDERSTAND THIS MANUAL BEFORE ASSEM-
BLING, STARTING OR SERVICING THE HEATER.
IMPROPER USE OF HEATER CAN CAUSE SERIOUS INJURY.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
FOR PROFESSIONAL USE ONLY
MAY 2018 REVISION
RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Patron E6
Summary of Contents for Patron E6
- Page 1 E6 ELECTRIC FAN HEATER PRODUCT MANUAL IMPORTANT READ AND UNDERSTAND THIS MANUAL BEFORE ASSEM- BLING, STARTING OR SERVICING THE HEATER. IMPROPER USE OF HEATER CAN CAUSE SERIOUS INJURY. KEEP THIS MANUAL FOR FUTURE REFERENCE. FOR PROFESSIONAL USE ONLY MAY 2018 REVISION...
-
Page 2: Important Instructions
E6 PRODUCT MANUAL IMPORTANT INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THIS HEATER 1. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Use handle when moving this heater. Keep combustible materials at least 6 feet (2 meter) from the front of the heater and keep them away from sides and rear 2. - Page 3 SOLD BY THE MANUFACTURER AND ITS DEALERS AND DISTRIBUTORS AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. During the warranty period, Patron Products will, at its sole option, repair or replace any defective parts or prod- ucts returned, freight prepaid, to Patron Products or such other location as Patron Products may designate.
-
Page 4: Operation
E6 PRODUCT MANUAL OPERATION OPERATION REVIEW AND UNDERSTAND ALL WARNINGS IN THIS MANUAL. REVIEW AND UNDERSTAND ALL WARNINGS IN THIS MANUAL. THEY ARE ESSENTIAL FOR SAFE USE OF THE HEATER. THEY ARE ESSENTIAL FOR SAFE USE OF THE HEATER. FOLLOW ALL LOCAL CODES FOLLOW ALL LOCAL CODES. -
Page 5: Maintenance
E6 PRODUCT MANUAL MAINTENANCE WARNING! NEVER SERVICE THE HEATER WHILE IT IS PLUGGED IN, RUNNING OR HOT. SEVERE BODILY INJURE OR ELECTRIC SHOCK MAY OCCUR. ONLY QUALIFIED PERSONS ARE ALLOWED TO OPEN HEATER FOR SERVICE. NO USER-SERVICE- ABLE PARTS INSIDE. - Page 6 E6 PRODUCT MANUAL SPARE PARTS DIAGRAM PATRON E6 Patron E6 (4026) 4026013 Bottom Plate 37910 Plastic Bracket for Thermostat 4026011 Rear Panel 4026015 Bracket, Inner Mantle 4026012 Front Panel 36704 Terminal Block 4026014 Inner Mantle 4026016 Bracket, Terminal Block 4026010...
-
Page 7: Wiring Diagram
E6 PRODUCT MANUAL WIRING DIAGRAM 22670 Contactor 14145 Fan Motor R1/R2 42800 Heating Element 26900 Toggle Switch 20220 Ambient Thermostat 21201 Overheat Limit Switch (70°C) 21206 Overheat Limit Switch (50°C) 36704 Terminal Block 30346 Grounding Lug 30100+34080 Power Cord & Plug... - Page 8 PATRON PRODUCTS A DIVISION OF RENTQUIP 1-800-818-1199 www.patronproducts.com...
