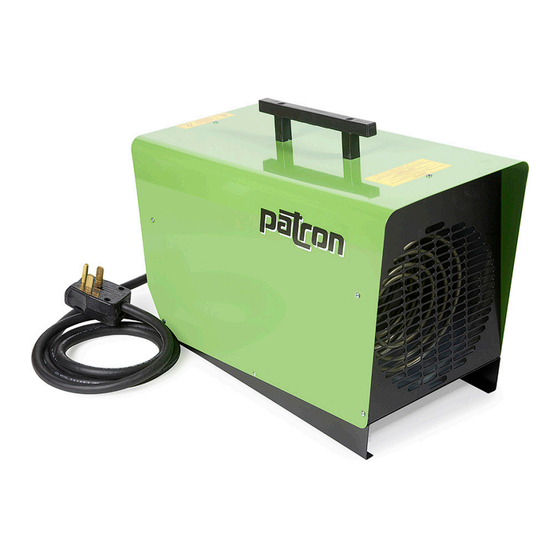

E9 ELECTRIC FAN HEATER
PRODUCT MANUAL
IMPORTANT
READ AND UNDERSTAND THIS MANUAL BEFORE ASSEM-
BLING, STARTING OR SERVICING THE HEATER.
IMPROPER USE OF HEATER CAN CAUSE SERIOUS INJURY.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
FOR PROFESSIONAL USE ONLY
JULY 2020 REVISION
RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM
Advertisement
Table of Contents
Related Manuals for Patron E9
Summary of Contents for Patron E9
- Page 1 ® E9 ELECTRIC FAN HEATER PRODUCT MANUAL IMPORTANT READ AND UNDERSTAND THIS MANUAL BEFORE ASSEM- BLING, STARTING OR SERVICING THE HEATER. IMPROPER USE OF HEATER CAN CAUSE SERIOUS INJURY. KEEP THIS MANUAL FOR FUTURE REFERENCE. FOR PROFESSIONAL USE ONLY JULY 2020 REVISION...
-
Page 2: Important Instructions
® E9 PRODUCT MANUAL IMPORTANT INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THIS HEATER 1. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Use handle when moving this heater. Keep combustible materials at least 6 feet (2 meter) from the front of the heater and keep them away from sides and rear 2. -
Page 3: Limited Warranty
SOLD BY THE MANUFACTURER AND ITS DEALERS AND DISTRIBUTORS AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. During the warranty period, Patron Products will, at its sole option, repair or replace any defective parts or prod- ucts returned, freight prepaid, to Patron Products or such other location as Patron Products may designate. -
Page 4: Operation
® E9 PRODUCT MANUAL OPERATION REVIEW AND UNDERSTAND ALL WARNINGS IN THIS MANUAL. THEY ARE ESSENTIAL FOR SAFE USE OF THE HEATER. FOLLOW ALL LOCAL CODES This heater is for use on 240 volts The cord has a plug as show in the figure The type of outlet is a 240-volt grounding outlet. -
Page 5: Maintenance
® E9 PRODUCT MANUAL MAINTENANCE WARNING! NEVER SERVICE THE HEATER WHILE IT IS PLUGGED IN, RUNNING OR HOT. SEVERE BODILY INJURY OR ELECTRIC SHOCK MAY OCCUR. ONLY QUALIFIED PERSONS ARE ALLOWED TO OPEN HEATER FOR SERVICE. NO USER-SERVICE- ABLE PARTS INSIDE. - Page 6 ® E9 PRODUCT MANUAL SPARE PARTS DIAGRAM PATRON E9 17907 Fan Hub, Plastic 16110 Fan Blade 4008001 Bottom Plate 80100 Handle 4008003 Rear Panel 42800 Heating Element 4008002 Front Panel 80110 Plug for Handle (2/Pk) 4008004 Inner Mantle 34080 Plug...
-
Page 7: Wiring Diagram
® E9 PRODUCT MANUAL WIRING DIAGRAM 6 kW 9 kW Käyttöohjekuva Käyttöohjeen mukainen osanumerointi. Numerointi ei vastaa valmistuskuvien numerointia. 22670 Contactor 14201 Fan Motor R1-R3 42800 Heating Element 26902 Toggle Switch 20220 Ambient Thermostat 21200 Overheat Limit Switch *Second S3 Switch added in 2020 from S/N 4008220-6852 onward... - Page 8 PATRON PRODUCTS A DIVISION OF RENTQUIP 1-800-818-1199 www.patronproducts.com...
