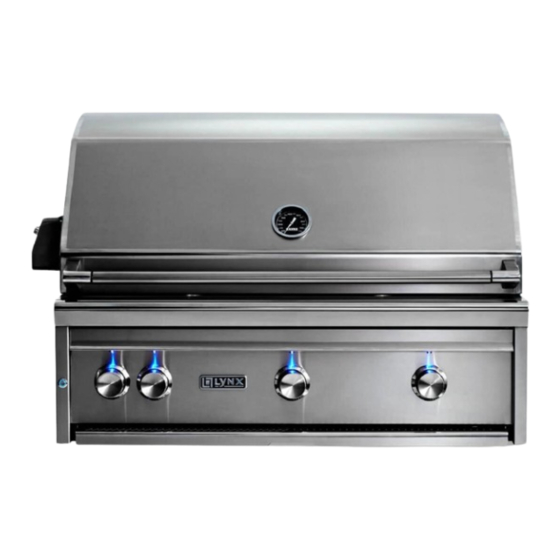

Summary of Contents for Lynx L36TRCANG
- Page 1 MAKE THE MOST OF YOUR CARE & USE/INSTALLATION...
- Page 2 WARNINGS WARNING • Never use dented, rusty or damaged propane cylinders. Never store additional or empty propane cylinders in the grill cabinet or in the vicinity of this or any other appliance. Do not store propane cylinders indoors or on their sides. •...
- Page 3 WARNINGS WARNING READ THIS MANUAL CAREFULLY and completely before using your grill to reduce the risk of: Fire 2. Burn hazard, personal injury or property damage 3. Ruined steaks or other unpleasant cooking experiences 4. Unapproved installation or servicing. THIS PRODUCT IS DESIGNED FOR OUTDOOR USE ONLY. Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death.
- Page 4 This product complies with ANSI standard Z21.58/CSA 1.6 To obtain replacement parts or service contact: latest edition and has been tested and approved by Intertek. Lynx Grills 62201 Hwy 82 West Greenwood, Mississippi 38930 Service: (888) 289-5969...
-
Page 5: Table Of Contents
TABLE OF CONTENTS BEFORE YOU START If Shipment Arrives Damaged Important Notes SPECIFICATIONS & INSTALLATION UNPACKING & ASSEMBLY GAS CONNECTIONS Natural Gas LP Gas Gas Conversion Kits ELECTRICAL CONNECTIONS FINAL CHECKS Leak Testing CHECKLIST BEFORE EACH USE A MESSAGE TO OUR CUSTOMERS IMPORTANT SAFETY PRECAUTIONS GRILLING IN WINDY CONDITIONS USING YOUR GRILL... -
Page 6: Before You Start
BEFORE YOU START WARNING Installation into a combustible enclosure requires an insulated jacket accessory. DO NOT REMOVE BRACKET OR INSTALL UNIT without use of the insulated jacket. Doing so may result in a fi re, injury or property damage. Bracket must be removed to complete install with insulated jacket. Insulated jackets may be ordered at parts@middlebyresidential.com or phone 888-845-4641 press 1. - Page 7 The hood must provide 3” of overhange on all exposed from your Lynx dealer. Insulated jackets have been designed sides. The exhaust hood shall provide no less than 1,200 and tested specifi cally for your grill.
-
Page 8: Specifications & Installation
NOTE: Due to continuing product innovation, specifi cations are subject to change without notice. IMPORTANT: Please reference the Care & Use / Installation manual for details on gas plumbing requirements, electrical specifi cations and the proper installation of your outdoor kitchen equipment. This manual can be downloaded from our website at www.lynx.com. GRILLS MODEL 26.00... - Page 9 SPECIFICATIONS & INSTALLATION WITH INSULATED JACKET INSTALLED Installation into a combustible enclosure requires an insulated jacket accessory. Not installing an insulated jacket MODEL could result in a fi re, injury or property damage. Insulated jackets may be ordered at parts@middlebyresidential.com LIJ27 33.00 11.63...
- Page 10 SPECIFICATIONS & INSTALLATION MODEL-SPECIFIC BTU OUTPUTS & MAX. RUNS FOR APPLIANCES MODEL-SPECIFIC BTU OUTPUTS MODEL CERAMIC ROTISSERIE (Btu) TRIDENT™ (Btu) TOTAL INPUT BURNER (Btu) L27R 2 @ 25,000 1 @ 14,000 64,000 Btu/Hr L27TR(F) 1 @ 25,000 1 @ 14,000 1 @ 21,000 60,000 Btu/Hr L30R(F)
- Page 11 DIMENSIONS L27R L27TR 27” 30" 233/16” (68.6 cm) " (64.0 cm) 14½” " (36.8 cm) 1¾” (4.4 cm) " 10½” " 11” (27.9 cm) 11" (26.7 cm) 11" 3" 11” (27.9 cm) 9” (22.9 cm) 9" 19” 3” (7.6 cm) REAR (48.3 cm) "...
- Page 12 DIMENSIONS L30R L30TR 30" 30” 253/16” (76.2 cm) " (64.0 cm) 14½” " (36.8 cm) 1¾” (4.4 cm) " 10½” " 11” (27.9 cm) 11" (26.7 cm) 11" 3" 11” (27.9 cm) 9” (22.9 cm) 9" 21½” 3” (7.6 cm) REAR (54.6 cm) "...
- Page 13 DIMENSIONS L36R L36TRF 36” (91.4 cm) 23½” (59.7 cm) 147/8” (37.8 cm) 1¾” (4.4 cm) 97/8” 11” (27.9 cm) (25.1 cm) 11” (27.9 cm) 9” (22.9 cm) 3” (7.6 cm) 19” 2½” (6.4 cm) 11/8” (2.9 cm) (48.3 cm) 227/8” Rear Manifold Location (58.1 cm)
- Page 14 DIMENSIONS L42TR 42” (106.7 cm) 253/16” (64.0 cm) " 14½” " (36.8 cm) 1¾” (4.4 cm) " 11” (27.9 cm) 10½” " 9” (22.9 cm) 11” (27.9 cm) 11" (26.7 cm) 3" 2½” (6.4 cm) 2½” (6.4 cm) 21½” 3” (7.6 cm) Rear Manifold (54.6 cm) Location...
- Page 15 DIMENSIONS L54TR 54” (137.2 cm) 25½” " (64.8 cm) 1413/16” " (37.6 cm) 1¾” (4.4 cm) " 9” (22.9 cm) 11” (27.9 cm) 103/16” " 11” (27.9 cm) 11" (25.9 cm) 2½” (6.4 cm) 2½” (6.4 cm) 3" Rear Manifold 21½”...
-
Page 16: Unpacking & Assembly
INTERIOR PACKING larger units may weigh over 500 pounds. Lynx uses sturdy tie-down cables and straps to ensure your grill arrives at your home in the same condition that it left our factory. BE SURE YOU HAVE REMOVED ALL TIE DOWNS WARNING: BEFORE USING YOUR GRILL. - Page 17 REMOVAL OF GRILL FROM FREESTANDING CART (IF REMOVAL IS NOT REQUIRED, SKIP TO NEXT SECTION) WARNING: Before removal of grill, gas must be disconnected/removed from grill along with any additional gas piping. All proper safety equipment such as eye protection, gloves (cut resistant), and closed toe shoes must be worn during process to prevent any injury.
- Page 18 UNPACKING & ASSEMBLY ...continued Heat Shield Removed, Inside View, Orifi ce Orifi ce/Venturi Position all the way into venturi Burner Sitting Flat Move the rear caps towards the back and pull the front caps forward INSTALLATION / USE & CARE...
-
Page 19: Gas Connections
NATURAL GAS gas (NAT). It is critical that the gas you use matches that Lynx, LLC recommends that only qualifi ed professionals which the grill was set up for. You can verify that by checking perform the required plumbing on this product. -
Page 20: Lp Gas
GAS CONNECTIONS ...continued For freestanding units using natural gas, using a metal fl ex hose WARNING is recommended. Do not change the regulator/hose assembly or use This is available at your local hardware store or from your any other assembly than the one supplied with dealer. -
Page 21: Gas Conversion Kits
Insert the regulator inlet into the cylinder valve and turn the black coupler clockwise until the coupler is hand tight. Do Gas conversion kits are available from Lynx Grills to allow not over-tighten this connection. the grill to operate on either Natural gas or LPG. These kits To disconnect the coupler, fi... - Page 22 GAS CONNECTIONS ...continued NG AND BULK PROPANE CART INSTALLATION • Shut off the gas supply at the main valve. • Disconnect all plumbing (if already attached) from the grill the g g rill and the gas supply valve. • Remove all the fi ttings from the grill manifold. •...
-
Page 23: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: ELECTRICAL GROUNDING • Product installation must meet local electric codes or, in the absence of local codes, the latest edition of the National Electrical Code ANSI/NFPA No. 70 or the Canadian Electrical Code CGA 1.6b2005. • Use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor cooking gas appliance. •... -
Page 24: Final Checks
FINAL CHECKS LEAK TESTING LOW HEAT BURNER ADJUSTMENT FOR MAIN CERAMIC BURNERS AND TRIDENT™ BURNERS ONLY! DANGER! DO NOT ADJUST THE ROTISSERIE BURNER. To prevent fi re or explosion hazard, DO NOT The main ceramic burners and Trident™ burners on your grill smoke or allow any potential source of ignition feature an adjustable low setting. -
Page 25: Checklist Before Each Use
Finally, for safety and for proper use & care, you must leave this manual with the owner. Make sure you advise them to keep it for future reference. For technical assistance call: Lynx Customer Care 888-289-5969 INSTALLATION / USE & CARE... -
Page 26: A Message To Our Customers
A MESSAGE TO OUR CUSTOMERS You’ve just joined a discriminating collection of amateur and professional chefs that take outdoor cooking to a new level. Your grill has been designed and built with meticulous attention to detail and it off ers some unique and powerful features. -
Page 27: Grilling In Windy Conditions
GRILLING IN WINDY CONDITIONS Outdoor grills create more heat than interior kitchen ranges. That’s how they sear and grill steaks and other foods. These high-performance burners require a constant, steady supply of fresh air to mix with the fuel. Your grill pulls air in through the front and vents hot gases out through the rear. -
Page 28: Pre-Grill Checklist
PRE-GRILL CHECKLIST BEFORE YOUR FIRST USE AT EACH NEW SEASON At the start of each new grilling season you should remove There are a few must-check safety precautions to consider the grilling racks and check the burners, venturis, orifi ces before you use your grill. - Page 29 LIGHTING YOUR GRILL ELECTRIC IGNITION For the Rotisserie Burner: The rotisserie burner features a thermocouple sensor with a Before proceeding, make sure you have completed the safety valve that automatically shuts off the fl ow of gas if the “Before Each Use” checklist. burner goes out.
-
Page 30: Basic Grilling
... infrared heat ... to create a higher searing temperature than Pre-heating your grill every time you use it is extremely what standard burners can achieve. Lynx Grills provides the important. Pre-heating allows the briquettes to properly heat Trident™ infrared burner. - Page 31 USING THE TRIDENT™ BURNER HOW TO SEAR The Motor Install the motor by sliding it into one Searing locks in fl avor and juices while allowing the food’s of the slots shown here. Use the top outer surface to absorb smoke and food-born aromas slot for small foods or fast cooking produced when drippings are vaporized by the burner.
-
Page 32: Using The Prosear™ Burner
Your new grill comes with the Lynx Smoker Set with handle. For best results keep the lid closed. The best absorption This oval shaped Lynx Smoker box can be placed anywhere of smoke fl... -
Page 33: Cleaning Your Grill
CLEANING YOUR GRILL STAINLESS STEEL SPECIAL NOTE FOR LOCATIONS NEAR POOLS AND COAST- AL AREAS: Our products are known for their attractive appearance. We The 304 stainless steel material used in the construction achieve this by selecting only the fi nest grades of stainless of the grill is highly rust resistant, however, chlorine in the steel and applying exacting workmanship. - Page 34 CLEANING YOUR GRILL ...continued WARNING PAINTED PARTS PROPER PLACEMENT OF EACH BURNER IS CRITICAL. AFTER CLEANING THEY MUST BE Wash with warm soapy water. DO NOT use steel wool, abra- CENTERED ON THE BRASS ORIFICE, sive cleaners, ammonia, or cleaners containing acid. This RESTING LEVEL WITHOUT ANY ROCKING.
-
Page 35: Troubleshooting Your Grill
CLEANING YOUR GRILL ...continued Every 3 to 6 months, remove the burner and inspect the venturi (inlet) and orifi ce to ensure that they’re free of obstructions. Food debris on the inside of the burner can be Inside View, Orifi ce gently shaken out. - Page 36 Ensure that you are using a 4/11 appliance regulator supplied for 3 minutes. by Lynx and converted to LP gas. Also ensure that you do Proper leveling during installation is critical. A grill that not have more than one regulator in line.
- Page 37 If, after holding the control knob in for at least 60 seconds, the burner still will not stay lit when releasing the control knob, call for service. (See INDEX: “Obtaining service from Lynx” for further details.) LIGHTS WON’T LIGHT • Check Power Ensure that the grill is connected to a live AC power source and check for rotisserie motor operation.
-
Page 38: Contacting Customer Service
Name of dealer from whom purchased Clearly describe the problem that you are having. If you are unable to obtain the name of an authorized service agency, or if you continue to have service problems, contact Lynx at 1-888-289-5969, or write to: Lynx Grills... - Page 39 INSTALLATION / USE & CARE...
- Page 40 Lynx Grills 62201 Hwy 82 West Greenwood, Mississippi 38930 USA 888-289-5969 www.lynxgrills.com 35283 Rev G (053024))
