The following instructions are provided to help you install the Asado, 30" Grill, or Sonoma Smoker on the L30CART.
IMPORTANT: Be sure the L30CART's casters are locked to avoid movement when installing the grill.
Warning: the L30AG is approximately 208lbs., the LSMK is approximately 135 lbs., and the L30PSR is approximately 241 lbs. you will require assistance to lift and
install any of these items onto the cart.
Tools required: Rags, newspaper (to place any items on), Philips head screwdriver, and gloves.
This cart is intended for use with the Lynx 30" Professional Grill, 30" Asado Grill, and the 30" Sonoma Smoker only.
L30AG
Lynx Grills, Inc.
7300 Flores St.
Downey, CA 90242
www.lynxgrills.com
Ph. 562-299-6900

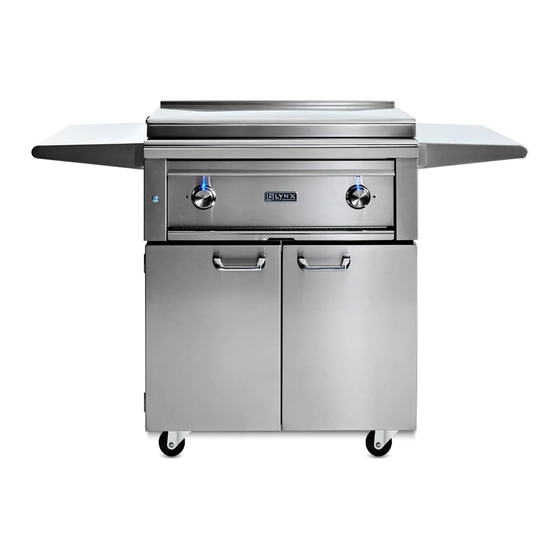

Lynx 30" Universal Cart
L30
L30(PS)R, L30AG, and LSMK
LSMK
Lynx Customer Care
Ph.: 888-289-5969
Fax: 562-299-6978
Service@lynxgrills.com
Advertisement
Table of Contents
Related Manuals for Lynx L30 Series
Summary of Contents for Lynx L30 Series
- Page 1 Tools required: Rags, newspaper (to place any items on), Philips head screwdriver, and gloves. This cart is intended for use with the Lynx 30” Professional Grill, 30” Asado Grill, and the 30” Sonoma Smoker only. L30AG LSMK Lynx Grills, Inc.
- Page 2 L30AG 1. Remove the four screws on the back panel. 2. Slide out drawer and remove completely. 3. Next remove the screws which attach the rails and remove the rails to begin installation. 4. Carefully lift the Asado Grill and position it above the cart.
- Page 3 L30PSR 1. Remove the four screws on the back panel. 2. Slide out drawer and remove completely. 3. Next remove the screws which attach the rails and remove the rails to begin installation. 4. Carefully lift the 30” Grill and position it above the cart.
- Page 4 LSMK 1. Remove the four screws on the back panel. 2. 2. Slide out drawer or remove completely to begin installation. 3. Carefully lift the Sonoma Smoker and position it above the cart. 5. Re-attach the rear panel with the previously removed screws. 4.
