Audio Output - WisyCom MRK16 User Manual

MRK16 16 channels ultra-wideband rack unit

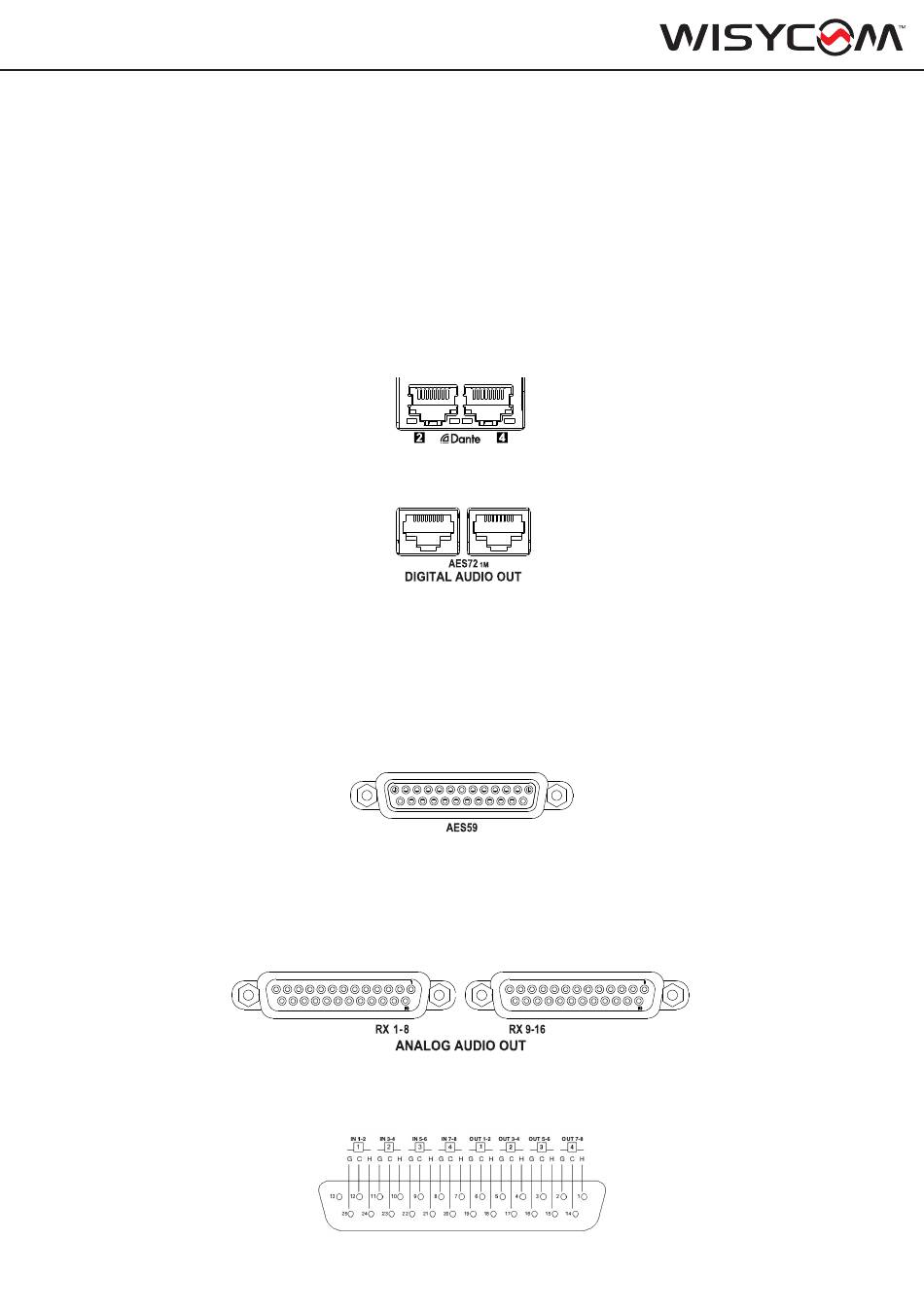

The following audio outputs are available simultaneously:
1- Analogue
2- Digital (only one between AES59 or AES72)
3- Dante
Ethernet ports
DANTE
These digital ports output audio through a CAT5 connector, specifically from ports 2 and 4.
Using the Dante Control software, you can change the word clock from 48kHz to 96kHz and
configure all four ports to enable, for example, the Dante output on any port (1, 2, 3, 4, or 5).
AES72
These digital ports output audio through a CAT5 connector. The sampling rate of the digital
audio output is fixed at 48kHz.
D-subminiature
D-subminiature connectors are used to carry balanced analog or digital audio on many multi-
channel professional audio equipment, where the use of XLR connectors is impractical due to
space constraints.
AES59 Out
These digital ports output audio through a DB25 pin connector (Tascam standard). The sam-
pling rate of the digital audio output is fixed at 48kHz.
Analogue Out
The analog output on the MRK16 is provided through two DB25 connectors (Tascam stan-
dard), with channels 1 to 8 on the first connector and channels 9 to 16 on the second. To
use this output, connect the adapter cable and tighten the two screws on the connector. The
analog output on the MRK16 is self-generated from the MCR54, meaning the MCR54 only
outputs in digital, and the MRK16 converts it to analog.
DB25 connector Pinout
This is the standard TASCAM connector pinout that can be found on mixers, recorders, and
other related accessories.
G Ground
C Cold
H Hot

AUDIO OUTPUT

7
