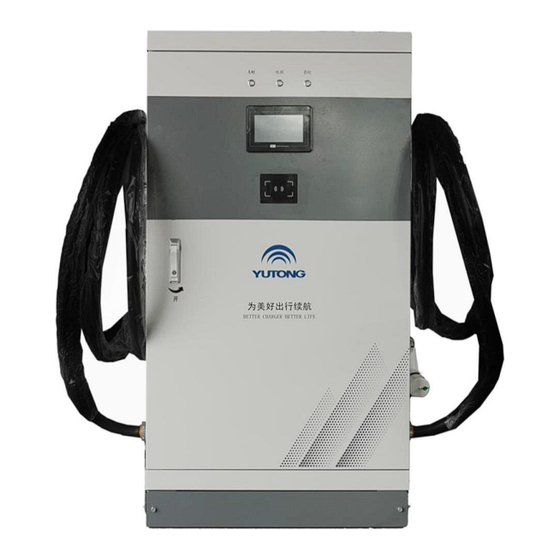

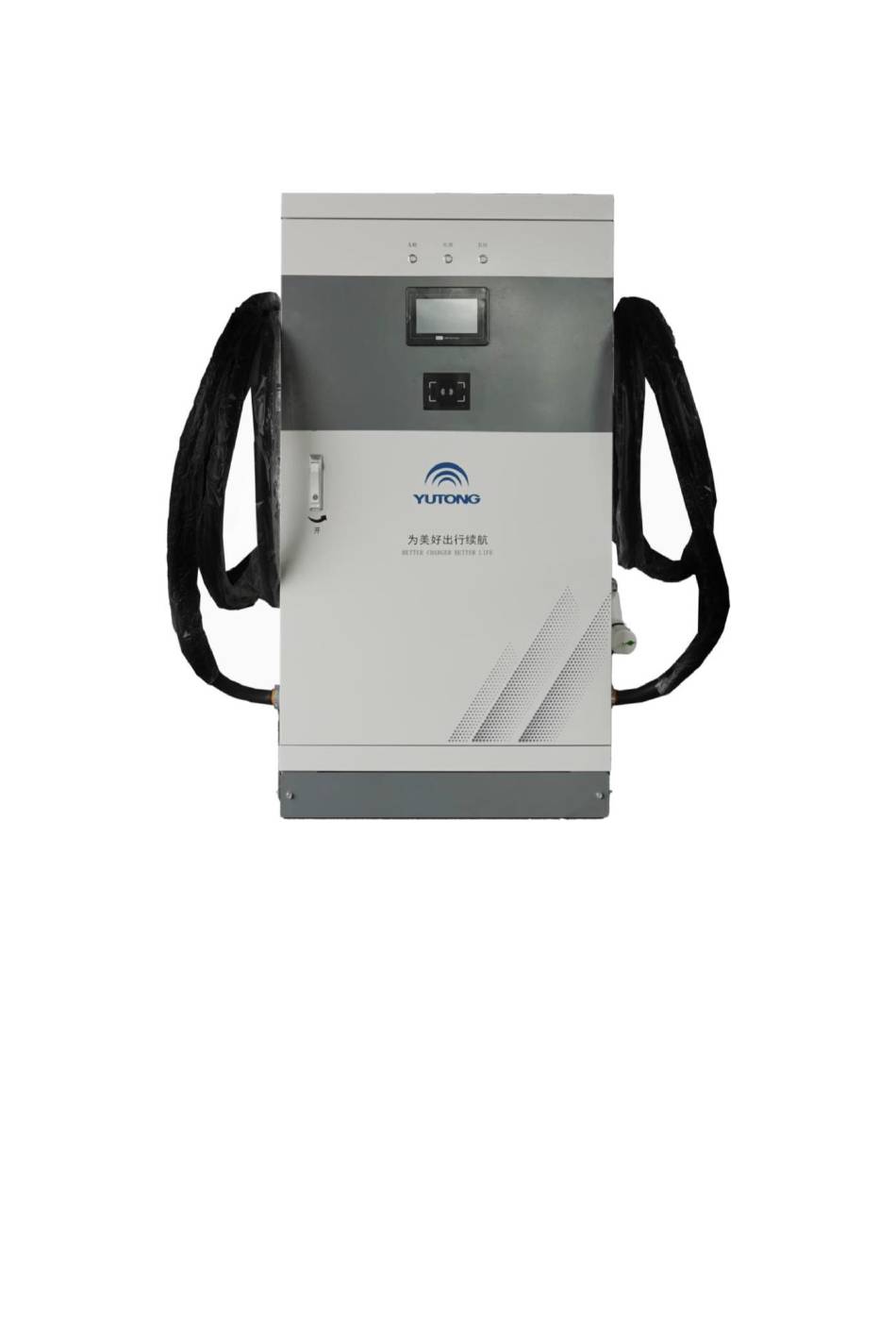

- Page 1 240/320kW Series DC Charger Instruction Manual Zhengzhou Shanxiang New Energy Technology Co., Ltd. March 2024...
- Page 2 Zhengzhou Shanxiang New Energy Technology Co., Ltd. Modification History Modification Date Version Content Modified Created by April 25th, 2024 First release Deng Yanbo Prepared by: Checked by: Approved by: Revised by: Deng Yanbo Qu Yiwei Liu Yu...
- Page 3 Zhengzhou Shanxiang New Energy Technology Co., Ltd. Zhengzhou Shanxiang New Energy Technology Co., Ltd. is a subsidiary of Yutong Group, specializing in battery charging and swap solutions. Our core team has gone deep into the field of battery charging and swap solutions for more than 10 years and has rich product R&D and...
-
Page 4: Table Of Contents
Zhengzhou Shanxiang New Energy Technology Co., Ltd. Table of Contents I. Introduction to product ......................5 1.1 Brief introduction to product ..................5 1.2 Product model ......................5 1.3 Technical parameters ....................5 1.4 Reference standards ..................... 6 II. Installation instructions ......................7 2.1 Installation conditions .................... - Page 5 Zhengzhou Shanxiang New Energy Technology Co., Ltd. 6.3 Warranty conditions and restrictions ................. 19 6.4 Quality judgment ....................... 20 6.5. Additional warranty regulations ................21 6.6. Warranty procedures ....................21 6.7. Supplementary provisions ..................21 Attached: Common fault code table ..................22...
-
Page 6: Introduction To Product
240kW to 320kW, so as to meet charging needs of electric vehicles with different capacities and meet the charging needs of users in various scenarios. 1.2 Product model SZ-320, SZ-240 Maximum output power: 320 kW, 240 kW SZ: Shanxiang integrated DC charger 1.3 Technical parameters... -
Page 7: Reference Standards
Zhengzhou Shanxiang New Energy Technology Co., Ltd. Work- Protection grade IP55 -30 to 55 ℃ Working temperature ≤5,000 m. Derating output if above 2,500m envi- Altitude ron- ≤65dB Noise ment Display size 7 inches, 800*480 Other Communication port 4G/wifi/LAN param- Overall dimension eters 900*850*1600... -
Page 8: Installation Instructions
Zhengzhou Shanxiang New Energy Technology Co., Ltd. II. Installation instructions 2.1 Installation conditions The site selection, installation and construction of the charger should comply with na- tional laws, regulations and relevant standards. When installing, do not close the ventilation side and the door opening side to walls. -
Page 9: Cabinet Installation Instructions
Zhengzhou Shanxiang New Energy Technology Co., Ltd. 2.2 Cabinet installation instructions 1) The charger adopts ground installation. When installing, make sure the installation is reliable and firm. The recommended foundation drawing is shown below: Cable incoming port Air outlet Air inlet Front door Embedded bolt M12*220 Ground surface... -
Page 10: Electrical Cable Installation Instructions
Zhengzhou Shanxiang New Energy Technology Co., Ltd. 2) When installing, remove the charger tray and bottom protection plate. After that, transfer the charger to foundation platform with a forklift and fix the charger. After fixing, install the protection plate back. Notice: After the charger is fixed to the platform, its installation vertical inclination should not be greater than 5%. -
Page 11: Preparations For Power-On
Zhengzhou Shanxiang New Energy Technology Co., Ltd. Notice: 1) The AC input cable must be connected as shown in the figure. Do not connect the neutral cable and phase cable inversely. Otherwise, it will lead to charger failure beyond repair; 2) The recommended tightening torque for bolts of copper bar of phase A, B, and C cables is 30±2N•... -
Page 12: Brief Introduction To Charging System
Zhengzhou Shanxiang New Energy Technology Co., Ltd. 2.5 Brief introduction to charging system 2.5.1 Welcome home screen The power indicator can be in green or red. After turning on the power supply, the power indicator comes on in green, indicating that the charger is powered on. When the emergency stop button is pressed or the cabinet door with the limit switch is open, the power indicator comes on in red, indicating that the charger is faulty. -
Page 13: Charging Method Selection
Zhengzhou Shanxiang New Energy Technology Co., Ltd. 2.5.3 Charging method selection Click the “Start to charge” button, and then charging method selection screen (including card swipe, code scan, VIN) pops up on the screen. The user can select a charging method according to charging requirements. -
Page 14: Charging
Zhengzhou Shanxiang New Energy Technology Co., Ltd. 2.5.5 Charging When the charging mode is selected, the charger starts to charge. During charging, the following information is displayed: charging power, charging current, charging quantity, charging fee, charging time and SOC. Click the gun No. to display detailed charging data as shown in the following figure: Shanxiang smart charging Gun A... -
Page 15: Charge Settlement
Zhengzhou Shanxiang New Energy Technology Co., Ltd. 2.5.6 Charge settlement When charging is complete or manually terminated, click your gun No. to enter settlement screen. The followings are displayed on the screen: charging quantity, charging duration, charging fee, card balance, ending method, ending reason and others as shown in figure below: Shanxiang smart charging Gun B Gun A... -
Page 16: Operation Procedures
Zhengzhou Shanxiang New Energy Technology Co., Ltd. make sure both of the guns are inserted properly and then start to charge. 2.5.9 Operation procedures Stop the vehicle, flame out and remove the key Connect the charging gun properly Choose a charging mode (Auto, scheduled charging, fix amount, fixed quantity, SOC etc.) Input charging... -
Page 17: Charger Storage And Maintenance Instructions
Zhengzhou Shanxiang New Energy Technology Co., Ltd. III. Charger storage and maintenance instructions 3.1 Charger storage The packaged charger should be stored at a well ventilated site with temperature between -35℃ to 55℃ and average monthly relative humidity not more than 90%. There should be no corrosive and explosive gas in the storage site. -
Page 18: Safety Instructions
Zhengzhou Shanxiang New Energy Technology Co., Ltd. IV. Safety instructions In order to ensure the normal service life of the charging pile and reduce risks during use, always inspect and maintain it within the specified period. The equipment should be checked and repaired by professional personnel using qualified and safe maintenance tools. -
Page 19: Use Risk Notification
Zhengzhou Shanxiang New Energy Technology Co., Ltd. or our authorized operation and maintenance personnel. Otherwise, there is a risk of electric shock; Do not maintain the charging equipment when the power is not cut off. Otherwise, there is a risk of electric shock; ... -
Page 20: Warranty Period
Zhengzhou Shanxiang New Energy Technology Co., Ltd. 6.2 Warranty period The warranty period is subject to the purchase contract between the two parties, except for consumable parts. 6.3 Warranty conditions and restrictions Preconditions of the product warranty: ① The product must be within the specified warranty period. Damage caused by human factors, improper maintenance and other non-product reasons, including appearance and function of the whole equipment and parts, is not covered by the warranty. -
Page 21: Quality Judgment
Zhengzhou Shanxiang New Energy Technology Co., Ltd. will not be compensated. During the warranty period, the maintenance accessories that need to be replaced or supplemented during the maintenance process and normal consumption are borne by the user, such as incoming cables and electricity charges. ... -
Page 22: Additional Warranty Regulations
Zhengzhou Shanxiang New Energy Technology Co., Ltd. If it's temporarily hard to draw the identification conclusion, the user can request re- placement and repair beforehand without influencing the proceeding of identification. How- ever, the corresponding fees must be paid in advance. 6.5. -
Page 23: Attached: Common Fault Code Table
Zhengzhou Shanxiang New Energy Technology Co., Ltd. removing high-pressure components. If the charger is not used for a long time, please turn off the charger input switch. Otherwise, standby power consumption will be generated. In addition, it may cause power factor to exceed the standard, which could be fined by the power supply bureau.
