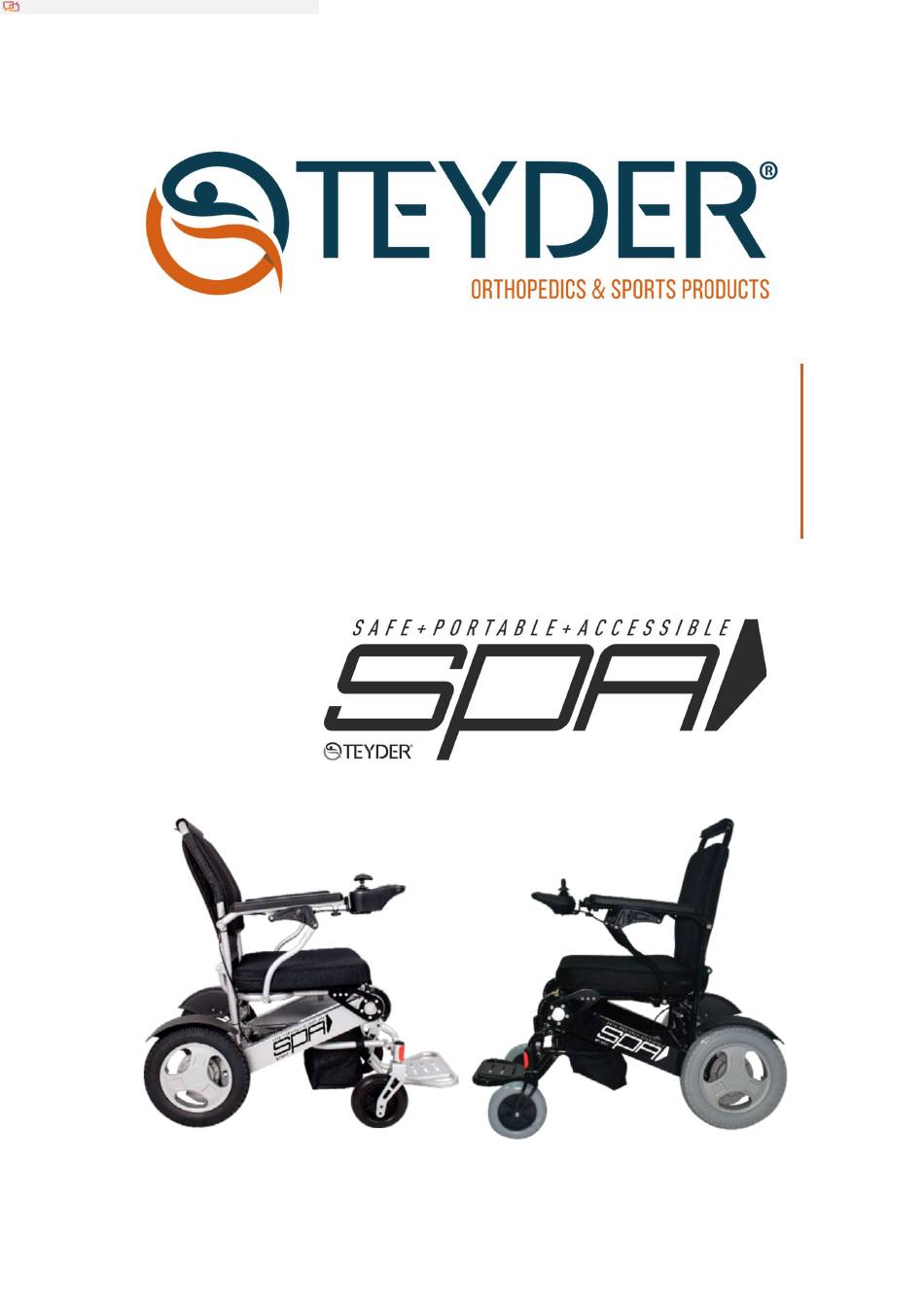

- Page 1 Translated from Spanish to English - www.onlinedoctranslator.com USER MANUAL SPA MODEL 250W 1463SE...
-
Page 2: Table Of Contents
INDEX 1. INTRODUCTION 2. SAFETY GUIDE 3. CHAIR CHARACTERISTICS 4. OPERATION eleven 5. INSTALLATION GUIDE 6. BATTERIES AND CHARGING 7. PRECAUTIONS FOR USE 8. MAINTENANCE 9. RESOLUTION OF INCIDENTS 10. JBH APP USER MANUAL 11. WARRANTY USER MANUAL SPA MODEL 250W 1463SE... -
Page 3: Introduction
Welcome aboard your new electric wheelchair model 1463SE SPA 250. We thank you for choosing a Teyder product. This model has been designed with the specific needs of the user in mind, combining a robust and solid product along with electronics that have high technology and high levels of safety and performance. -
Page 4: Safety Guide
2.1. SAFETY SIGNS These symbols can help you identify some danger, obligation or prohibition signs while using the model 1463SE SPA 250. These signs are very important. Read and observe the guidance provided in this manual. Safety warning sign or indication of a dangerous operation that may endanger your safety or the safety of others. - Page 5 • Do not use the 1463SE SPA 250 on rough, sandy or overly uneven terrain as this may cause damage to the wheels, bearings, axle or engine parts. Impacts that may occur can cause some weaker fasteners to come loose.
- Page 6 After modifying the wheelchair, be careful when operating it until you are familiar with the new balance and center of gravity of the wheelchair. CAUTION: Do not modify or adjust the settings of the 1463SE SPA 250 yourself. 2.3.4. PRECAUTIONS WHEN GETTING ON/OFF FROM THE WHEELCHAIR Caution! •...
- Page 7 • During lateral transfers, fold the armrests up to facilitate movement. • Before making a transfer, make sure the chair is braked, the immediate surroundings are safe, and the maneuver will be safe. 2.3.6. PRECAUTIONS WHEN BENDING THE BODY OR ATTEMPT TO REACH OBJECTS Caution! Stretching or tilting your body will affect the center of gravity and balance of the electric wheelchair.
- Page 8 2.4.2. REVERSE DRIVING Caution! When driving the 1463SE SPA 250 electric wheelchair backwards, you should always be extra careful. If the rear wheel hits an object, you may lose control and cause a fall or rollover. • Drive as slowly as possible to maintain the stability of the chair.
- Page 9 A short circuit or electric shock may occur if they accidentally come into contact with the two poles. • Before using the 1463SE SPA 250, please read this manual carefully and make sure you fully understand its operation. •...
-
Page 10: Chair Characteristics
• When moving the 1463SE SPA 250 manually, choose a safe and reliable point to exert the pushing force to prevent the wheelchair from tipping over. • When pushing this wheelchair, you must use the push handle located on the back. This will prevent the chair from tipping backwards when pushing. -
Page 11: Operation
3.2. TECHNICAL SPECIFICATIONS Model 1463SE Seat width 47 cm (55 cm with accessory) Total width 59 cm (57 cm without fenders) Seat depth 43cm Depth with 99 cm (83 cm without footrest) footrest Seat to floor height 46cm 92cm Total height Folded dimensions 37cm (length) * 59cm (width) * 92cm (height) 180kg... - Page 12 4.1.2. STEPS TO DEPLOY THE CHAIR 1. Hold the top of the backrest with one hand, the front of the chair with another hand and separate both parts. 2. Lock the latch on the back of the wheelchair. 3. Put the seat cushion on the wheelchair. 4.
- Page 13 4.2. DRIVING IN MANUAL MODE Release lever:To drive your chair in manual mode for short distances, you have a red lever located on both motors. To activate this lever you must turn off the chair and pull up, then you can push the chair to move it.
- Page 14 4.3. DIGITAL CONTROL REMOTE 4.3.1. RECOMMENDATIONS • The control is made up of high precision components. Drive and store it carefully to avoid damage. • Take care to avoid hitting the control lever with any object, whether stopped or moving, to prevent the wheelchair from losing control.
- Page 15 4.3.3. WIRING DIAGRAM Controller Connection of the Connection of the right engine left engine Connection of the battery port of USB charging Connection of the higher command Engine Engine Command left right Connection of Connection of battery 1 battery 2 USER MANUAL SPA MODEL 250W 1463SE fifteen...
- Page 16 4.3.4. INSTALLATION OF THE UPPER CONTROL The controller can be installed on the right or left side, depending on the user's needs: 1.First, unscrew the wing nut to release the joystick from the side where it is installed. 2.Insert the joystick through the opening of the armrest tube on the side where you want to place the joystick, and once you ensure its correct placement, readjust the lower wing nut (in the opposite direction to point 1).
- Page 17 3.As shown in the attached image, the two parts of the cable should meet as in the image below. 4.As shown in the image, both pins must be placed with extreme care not to break or bend them. 5.The correctly positioned joystick should look like the attached image. USER MANUAL SPA MODEL 250W 1463SE...
- Page 18 4.3.5. LOWER CONTROLLER ASSEMBLY 4.3.6. LOCATION OF COMPONENTS 4.3.7. JOYSTICK OPERATION DIRECTION The joystick allows you to control the forward movement, reverse movement, right and left turns, acceleration, deceleration and parking of the wheelchair. • The joystick is vertical when stopped. Push it forward to make the chair move in that direction.
- Page 19 4.3.8. CONTROL PANEL Increase Reduce the speed Speed Every touch to reduce Each touch to increase speed one point speed by one point button Power button screen • Press the button to left turn on the chair • Hold the button for 3 Visual display seconds to turn it off left page...
- Page 20 4.3.9. DIGITAL SCREEN INSTRUCTIONS State State Reminder of Temperature Bluetooth speed limit blocking Reminder of speed limit from low power. charging required Too hot Unlocked Not connected immediate Connected locked Very cold Selection of speed Speed speed section in real time set by the [+] [-] buttons between 1 (lower) and 5 (higher) Charge indicator...
- Page 21 Press the left or right button for 5 seconds to select the desired page. There are three pages available in total. Page Page Page major QR code of equipment number The first page displayed Scan the code to get information Show device ID information such as device ID and firmware version...
- Page 22 4.3.10. DIGITAL CONTROL ERRORS AND TROUBLESHOOTING Code Inspection and handling methods Cause of the error of mistake Abnormal joystick position Release the joystick to return to the normal position The electromagnetic brake is not Activate the brake activated Communication error Check the entire wiring harness of the wheelchair joystick signal Damage to the joystick, replace with a new one...
- Page 23 Code Inspection and handling methods Cause of the error of mistake Left engine not working Check connection of actuator and motor Left MOS motor failure Change the motor driver Left motor phase failure Check connection of actuator and motor Release the joystick. If the error does not disappear, Left engine is blocked change the engine fifty...
-
Page 24: Installation Guide
• The user will not have the right to use it if he makes any modification or change to the product that has not been approved by the manufacturer. • This device complies with Part 15 of the FCC listing. Its use is subject to the following two conditions: 1. - Page 25 Adjust the seat belt until the user feels comfortable: • Once seated, place both parts of the belt in front and secure the buckle. This will be set when you hear a click. • Adjust the length of the seat belt to the correct measurement, never overtighten it as it may cause discomfort to the user.
-
Page 26: Batteries And Charging
6. BATTERIES AND CHARGING 6.1. BATTERY SAFETY Do not use batteries with different capacity at the same time, when replacing batteries, do not mix old and new batteries. Keep tools and other metal objects away from the positive and negative poles of the battery. - Page 27 6.2. CHARGE THE BATTERIES • Charging the battery continuously for a long time before first use may reduce battery life (charge the battery for the first time only when the last red LED on the control panel flashes). • When charging the new battery for the first time, it should be left fully charged (around 24 hours).
-
Page 28: Precautions For Use
3. After the charger indicator light turns from red to green, continue charging the batteries for 30 minutes to ensure they are fully charged. Unplug the wall outlet first, and then unplug the control panel (joystick) cable. 7. PRECAUTIONS FOR USE •... -
Page 29: Resolution Of Incidents
You can wash the cushion cover and upholstery in a washing machine at 30º with neutral soap. Be sure to remove the foam first. Teyder recommends periodically lubricating the joints and axles of your SPA chair to extend its useful life and improve its operation. - Page 30 Each wheelchair can resist EMI up to a certain intensity. This is called the “immunity level.” Although 1463SE SPA 250 has passed the 30 V/M electromagnetic interference test, it has a certain degree of immunity to some common electromagnetic interference.
-
Page 31: Jbh App User Manual
10. JBH APP USER MANUAL The JBH APP and UI are subject to continuous improvements all the time. Instructions for users are for reference only. Some changes will appear due to differences in update versions. 10.1. ABOUT THE JBH APP Remote control your JBH Monitor mileage, battery Establish and adjust... - Page 32 Click the text box and enter the phone number. Review the service agreement and privacy policy. Click Accept if you agree. Click on « » and continue with the verification procedure. Click on « », and check the received messages. Enter the verification code to complete the registration and enter.
- Page 33 nte with the go QR team has been ar now» once uetooth, touch the bre, click on on "Jump" to ono in the part make a new one connection if the Bluetooth connection has failed. Alternatively, click “Various reasons why it hasn't scanned” to find the problems and connect again.
- Page 34 There are 3 function pages: “Information”, “Remote Driving”, “Settings”. Press the button icon to choose the page you want. 10.6. FIRMWARE UPDATE Select to access the “Vehicle Settings” page. ». Select “Firmware Update” from the list to access the page “ Select an item you want to update.
- Page 35 10.7. HOME PAGE LIST After each entry, you will automatically be taken to the “My JBH” page. The page above shows that the device is not connected. The page shows that the device is connected correctly. The page shows that there is more than one device connected. The JBH APP allows you to link several mobility scooters at the same time.
-
Page 36: Warranty
». Click the bell icon at the top right to access the page « The red dot that appears on the bell indicates that there are unread messages. Messages are classified by importance, activity, service, etc. The red dot on the right side indicates that there are unread messages in the list. - Page 37 Imported and distributed by: TEYDER, SL Sant Antoni Industrial Estate. Nau 5 08620 Sant Vicenç dels Horts, Barcelona www.teyder.com teyder@teyder.com Contactsat@teyder.com for technical problems. The supplier may change dimensions without prior notice. Maker: Anhui JBH Medical Apparatus Co., Ltd. No. 116...
- Page 38 USER MANUAL SPA MODEL 250W 1463SE...
