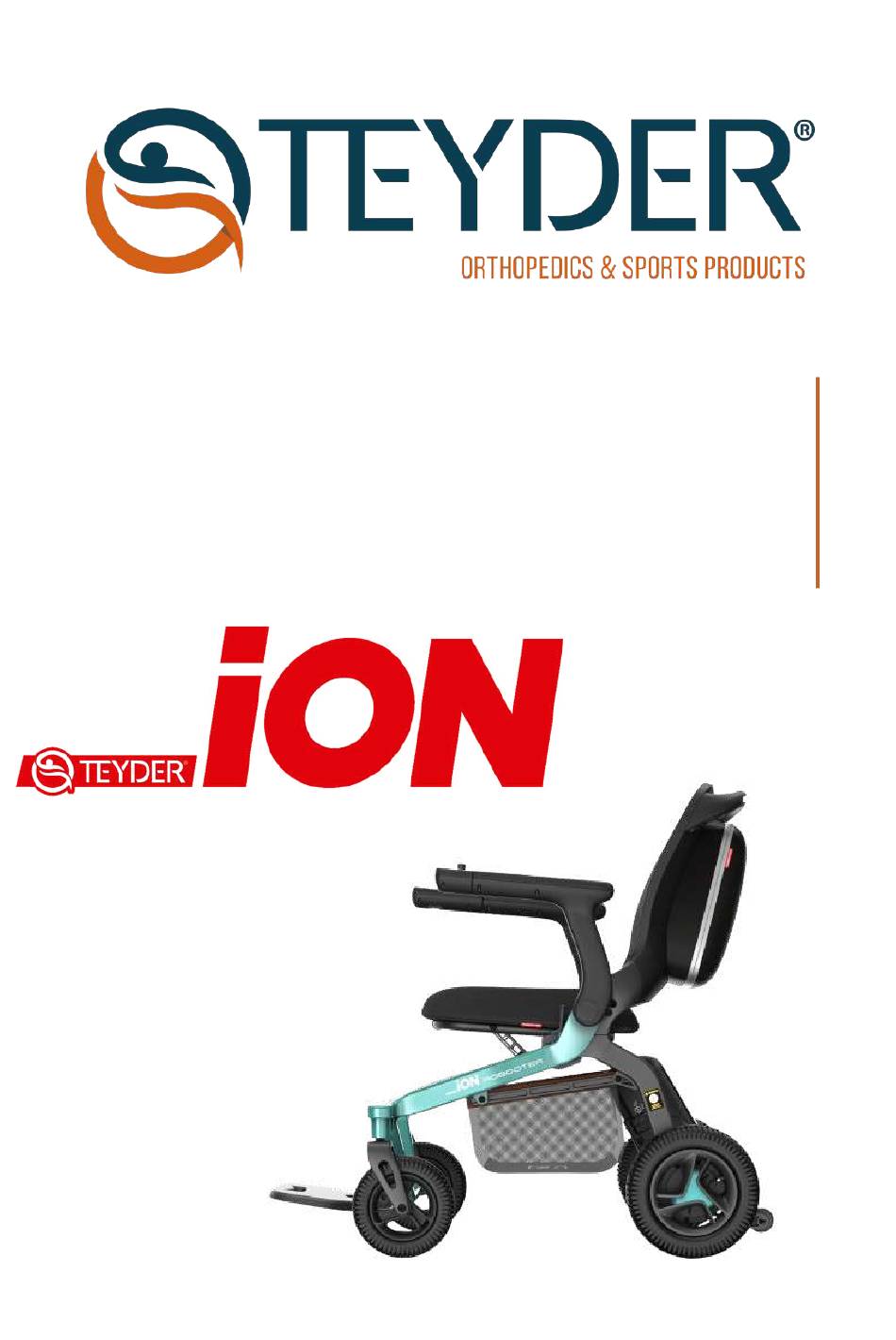

- Page 1 USER MANUAL MODEL ION 1494SE...
-
Page 2: Table Of Contents
8. UPPER CONTROLLER INTRODUCTION 9. WHEELCHAIR FOLDING STEPS 10. BATTERY DISASSEMBLY 11. CHARGING 12. BATTERY INSTALLATION 13. PRECAUTIONS FOR OPERATION 14. MAINTENANCE 15. STORAGE 16. QUALITY ASSURANCE 17. APP OPERATION GUIDE OF THE ELECTRIC WHEELCHAIR USER MANUAL MODEL ION 1494SE... -
Page 3: Introduction
1494SE Instruction Manual is an important document that provides the product information, operation methods and after-sales service information of the electric wheelchair. Before use, please carefully read ION 1494SE Product Manual for correct operation and maintenance. This manual contains information protected by patent rights and copyright. Do not copy the content either partially or completely without the written permission of Bangbang. - Page 4 • All the functions can only be operated after you correctly sit on the seat. • Do not place your feet in any part out of the pedal. • Do not stand on the electric wheelchair. • Do not try to go up and down the slope exceeding 9°. USER MANUAL MODEL ION 1494SE...
-
Page 5: Overview
This user manual is applicable to power wheelchairs, and includes various types of safety precautions, function descriptions and maintenance information. The graphics in this manual are for the user's reference only. Refer to the actual use of the product. 4. APPLICATION SCOPE Helping disabled, elderly and frail people who have difficulty walking to move. USER MANUAL MODEL ION 1494SE... -
Page 6: Product Brief Introduction
5. PRODUCT BRIEF INTRODUCTION 5.1. WHEELCHAIR STRUCTURE 1. Controller 2. Light 3. Seat 4. Folding button 5. Footrest 6. Front wheels 7. Basket 8. Armrest 9. Backpack 10.Backrest 11.Battery holder 12.Brakes 13.Anti-tip 14.Power wheels USER MANUAL MODEL ION 1494SE... - Page 7 Static stability sideways 9° Dynamic stability uphill 9° Minimum braking distance from max speed 1100mm Footrest to seat distance 400mm Leg to seat surface angle 100° Armrest to seat distance 230mm Front location of armrest structure 500mm USER MANUAL MODEL ION 1494SE...
-
Page 8: Characteristics Of The Wheelchair
• Novice mode: Click Fn to enter the novice mode. The voice prompts "Enter the novice mode" and the screen displays the novice mode icon. The first and second gears are optional. Speed gear limit 2. USER MANUAL MODEL ION 1494SE... -
Page 9: Unpacking And Unfolding
Remarks Before folding the electric wheelchair, empty the items in the storage basket to prevent damage. Note: During the folding/expanding steps, do not contact the position indicated in the anti-clamp manual. USER MANUAL MODEL ION 1494SE... -
Page 10: Upper Controller Introduction
• Fn key: Click Fn to enter the novice mode, and the screen will display gear 1, gear 2 and the NOVICE icon, accompanied by the voice prompt of "Enter the novice mode". Speed gear limit 2 (the first and second gears are optional). USER MANUAL MODEL ION 1494SE... - Page 11 Increases speed Reduce speed Function SOS Button Horn 8.3. SWITCH TO PUSHING MODE Press '︿' key and '﹀' key at the same time to enter pushing mode. Shake the rocker can exit the pushing mode. USER MANUAL MODEL ION 1494SE...
- Page 12 - Click Fn to enter the novice mode, and the screen will display gear 1, gear 2 and the NOVICE icon, accompanied by the voice prompt of "Enter the novice mode". Speed gear limit 2 (the first and second gears are optional). USER MANUAL MODEL ION 1494SE...
- Page 13 • Pushing mode display - At the same time, press and hold the button "Speed ︿" and "Speed ﹀" for 3s, and the pushing mode icon will be displayed on the upper controller screen of electric wheelchair. USER MANUAL MODEL ION 1494SE...
- Page 14 • Step 3, interchange the left and right controllers, connect the harness, insert the left and right controllers into the armrest controller card slot, and use the hexagon wrench to lock the hexagon socket screws. USER MANUAL MODEL ION 1494SE...
-
Page 15: Wheelchair Folding Steps
Modo de operación de plegado: Al plegar manualmente la silla de ruedas eléctrica, presione el interruptor de plegado con una mano y tire del reposabrazos hacia arriba con la otra mano hasta que la silla de ruedas eléctrica está completamente doblada. USER MANUAL MODEL ION 1494SE... -
Page 16: Battery Disassembly
Charging method I Connect the charger and plug the charger plug into the upper controller for charging. Charging method II Take out the battery, plug the charger plug into the charging port of the battery to charge. USER MANUAL MODEL ION 1494SE... -
Page 17: Battery Installation
• Check whether the electric wheelchair is in good condition, such as whether the performance is normal. • The electric wheelchair will automatically shut down if being idled for 30 minutes. • When using an electric wheelchair, avoid being close to a radio transmitter, high-power handheld radio transmitter or receiver. USER MANUAL MODEL ION 1494SE... -
Page 18: Maintenance
• The service life of this product is 5 years after the product is delivered. Please use within the effective date. In case of expiration, do not use the product to avoid occurrence of accident. • Refer to product tag for date of production. USER MANUAL MODEL ION 1494SE... -
Page 19: App Operation Guide Of The Electric Wheelchair
17. APP OPERATION GUIDE OF THE ELECTRIC WHEELCHAIR 17.1. DOWNLOAD APP Scan the QR code to download Mobile Application. 17.2. INSTALL APP Android • The above screen is displayed after scanning, click to install the mobile application. USER MANUAL MODEL ION 1494SE... - Page 20 • The above screen indicates that the installation of the mobile application is complete. • Click on the above screen to open the mobile application. • The above screen is displayed after scanning, click to install the mobile application. USER MANUAL MODEL ION 1494SE...
- Page 21 • The above screen indicates that the mobile application is being installed. • The above screen indicates that the installation of the mobile application is complete. • Click on the above screen to open the mobile application USER MANUAL MODEL ION 1494SE...
- Page 22 17.3. CONNECT DEVICE • Click on the above screen to search device. Note: Obtain phone permissions • Click on the above screen to turn on your mobile’s Bluetooth. USER MANUAL MODEL ION 1494SE...
- Page 23 17.4. INSTALL APP Note: Obtain phone permissions • Click on the above screen to turn on your phone's location. Note: Obtain phone permissions • Click "Location access" on the above screen to turn on your phone's location. USER MANUAL MODEL ION 1494SE...
- Page 24 After turning on the wheelchair, enter the lock mode automatically. Only use the app after unlocking on the wheelchair. • The above screen indicates a successful connection. • Click in the above screen to access status screen of the electric wheelchair. USER MANUAL MODEL ION 1494SE...
- Page 25 • Click to adjust the device speed. (Adjustable speed in 5 gears) • Click in status screen to access enhanced mode adjustment and general mode adjustment. (General mode speed: 4.5km/h, enhanced mode speed: 6km/h) USER MANUAL MODEL ION 1494SE...
- Page 26 • Circle up to move forward, down to move back, left to turn left, right to turn right. • Click in the top right corner to access the setting screen USER MANUAL MODEL ION 1494SE...
- Page 27 • Turn on voice prompts: slide left to turn off voice, slide right to turn on voice. • Turn on voice alarm: slide left to turn off voice, slide right to turn on voice. • Adjustable 3-step volume: High, Middle, Low. USER MANUAL MODEL ION 1494SE...
- Page 28 • Click “Battery information” in the setting screen to access battery information screen. • Shows battery power percentage and battery status. • Click “Current Version” in the setting screen to access version upgrade mode. • Show current device version. • Click to upgrade version of device. USER MANUAL MODEL ION 1494SE...
- Page 29 The supplier may change the dimensions without prior notice. Manufacturer: Shanghai Bangbang Robotics Co., LTD Room 501-1, Buildng A, Software park Shuyang Country, Suqian, Jiangsu China Representative CE: RIOMAVIX S. L. C/ de Almansa, 55, 1D 28039 Madrid España USER MANUAL MODEL ION 1494SE...
- Page 30 USER MANUAL MODEL ION 1494SE...
