Summary of Contents for Vita-Mix Touch & Go

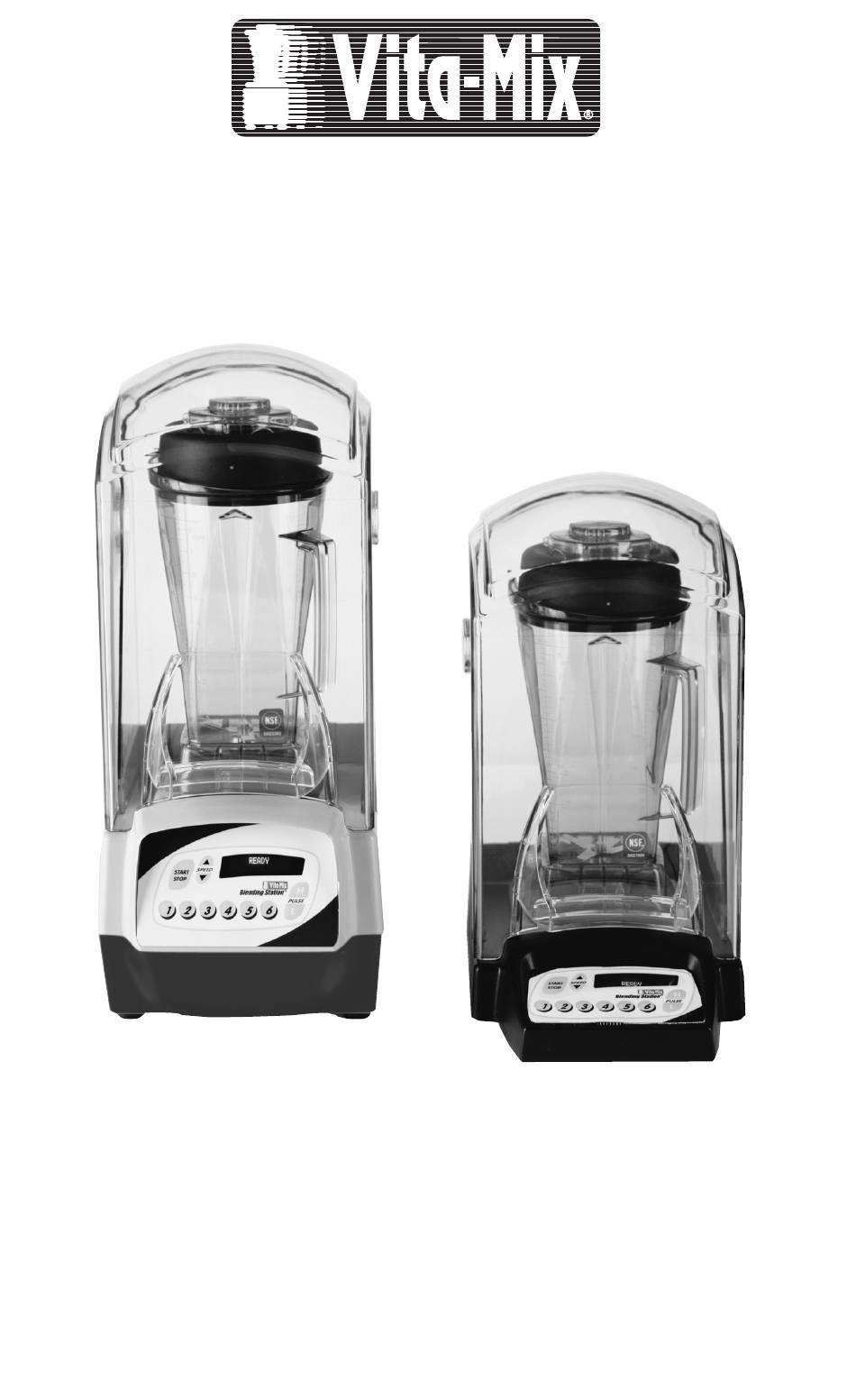

- Page 1 F O O D S E R V I C E Owner’s Manual Read And Save These Instructions Touch & Go ® Blending Station ® High Performance Commercial Blender All Models...
-
Page 2: Import Nt S Fegu Rds
Vita-Mix Distributor, or phone the Vita-Mix International Division at +1 (440) 782-2450 or email at international@vitamix.com for a distributor in your country. 7. The use of attachments not recommended or sold by Vita-Mix Corporation may cause fire, shock, or injury. 8. Do not use outdoors. - Page 3 14. WARNING: When processing hot liquids: • The 2-part latching lid must be securely in place. This allows steam to escape naturally, and will prevent the lid from coming off when the machine is turned on. • Use caution with hot liquids. Spraying from under the lid plug can occur, or escaping steam may cause scalding.
-
Page 4: Control Panel
ontrol Panel Display Window Speed Control Start/Stop Six Factory Pre-Set Owner Controls High/Low Pulse Programs Touch & Go ® Blending Station ® ON/OFF switch - Located on the side of the Motor Base the ON/OFF switch controls the power to the machine. With the machine plugged in, switch the machine to ON to ready the machine for blending. - Page 5 OWNER CONTROLS - A control panel accessible by pressing the Vita-Mix logo. • Press once to reveal the mode message. Press button 1 then 6 within five seconds to continue. Once the correct code is entered the MODE display will indicate the motor temperature (Norm, Warm, Hot), a usage count and a total.
-
Page 6: C Ustom Programming
Blending Station ® advanced electronic control can be custom programmed,* requiring an optional programming chip, available from Vita-Mix for a nominal fee and with a minimum unit purchase. Contact your Vita-Mix representative for more information. Programming your On-Counter Touch & Go Blending Station PRE-SET buttons 1. - Page 7 Press the PRE-SET buttons 1 and 6 then the display window will say ‘Count Temp Total’. 2. Press the Vita-Mix Logo two more times to reveal the instructions on resetting the PRE-SET buttons. 3. Press and hold the #4 button until the DISPLAY WINDOW reads ‘Restoring Please Wait’.
- Page 8 id Assembly Two-part Lid 48 oz. (1.4 liter) polycarbonate container The two part lid is easy to clean and easy to put on, take off & seal. • To remove fully latched lid, squeeze tabs together on both sides of the container, pull upward and off. •...
- Page 9 Tamper Cover with Removable Hinge Design Cover Door: 1. The Cover Door can be removed by opening it until the door is horizontal. Then, gently spread the sides of the door over the round hinges and remove. 2. To reinstall the Cover Door, gently spread the sides of the door and place the door hinge cutouts over the round hinges.
-
Page 10: Electrical Requirements
n-Counter Installation Preparing the counter area: • Before cutting holes, make sure that there is adequate clearance under the counter for the motor. The motor will extend about 5-2/3" (14.4 cm) below the counter but it is best to allow at least 10"... - Page 11 Blending Station dimensions: • 17-1/2” (44.45 cm) high with lid closed • 21-1/2” (54.7 cm) high with lid open • Case depth: 12-3/4” (32.39 cm) with handle • Case width: 9-1/2” (24.13 cm) • Depth below counter: 5-2/3” (14.4 cm) •...
- Page 12 n-Counter Gasket Gasket Installation Instructions: 1. Follow the instructions on page 10 on preparing the counter area for the installation of your In-Counter Touch & Go ® Blending Station. ® Also, use the Template Sheet (provided in your machine’s original package) to assist you in the placement and ventilation of your machine.
-
Page 13: B Lending Tips
5. When overheating occurs, review your techniques and instructions. The motor may be getting hot when your recipes are too thick. Consider adding more liquid and consult Vita-Mix, or your Vita-Mix distributor, for further assistance. Maintenance Tips: • Never bang the container against a surface to loosen the ingredients. Remove the container from the base and use a rubber spatula to remove thick mixtures from the bottom of your container. - Page 14 nstructions How to operate your Blending Station using the ® six Pre-Set Programmed Buttons. The following is the basic factory settings of the six PRE-SET buttons (your machine’s PRE- SET buttons may differ due to program revisions or if your Blending Station was programmed specifically for your business).* •...
- Page 15 5. Once one of the six PRE-SET PROGRAM buttons is pushed the machine will start and stop automatically. By pressing another PRE-SET BUTTON or the START/STOP button, the machine will stop the blending cycle. 6. During any of the blending cycles, by pressing the PULSE H button the speed of the blending can increase up to 100% of the motor speed.
- Page 16 arts List Item# Part #752 64 oz. (2.0 liter) - Container without lid assembly or blade assembly #755 64 oz. (2.0 liter) - Lid plug #756 64 oz. (2.0 liter) - Container, blade assembly & lid assembly #1191 64 oz. (2.0 liter) - 2-piece lid assembly #1192 64 oz.
- Page 17 #1159 #755 #15507 #1191 #1192 #15506 #15502 (container without #752 blade or lid) #756 #1151 #15595 #836 #891 #890 #15596 #18003 #18004 #18005 #15603 #18002...
-
Page 18: Care And Cleaning
Cleaning Care Note To ensure that you get the longest possible life from your Vita-Mix product, we recommend the following products, when used as directed by the supplier: Cleaning Product Supplier Solid Supra, Solid Power, Ecolab, Inc., St. Paul, MN... -
Page 19: Motor Base
Motor Base 1. Unplug the power cord. 2. Wash outside surface with a damp soft cloth or sponge, which has been rinsed in a mild solution of liquid dish soap (Ivory Liquid ® or equivalent) in warm water. NEVER IMMERSE MOTOR BASE IN WATER OR OTHER LIQUID. -
Page 20: Troubleshooting
Solution #1: • Display Panel reads Let the machine cool down for an hour then restart. MOTOR LOCKED PROGRAM Solution #2: TERMINATED Call Vita-Mix Customer Service if the machine does not work after sitting at room temperature for 24 hours... - Page 21 If you cannot fix your machine with these suggestions, technical help is available by calling 800-4DRINK4 (800-437-4654), 440-235-0214. Outside the United States and Canada contact your Vita-Mix distributor or contact Vita-Mix International at +1(440) 782-2450 or email international@vitamix.com for a local distributor or visit us at www.vitamix.com/foodservice.
-
Page 22: B Lade Agitator Assembly
• The retainer nut is easily removed using the Retainer Nut Wrench. To order a Retainer Nut Wrench please call your Vita-Mix distributor and ask for Item #15596. • To remove, turn the container upside. Using the Retainer Nut Wrench turn the wrench counterclockwise to loosen the nut. -
Page 23: Limited Warranty
NOTE: to determine if you have a defective part, please order a replacement part through Vita-Mix Customer Service, and when the new part arrives, return the old part in the same packaging. Vita-Mix will inspect the returned part and, if CONTINUED ON NEXT PAGE... -
Page 24: Specifications
8615 Usher Road, Cleveland, Ohio 44138-2103 USA www.vitamix.com/foodservice ©2004 Vita-Mix Corporation. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopy, recording or any information storage and retrieval system without the written permission of the Vita-Mix Corporation.
