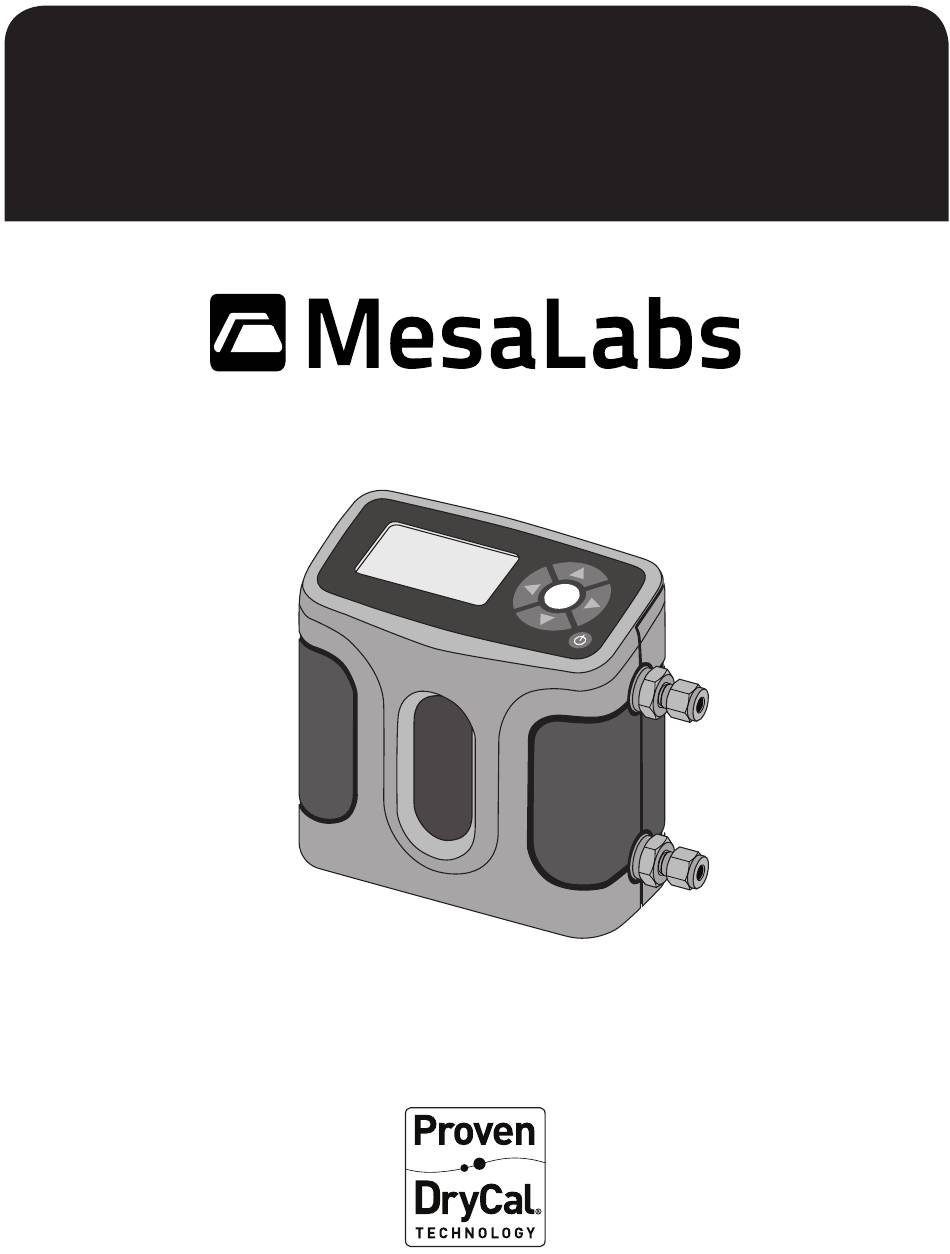

- Page 1 Defender 530+ ™ User Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction ........ 1.0 Operation ........2.0 Battery ........2.1 Activation ........2.2 Connections ......... 2.3 Display Screen ......2.4 Menu Navigation ......2.5 Set Up ......... 2.6 Measurements ......2.7 Single .......... 2.8 Burst ........... 2.9 Continuous ........2.10 Data Port ........ - Page 3 Introduction Operation Data Port Annual Maintenance and Calibration Shipping Storage Defender 530+ Specifications Factory Default Settings Limited Warranty Troubleshooting Guide 10.0...
-
Page 4: Introduction

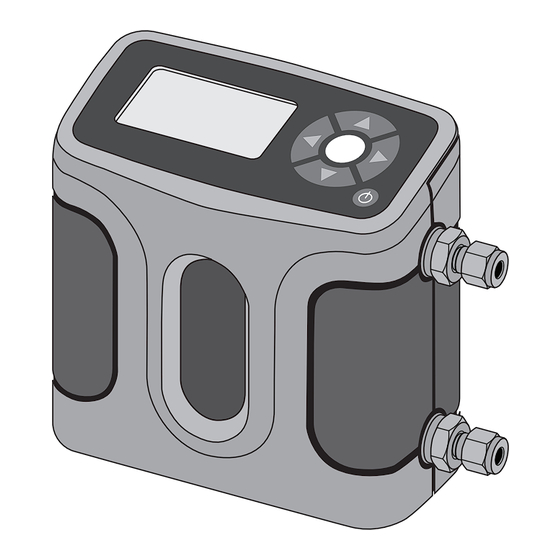

This manual will provide the information needed to operate your Defender 530+. If at any time you have questions regarding its operation, please contact Mesa Labs through our web site (drycal.mesalabs.com) or call us at 973.492.8400 to speak with a member of our professional customer service staff. - Page 5 Display Suction Fitting Measuring Cell Pressure Fitting Data Port Charging Jack Calibration Label Reset Button Anti-tamper Label...
-
Page 6: Operation
2.0 Operation 2.1 Battery Charging, installing and monitoring your Defender 530+ battery Your Defender 530+ battery is charged at the factory, but we recommend that you make sure it is fully charged before initial use. • Connect the AC power adapter to the Defender 530+’s Charging Jack (DC In). •... - Page 7 Disposal: In compliance with the European Union CE directive 2006/66/EC the battery in your De- fender 530+ should be removed for recycling prior to disposal of the Defender. The battery in the Defender is a valve regulated sealed lead acid battery. Please note that opening the Defender may damage connections so this procedure should only be used for battery dis- posal.
-
Page 8: Activation
2.2 Activation Turning your Defender 530+ on and off: Simply press the power button. • Press the On/Off button for 1 second to turn on your Defender 530+. • When first turned on, your Defender 530+ displays an opening screen showing the product name, model number and flow range. -
Page 9: Display Screen
2.4 Display Screen Understanding the screen components The Defender 530+ provides a menu of operational settings and commands. The four directional arrow buttons on the control panel allow you to navigate through the menu and select the desired settings for your Defender 530+. Your location within the menu is highlighted for easy identification. -
Page 10: Set Up
Defender 530+ M Range: 50–5,000 cc/min Control Panel with DryCal Technology ® MEASURE | SETUP Definer 220 Defender 530+ LCD Screen On/Off Button 2.6 Set-up Customizing the Defender 530+ to your needs You can customize your Defender 530+ in the Setup menu. Highlight SETUP in the in- troduction screen to enter the Setup Menu. - Page 11 Readings Choose the flow reading type to either volumetric ‘Vol’ or standardized ‘Std’. Volumetric flow is the actual flow at the ambient temperature and pressure whereas the standard- ized flow indicates a flow rate at a specific temperature and pressure. Standardizing pres- sure is set to a default value of 760 mmHg whearas standardizing temperature is a user settable value set in ‘Std To’...
- Page 12 Units Measure gas Flow in cubic centimeters, milliliters, liters or cubic feet (all units are per minute). Measure Pressure in mmHg, kPa or PSI and Temperature in Celsius or Fahrenheit. Set the standardizing temperature by setting ‘Std To’ to a value from 0 to 50 deg C or 32 to 122 deg F.
- Page 13 Magnification It controls the amount of data on the display. Select <Zoom> to view only flow measure- ments in larger font, or select <Detail> to simultaneously view flow measurements, tem- perature, and pressure in a smaller font. Power Power Save By selecting <On>, your Defender 530+ will save power by turning off after five minutes of inactivity.
- Page 14 Diagnostics The Defender 530+ Leak Test is designed only to verify the internal integrity of the instrument and alert you to an internal leak. We recommend performing the Leak Test only as an intermediate quality control check or whenever the integrity of the instrument is questioned due to misuse or accidental damage.
-
Page 15: Measurements
Out of Range If the flow you are measuring is outside the Defender 530+’s flow range, the “Out of Range!” warning appears. Immediately lower or disconnect the flow. When the flow is within the proper range, select RESET to clear your Defender 530+’s last measurement. 2.7 Measurements Taking gas flow readings To maintain the best possible accuracy and minimize thermal effects, Mesa Labs recom-... -
Page 16: Single
First steps Press the power button. • Press the On/Off button for 1 second to turn on your Defender 530+. • When first turned on, your Defender 530+ displays an opening screen showing the product name, model number and flow range. •... -
Page 17: Burst
2.9 Burst Measurement This setting functions in the same manner as ‘SINGLE’, but measurements continue automatically until the preset number of measurements has been made. Operation then ceases, and the last reading and average are displayed. Note: (010 in series) indicates the number of measurements. 10 is the factory-preset number. -
Page 18: Data Port
3.2 DryCal Pro Software Visit Mesa Labs’ website to download your copy of DryCal Pro software (drycal.mesalabs.com/drycal-pro-software). DryCal Pro captures flow data from your Defender 530+ directly to a pre-configured table. The data can be exported to selectable Microsoft office environment. -
Page 19: Annual Maintenance And Calibration
4.0 Annual Maintenance and Calibration Assuring top performance and accuracy Your Defender 530+ is a precision measuring standard with moving parts machined to extremely close tolerances. Various environmental factors, product wear, drift of sensors, or inadvertent damage may adversely affect your Defender 530+’s measurement accuracy or general performance. -
Page 20: Shipping
You can obtain a service quote through our automated web-based system at drycal.mesalabs.com/request-an-rma. Service quotes also can be obtained through email to csbutler@mesalabs.com, or by telephone at 973.492.8400. Our web site ad- dress is drycal.mesalabs.com. Note: Mesa Labs will not evaluate or service your instrument without a service quote. -
Page 21: Storage
6.0 Storage Protecting your Defender 530+ when not in use If you need to store your Defender 530+ for an extended period, please follow these guidelines: • Always store it in a clean, dry place. • If possible, leave it attached to its AC power adapter/charger while in storage. •... -
Page 22: Defender 530+ Specifications
7.0 Defender 530+ Series Specifications Technical data about your Defender 530+ Models: 530+ L, from 5-500 cc/min 530+ M, from 50-5,000 cc/min 530+ H, from 300-30,000 cc/min Measurements: Standardized Accuracy: ±1% of reading Volumetric Accuracy: ±0.75% of reading Time per Measurement: 1-15 seconds (approximate) Type: Single, Continuous or Burst Volumetric Flow Units: cc/min, mL/min, L/min, cf/min Standardized Flow Units: scc/min, smL/min, sL/min, scf/min... - Page 23 Battery Operational Time (5 cycles/min): 3 hrs backlight on, 8 hrs backlight off Pressure & Suction Fittings: ¼” ID Swagelock fittings for Low and Medium models, ® 3/8” ID for High model Display: Backlit graphical LCD Usage: Flow Modes: Suction or Pressure Operating Pressure (Absolute): 15 PSI Operating Temperature: 0-50°C Ambient Humidity: 0–70%, non-condensing...
- Page 24 8.0 Default Settings Original factory settings for your Defender 530+ The Defender 530+ is set with the following Default settings from the factory: • Reading Type - Std • Number in Average – 10 • Time Between – 0 • Sensor Factor - 1.000 •...
-
Page 25: Limited Warranty
9.0 Limited Warranty Outlining our responsibilities The Defender 530+ is warranted to the original end user to be free from defects in ma- terials and workmanship under normal use and service for a period of one year from the date of purchase as shown on the purchaser’s receipt. The Defender 530+’s battery is warranted for six months from the original purchase date. -
Page 26: Troubleshooting
10.0 Troubleshooting Mesa is ready to help you with any operational issue you may encounter with your Defender 530+. But we may be able to save you some time by providing a short checklist of the questions most commonly asked of our customer service and technical specialists. Why won’t my Defender 530+ turn on? If the Defender 530+ will not turn on, verify that the battery has been charged. - Page 27 A temperature rise during initial battery charging, or while charging a fully discharged battery is normal. To maintain the best possible accuracy Mesa recommends fully charging your battery be- fore taking measurements. If this is not possible, we recommend disconnecting your Defender 530+ from its AC power adapter/charger while taking flow measurements –...
- Page 28 Proven Mesa Laboratories, Inc. 10 Park Place Butler, NJ, USA 07405 Phone: 973.492.8400 Toll Free: 800.663.4977 Fax: 973.492.8270 Email: csbutler@mesalabs.com web: drycal.mesalabs.com © 2016 Mesa Laboratories, Inc. MK01-51 REV A...
