ATZ3600EU Portable Power Station
3600W 丨 2048Wh
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATZ3600EU and is the answer not in the manual?

Questions and answers

Related Manuals for Epever ATZ3600EU

Summary of Contents for Epever ATZ3600EU

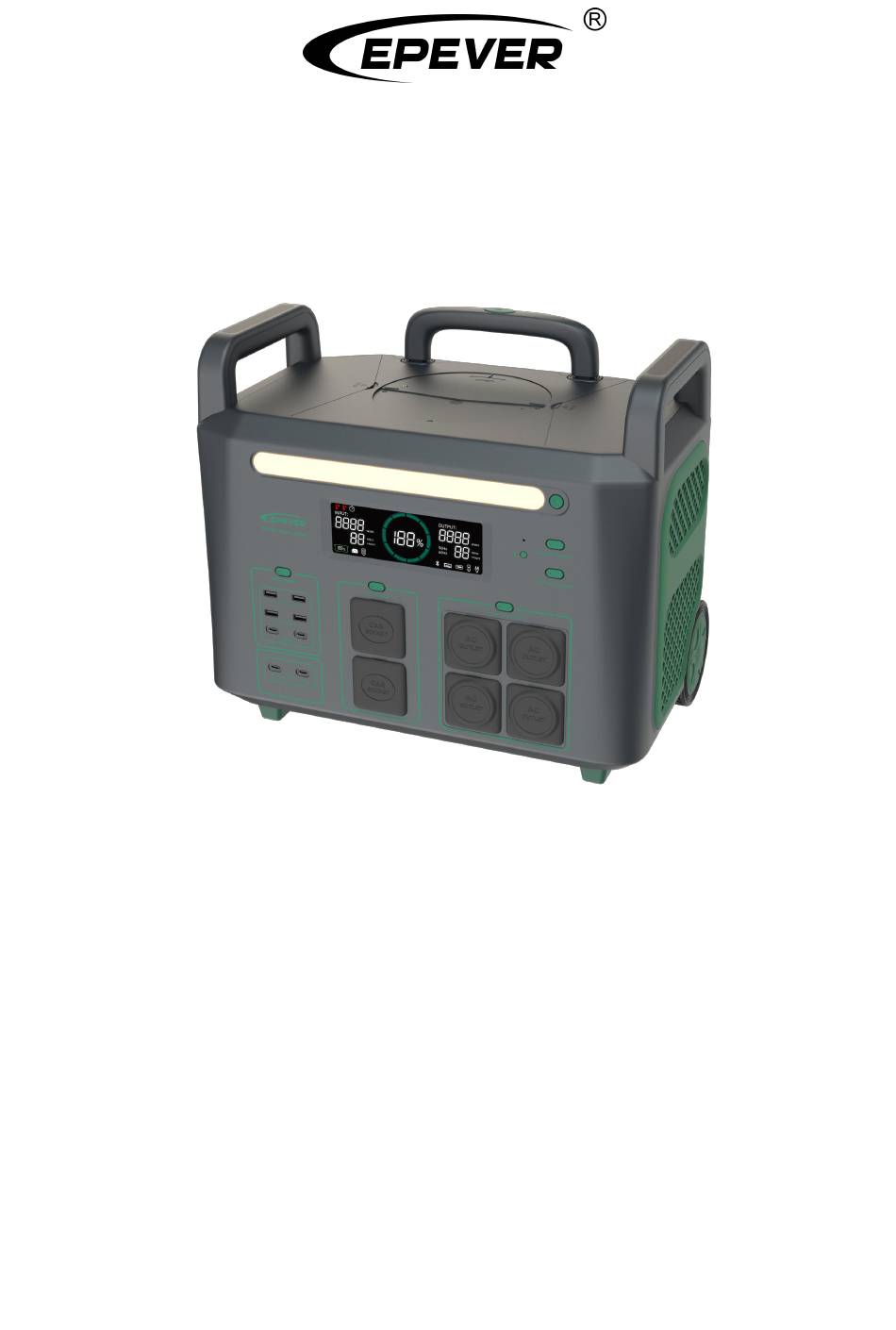

  • Page 1 ATZ3600EU Portable Power Station 3600W 丨 2048Wh USER MANUAL...

  • Page 3: Table Of Contents

    Contents 1 Important safety instructions................1 1.1 Safety instructions regarding risks of fire, electric shock, or personal injury......1 1.2 Safety instructions for operation and use..................2 1.3 Safety instructions for movement and storage.................3 1.4 Safety instructions for user maintenance...................4 1.5 Safety instructions for battery use....................... 4 2 Disclaimer......................
  • Page 4 4.4 Instructions for charging scenarios....................22 4.5 Protections for the secondary battery pack..................24 5 Remote control of power station............... 26 5.1 Remote controller........................... 26 5.2 APP remote control..........................27 5.2.1 Download the APP..........................27 5.2.2 Register and Log in the APP......................28 5.2.3 Add the power station........................31 5.2.4 View the power station........................

  • Page 5: Important Safety Instructions

    1 Important safety instructions Please keep this manual for future reference. This manual contains the safety, installation, and operation instructions for the ATZ3600EU series portable power station (hereinafter referred to as "power station"). Before using the power station, please read the user manual carefully to understand its operation and safety features.

  • Page 6: Safety Instructions For Operation And Use

    Using accessories not recommended or sold by our company may cause risks of fire, electric  shock, or personal injury. To reduce the risk of damaging the power plug and power cord, unplug the plug rather than the  power cord when disconnecting the power station. Do not use damaged or modified power station or equipment.

  • Page 7: Safety Instructions For Movement And Storage

    Do not use the power station if the power cord is damaged or broken.  Keep away from children and pets. Do not allow children to use the power station.  Do not use the power station in high-temperature areas or environments. ...

  • Page 8: Safety Instructions For User Maintenance

    Do not dispose of the power station with household waste.  Do not place the power station near a source of fire or heat, and avoid direct sunlight. Avoid direct  sunlight Do not store the power station in a bathroom, or expose it to a rainy, or a damp environment. ...

  • Page 9: Disclaimer

    2 Disclaimer The company does not assume any responsibility for damage caused by the following circumstances: Damage caused by improper use or use in improper working environments (it is strictly prohibited  to install the power station in severe environments that are humid, high in salt spray, corrosive, greasy, flammable, explosive, or excessive in accumulation of dust).

  • Page 10: Basic Information

    3 Basic information 3.1 Product overview and features ATZ3600EU is a 3600w portable power station that integrates a variety of AC and DC output interfaces, including two 12VDC/10A cigarette lighter sockets, four USB-A interfaces (sharing a 5VDC/3A power supply for every two interfaces), two USB-C interfaces (sharing a 5VDC/3A power supply), two 100W USB-C PD interfaces, and four AC output sockets (maximum output power of 3600W) to meet the power supply needs of different AC and DC devices.

  • Page 11: Appearance

    Optional 2048Wh secondary battery pack available  Equipped with a DC XT60 charging port for solar or car cigarette lighter charging  No need for wiring between the secondary battery pack and the main unit, easy installation and  disassembly Equipped with high-strength aluminum alloy telescopic handle and heavy-duty casters for easy ...
  • Page 12 ❶ ❾ Description Description ❷ ❿ Telescopic handle AC output switch Ambient light switch AC output socket * 4 ❸ ⓫ Car cigarette lighter interface * 2 Ambient light ❹ ⓬ (12VDC/10A) ❺ ⓭ DC switch Reset hole USB-C PD interface * 2 (100W PD) ❻...

  • Page 13: Ambient Light

    ❶ Connecting terminal of the secondary battery pack 3.3 Ambient light Ambient lighting The first click on the ambient light switch powers on level 3 brightness, the second click powers on level 2 brightness, the third click powers on level 1 brightness (gradual decrease in brightness), and the fourth click powers off the ambient light.

  • Page 14: Lcd

    SOS mode The ambient light starts blinking at a certain frequency by long pressing on the ambient light switch for 3 seconds to enter SOS mode. Long press for 3S SOS mode Note: In the SOS mode, click to power off the ambient light. 3.4 LCD The LCD display provides real-time operating status information of the power station, including remaining battery level, output power, remaining service time, charging time, etc.
  • Page 15 Name Functional description ① Check if the APP has added a timing. The icon remains lit when the Timing icon timing set in the APP is greater than zero, or powers off when the timing is set to zero. When either the battery temperature (read from the BMS) of the main or ②...
  • Page 16 Name Functional description Display the corresponding SOC value (read from the BMS module). The icon is lit when the device is powered on and goes out when the device is ⑪ powered off. Battery level starting point is bottom-left R1, corresponding to 0－10% battery level;...

  • Page 17: Introduction Of Switch Functions

    Name Functional description Display the sum of AC load power and DC output power. ⑲ The icon is on with output power, and the icon is off without output Output power power. Note: DC output power is not displayed if it is less than 3W, and AC output power is not displayed if it is less than 30W.

  • Page 18: Naming Rules

    Switch Switch name Functional description diagram Activate Bluetooth. Press to power on, press again to power off. After turning on the Bluetooth switch, long Bluetooth press to unbind the device. switch Note: The wireless technology testing frequency and power is 2402MHz to 2480MHz @ 1.84 dBm. Located above the Bluetooth switch, press for soft Reset hole reset of device information.
  • Page 19 Naming rules for secondary battery pack ...

  • Page 20: Use The Power Station

    4 Use the power station 4.1 External power supply ① ③ ② ④ ① AC output: Short press to power on the AC output, the AC load icon will light up after about 5 seconds. Short press the switch again to power off the AC output, the AC load icon will go out within 5 seconds.

  • Page 21: Charge The Power Station

    ④ USB-C PD output: When the USB-C PD interface is connected to a device, the USB-C PD output will be powered on automatically, and the USB-C PD icon will light up. Disconnect the device to power off the USB-C PD output, the USB-C PD icon will go out.

  • Page 22: Car Charging

    PV array PV Charging Solar charging time: (1200W input power) it takes 1.7 hours to fully charge the main battery pack. 4.2.2 Car charging Note: Solar charging and car charging, only one of the two can be used, simultaneous use is not permitted.

  • Page 23: Solar Plus Ac Simultaneous Charging

    AC charging cable AC charging time: it takes 1.2 hours to fully charge the main battery pack. 4.2.4 Solar plus AC simultaneous charging When AC charging and solar charging are enabled at the same time, the product will give priority to solar charging and use the two methods at the same time to charge the battery at the maximum allowable power.

  • Page 24: Connect To Secondary Battery Pack (Optional)

    4.3 Connect to secondary battery pack (Optional) 4.3.1 Appearance of secondary battery pack Description Description ❶ ❸ ⑴ Capacity indicator light Power button ❷ ❹ Solar panel/Car cigarette lighter Connecting terminal (connected to socket charging terminal main battery pack) (1) Operation instructions for the power button of the secondary battery pack:...

  • Page 25: Installation Of Secondary Battery Pack

    Press for 1 second: The capacity indicator light is on solid, and the secondary battery pack is powered Press for 3 seconds: The tail light of the capacity indicator flashes, it means the secondary battery pack turns on the charging and discharging. Press for 5 seconds: The secondary battery pack turns off the charging and discharging, and later shuts down the secondary battery pack (the secondary battery pack is not connected to the main battery pack.

  • Page 26: Instructions For Charging Scenarios

    Step 3: Put the secondary battery pack into the slots on both sides of the portable power station and push it backward to clamp it tightly. Note: The protective cover of the secondary battery pack must be removed before connecting. After installing secondary...
  • Page 27 Applicable scenarios Instructions After the secondary battery Disconnect the secondary battery pack from the main pack is connected to the main battery pack and separately connect each to a PV battery pack, there are two panel for charging. sets of PV panel. The AC power is preferred for charging the main battery After the secondary battery pack.

  • Page 28: Protections For The Secondary Battery Pack

    Applicable scenarios Instructions After the secondary battery pack is connected to the main The AC and PV panels are preferred to charging the battery pack, the AC and the main battery pack until the main battery pack is fully PV panel are simultaneously charged.
  • Page 29 Applicable scenarios Instructions During the charging process The secondary battery pack will automatically turn off from the secondary battery the discharging. After the temperature of the secondary pack to the main battery pack, battery pack decreases or rises, manually press and the secondary battery pack hold the secondary battery pack's power button for 3 trigger...

  • Page 30: Remote Control Of Power Station

    5 Remote control of power station 5.1 Remote controller ATZ3600EU power station is equipped with a remote controller. The remote controller’s buttons are introduced as follows: Button name Functional description Press the button to power off (the remote controller can be only used for powering off, and Power button not for powering on;...

  • Page 31: App Remote Control

    Remote Controller specification: Name Value Name Value Working voltage 12VDC Modulation method amplitude modulation Encoding chip: Working current ≤15mA Encoding chip: fixed code fixed code Working frequency 433.92MHz Battery 23A/12VDC Transmission power -40.35dBm Number of buttons 7 keys 40 －80 meters ABS plus iron sheet plus Launch distance Shell material...

  • Page 32: Register And Log In The App

    5.2.2 Register and Log in the APP 1. After 2. For the first time, click "Sign 3. On the "Register" screen, downloaded installed, Up" to enter the registration enter your mobile phone open click screen. If you already have an number or email address, and "Agree"...
  • Page 33 4. Enter received 5. After account 6. In the next screens, set verification code to enter the registration is successful, click whether to allow the APP to password setting screen, set "Go to App.” send notifications, enable the the password of the new notification bar permission of account, and click "Done."...
  • Page 34 1. Click "Permissions". 2. Click "Get location 3. Set location permission to information." "Allow only while using the app." Method 2: In the "Me" screen of the "EcoMova" APP, click in the upper right corner to enter the "Settings" screen. And click "Privacy Settings > Location" to enter the "App info" screen, as shown in Method 1.

  • Page 35: Add The Power Station

    Note: The red dot on the icon indicates that a newer software version is available. 5.2.3 Add the power station Before adding the power station, you must click the Bluetooth switch enable the Bluetooth function, turn on the Bluetooth and location information of the mobile phone, and enable the location permission of the APP.
  • Page 36 4. Adding the power station 5. Click “Done” to finish. 6. Enter the home screen of the power station for viewing information and setting related functions.

  • Page 37: View The Power Station

    5.2.4 View the power station After the power station is successfully connected, enter the following APP main screen. Parameter Parameter specification Main battery Click "Main" and "Secondary" to view relevant information of the main battery pack/ pack and secondary battery pack. Note: Only when the secondary battery pack is connected, click Secondary "Secondary"...
  • Page 38 Parameter Parameter specification Turn on or off the cigarette lighter output. The DC output power will display after DC output turning on the button. Turn on or off the USB output. The USB output power will display after turning on USB output the button.

  • Page 39: Edit The Power Station

    5.2.5 Edit the power station 1. On power station 2. Enter device editing 3. Modify the device icon, name, location screen, click the icon screen and click the icon information. the upper right corner. after the device name. Note: On the device editing screen, you can also update the device or remove the device etc. 5.2.6 Software update Click the edit icon in the upper right corner >...
  • Page 40 Click "Start update" to upgrade the software. Upon completion, the system will automatically return to the device editing screen, displaying "Latest version." During the process of software upgrading, the LCD displays 2000, which indicates the update of the OTA.
  • Page 41 After the software download is completed, the LCD screen of the power station will turn off, accompanied by the blinking of the indicator on the switch. Approximately 30 seconds later, the LCD screen will light up again, indicating the software upgrade is completed. Note: When upgrading the software, check whether the following conditions are met;...
  • Page 42 1. If the upgrade fails, click the 2. Return to the APP main 3. Enter device "Got it" to exit the current screen, a "Device Connection reconnecting screen, click the screen. Note: You can't click Failure" prompt message Bluetooth icon, the device and "Update"...
  • Page 43 4. After device 5. Re-enter the device editing 6. Automatically continue the successfully reconnected, screen click "Device last updated until it updating return to APP main screen Update" again. successfully. automatically. Click the icon upper right corner.

  • Page 44: Troubleshooting

    6 Troubleshooting Problem Abnormal phenomenon Solution Unplug the DC input plug, and measure DC Input whether the DC input voltage exceeds Overvoltage 62VDC. Unplug the DC input plug, and measure The power station stops DC Input whether the DC input voltage is lower than charging.
  • Page 45 Problem Abnormal phenomenon Solution The AC output is turned off after the fault occurs, corresponding Remove the overpower device, and reduce icon devices used in the output ports. Electrical AC Output disappears. The failure appliances must be used within the rated Overload content is reported to power.
  • Page 46 Problem Abnormal phenomenon Solution LCD displays the low temperature alarm icon Wait for the secondary battery pack to heat Extra Battery . With 3 warning up, and resume charging only after the Low Temperature icon appears. alerts, charging will be stopped.

  • Page 47: Technical Parameters

    7 Technical parameters 7.1 Technical parameters for main battery pack Product model ATZ3600EU Rated AC input voltage 230VAC AC voltage range 200VAC to 240VAC Breakdown voltage 290VAC AC input frequency 50Hz/60Hz Rated AC input power 2300W Overload protection relay Maximum withstand voltage at PV...
  • Page 48 Cigarette lighter output 12VDC/10A*2 Battery type Lithium iron phosphate Rated voltage 51.2VDC Range of operating voltage 40.0VDC to 58.4VDC Discharging: -20℃ to 50℃; Charging: 0℃ to 50℃ Range of operating temperature Nominal capacity 2048Wh AC charging 1.2 hours Car charging 17 hours Solar charging 1.7 hours...

  • Page 49: Technical Parameters For Secondary Battery Pack

    AC discharging power Vs temperature AC discharging power Vs altitude 7.2 Technical parameters for secondary battery pack Product model ATZ3600-BATT Battery type Lithium iron phosphate Rated voltage 51.2VDC Range of operating voltage 40.0VDC to 58.4VDC Discharging: -20℃ to 50℃; Charging: 0℃ to 50℃ Range of operating temperature Nominal capacity 2048Wh...
  • Page 50 1 month: -10℃ to 50℃; 3 months: -10℃ to 45℃; 6 months: -10℃ to 30℃ Storage environment temperature (high-temperature storage is not recommended; the storage time shall not exceed half a year, and it must be charged once every six months.) Relative humidity ＜80% ＜4000 meters...
  • Page 52 HUIZHOU EPEVER TECHNOLOGY CO., LTD. Tel: +86-752-3889706 E-mail: info@epever.com Website: www.epever.com...
