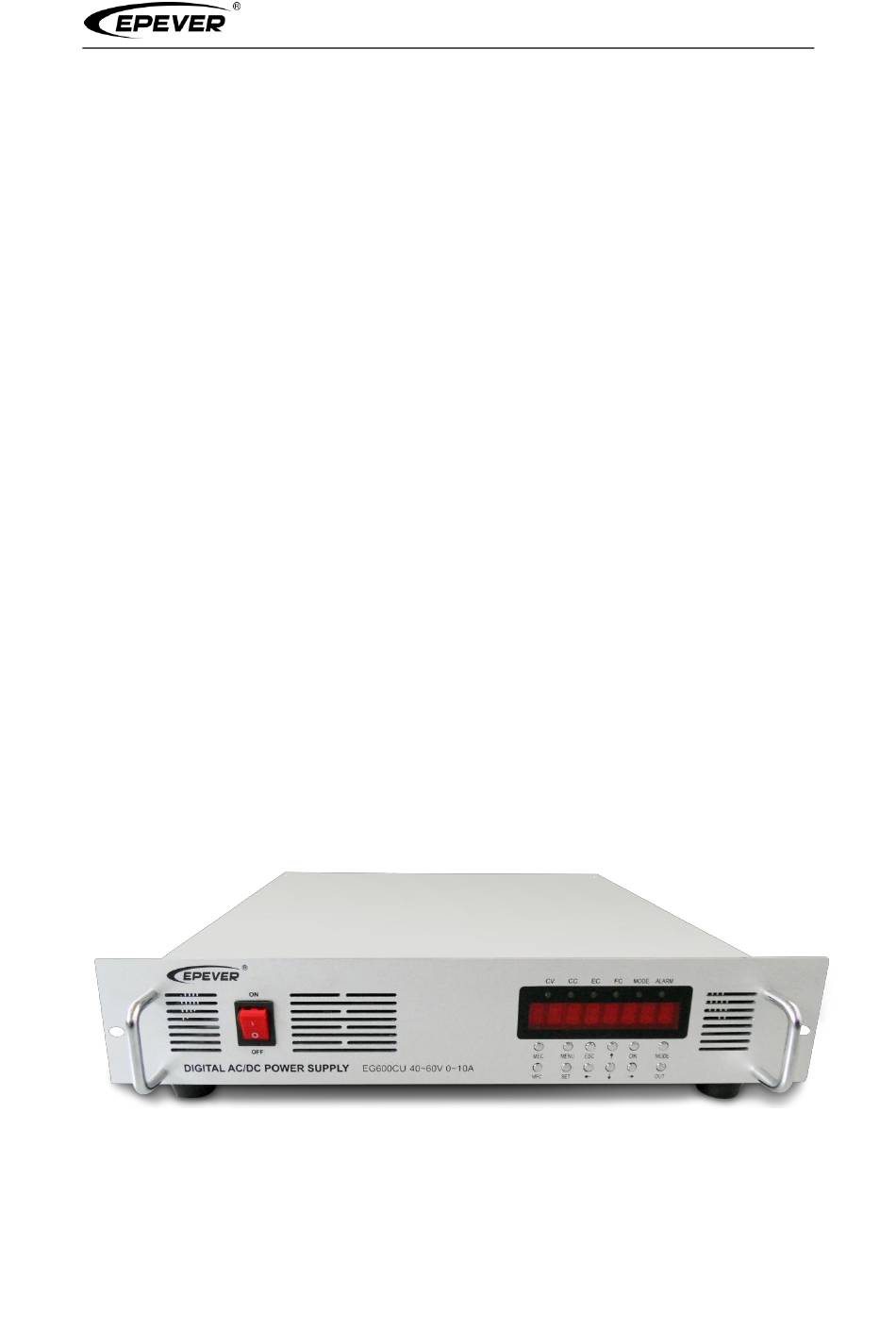

  • Page 1 Digital AC/DC Power Supply EG600CU 40~60V 0~10A USER MANUAL...

  • Page 3: Table Of Contents

    CONTENTS Chapter I ATTENTIONS ................. 1 Chapter II OVERVIEW ................3 Chapter III TECHNICAL SPECIFICATIONS ..........5 Chapter IV OPERATION MODE ............. 7 Section I Power Mode Introduction ............7 Section II Charging Mode Introduction ..........8 Section III Multi-machine Operation ........... 10 Chapter V OPERATION INTERFACE .............

  • Page 5: Chapter I Attentions

    Chapter I ATTENTIONS Thank you very much for selecting our product! This manual offers important information and suggestions with respect to installation, use and troubleshooting, etc. Please read this manual carefully before using the product and pay attention to the safety recommendations. This manual contains important safety, function, installation and operating instructions for the digital power supply.
  • Page 6 There is non-security voltage inside of the power supply. Please call the professionals in our company if you need repair.  Do not install, replace parts or perform any unauthorized modifications on the instrument.  Turn off the power before moving the working power supply. ...

  • Page 7: Chapter Ii Overview

    Chapter II OVERVIEW EG600CU--Digital switching power supply is a new generation of full digital isolate switching power supply which is designed with the technology of advanced active power factor correction and resonant soft-switching. The power supply has a wide range of AC input and an adjustable DC output.
  • Page 8 whose range from 176 to 265V.  Output voltage can be adjusted continuously from 40 to 60V. The minimum adjustable voltage is 0.1V.  Output current can be adjusted continuously from 0 to 10.5A. The minimum adjustable current is 0.1A. ...

  • Page 9: Chapter Iii Technical Specifications

    Chapter III TECHNICAL SPECIFICATIONS Table 3-1 EG600CU technical parameters Technical Index Parameter Test Condition UNIT AC input voltage range AC input frequency range 47.5 52.5 Power factor Vin220V,Vout40V～60V/10A 0.96 0.97 Surge Vin220V,Vout60V/10A Load regulation Vin220V,Vout48V，0-10A Power grid regulation Vin187～242V,Vout48V/10A Voltage-stabilizing accuracy Vin187～242V,Vout48V Efficiency Vin220V, Vout40V～60V/10A...
  • Page 10 Dimensions(H&W&L) 110(4.3)X 483(19.0)X 518(20.4) mm(inches) Output terminal Ground terminal Net weight(reference) Please set up the charging voltage and current according to the battery’s parameters!

  • Page 11: Chapter Iv Operation Mode

    Chapter IV OPERATION MODE The product has two modes, one is power mode and the other is charging mode. The power mode has the character of constant-voltage constant-current and can be used as a conventional DC power supply. The charging mode has a perfect battery charging mechanism. Users can select the appropriate mode according to the actual application.

  • Page 12: Section Ii Charging Mode Introduction

    way, the device in the constant-current mode will be converted to the constant-voltage mode automatically when the load voltage reaches at the output voltage setpoint. The output voltage or current value can be set directly on real-time interface in power mode. Section II Charging Mode Introduction The charging voltage has two points in battery charging mode, one is equalize voltage and the other is float voltage.
  • Page 13 it has been finished then the product will be converted to automatic float charge mode automatically and the yellow LED will be lighted on solid. The Equalize Duration will be paused until the condition is satisfied again if the voltage point is less than the value that is lower 0.5V than the equalize setpoint in half-way.

  • Page 14: Section Iii Multi-Machine Operation

    been finished in order to prevent the device to working in equalize charging mode for a long time during convert the mode repeatedly between forced float charging mode and forced equalize charging mode. Section III Multi-machine Operation  Parallel Running Multiple same type power supplies can be connected in parallel, but the output voltage must be set at the same value.
  • Page 15 technical parameters of the diode). Digital power Digital power Digital power supply supply supply Cathode Anode Figure 4-2 Series connection -11-...

  • Page 16: Chapter V Operation Interface

    Chapter V OPERATION INTERFACE Section I Panel Shows Front Panel： Figure 5-1 Front panel Rear Panel： Figure 5-2 Rear panel ： Illustrate ① ON/OFF switch ② Human-machine interface ③ RS485 port ④ CAN bus port ⑤ DC output Negative terminal ⑥...

  • Page 17: Section Ii Human-Machine Interface

    Section II Human-Machine Interface Figure 5-3 Human-machine interface Table5-1 Interface specification Items Code Color Action Function Remark LED indications Green On solid Constant-voltage output On solid Constant-current output Green On solid Automatic equalize charging mode Green Blink Forced equalize charging mode Yellow On solid Automatic float...
  • Page 18 setting and failure. Enter setting Exit setting without saving if no operation within 60 seconds. Exit setting Confirm setting ↑ ↓ Change the setting value or the page of interface ← → Move the cursor between the bits of the value or the page of interface MODE Switch between...

  • Page 19: Section Iii Display Operation

    Duration and the Equalize Calendar are cleared. The last working mode and parameters will be selected when turning on the power supply. Section III Display Operation  Initialization The device type is displayed firstly when turning on EG600CU the power.  Power Mode MENU MENU MENU V.OUT 48.0...
  • Page 20 the flashing bit will be moved right or left by pressing → or ←, the value will be added or subtracted by pressing ↑ or ↓ . Press OK or ESC button to save the value or not. The current status will be maintained when setting up the device.
  • Page 21 shutdown in both modes. The setting procedure is the same with the “output voltage”. ▼Set Interface —Series Rate The SBR can be set in this page without SBR 1152 shutdown in both modes. The setting procedure is the same with the “output voltage”. Press ↑ or ↓ button to change the value.
  • Page 22  Charging mode ▼Real-time Interface --Output Voltage The page of real-time output voltage can‟t be set. V.OUT 54.8 ▼Real-time Interface --Generating Capacity of Day Power value flashes when pressing SET. Press D.GE 5.15 OK or ESC button to clear the value or not. ▼Set Interface --Equalization Voltage The value of equalize voltage can be set in this V.EC 57.6...
  • Page 23 Table 5-3 The parameters in charging mode Item Code Default Unit Remark Real-time V.OUT Fixed charging voltage Output current C.OUT 10.5 10.5 Real-time output P.OUT Fixed power Real-time input V.IN Fixed power Generating Manual reset; capacity of day Automatic reset(when D.GE the real-time is zero hour);...

  • Page 24: Chapter Vi Protection Function

    Chapter VI PROTECTION FUNCTION  Input Under-voltage and Over-voltage Protection To prevent long-term work in the case of low voltage or high voltage which will shorten the life or damage the equipment when the grid fluctuates heavily. The device will be shut off when the over-voltage or under-voltage occurs.
  • Page 25 The device has output over-voltage protection. It will be shut off automatically and the LED of the corresponding failure will be lighted when the output is over-voltage. It will trigger under-voltage protection when the output voltage is too low. The system will be shut off after two seconds.
  • Page 26 communication failure occurs. Table 6-1 The state table of protection ALARM Delay Operation Recovery Item Time Buzzer Indicator Value Values Indication Light Input overvoltage Red LED Intermittent 265± 3V 250± 3V IOVP protection fast blink buzzing Input Red LED Intermittent undervoltage 176±...

  • Page 27: Chapter Vii Simple Troubleshooting Guide

    Chapter VII SIMPLE TROUBLESHOOTING GUIDE Item Failure Possible Reasons Simple Solution HMI displays The input voltage is Measuring the input “IOVP”; Red LED too high; voltage is too high or not; fast blink; The input voltage has Checking the value of Intermittent buzzing;...
  • Page 28 has been damaged or not and replace it in time when connecting with battery. The system has a recovery function and needs to be turned on again when exceeding the recovery time. HMI displays Output is short circuit Checking the output is “OSCP”, Red and when working;...

  • Page 29: Chapter Viii Maintenance Procedure

    Chapter VIII MAINTENANCE PROCEDURE The company is responsible for free repair within 18 months starting from the date of shipment to the original end use，if the device is used under the environment and rules prescribed in the manual.  Maintenance Procedure Before requesting warranty service, check the User Manual to be certain that there is a problem with the power supply.

  • Page 30: Chapter Ix Overall Dimensions

    Chapter IX OVERALL DIMENSIONS Unit：mm(inches) (17.32) (19.0) Document Version: V4.0 -26-...
  • Page 32 BEIJING EPSOLAR TECHNOLOGY CO., LTD. Tel：86-10-82894856 / 82894896 Fax：86-10-82894882 E-mail：webmaster@epsolarpv.com Website：http://www.epsolarpv.com Address：BLDG #18, CO.PARK, NO.8 HEYING ROAD, CHANGPING DISTRICT，BEIJING，CHINA.
