ATZ3600
Portable Power Station
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATZ3600 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Epever ATZ3600 Series

Summary of Contents for Epever ATZ3600 Series

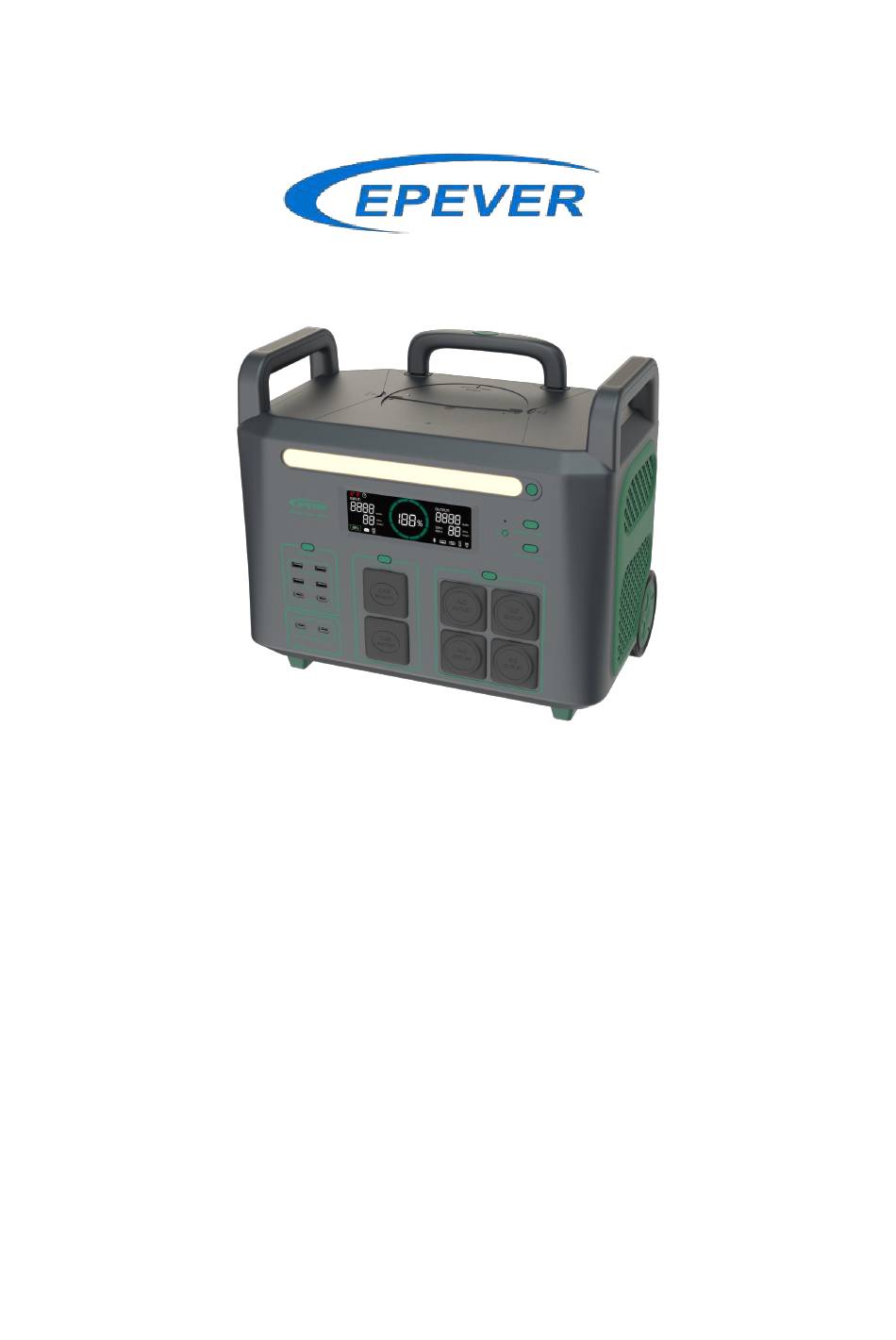

  • Page 1 ATZ3600 Portable Power Station USER MANUAL...

  • Page 2: Table Of Contents

    Table of Contents Important Safety Instructions ..............................1 Disclaimers ......................................5 1 General Information .................................. 6 1.1 Overview ....................................6 1.2 Appearance ...................................8 1.3 Ambient light ..................................10 1.4 LCD......................................10 1.5 Switches ....................................14 1.6 Naming rules ..................................16 2 Use the Power Station ................................17 2.1 Outward power supply ..............................17 2.2 Charge the power station ............................18 2.2.1 Grounding ...................................18...
  • Page 3 3.2 APP remote control ...............................29 3.2.1 Download the APP..............................29 3.2.2 Register and Log in the APP ..........................30 3.2.3 Add the power station ............................32 3.2.4 View the power station ............................34 3.2.5 Edit the power station ............................36 3.2.6 Software update ..............................36 4 Troubleshooting ..................................

  • Page 4: Important Safety Instructions

    Important Safety Instructions Please keep this manual for future reference. This manual contains the safety, installation, and operation instructions for the ATZ3600 series (ATZ3600EU/ATZ3600UK/ATZ3600AU/ATZ3600US) portable power station (hereinafter referred to as "power station"). Before using the power station, please read the user manual carefully to understand its operation and safety features.
  • Page 5 1. Safety precautions regarding risks of fire, electric shock, or personal injury When using this product, always follow basic preventive measures, specifically as follows: Please read the instructions carefully before use.  When using the product around children, conduct close supervision to reduce the risk of injury. ...
  • Page 6 In the event of accidental dropping or vibration, immediately power off the power station.  Do not use the power station if the power cord is damaged or broken.  Keep away from children and pets. Do not allow children to use the power station. ...
  • Page 7 3. Safety precautions for movement and storage Do not move the power station when it is being charged or in use.  Do not dispose of the power station with household waste.  Do not place the power station near a source of fire or heat, and avoid direct sunlight. Avoid ...

  • Page 8: Disclaimers

    Disclaimers The company does not assume any responsibility for damage caused by the following circumstances: Damage caused by improper use or use in improper working environments (It is strictly  prohibited to install the power station in severe environments that are humid, high salt spray, corrosive, greasy, flammable, explosive, or excessive in accumulation of dust).

  • Page 9: General Information

    1 General Information Overview ATZ3600 is a 3,600W portable power station that integrates a variety of AC and DC output ports, including two 12VDC/10A cigarette lighter sockets, four USB-A ports (sharing a 5VDC/3A power supply for every two ports), two USB-C ports (sharing a 5VDC/3A power supply), two 100W USB-C PD ports, and four (ATZ3600EU/UK/AU) or six (ATZ3600US) AC output sockets (maximum output power of 3600W) to meet the power supply needs of different AC and DC devices.
  • Page 10 Optional 2,048Wh secondary battery pack available  No need for wiring between the secondary battery pack and the main unit, easy installation and  disassembly Equipped with high-strength aluminum alloy telescopic handle and heavy-duty casters for easy  mobility Equipped with a wireless remote control for output control and function buttons ON/OFF, and ...

  • Page 11: Appearance

    Appearance ATZ3600EU ATZ3600UK ATZ3600AU ATZ3600US Telescopic handle AC output switch AC output socket *4 (ATZ3600EU/UK/AU) Ambient light switch AC output socket * 6 (ATZ3600US) Ambient light Car cigarette lighter socket * 2 (12VDC/10A)
  • Page 12 DC switch Reset hole USB-C PD port * 2 (100W PD) USB-A port *4 (5VDC/3A) Power switch USB-C port * 2 (5VDC/3A) LCD display switch USB switch Bluetooth switch For detailed information on the functions of switches and the reset hole, please refer to Section 1.5 Switches.

  • Page 13: Ambient Light

    Ambient light Ambient lighting The first click on the ambient light switch powers on level 3 brightness; the second click powers on level 2 brightness; the third click powers on level 1 brightness (gradually decrease in brightness), and the fourth click powers off the ambient light. ×1 ×2 Click...
  • Page 14 Name Function description Check if the APP has added a timing. The icon lights up when the Timing icon timing set in the APP is greater than zero. The icon goes out when the timing is set to zero. When either the battery temperature (read from the BMS) of the High main or secondary battery pack is higher than the high temperature...
  • Page 15 Display the remaining charging time. The icon lights up when the battery is charging and goes out when the battery is not charging. When the remaining charging time is less than 60 minutes, the Remaining actual minute is displayed. When the remaining charging time is charging time more than 60 minutes, the hour value with decimal points is displayed.
  • Page 16 The icon lights up when there is a device connecting to the USB-C USB-C PD icon PD port, and goes out when the device is disconnected from the USB-C PD port. Check the output status of the DC switch. Cigarette The icon lights up after pressing , and goes out after pressing lighter icon...

  • Page 17: Switches

    Switches Switch Switch name Function description diagram Output switch of battery BMS board. Long press Power switch for 3 seconds to power on, and long press for another 3 seconds to power off. Control the LCD backlight. Press to turn on and press again to turn off.
  • Page 18 First press the AC switch to turn on the frequency AC switch display, and then press the AC switch and DC Plus switch simultaneously to switch the AC output DC switch frequency. USB switch Turn off the buzzer. Operating via the APP, refers Plus to Subsection 3.2.4 View the power station for detail.

  • Page 19: Naming Rules

    Naming rules Naming rules for main battery pack  Naming rules for secondary battery pack ...

  • Page 20: Use The Power Station

    2 Use the Power Station Outward power supply Press and hold button for 3 seconds to power on the power station. AC output: Press button to power on the AC output, the AC load icon lights up after about 5 seconds. Press the switch again to power off the AC output, the AC load icon goes out after about 5 seconds.

  • Page 21: Charge The Power Station

    USB-A and USB-C output: Press button to power on the output of USB-A and USB-C ports, the USB-A icon lights up. Press the switch again to power off the output of USB-A and USB-C ports, the USB-A icon goes out. USB-C PD output: When the USB-C PD port is connected to a device, the output of USB-C PD port will be powered on automatically, and the USB-C PD icon lights up.

  • Page 22: Solar Power Charging

    2.2.2 Solar power charging Connect the solar panel to the SOLAR/CAR INPUT port of the power station using the PV charging cable provided in the package to initiate charging. You may use one or multiple solar panels. If multiple panels are to be connected, they must be connected in series or in parallel first before being connected to the power station.

  • Page 23: Ac Charging

    Car cigarette lighter socket charging time: It takes 17 hours to fully charge the main battery pack. 2.2.4 AC charging Please use the supplied AC charging cable to connect the AC INPUT port of the power station and the AC socket in the wall for charging. AC charging time: It takes 1.2 hours to fully charge the main battery pack of model ATZ3600EU/UK/AU, and 1.6 hours for ATZ3600US.

  • Page 24: Eps (Emergency Power Supply)

    AC charging plus the maximum PV charging time: It can only charge the main battery pack at the same time, and it takes 1.2 hours to fully charge. EPS (Emergency Power Supply) This power station supports EPS to serve as an emergency indoor power supply, delivering dependable electricity when needed.

  • Page 25: Connect To Secondary Battery Pack (Optional)

    Connect to secondary battery pack (Optional) 2.4.1 Appearance of secondary battery pack Power button ⑴ Capacity indicator Solar panel/Car cigarette lighter socket Connection terminal (connected to charging terminal main battery pack) (1) Operation instructions for the power button of the secondary battery pack: Press for 1 second: The capacity indicator is solid on, and the secondary battery pack is powered Press for 3 seconds: The tail light of the capacity indicator flashes, indicating that the secondary battery pack turns on the charging and discharging power.
  • Page 26 Step 2: Remove the cover plates on the left and right sides of the portable power station. Step 3: Put the secondary battery pack into the slots on both sides of the portable power station and push it backward to clamp it tightly. Note: The protective cover on the connection terminal of the secondary battery pack must be removed before connecting.

  • Page 27: Application Scenarios

    After installing the secondary battery pack, the portable power station must not be moved or swing significantly. Otherwise, there is a risk of the secondary battery pack falling! CAUTION Application scenarios Charging the main battery pack  Applicable scenarios Instructions Power on the main battery pack first, within 10 ...
  • Page 28 Do not set the charging mode as “Standard (mute  charge)” in the APP. Setting to the standard charge mode is an invalid operation. In the process of secondary Do not power off the main battery pack directly  battery pack charging the or power it off by the remote controller/APP.

  • Page 29: Protections For The Secondary Battery Pack

    The AC power is preferred for charging the main battery pack. Once the main battery pack is fully After the secondary battery charged, the AC power will automatically charging pack is connected to the the secondary battery pack. main battery pack, there is Note: During the charging process of the secondary AC connected.

  • Page 30: Remote Control Of Power Station

    3 Remote Control of Power Station Remote controller ATZ3600 power station is equipped with a remote controller. The remote controller’s buttons are introduced as follows: Press the button to power off (the remote controller can be only Power button used for powering off, and not for powering on; the device can be powered on through the power switch of the device).
  • Page 31 Press the button to turn on the cigarette lighter output, and press it DC output switch again to clear the fault (if exists) or turn off the DC output. Press the button to turn on the AC output, and press it again to turn AC output switch off the AC output.

  • Page 32: App Remote Control

    3–10 meters ABS plus iron sheet plus Launch distance Shell material silicone (Open environment） 120mm × 31mm × 1–5KHZ Transmission rate 13.5mm Product size Frequency deviation ±0.2MHz 4.7 × 1.2 × 0.5 inches APP remote control You can view the power station information, update the software version, monitor the working status and personalize the settings through the APP.

  • Page 33: Register And Log In The App

    3.2.2 Register and Log in the APP 1. After the APP is 2. For the first time, click 3. On the "Register" screen, downloaded and installed, "Sign Up" to enter the enter your mobile phone open the APP and click "Agree" registration screen.
  • Page 34 Location permissions must be enabled during the APP running process. If the location is disabled, the devices cannot be added into the APP. IMPORTANT If the location permission is not enabled during account registration, you can perform the following operations to enable it. Method 1: Click "Settings >...

  • Page 35: Add The Power Station

    Method 2: In the "Me" screen of the "EcoMova" APP, click in the upper right corner to enter the "Settings" screen. And click "Privacy Settings > Location" to enter the "App info" screen. Enable the location permission of the APP. Note: The red dot on the icon indicates that a newer software version is available.
  • Page 36 1. On the home page, click 2. Enter the "Add Device" screen, 3. Click "Add" to the available power stations start the adding "Add Device" or in the nearby is searched automatically. process of the power upper right corner. station. Note: It is a must to turn on the Bluetooth function and location permission.

  • Page 37: View The Power Station

    3.2.4 View the power station After the power station is successfully connected, enter the following APP home page. Parameter Parameter specification Click "Main" and "Secondary" to view relevant information of the main Main battery battery pack and secondary battery pack. pack/secondary Note: Only when the secondary battery pack is connected, click battery pack...
  • Page 38 Parameter Parameter specification Enable/Disable the ECO mode (ECO is enabled by default after the power station is powered on). Enabled: The power station will automatically power off when the AC output power is less than 50W (ATZ3600EU/ATZ3600UK/ATZ3600AU) / 30W (ATZ3600US) and lasts for 8 hours; when there is no input and output on the power station for 30 minutes, it will automatically shut down.

  • Page 39: Edit The Power Station

    3.2.5 Edit the power station 1. On the power station 2. Enter the device editing 3. Modify the device icon, name, location screen, click the icon screen and click the icon information. the upper right corner. after the device name. Note: On the device editing screen, you can also update the device or remove the device etc.
  • Page 40 Click the edit icon in the upper right corner > click "Device Update"> click "Update" to perform firmware update after entering the APP home page. Click "Start update" to upgrade the software. Upon completion, the system will automatically return to the device editing screen, displaying "Latest version." During the process of software upgrading, the LCD displays 2000, which indicates the update of the OTA.
  • Page 41 After the software download is completed, the LCD screen of the power station will turn off, accompanied by the blinking of the indicator on the switch. Approximately 30 seconds later, the LCD screen will light up again, indicating the software upgrade is completed. During software upgrading, make sure the Bluetooth connection is stable.
  • Page 42 4. After the device is 5. Re-enter the device 6. Automatically continue successfully reconnected, editing screen and click the last updated until it return to APP home page "Device Update" again. updating successfully. automatically. Click the icon in the upper right corner.

  • Page 43: Troubleshooting

    4 Troubleshooting Faults Abnormalities Solution Unplug the DC input plug, and measure DC Input whether the DC input voltage exceeds Overvoltage 62VDC. Unplug the DC input plug, and measure DC Input whether the DC input voltage is lower The power station stops Undervoltage than 10VDC.
  • Page 44 The AC output is turned off Remove the overpower device, and after the fault occurs, and reduce devices used in the output the corresponding icon on ports. Electrical appliances must be the LCD disappears. AC Output used within the rated power. When The failure content is Overload there is AC input, the output load is...
  • Page 45 Inverter Stop the charging and discharging, and Module High then using after cooling. Temperature Internal Stop the charging and discharging, and Ambient High then using after cooling. Temperature The power station stops PV High Check whether the air duct and fan are charging and discharging.

  • Page 46: Technical Specifications

    5 Technical Specifications Parameters for main battery pack Product Model ATZ3600EU ATZ3600UK ATZ3600AU ATZ3600US Rated AC Input 230VAC 240VAC 120VAC Voltage 200–240VAC AC Voltage Range 100–140VAC Breakdown Voltage 290VAC 200VAC AC Input Frequency 50Hz/60Hz 60HZ/50HZ Rated AC Input 2,300W 1,400W Power Overload Protection HAVE...
  • Page 47 3-second Transient 5,400W Surge Output Power Output Voltage Level 230VAC ± 3% 50 Hz 60 Hz Output Frequency Level (error ± 0.2%) (error ± 0.2%) Output Voltage Pure sine wave Waveform Output Voltage ≤ 3% (pure resistive load) Harmonic Distortion 5VDC/3A*2 (four USB-A ports (sharing a 5VDC/3A for every two USB-A Output ports))
  • Page 48 Charging 0℃ to 40℃(±3℃) Environment Temperature Discharging -20℃ to 40℃ (±3℃) (derating is required for use at greater than Environment 35℃) Temperature Recommended Working 20℃ to 35℃ Environment Temperature 1 month: -10℃ to 50℃; 3 months: -10℃ to 45℃; 6 months: -10℃ to 30℃ Storage Environment (High-temperature storage is not recommended;...
  • Page 49 AC discharging AC discharging 3600W 3600W 2850W 2880W 35ºC 40ºC -20ºC 2,000m 4,000m AC discharging power Vs altitude AC discharging power Vs temperature...

  • Page 50: Parameters For Secondary Battery Pack

    Parameters for secondary battery pack Product Model ATZ3600-BATT Battery Type Lithium iron phosphate Rated Voltage 51.2VDC Range of Operating Voltage 40.0VDC to 58.4VDC Range of Operating Temperature Discharging: -20℃ to 50℃; Charging: 0℃ to 50℃ Nominal Capacity 2048Wh Rated Discharging Power 1000W AC Charging Time 2.1 hours...
  • Page 51 Relative Humidity ＜ 80% ＜ 4,000 meters Altitude Protection Degree IP20 Dimension 428mm × 196mm × 224.4mm (16.9in × 7.7in × 8.8in) (Length × Width × Height) Net Weight 15.5kg (34.2lb)
  • Page 52 +86 - 752-3889706 info@epever.com www.epever.com HUIZHOU EPEVER TECHNOLOGY CO., LTD. Any changes without prior notice! Version number: V1.1...
