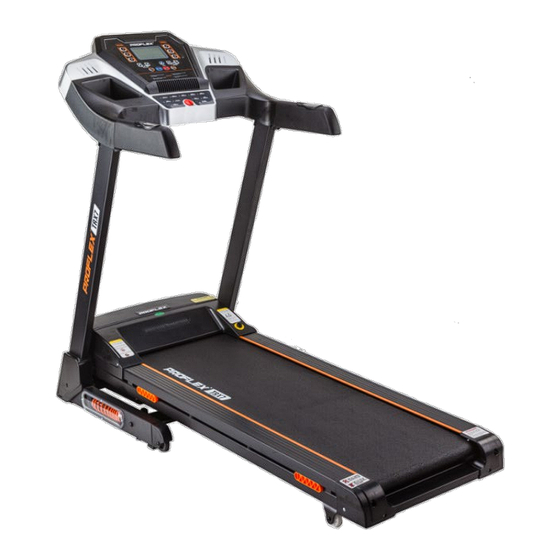

TRX7 Electric Treadmill
User Manual
[Revision 5.0 March 2018]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY
DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by
this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Proflex TRX7
Summary of Contents for Proflex TRX7
- Page 1 TRX7 Electric Treadmill User Manual [Revision 5.0 March 2018] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by...
-
Page 2: Safety
TRX7 Electric Treadmill Safety Basic precautions, including the following important safety instructions, should always be followed when using this equipment. Read all instructions before use. To reduce the risk of electric shock, always unplug the equipment from the electrical outlet after use and before cleaning, assembling, or servicing. - Page 3 TRX7 Electric Treadmill • Children should not be allowed to play or operate the equipment at any time. • To disconnect, turn all controls to the OFF position, then remove plug from the wall outlet. • This equipment is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the equipment by a person responsible for their safety.
-
Page 4: Table Of Contents
TRX7 Electric Treadmill Table of Contents Safety ..............................2 Parts Identification ..........................5 Assembly ............................6 Operation ............................8 Safety Tether and Emergency Stop ......................8 Program and Manual Modes ........................8 Console and Functions ..........................8 Manual Mode Training ..........................10 Setting a Pre-Set Session Duration .................... -
Page 5: Parts Identification
TRX7 Electric Treadmill Parts Identification The equipment comes most assembled, with the following parts. Ensure that all parts are included before assembly. Qty. Description Qty. Description Treadmill (includes belt platform, Fasteners / Tools: console, motor, handlebar etc) 6 M8x20 Screw... -
Page 6: Assembly
TRX7 Electric Treadmill Assembly Take all parts out of the carton and place them on a firm, flat surface. Remove all packing materials. With the equipment base (1) flat, lift the handle assembly (2) so that it is upright, then insert a M8x45 screw (3) on each side to prevent the handle assembly from falling. - Page 7 TRX7 Electric Treadmill Place each spring cover (10) in position and secure it to the base using 4 self-tapping screws (8). Use the screwdriver to fasten the screws (rotate right) – do not over-tighten or the covers may be damaged.
-
Page 8: Operation
TRX7 Electric Treadmill Operation Safety Tether and Emergency Stop The equipment comes equipped with a “safety tether” (C). The safety tether must be attached to the console in order for the equipment to run. It is designed to attach to your clothing so that if you leave or fall from the equipment it will stop automatically, helping prevent injury. - Page 9 TRX7 Electric Treadmill Control Description Display Shows current information, such as current speed, elapsed or remaining time, used or remaining calories, current pulse etc. The range of values for each is: Time – 5:00 to 99:59 minutes / seconds. •...
-
Page 10: Manual Mode Training
TRX7 Electric Treadmill Control Description Quick Speed Selection In Manual mode, press a "quick speed select" button to the right of the display to change to either 3.0, 6.0 or 9.0 km/h. The speed will remain as selected until changed or the equipment stopped. -
Page 11: Setting A Target Calorie Value
TRX7 Electric Treadmill Setting a Target Calorie Value When training to a target calorie value, the equipment stops automatically once the number of calories used for the session reaches the target value. 1. Turn on the equipment. 2. Press MODE so that the "CAL" and "SET" is flashing at the bottom of the display. -
Page 12: Calculating Body Mass Index
TRX7 Electric Treadmill Calculating Body Mass Index The equipment features a body mass index calculator, which can provide a reasonable assessment on the user's overall fat content using data for age, gender, height and weight. To calculate body mass index: The body mass index ("BMI") is to be used as a guide only and should not be considered medical... -
Page 13: Care, Maintenance And Troubleshooting
TRX7 Electric Treadmill Care, Maintenance and Troubleshooting Some maintenance activities described may be beyond the scope of some users. For procedures that you are not comfortable with or have the tools, knowledge or experience for, have the unit serviced by a service centre or qualified technician. • To prevent electrical shock, switch OFF and disconnect the equipment from the electrical supply before cleaning or performing any maintenance tasks. -
Page 14: Maintenance
TRX7 Electric Treadmill Problem Potential Reason Correction Check mains electrical supply is to specifications. Display shows "E05" Electrical protection tripped. • Ensure that drive belt is not caught or is unable to rotate due to obstruction. • Check all connections. • Check for motor or control circuitry fault (often indicated by a burning smell) and replace parts as required. -
Page 15: Belt Alignment And Tension Adjustment
TRX7 Electric Treadmill Belt Alignment and Tension Adjustment The running belt is pre-adjusted to the running deck at the factory, but after prolonged use it can stretch and require re-tensioning. To adjust the belt, turn on the main power switch of the equipment and let the belt run at a speed of 6km/h. -
Page 16: Warm-Up And Cool-Down Routine
TRX7 Electric Treadmill Warm-Up and Cool-Down Routine The warm-up routine is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles. - Page 17 ©2017 Proflex. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
