HART HAC13N1FH Manual

WARNING:
To reduce the risk of injury, user must read and understand the operator's
manual for their string trimmer before using this accessory. Always wear
eye protection with side shields marked to comply with Z87.1 along with
hearing protection. Ensure compatibility and proper fit before using this
accessory. Stop the string trimmer and remove battery pack or discon-
nect spark plug wire before changing or adjusting accessories.
WARNING:
Do not use this accessory if a part is damaged or missing. If you are not
comfortable performing any of the functions described in these instruc-
tions, take your unit to an authorized service center. Use of a trimmer
head that has been improperly assembled could cause the trimmer head
to come apart and/or detach from your trimmer and result in serious
personal injury and/or property damage.

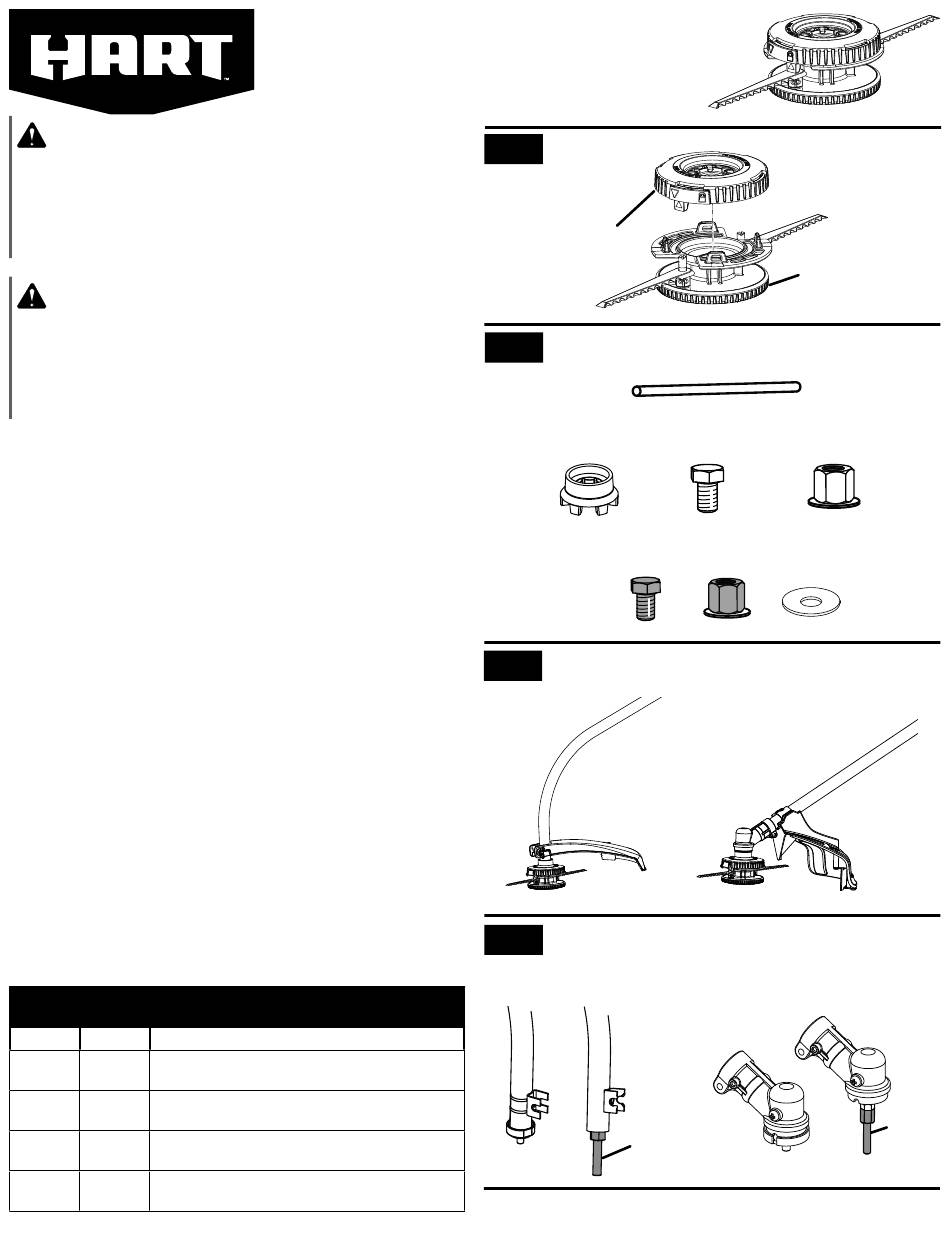

PACKING LIST
See Figures 1 - 2.
Trimmer Head Assembly, Spacer, Silver Bolt, Black Bolt, Silver Nut, Black
Nut, 0.095 in. Pre-cut Line, Locking Pin, Washer, and Operator's Manual
INSTALLING TRIMMER HEAD
See Figures 1 - 7.
The Fixed Line/Bladed Trimmer Head installs differently on different string
trimmer attachments. Assembly instructions will vary based on the style and
type of attachment you have. See figures 3 and 4 to determine if you have
a curved shaft or straight shaft attachment and if your attachment comes
with or without an arbor. Refer to the Installation Chart to determine the
appropriate items for your attachment. Be sure to follow the instructions for
your attachment style and type.
NOTE: If you cannot identify the style and type of attachment you have,
contact customer service for assistance.
 Stop the engine or motor, disconnect the spark plug wire for gas power
heads, remove the battery pack for cordless power heads, or disconnect
the plug from the power source for electric power heads.
 If the 3-in-1 bump feed housing is already attached, rotate so that the
arrows line up on the upper and lower housing then remove bump feed
lower housing and set aside.
 Install fixed line/blade lower housing by lining up the arrow on the upper
housing to the post on the lower fixed line housing. Rotate to the locked
position.
 If new installation is required, completely remove the existing string
housing from your trimmer and follow the steps below to install the
3-in-1 trimmer head to your attachment. Refer to the Installation Chart
for details.
INSTALLATION CHART
If the trimmer head does not fit with any of the adaptors or hardware
supplied, contact Customer Service at 1-800-776-5191 for assistance.
Style Type
Curved With
Shaft Arbor
Curved Without
Upper Housing, Silver Nut, and Lower Housing
Shaft Arbor
Straight With
Shaft Arbor
Straight Without
Upper Housing, Black Nut, and Lower Housing
Shaft Arbor

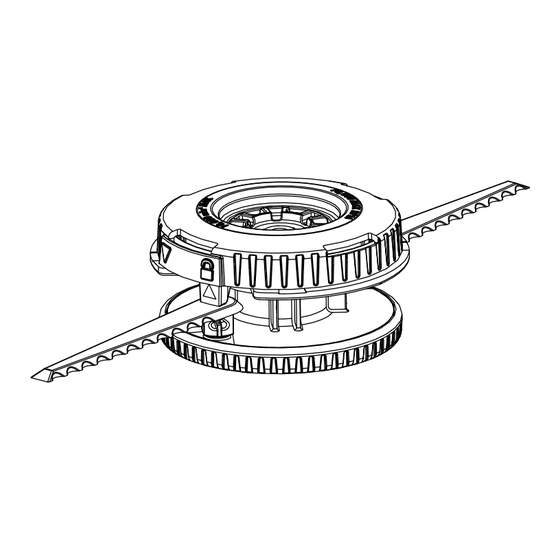

FIXED LINE/BLADED
TRIMMER HEAD
HAC13N1FH
Items Needed for Installation
Spacer, Upper Housing, Lower
Housing,Washer, and Black Bolt
Spacer, Upper Housing, Lower
Housing,Washer, and Silver Bolt
FIG. 1
UPPER
HOUSING
FIG. 2
SPACER
BLACK
BOLT
FIG. 3
CURVED
SHAFT
FIG. 4
CURVED SHAFTS
ARBOR
LOWER
HOUSING
LOCKING PIN
SILVER
SILVER
BOLT
NUT
BLACK
WASHER
NUT
STRAIGHT
SHAFT
STRAIGHT SHAFTS
7-30-21 (REV:02)
ARBOR
998000720
