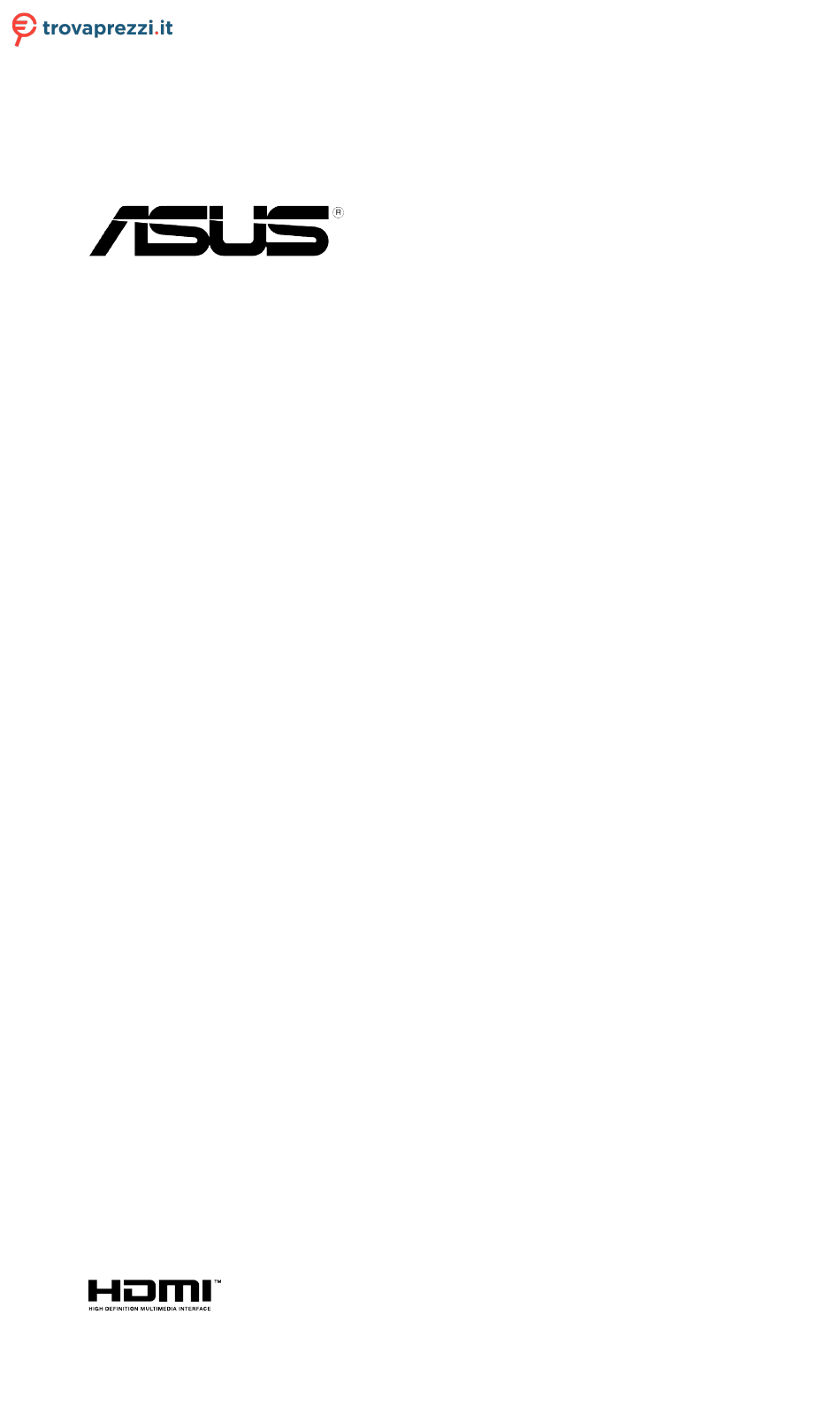

Page 1
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Asus VivoMini VC66-B048Z o cerca il tuo prodotto tra le migliori offerte di PC Desktop e Workstation VivoMini VC66 Series User Manual...
Page 2
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement. This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.
Installing or upgrading the M.2 SSD ............27 Installing or upgrading the wireless card ..........28 Installing 2.5” HDD / SSD ................29 Appendix Safety information ...................32 Setting up your system.................32 Care during use ....................32 Regulatory notices ...................34 ASUS contact information ................38 VivoMini VC66 Series...
About this manual This manual provides information about the hardware and software features of your PC, organized through the following chapters: Chapter 1: Getting to know your VivoMini This chapter details the hardware components of your VivoMini. Chapter 2: Using your VivoMini This chapter provides you with information on using your VivoMini.
* Actual product specifications and package contents may vary depending on the model type, country, or region. • I f the device or any of its components fail or malfunction during normal or proper use and it is still within the warranty period, bring the device and the warranty card to you nearest ASUS Service Center. VivoMini VC66 Series...
Features Front panel Top cover The removable top cover allows you access to the hard disk drive and the memory modules. IMPORTANT! Before removing the top cover, turn off your VivoMini and unplug the power cable. Optical Drive (on selected models) Your VivoMini's optical drive may support several disc formats such as CDs, DVDs, recordable discs, or rewritable discs.
Page 9
USB 3.0 Type-C port This USB Type-C (Universal Serial Bus Type-C) port provides a maximum of 1.5A output current, transfer rate of up to 5 Gbit/s, and is backward compatible to USB 2.0. NOTE: The Type C port has a reversible-plug connector.
Left side Air vents The air vents allow air to enter your VivoMini chassis. IMPORTANT! For optimum air flow, ensure that the air vents are free from obstructions. Right side Air vents The air vents allow air to enter your VivoMini chassis. IMPORTANT! For optimum air flow, ensure that the air vents are free from obstructions.
Rear panel Kensington® security slot The Kensington® security slot allows you to secure your VivoMini using Kensington® compatible VivoMini security products. Power input The bundled power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the VivoMini.
Page 12
HDMI port The HDMI (High Definition Multimedia Interface) port supports a Full-HD device such as an LCD TV or monitor to allow viewing on a larger external display. DisplayPort The DisplayPort sends high-performance digital output from your VivoMini to a display device such as an LCD TV or HD monitor.
Getting started Connect the AC power adapter to your VivoMini To connect the AC power adapter to your VivoMini: A. Connect the power cord to the AC power adapter. Plug the AC power adapter into a 100V~240V power source. Connect the DC power connector into your VivoMini’s power (DC) input.
Connect the USB cable from keyboard or mouse You can connect generally any USB keyboard and mouse to your VivoMini. You can also connect a USB dongle for a wireless keyboard and mouse set. To connect a keyboard and mouse to your VivoMini: Connect the USB cable from your keyboard and mouse to any of the USB ports of your VivoMini.
Connect a display panel to your VivoMini You can connect a display panel or projector to your VivoMini that has the following connectors: • HDMI connector • DisplayPort connector • DVI connector To connect a display panel to your VivoMini: Connect a display cable either to the HDMI, DisplayPort or DVI port. Connecting display via HDMI port Connecting display via DisplayPort VivoMini VC66 Series...
Page 17
Connecting display via DVI port VivoMini VC66 Series...
Turning your VivoMini off If your VivoMini is unresponsive, press and hold the power button for at least four (4) seconds until your VivoMini turns off. Putting your VivoMini to sleep To put your VivoMini on Sleep mode, press the Power button once. Entering the BIOS Setup BIOS (Basic Input and Output System) stores system hardware settings that are needed for system startup in the VivoMini.
Quickly enter the BIOS To quickly enter the BIOS: • Press the power button for at least four (4) seconds to shut down your VivoMini, then press the power button again to turn your VivoMini back on, then press <F2> or <Del> during POST. • When your PC is off, disconnect the power cord from your VivoMini’s power connector. Reconnect the power cable and press the power button to turn on your VivoMini.
2GB, 4GB, 8GB, or 16GB unbuffered non-ECC 1.35 V DDR4 260-pin SO-DIMMs for a maximum of 32GB memory. IMPORTANT! Refer to http://www.asus.com for the list of compatible DIMMs. You can only install 1.35 V DDR4 SO-DIMM to the VivoMini’s DIMM slots.
Page 23
Lift and remove the top cover and set it aside. IMPORTANT! Remove the top cover carefully to prevent pulling on and causing damage to the cables connected. This may vary per model. Remove the screw from the HDD layer. VivoMini VC66 Series...
Page 24
Lift open the HDD layer. IMPORTANT! Lift the HDD layer carefully to prevent pulling on and causing damage to the cables connected. Align and insert the memory module into the slot and press it down (A) until the retaining clips snaps back into place and it is securely seated in place.
Page 25
Replace the HDD layer. NOTE: Ensure to organize the cables to prevent any damage to your VivoMini and to ensure the HDD layer can be replaced successfully. Replace the screw to secure the HDD layer. VivoMini VC66 Series...
Page 26
10. Replace the top cover of your VivoMini NOTE: Ensure to organize the cables to prevent any damage to your VivoMini and to ensure the top cover can be replaced successfully. 11. Reattach the screws to secure the cover back on the bottom side of the main box, then replace the rubber feet back on each screw hole.
Installing or upgrading the M.2 SSD NOTE: The illustrations in this section are for reference only and may vary per model. Your VivoMini includes a M.2(NGFF) slot that supports a M.2 2280 SSD. To install or upgrade the M.2 SSD: Follow steps 1-6 under the Upgrading memory modules section to remove the top cover and HDD layer of your VivoMini.
Installing or upgrading the wireless card NOTE: The illustrations in this section are for reference only and may vary per model. Your VivoMini includes a M.2(NGFF) slot that supports a M.2 2230 wireless and bluetooth module. To install or upgrade a wireless card: Follow steps 1-6 under the Upgrading memory modules section to remove the top cover and HDD layer of your VivoMini.
Installing 2.5” HDD / SSD NOTE: • T he illustrations in this section are for reference only and may vary per model. • This bay supports 7mm/9.5mm 2.5” HDDs/SSDs. • Some models may only support one (1) HDD/SSD. To install or upgrade the HDD / SSD: Follow steps 1-4 under the Upgrading memory modules section to remove the top cover of your VivoMini. Remove four (4) screws from the HDD/SSD bracket.
Page 30
NOTE: • E nsure to remove the holder from the bracket when installing an HDD/SDD to the bracket. • T he availablility of the holder may vary depending on the model type, country, or region. To install a new HDD/SSD, secure the HDD/SSD to the bracket using the bundled four (4) screws. Connect the cable to the HDD/SSD, then align the bracket to the HDD/SSD compartment of your VivoMini and secure the bracket with the screws previously removed.
Safety information Your VivoMini is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system • Read and follow all instructions in the documentation before you operate your system.
Page 33
• If you encounter the following technical problems with the product, unplug the power cord and contact a qualified service technician or your retailer. – The power cord or plug is damaged. – Liquid has been spilled into the system. – The system does not function properly even if you follow the operating instructions.
REACH Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm ASUS Recycling/Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment.
Page 35
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna.
Page 36
Wireless Operation Channel for Different Domains N. America 2.412-2.462 GHz Ch01 through CH11 Japan 2.412-2.484 GHz Ch01 through Ch14 Europe ETSI 2.412-2.472 GHz Ch01 through Ch13 Regional notice for Singapore This ASUS product complies with IMDA Complies with IMDA Standards Standards. DB103778 VivoMini VC66 Series...
Page 37
All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR standard, and the power management feature is enabled by default. The monitor and computer are automatically set to sleep after 10 and 30 minutes of user inactivity.
+1-510-739-3777 +1-510-608-4555 Web site http://usa.asus.com Technical Support Support fax +1-812-284-0883 General support +1-812-282-2787 Online support http://qr.asus.com/techserv ASUS COMPUTER GmbH (Germany and Austria) Address Harkort Str. 21-23, D-40880 Ratingen, Germany +49-2102-959931 Web site http://www.asus.com/de Online contact http://eu-rma.asus.com/sales Technical Support Telephone +49-2102-5789555...
Page 39
DECLARATION OF CONFORMITY Per FCC Part 2 Section 2. 1077(a) Asus Computer International Responsible Party Name: , CA 94539. Address: 800 Corporate Way, Fremont Phone/Fax No: (510)739-3777/(510)608-4555 hereby declares that the product Product Name : VivoMini Model Number : VC66,VC66R...
