Belkin F4U110 Frequently Asked Questions

Belkin F4U110 Frequently Asked Questions

Thunderbolt 3 dock core

Advertisement

Quick Links

9/9/22, 4:23 PM
Belkin Thunderbolt 3 Dock Core, F4U110 Frequently Asked Questions
TABLE OF CONTENTS
PRODUCT INFORMATION
1. What is the Belkin Thunderbolt 3 Dock Core, F4U110?
2. What is the warranty of this product?
3. Does the dock come with a Thunderbolt 3 cable?
4. Is this dock RoHS-certified?
5. Does the product include an AC adapter?
HARDWARE INFORMATION
1. What are the power output specifications of the dock?
2. What are the power specifications of the USB-A ports?
3. What is the data speed of the dock?
4. Does this dock have a connection for headphones or a microphone?
5. What is the speed of the built-in ethernet port?
6. Which USB-A Port is USB 3.2 and which is USB 2.0?
COMPATIBILITY
1. Can this dock be used with a USB-C™ (non-Thunderbolt 3) computer?
2. What operating systems are supported?
3. Does the product require any driver or software to use?
4. Does the side USB-C port support Thunderbolt monitors?
5. Does the side USB-C ports support USB-C monitors?
6. Does the side USB-C port support data transfers?
FUNCTIONALITY
1. Which port do I plug my computer into?
https://www.belkin.com/us/support-article?articleNum=316648
Belkin Official Support - Belkin Thunderbolt 3 Dock Core, F4U110 Frequently Asked Questions
1/5

Advertisement

loading
Need help?

Need help?

Do you have a question about the F4U110 and is the answer not in the manual?

Questions and answers

Summary of Contents for Belkin F4U110

  • Page 1 9/9/22, 4:23 PM Belkin Official Support - Belkin Thunderbolt 3 Dock Core, F4U110 Frequently Asked Questions  Belkin Thunderbolt 3 Dock Core, F4U110 Frequently Asked Questions TABLE OF CONTENTS PRODUCT INFORMATION 1. What is the Belkin Thunderbolt 3 Dock Core, F4U110? 2.
  • Page 2: Product Information

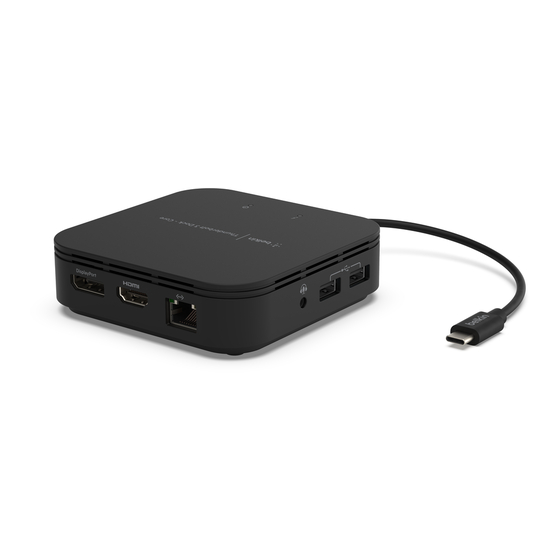

    1. What is the Belkin Thunderbolt 3 Dock Core, F4U110? The Belkin Thunderbolt 3 Dock Core, F4U110 is a Thunderbolt™ 3 Titan Ridge mini dock designed to be a bus-powered or self-powered dock for dual mode usage with extra connectivity. The dock offers 40 Gbps transfer rates and supports one DisplayPort™...
  • Page 3 9/9/22, 4:23 PM Belkin Official Support - Belkin Thunderbolt 3 Dock Core, F4U110 Frequently Asked Questions 1. What are the power output specifications of the dock? The dock supports USB-C PD 3.0 up to 60W 5V/9V/15V/20V. 2. What are the power specifications of the USB-A ports? The USB-A ports support 2.4A / 5V / 12W.
  • Page 4 4. Can I connect a USB-C hub or USB-A hub to the dock? The Belkin F4U110 does not support USB-C hubs. You can plug a USB-A hub into one of the USB-A ports on the dock to increase the number of USB-A ports.
  • Page 5 9/9/22, 4:23 PM Belkin Official Support - Belkin Thunderbolt 3 Dock Core, F4U110 Frequently Asked Questions 5. What are the recommended operating and storage temperatures of this device? Below are the recommended operating and storage temperatures for this product: Storage temperatures: between -40°C and 85°C, with humidity of 5%–95% RH Operating temperatures: between 0°C and 40°C, with humidity of 10%–90% RH...

This manual is also suitable for:

F4u110bt
