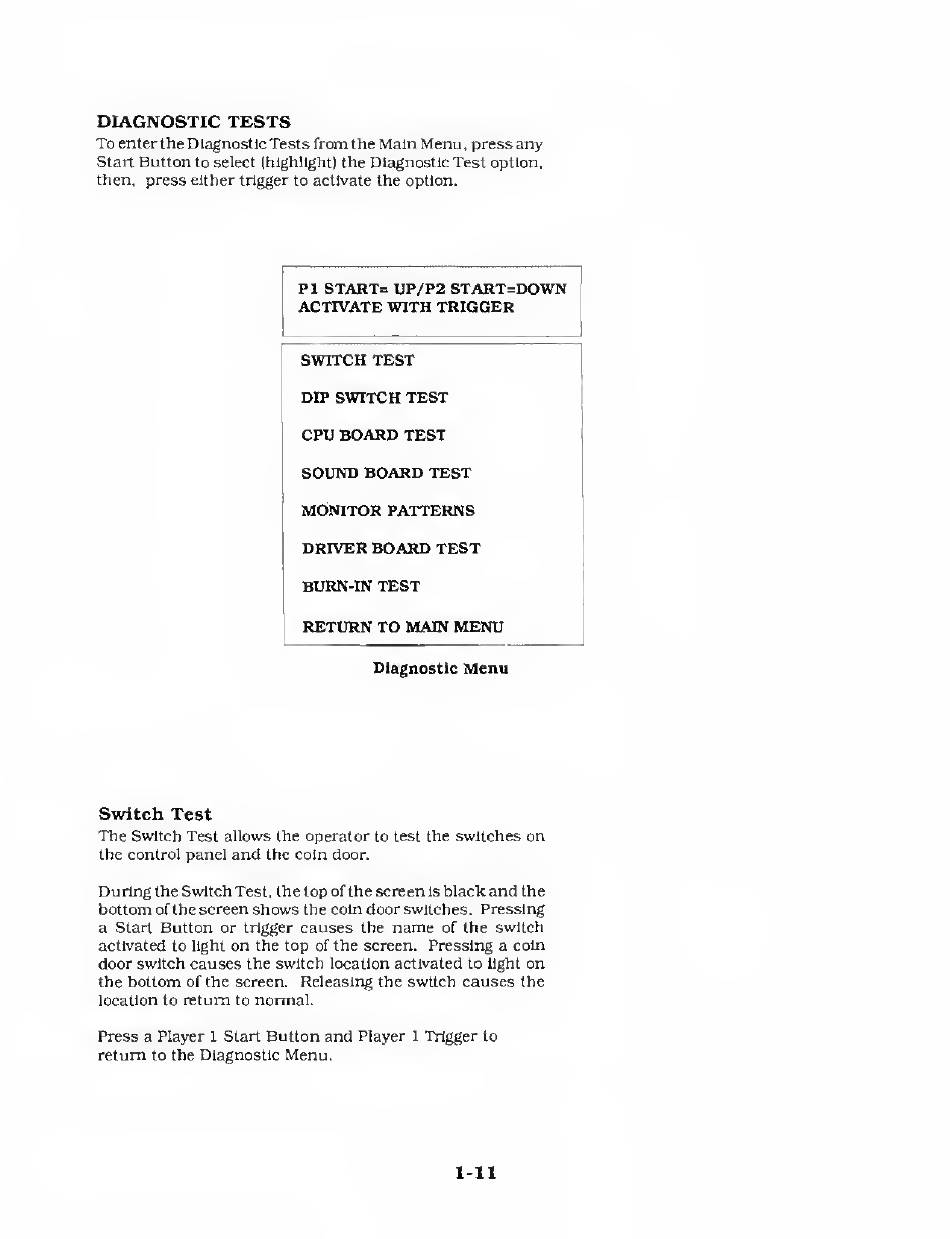

DIAGNOSTIC TESTS
To
enter the Diagnostic Tests from
the
Main Menu,
press
any
Start
Button
to select (highlight)
the Diagnostic Test option,
then,
press
either trigger
to
activate
the
option.
PI
START
=
UP/P2
START=DOWN
ACTIVATE WITH TRIGGER
SWITCH TEST
DIP
SWITCH TEST
CPU
BOARD
TEST
SOUND BOARD TEST
MONITOR
PATTERNS
DRIVER
BOARD
TEST
BURN-IN
TEST
RETURN TO
MAIN
MENU
Diagnostic
Menu
Switch
Test
The
Switch Test allows the operator
to test
the switches on
the control panel
and
the coin door.
During
the
Switch
Test, the top
of
the screen
is
black
and
the
bottom
of the
screen
shows
the coin
door
switches.
Pressing
a Start
Button
or trigger
causes
the
name
of the switch
activated
to light
on
the top
of
the screen. Pressing a coin
door switch causes
the
switch
location activated
to light
on
the
bottom of the screen. Releasing the switch
causes
the
location to
return
to
normal.
Press
a Player
1
Start
Button and
Player
1
Trigger to
return
to
the Diagnostic
Menu.
1-11
