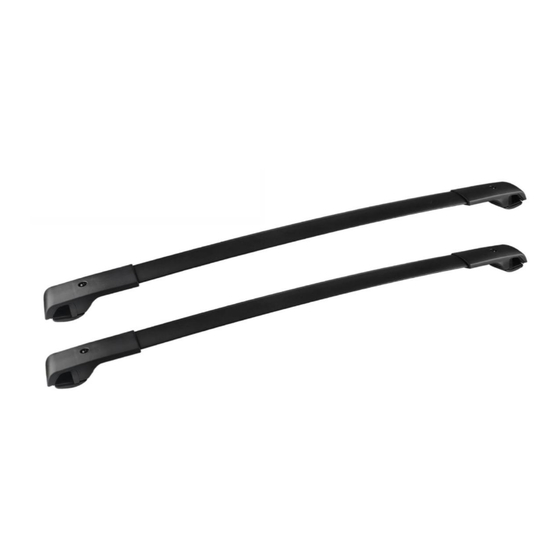

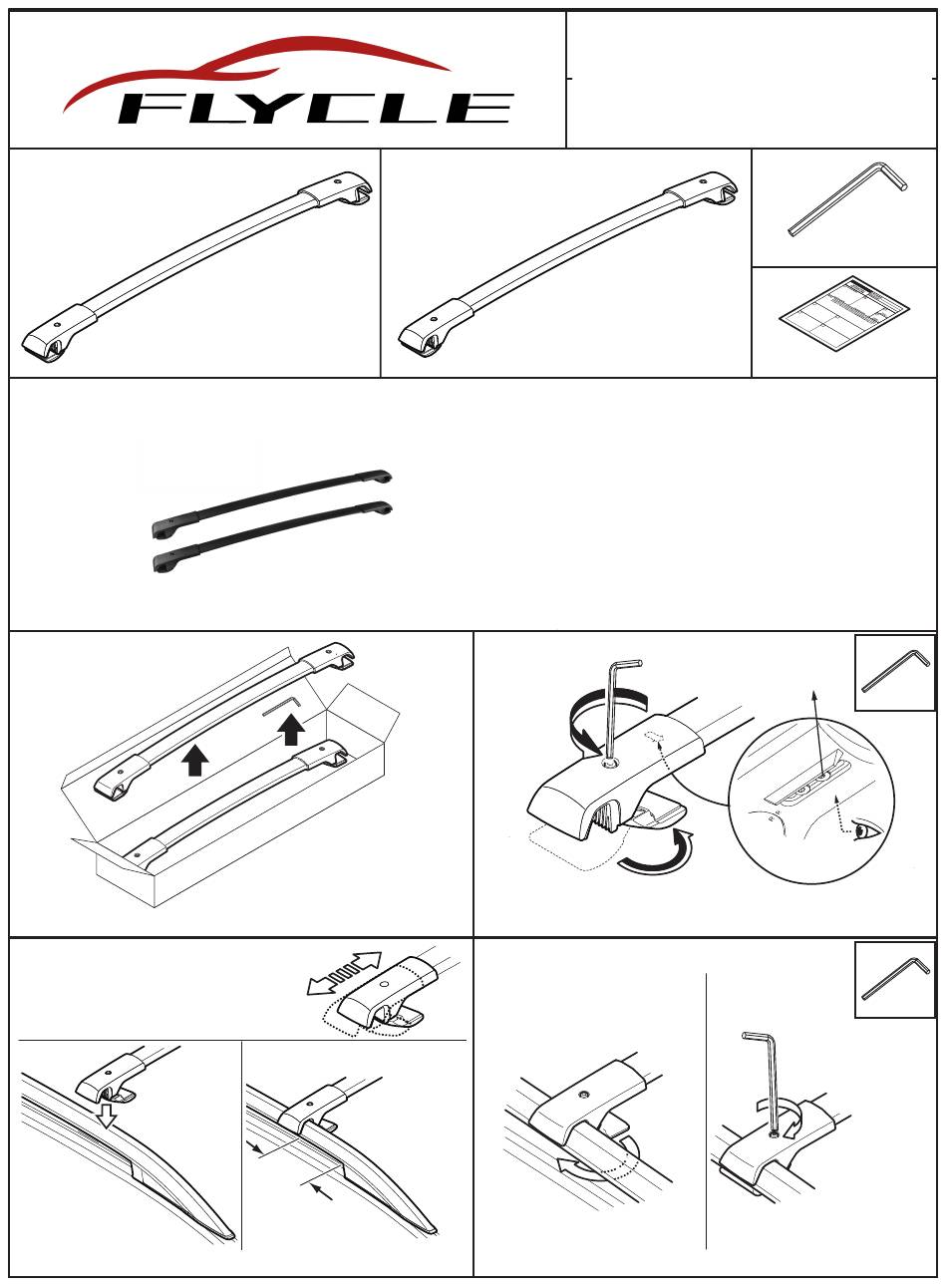

Front Crossbar Assembly
Step 1: Front Crossbar
Note: Front Crossbar is longer than the Rear Crossbar.
Step 3: Front Crossbar
RH side is adjustable
RH shown, LH typical
1x
Rear Crossbar Assembly
Ｉｎｓｔａｌｌａｔｉｏｎ ｓｔｅｐｓ
Step 2: Front Crossbar
2A. Loosen screw (do not remove)
2B. Swing lower clamp 180º
Note: Orient using front of vehicle arrow molded on underside of crossbar
Step 4: Front Crossbar
6"
4A. Swing lower clamp 180º into
(150mm)
Package
including
position under side rail.
RH shown, LH typical
1x
Installation Instructions
Hexagon socket
coutersunk head
screws(M5X11-0.8MM)
RH shown, LH typical
Torque: 30-35 in./lbs
4B. Tighten screw using the
allen key.
1x
1x
Advertisement
Related Manuals for FLYCLE FY29683
Summary of Contents for FLYCLE FY29683
- Page 1 Package including Front Crossbar Assembly Rear Crossbar Assembly Installation Instructions Ｉｎｓｔａｌｌａｔｉｏｎ ｓｔｅｐｓ Step 1: Front Crossbar Step 2: Front Crossbar Hexagon socket coutersunk head screws(M5X11-0.8MM) 2A. Loosen screw (do not remove) RH shown, LH typical 2B. Swing lower clamp 180º Note: Front Crossbar is longer than the Rear Crossbar. Note: Orient using front of vehicle arrow molded on underside of crossbar Step 3: Front Crossbar Step 4: Front Crossbar...
- Page 2 Step 5: Rear Crossbar Step 6: Rear Crossbar 6A. Loosen screw (do not remove) RH shown, LH typical 6B. Swing lower clamp 180º Note: Rear Crossbar is shorter than the Front Crossbar. Note: Orient using front of vehicle arrow molded on underside of crossbar Step 7: Rear Crossbar Step 8: Rear Crossbar RH side is adjustable...
