Document Control Number: EN-MN-002-02, 11/8/2016
MIURA AMERICA CO., LTD.
www.miuraboiler.com

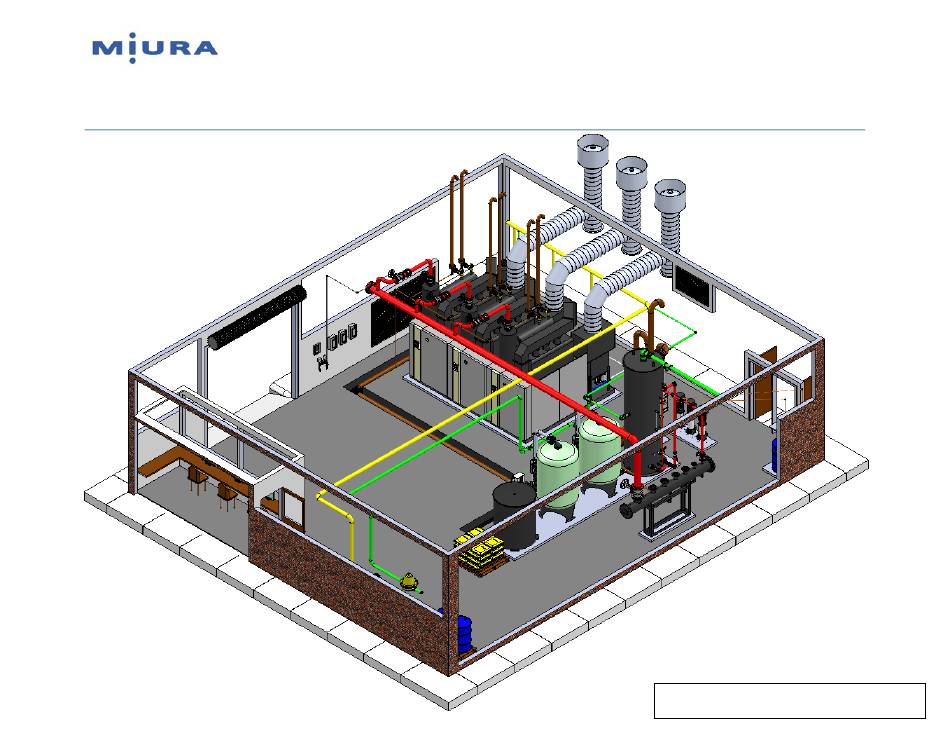

Steam Boiler System Installation Manual
1
2016 Version - ESDG Department (Best Viewed in Color)
(Information in this manual may be changed without any notice)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LX Series and is the answer not in the manual?

Questions and answers

Related Manuals for Miura LX Series

Summary of Contents for Miura LX Series

  • Page 1 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Steam Boiler System Installation Manual 2016 Version - ESDG Department (Best Viewed in Color) (Information in this manual may be changed without any notice)

  • Page 2: Table Of Contents

    Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Table of Contents OVERVIEW ............................................3 ........................................3 OILER OMPARISON ........................................4 IURA YSTEM VERVIEW ..........................................7 IURA IFFERENCE ..................................... 8 ATIONAL EGULATORY RGANIZATIONS BOILER ROOM DESIGN ........................................9 ......................................... 10...
  • Page 3 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com PIPING INSTALLATION ........................................35 ........................................35 OILER YSTEM ............................................36 TEAM IPING ..........................................38 ATER IPING ..........................................44 IPING ........................................46 AFETY ELIEF ALVE IPING 6.5.1 Drip Pan Elbow ..........................................46 6.5.2...

  • Page 4: Overview

    Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com 1. Overview 1.1 Boiler Room Comparison Firetube Boiler Room Miura Boiler Room All copies of this document are uncontrolled when printed...

  • Page 5: Miura System Overview

    Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com 1.2 Miura System Overview Ideal Miura Boiler Room All copies of this document are uncontrolled when printed...
  • Page 6 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Boiler Installation Chimney Installation Moving, Lifting, Unloading (Page 51-52) (Page 19-23) Loose Parts Reassembly (Page 23-30) Ventilation (Page 16) Boiler Room Design (Page 9-15) Ancillary Installation (Page 31-34) Miura Network M-Net, MI System, etc.
  • Page 7 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Safety Relief Valve Piping (Page 46) Steam Piping Fuel Piping (Page 36-37) (Page 47-49) Chemical Piping (Page 50) Wiring Installation (Page 50-74) Feed Water Piping (Page 38-43) Blowdown Piping (Page 44-45)

  • Page 8: The Miura Difference

    Multiple Package Boilers advantages over other steam boilers. With the press of a single i. Factory Piped for Single Point Source button, Miura boilers produce steam in five minutes or less -- no Connections warm-up necessary. Miura’s unique compact modular design ii.

  • Page 9: National Regulatory Organizations

    Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com 1.4 National Regulatory Organizations In order to obtain assistance in the identification of, and compliance with, codes and regulations, we recommend contacting your actual insurance provider as well as utility companies. A partial list of agencies having jurisdiction over boiler installation and operation is given below.

  • Page 10: Boiler Room Design

    Shipping Arrangements: All boiler prices are F.O.B. Miura factory. This means that Miura is not responsible for damage to the equipment which occurs during shipping. We strongly recommend a complete inspection of all equipment at the time of delivery. This inspection should include photographs of the equipment and packaging.

  • Page 11: Layout And Clearance

    Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com 2.1 Layout and Clearance Item Letter Operator Room Equipment Hatch Blowdown Separator Boilers Brine Tank Water Softener Feed Water Tank Feed Water Pumps Steam Header Chemical Treatment Chemical Storage Maintenance Door...

  • Page 12: Lx Small Model Minimum Clearances

    Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com 2.1.1 LX Small Model Minimum Clearances (50, 100, 150, & 200 hp) *Note: For models with separate inverter control box, minimum distance is 36” Dimension LX & LXL Models LXH Models...

  • Page 13: Ex Model Minimum Clearances

    Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com 2.1.2 EX Model Minimum Clearances (All Sizes) *Note: For models with separate inverter control box, minimum distance is 36” Dimension EX Models EXH Models from panel door *Note: Ensure room is available for economizer replacement in rear Side (B) 18”...

  • Page 14: Lx Large Model Minimum Clearances

    Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com 2.1.3 LX Large Model Minimum Clearances (300 hp Only) *Note: If 40” of space is available above the top of the separator and the separator can be removed from the top, then the required space for pressure vessel...

  • Page 15: Boiler And Water Softener Top & Side

    Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com 2.1.4 Boiler and Water Softener Top & Side Minimum Clearances Dimension All Boiler Models *Note: Please avoid installing piping or conduit or any other components overhead Top (A) 40” of the equipment that might hinder maintenance accessibility.

  • Page 16: Clearances

    If uncertain about which item should be used as reference for clearance, check with the local inspector to ensure compliance. *Note: Many of the drawings and images shown in this manual are of Miura’s LX- 300 model which can be installed with zero side clearance between two or more units.

  • Page 17: Ventilation

    *Note: The above table is minimum requirements from the National Board in the boiler room. The total cross- Inspection Code and Miura recommendations; however, check local codes to sectional area of such openings shall ensure compliance.

  • Page 18: Equipment Pads

    It is important to ensure that the equipment pad is level prior to boiler installation. Miura recommends using a bolt which is 3” in length or greater that is spaced 6” or more from the edge of the equipment pad as shown in the diagram.

  • Page 19: System Design Notes

    For installations where a deaerator tank is used and the b. Miura boilers can come up to full steam pressure in 5 minutes condensate return is to exceed 50% of boiler steam capacity, a and thus using a slightly oversized steam valve on the first separate condensate surge system is recommended.

  • Page 20: Boiler Installation

    Miura is unable to provide a standard procedure for lifting the boiler. It is recommended that all Miura boilers be lifted from above by using the provided lifting lugs on each boiler. This can be done by either using a crane, forklift, or other device deemed suitable.
  • Page 21 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Center of Gravity Max. Weight Boiler Type The center of gravity is not always the same as the geometric Pounds inches inches inches center. Please reference the maximum weight and center of gravity...
  • Page 22 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Lifting Location All copies of this document are uncontrolled when printed...
  • Page 23 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com EX Blower Lifting Points EX Economizer Lifting Points LX-100 Lifting Points For LX-100, use #1 & #3 lugs for complete boiler lifting, use #1 & #2 lifting lugs for pressure vessel lifting only.

  • Page 24: Moving

    Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com 4. Moving Loose Parts Reassembly PUSH OR PULL THE BOILER AT THIS POINT LIFTING POINTS When a boiler is pushed or pulled, use the points as shown here on the individual boiler base. Other locations are not designed for this use and the boiler may be damaged.
  • Page 25 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com All copies of this document are uncontrolled when printed...
  • Page 26 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com All copies of this document are uncontrolled when printed...

  • Page 27: Blower Assembly

    Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com 4.1.1 Blower Assembly EX Model & LX-300 Installation Procedure: a. With the blower attached to its base, align the blower LX Model Installation Procedure (except LX-300): outlet with the wind-box inlet.

  • Page 28: Lvc Assembly

    Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com 4.1.2 LVC Assembly EX Model Installation Procedure: a. Align the top flange of the LVC with the flange protruding LX Model Installation Procedure: from the side of the pressure vessel, near the top.

  • Page 29: Steam Separator Assembly

    Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com 4.1.3 Steam Separator Assembly Vertical Separator: a. Align the vertical separator Horizontal Separator: flange with the pressure a. Align the flanges of the vessel outlet pipe. horizontal separator. b. Install included spiral- Ensure the flange on the wound gasket &...

  • Page 30: Economizer Assembly

    Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com 4.1.4 Economizer Assembly EX Model Installation Procedure: a. Ensure that the belt packing is INSIDE the bolt circle. Glue LX Model Installation Procedure: the belt packing to the boiler outlet flange.

  • Page 31: Control Box Adjustment

    Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com 4.1.5 Control Box Adjustment HINGE Control Box Adjustment Procedure: a. To alter the pitch of the control box, loosen the bolts located inside of the control box which hold it to the boiler base frame.

  • Page 32: Ancillary Installation

    Steam Distribution Headers: It is recommended that a forklift be used, lifting from the slot in the *Note: Before installing or moving any Miura ancillary products, be sure to review base. all applicable instruction books or manuals. The following sections on lifting and moving are only recommendations.

  • Page 33: Loose Parts Reassembly

    There should be steam traps in the system prior to this header; however, if there are not steam traps prior, then this trap should discharge to drain or a blow-down separator. Miura provides the steam trap. An installation model is shown on right.

  • Page 34: Water Softener

    Miura requires the use of PVC pipe, stainless steel pipe, or other corrosion-resistant materials. *Note: This is only a brief overview of the loose parts reassembly for the Miura Water Softener. For more information, please read the MW-U Installation Manual.

  • Page 35: Feed Water Tank

    Please reference the drawing provided by Sales for installation. Water Level Probes: Water level probes are included with the Miura Horizontal (HT) or Vertical (VT) feed water tanks and are shipped loose to avoid damage in shipment. Please reference the drawing provided by Sales for installation.

  • Page 36: Piping Installation

    6.1 Boiler Room System Flow Each of the following sub-sections has details about how to install piping on a Miura steam system. Please read all section thoroughly before both the design and installation phases. Some details cannot be shown in the following pictures or schematics but must be closely followed for proper operation.

  • Page 37: Steam Piping

    Miura boilers are test fired at the factory (removing all internal the point of use. Install horizontal piping with sufficient slope and...
  • Page 38 Multiple Boiler Pipe Installation: Piping for MI Installations: When multiple Miura boilers are used in an MI system the shape of The steam pressure sensor for the MP1 or Steam-Ops master the piping is important to eliminate thermal stresses along the pressure control panel should be piped similar to picture below.

  • Page 39: Feed Water Piping

    Please contact a Miura representative for assistance with this area. Some of these factors are listed below: Less than 1ppm of hardness is required for Miura boilers. • This is the most important factor for maintaining a highly efficient boiler over a long lifetime.
  • Page 40 It is best practice to return as much condensate as possible for Miura boilers do not use a feed water valve which controls the flow system efficiency. Only condensate which meets the requirement of water to the boiler. Instead Miura uses a flow regulating valve...
  • Page 41 Tank Drain Valve Feed Water Pump Tank Support Stand Pump Discharge Line (check valve, throttling *Note: This is an example installation model, valve and isolation valve) not all components are provided by Miura. All copies of this document are uncontrolled when printed...
  • Page 42 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Feed Water Pump: Pump Model Boiler Pressure Feed Water Tank Boiler Horsepower Boiler Water Inlet (design) Outlet w/o MI Check Valve w/ MI Check Valve 1¼” ¾” CR1-3 CR1-5 1¼”...
  • Page 43 The Miura design advantage eliminates the change the operating water level in the boiler which may lead to need for this type of system. Miura simply turns the pump on and problems such as carryover. off as needed based on actual boiler steam demand and the pump is certified for this type of operation.
  • Page 44 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Typical Feed Water Piping Schematic All copies of this document are uncontrolled when printed...

  • Page 45: Blow-Down Piping

    To avoid the collection of water in the piping that may result in water hammer, Miura recommends the installation of a low point drain. This low point drain is also important in order to sufficiently drain the boiler during an internal inspection.
  • Page 46 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Blowdown Separator A blowdown separator is used to cool boiler blowdown water before discharging to drain. The blowdown separator takes in the Boiler Manual Outlet 1” 1” 1” 1” 1”...

  • Page 47: Safety Relief Valve Piping

    Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com 6.5 Safety Relief Valve Piping 6.5.2 Piping Requirements a. Do not decrease the safety relief valve discharge piping to a 6.5.1 Drip Pan Elbow diameter less than that of the discharge outlet.

  • Page 48: Fuel Piping

    6.6 Fuel Piping Acceptable fuel types: Natural Gas, Propane (by request), and #2 Oil (for EX models only). Boiler Connection Sizes If the boiler is using propane fuel, Miura strongly recommends the use of a vaporizer. Collecting the propane Gas Inlet 1½”...
  • Page 49 Oil Piping: Miura EX boilers include a booster pump that is designed to take oil from the ¾” inlet connection and deliver it to the oil spray nozzles. This design requires an oil supply pump to draw oil from the supply tank to the boiler inlet connection.
  • Page 50 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Venting: Piping material is black steel. It is best to provide separate gas venting lines for each boiler (required by some local codes). When it is necessary and Outlet should be screened to...

  • Page 51: Chemical Piping

    We recommend using the Miura chemical injection valve body. chemical injector which has a built-in check valve.

  • Page 52: Chimney Installation

    -0.25 inches of water column throughout the entire k. It is recommended by Miura and required by many codes to firing range. Failure to maintain this will affect combustion and install a Carbon Monoxide (CO) sensor inside the boiler boiler performance.

  • Page 53: Single Chimney Installation

    Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com 7.1 Single Chimney Installation 7.2 Common Chimney Installation Important design conditions to consider for common chimney installations is that sufficient draft exists for: 1. All boilers at 100% load. 2. A single boiler in low fire when all other boilers are off.

  • Page 54: Wiring Installation

    8.1 Basic Boiler Wiring Installation control box. a. Miura boilers, individual and MI systems, require a dedicated Use the following tables to determine power supply power source for each boiler. This power source can be requirements for the specific equipment being installed.
  • Page 55 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table A – U.S. LX Model (Table 1 of 4) MI Check Motor Horsepower (HP) Total Current Rating (amps) Power Consumption (KVA) Boiler Pump Valve Water 208 V 230 V...
  • Page 56 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table A – U.S. EX Model (Table 2 of 4) MI Check Motor Horsepower (HP) Total Current Rating (amps) Power Consumption (KVA) Boiler Pump Valve Water 208 V 230 V...
  • Page 57 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table A – U.S. EX Model (Table 3 of 4) Pressure MI Check Motor Horsepower (HP) Total Current Rating (amps) Power Consumption (KVA) Boiler Pump Rating (psi) Valve Water...
  • Page 58 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table A – U.S. EX Model (Table 4 of 4) Pressure MI Check Motor Horsepower (HP) Total Current Rating (amps) Power Consumption (KVA) Boiler Pump Rating (psi) Valve Water CR5-24K 91.9...
  • Page 59 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table B – U.S. LX Model (Table 1 of 4) MI Check Minimum Current Ampacity (amps) Max Overcurrent Protection (delay type fuse) Recommend Standard Delay Type Fuse (amps) Boiler...
  • Page 60 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table B – U.S. EX Model (Table 2 of 4) MI Check Minimum Current Ampacity (amps) Max Overcurrent Protection (w/ delay type fuse) Recommend Standard Delay Type Fuse (amps)
  • Page 61 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table B – U.S. EX Model (Table 3 of 4) Pressure MI Check Minimum Current Ampacity (amps) Max Overcurrent Protection (delay type fuse) Recommend Standard Delay Type Fuse (amps)
  • Page 62 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table B – U.S. EX Model (Table 4 of 4) Pressure MI Check Minimum Current Ampacity (amps) Max Overcurrent Protection (delay type fuse) Recommend Standard Delay Type Fuse (amps)
  • Page 63 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table C – U.S. LX Model (Table 1 of 4) MI Check 208 V 230 V 460 V 575 V Boiler Pump Valve Power Ground Power Ground Power Ground...
  • Page 64 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table C – U.S. EX Model (Table 2 of 4) MI Check 208 V 230 V 460 V 575 V Boiler Pump Valve Power Ground Power Ground Power Ground...
  • Page 65 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table C – U.S. EX Model (Table 3 of 4) Pressure 208 V 230 V 460 V 575 V MI Check Boiler Rating Pump Valve Power Ground Power Ground...
  • Page 66 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table C – U.S. EX Model (Table 4 of 4) Pressure MI Check 208 V 230 V 460 V 575 V Boiler Pump Rating (psi) Valve Power Ground Power...
  • Page 67 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table A – Canada LX Model (Table 1 of 4) MI Check Motor Horsepower (HP) Total Current Rating (amps) Power Consumption (KVA) Boiler Pump Valve Water 208 V 230 V...
  • Page 68 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table A – Canada EX Model (Table 2 of 4) MI Check Motor Horsepower (HP) Total Current Rating (amps) Power Consumption (KVA) Boiler Pump Valve Water 208 V 230 V...
  • Page 69 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table A – Canada EX Model (Table 3 of 4) Pressure MI Check Motor Horsepower (HP) Total Current Rating (amps) Power Consumption (KVA) Boiler Pump Rating (psi) Valve Water...
  • Page 70 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table A – Canada EX Model (Table 4 of 4) Pressure MI Check Motor Horsepower (HP) Total Current Rating (amps) Power Consumption (KVA) Boiler Pump Rating (psi) Valve Water CR5-24K 91.2...
  • Page 71 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table B – Canada LX Model (Table 1 of 4) MI Check Minimum Current Ampacity (amps) Max Overcurrent Protection (delay type fuse) Recommend Standard Delay Type Fuse (amps) Boiler...
  • Page 72 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table B – Canada EX Model (Table 2 of 4) MI Check Minimum Current Ampacity (amps) Max Overcurrent Protection (w/ delay type fuse) Recommend Standard Delay Type Fuse (amps)
  • Page 73 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table B – Canada EX Model (Table 3 of 4) Pressure MI Check Minimum Current Ampacity (amps) Max Overcurrent Protection (delay type fuse) Recommend Standard Delay Type Fuse (amps)
  • Page 74 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table B – Canada EX Model (Table 4 of 4) Pressure MI Check Minimum Current Ampacity (amps) Max Overcurrent Protection (delay type fuse) Recommend Standard Delay Type Fuse (amps)
  • Page 75 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table C – Canada LX Model (Table 1 of 4) MI Check 208 V 230 V 460 V 575 V Boiler Pump Valve Power Ground Power Ground Power Ground...
  • Page 76 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table C – Canada EX Model (Table 2 of 4) MI Check 208 V 230 V 460 V 575 V Boiler Pump Valve Power Ground Power Ground Power Ground...
  • Page 77 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table C – Canada EX Model (Table 3 of 4) Pressure MI Check 208 V 230 V 460 V 575 V Boiler Pump Rating (psi) Valve Power Ground Power...
  • Page 78 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com Electrical Table C – Canada EX Model (Table 4 of 4) Pressure MI Check 208 V 230 V 460 V 575 V Boiler Pump Rating (psi) Valve Power Ground Power...

  • Page 79: Boiler Option Installation

    9. Boiler Option Installation Only the options requiring field installation are shown in this SPO-70 Miura Water Meter manual. Please consult with a Miura Salesman/Dealer if you have The water meter will be installed in additional requests. the water line on all boilers; however,...

  • Page 80: Control Panels And Monitoring Systems

    BP-201 Capabilities: • Boiler Room Master Control Panel Steam Pressure Control • SteamLink Communication • Miura Online Maintenance (MOM) Communication • WP2-200 Capabilities: • Water Treatment Communication • Chemical Pump Control (2 or 4 Pumps) •...

  • Page 81: Steamlink

    Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com 10.2 SteamLink The SteamLink is both a monitoring and management tool, utilizing our proprietary management system and introducing a conversion adapter from our proprietary communications (M-NET) to a single output of a standard protocol (Modbus/TCP). This will monitor over...

  • Page 82: Colormetry

    Colormetry. Fittings are provided with Miura Water Softeners. Cut the ¼” diameter polyethylene tubing to the required length, and install the other end into the tube coupling on the bottom of the Colormetry unit.
  • Page 83 Document Control Number: EN-MN-002-02, 11/8/2016 MIURA AMERICA CO., LTD. www.miuraboiler.com MIURA AMERICA CO., LTD. 2200 STEVEN B. SMITH BLVD. ROCKMART, GA 30153 (888) 309-5574 TOLL-FREE (678) 685-0929 (678) 685-0930 FAX All copies of this document are uncontrolled when printed...
