BUFFALO TURBINE'S

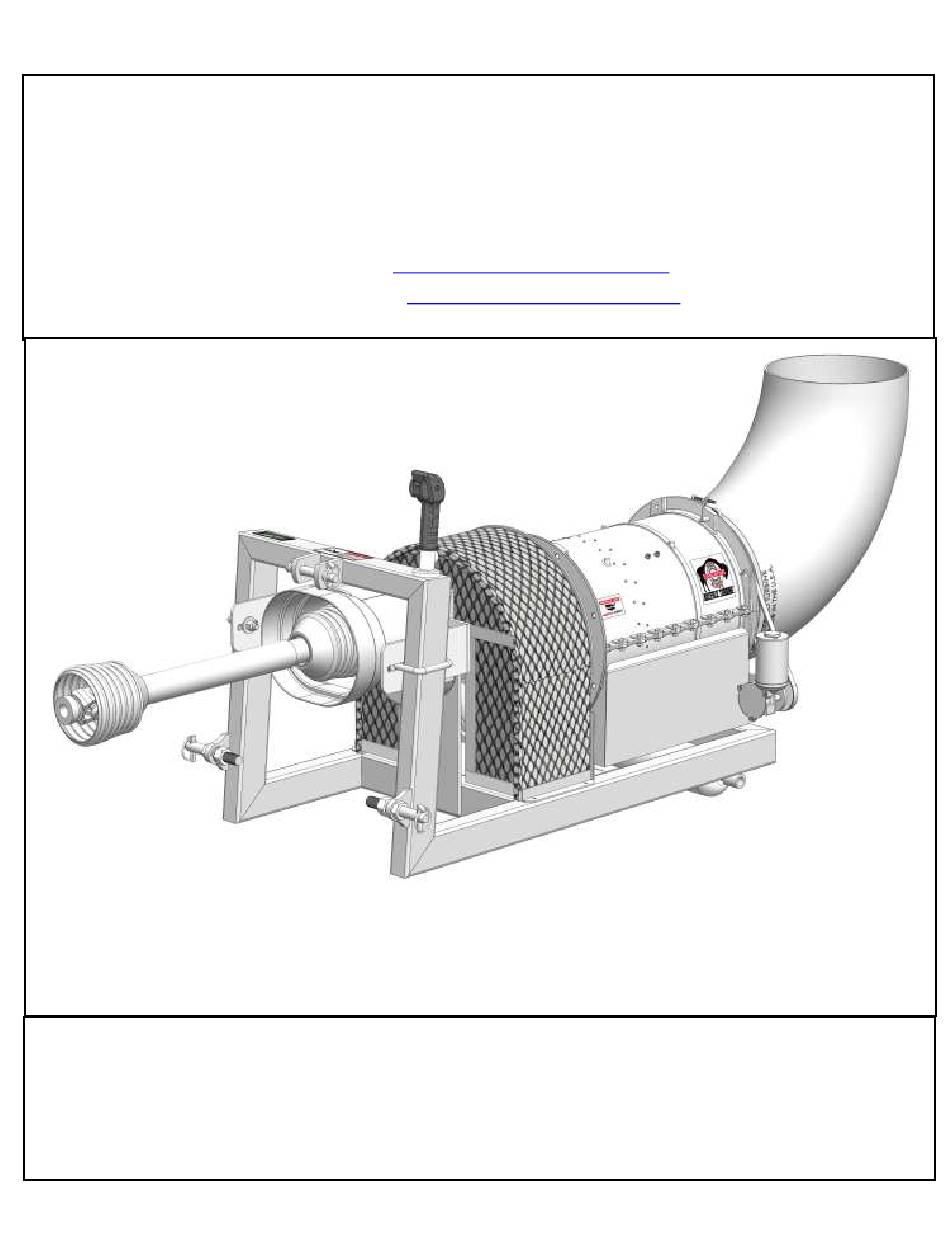

BT-CPTO
ORIGINAL INSTRUCTIONS AND PARTS MANUAL
12/19 -BT MAN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT-CPTO and is the answer not in the manual?

Questions and answers

Summary of Contents for BUFFALO TURBINE BT-CPTO

  • Page 1 BUFFALO TURBINE 180 Zoar Valley Road Springville, NY 14141 TEL: 716 592 2700 FAX: 716 592 2460 EMAIL: info@buffaloturbine.com WEBSITE: www.buffaloturbine.com BUFFALO TURBINE'S BT-CPTO ORIGINAL INSTRUCTIONS AND PARTS MANUAL 12/19 -BT MAN...
  • Page 2: Table Of Contents

    Maintenance Safety Fluids Service Checklist Moreflex Coupling Parts Moreflex Coupling Installation BT-CPTO Parts Reference (Before Serial # 23676) 14 BT-CPTO Parts Reference (Serial # 23676-25594) BT-CPTO Parts Reference (Serial # 25594-29927) BT-CPTO Parts Reference (After Serial # 29927) BT-CPTO Parts Sub-Assemblies...
  • Page 3: Introduction

    Turf Care Industry. Safe, efficient and trouble-free operation of your Buffalo Turbine Blower requires that you and anyone else, who will be operating or maintaining the Blower, read and understand all of the safety, operation, maintenance and troubleshooting information contained within this Operator’s manual.
  • Page 4: Safety

    YOU are responsible for the SAFE operation and maintenance of your Buffalo Turbine Debris Blower. YOU must ensure that you and anyone else, who is going to operate, maintain or work around the Buffalo Turbine Blower be familiar with the operating and maintenance procedures and related SAFETY information contained in this manual.
  • Page 5: Safety Decals

    SAFETY DECALS The types of decals on the blower unit are shown below. Good safety requires that you familiarize yourself with the various Safety Decals, the type of warning and the area, or particular function related to that area that requires your SAFETY AWARENESS.* THINK SAFETY! WORK SAFELY! !ATTENTION! KEEP HANDS, FEET AND CLOTHING AWAY FROM POWER DRIVEN PARTS.
  • Page 6: Maintenance Safety

    Cover with a weatherproof tarpaulin and tie down securely. SIGN-OFF FORM  Buffalo Turbine recommends that anyone who will be operating and/or maintaining the Buffalo Turbine Blower must read and clearly understand ALL Safety, Operating and Maintenance information presented in this manual. ...
  • Page 7: Warranty Information

    Obligation under this warranty shall extend for a period of 10 years from date of purchase and, at the option of Buffalo Turbine, replacement of any parts found, upon inspection by Buffalo Turbine, to be defective.
  • Page 8: Warranty Registration Form

    WARRANTY REGISTRATION FORM & INSPECTION REPORT Any units not registered with Buffalo Turbine are not eligible for warranty claims This form must be filled out by the dealer and signed by both the dealer and the customer at the time of delivery Dealer’s Name...
  • Page 9: Operations

    TO THE NEW OPERATOR OR OWNER Buffalo Turbine Debris Blowers are designed to quickly and efficiently, blow away leaves, cuttings and other debris. The material is conveyed on a stream of high volume and velocity of air to remove it from the area of concern. When the material is removed, it gives a neat, professional look to the working area.
  • Page 10: Attaching Blower To Tractor

    4.4 Attaching Blower to Tractor Make sure the tractor has proper HP and is in good working order, including mounting brackets, PTO output shaft, and safety equipment. Make sure there is enough room to safely drive up to the blower. Align mounting pins of the blower unit to match the tractor mounting brackets of the tractor.
  • Page 11: Troubleshooting

    5.0 TROUBLE SHOOTING The Buffalo Turbine Debris Blower uses a high volume and velocity of air to move material from one place to another. The system is simple and reliable requiring minimal maintenance. If you encounter a problem that is difficult to solve, even after reading through this trouble shooting section, please call your local dealer or distributor.
  • Page 12: Maintenance

    MAINTENANCE SECTION Maintenance Safety Set Blower on a level surface, stop engine, set park brake, remove ignition key and wait for all moving parts to stop before dismounting to service, adjust or repair. Reinstall and secure all guards removed for servicing before starting to use machine again. *We recommend wearing gloves when removing or installing the guard to avoid getting cut* Securely support machine with blocks or safety stands when changing tires or working beneath it.
  • Page 13: Moreflex Coupling Parts

    INSTALLATION INSTRUCTIONS & PARTS FOR THE MOREFLEX COUPLING ALIGNMENT OF TURBINE SHAFT WITH SHAFT OF ENGINE IS CRITICAL Install keys in both shafts. Slide coupling flanges on both shafts (engine and turbine shafts) Place Moreflex coupling CENTER SECTION between coupling flanges and secure with 4 bolts and TOPLOC nuts.
  • Page 14: Moreflex Coupling Installation

    MOUNTING BLOWER ASSEMBLY ONTO FRAME AND ALIGNMENT RECOMMENDATIONS Install blower assembly onto frame and tighten all of the bolts. Remove all burrs and oil from the shafts and keyways (engine and blower shafts). Using the supplied gauge, align the shafts parallel to each other (very important). Check in four places around the shafts at 90...
  • Page 21: Bill Of Materials For Bt-Cpto

    BILL OF MATERIALS FOR BT-CPTO REF PAGE # DESCRIPTION 1100 3/8-24 X 1-1/4 HHCS ZINC GR 5 1101 3/8-24 X 1-1/2 HHCS ZINC GRADE 5 1102 3/8-24 X 1-3/4 HHCS ZINC GRADE 5 1105 3/8-24 HEX NUT ZINC PLATED GRADE 5...
  • Page 22: Gearbox Lubrication Information

    GEARBOX LUBRICATION INFORMATION Type of Oil: A good quality SAE 90 EP gear oil is the basic requirement. A multi-grade gear oil may be used as long as the span includes the 90 weight (i.e. 75-90), and they have the EP (Extreme Pressure) additives.
