Summary of Contents for Titan Attachments TOWDUALLS20

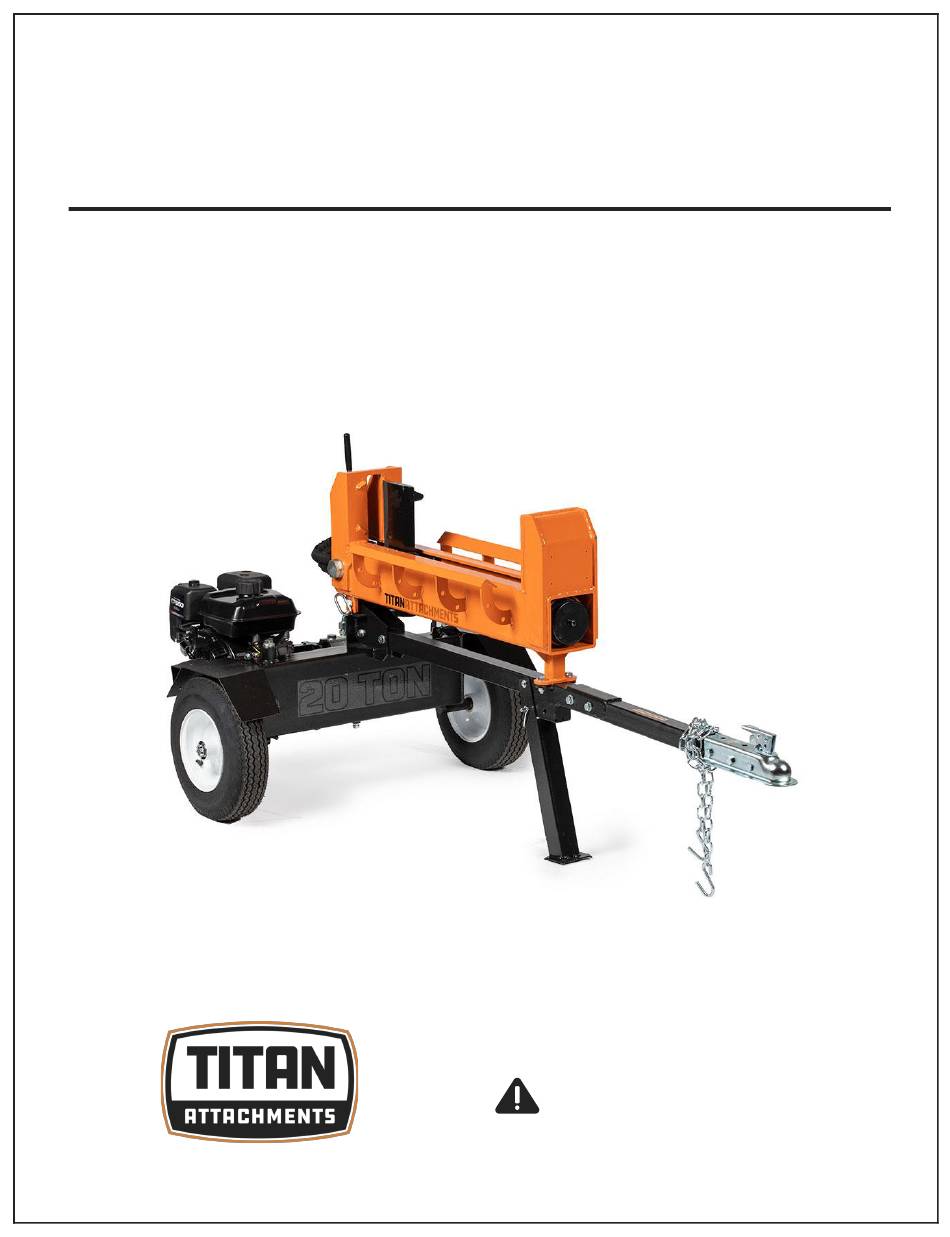

- Page 1 20 TON DUAL ACTION LOG SPLITTER TOWDUALLS20 198440 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
- Page 2 PARTS DIAGRAM / EXPLODED VIEW...
- Page 3 PART NUMBER DESCRIPTION Z103 2” Coupler 9101-12080-DX8.8 Hex Bolt M12x80 9301-12000-DX Flat Washer Ø12 9206-12000-DX Nylon Lock Nut M12 9206-10000-DX Nylon Lock Nut M10 9302-12000-DX Big Flat Washer Ø12 LSA22-13000-DX Hook Chain 9301-10000-DX Flat Washer Ø10 DS25-05000 Front Tow Bar (10) 9101-12090-DX8.8 Hex Bolt M12x90...
- Page 4 PART NUMBER DESCRIPTION (27) 9105-08016 Screw M8x16 (28) 9306-08000-DX Lock Washer Ø8 (29) 9301-08000-DX Flat Washer Ø8 (30) 9101-08016-DX8.8 Hex Bolt M8x16 (31) DS18-00006 Valve Plate (32) DS18-00005 Control Valve (33) DS25-00008 Connector NPT3/4"-7/8"-14UNF (34) 9901-11.2*2.4 O Ring 11.2x2.4 (36) LSP25-00014-DX Connector NPT1/2"-7/8"...
- Page 5 PART NUMBER DESCRIPTION (53) 9306-06000-DX Lock Washer Ø6 (54) 9301-06000-DX Flat Washer Ø6 (55) LSP25-15000-DX Filter Fix Plate (56) DS25-00007 Oil Pipe (57) LSA22-00017-BXG Clamp (59) LSP25-10007 Gear Pump (60) LSP25-10001 Engine (61) 9206-08000-DX Nylon Hex Nut M8 (62) 9101-08065-DX8.8 Hex Bolt M8x65 (63) LSP25-00025...
-
Page 6: Step 1: Wheel Assembly
ASSEMBLY INSTRUCTIONS STEP 1: WHEEL ASSEMBLY 1. Attach both wheels (#48) to the oil tank (#51) using flat washers Ø20 (#47), hex slotted thin nuts (#46), cotter pin Ø3x30 (#45) and axle cap (#44). STEP 2: ATTACH MAIN FRAME TO THE OIL TANK 1. -
Page 7: Step 4: Add Engine Oil
ASSEMBLY INSTRUCTIONS STEP 3: ATTACH ENGINE AND FENDERS 1. Attach the engine (#60) to the oil tank (#51) using hex bolt M8x30 (#66), lock washer Ø8 (#28) and nylon lock nut M8 (#61). 2. Attach the oil pipe (#56) and clamp (#57) to the gear pump (#59). Tighten the clamp (#57). 3. -
Page 8: Step 6: Add Hydraulic Oil
ASSEMBLY INSTRUCTIONS STEP 5: ADD GASOLINE TO THE ENGINE 1. Use only clean, fresh, regular unleaded fuel with a minimum 86 octane rating. 2. DO NOT mix oil with fuel. 3. Remove the fuel cap and slowly add fuel to the tank. DO NOT overfill allow approximately ¼ inch of space for fuel expansion. - Page 9 WARNING DO NOT remove the hydraulic oil fill cap when the engine is running or hot. Hot oil can escape causing severe burns. Always allow the log splitter to cool completely before removing the hydraulic oil cap. Always stop the engine, disconnect the spark plug, and move the split control lever back and forth to relieve pressure before changing or adjusting hydraulic system components;...
-
Page 10: Using Your Log Splitter
OPERATION INSTRUCTIONS WARNING Before operating or using the log splitter, review the instructions below and all safety information. Failure to follow these instructions may result in property damage or injury to the operator or bystanders. WARNING ALWAYS use the log splitter for its intended use. ONLY use the log splitter to split wood logs, length wise with the grain. - Page 11 5. Before towing the log splitter, the tires need to be fully inflated. TIRE WARNING DO NOT over inflate tires. Serious injury can result if tires explode. DO NOT tow the log splitter if the tires are worn or will not hold air. DO NOT exceed the maximum 45 MPH towing speed.
- Page 12 8. Always wear safety gear, ear and eye protection, gloves and work boots when operating the log splitter. 9. Start the engine and make sure the log splitter is on level ground before operating. NOTE: The hydraulic oil needs to be above 10°F (-12C°) before starting the engine. Cold hydraulic oil can damage the hydraulic pump.
- Page 13 CRUSH WARNING Wedge can cut through skin and break bones. Keep both hands away from wedge and beam slide. Serious accidents can happen when other people are allowed inside the work zone. Keep everyone else out of the work zone while operating control lever. DO NOT wear loose clothing.
-
Page 14: Maintenance And Storage
MAINTENANCE AND STORAGE WARNING Improper maintenance of the log splitter may void your warranty. ALWAYS turn off the engine, disconnect the spark plug, and relieve system pressure before cleaning, adjusting, or repairing the splitter. Relieve system pressure by moving Split Control Lever back and forth several times. MAINTENANCE •... - Page 15 WARNING Dispose of the used oil and other toxic material properly. Take all used oil and waste to a designated waste facility or collection site for proper handling or recycling. DO NOT dump the used oil or waste on the ground. IMPORTANT: If a part needs replacement, only use parts that meet the manufacturer’s specifications.
-
Page 16: Troubleshooting
TROUBLESHOOTING WARNING Before troubleshooting or attempting to service, read the and follow all safety instructions to avoid serious injury to the operator or bystanders from moving parts that can crush or cut, burns, fire or explosion, or escaping high pressure hydraulic fluid. Problem Cylinder rod will not move Solution: A, D, E, H, J... - Page 17 SPECIFICATIONS Ram Force……………………………………………………….… Forwards 20 US Ton; Backwards 15 US Ton Cycle Time………………………………………………………………………………………………….……….……… 14 Sec Wedge Size………………………………………………………………………………………………. 7.48” Harden Steel Hydraulic Cylinder (Bore & Stroke) ……………………………………………………………………….4” x 21-7/8” Gear Pump………………………………………………………………………………………………………………….2-Stage Hydraulic Oil……………………………………………………………………….10W AW32, ASLE H-150 or ISO32 Hydraulic Oil Required……………………………………………………………………………………2.5 Gallon (9.5L) Hydraulic Tank Capacity……………………………………………………………………………….3.17 Gallon (12L) Max.
- Page 18 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non- economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims,...
- Page 19 NEED HELP? CONTACT US FIRST. 1-800-605-7595 info@palletworks.com www.palletforks.com © 2022 Titan Brands...
