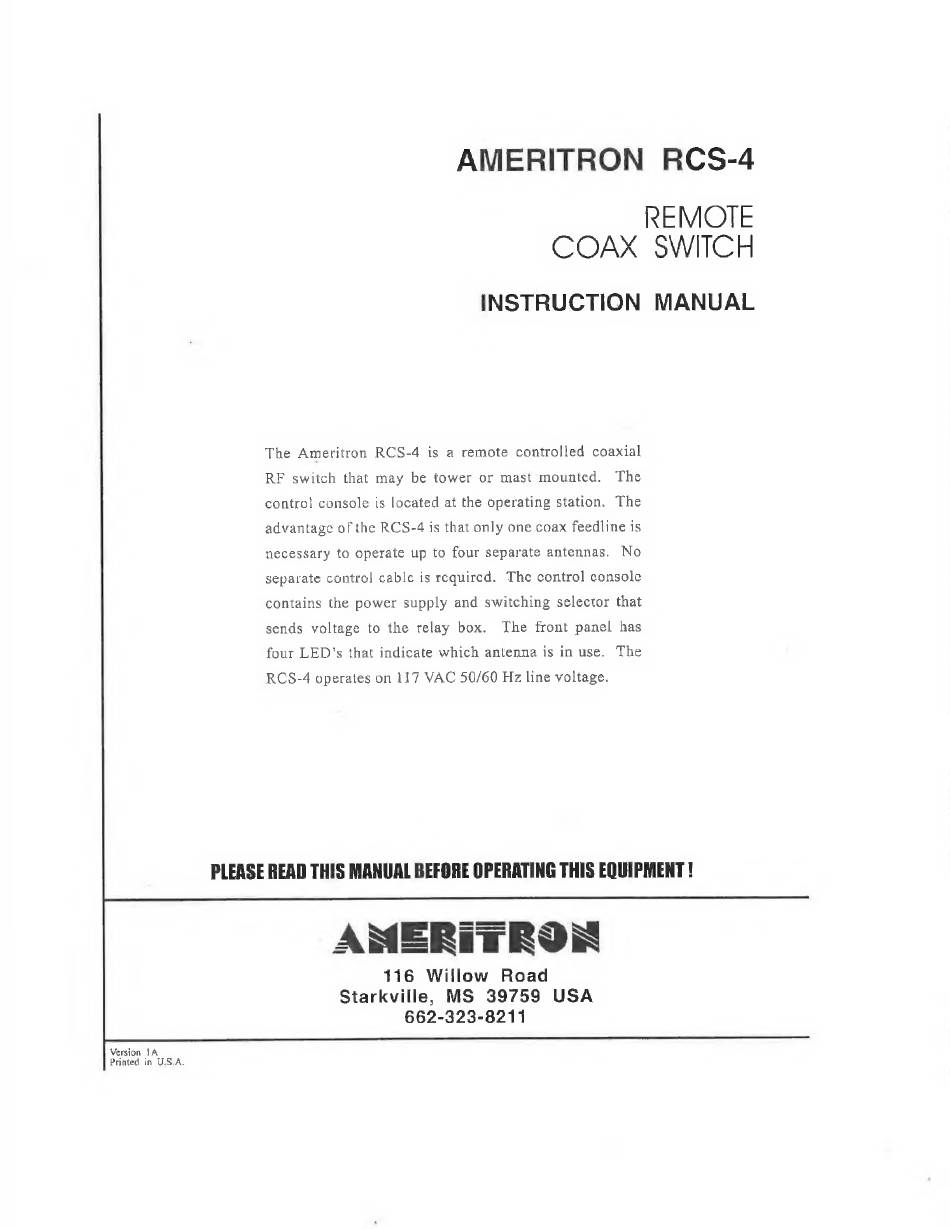

AMERITRON
RCS-4
REMOTE
COAX
SWITCH
INSTRUCTION
MANUAL
The Ameritron RCS-4
is a remote controlled coaxial
RF switch that may be tower or mast mounted.
The
contro! console is located at the operating station.
The
advantage of the RCS-4 is that only one coax feedline is
necessary to operate up to four separate antennas.
No
separate control cable is required.
The control console
contains the power supply and switching selector that
sends voltage to the relay box.
The front panel has
four LED's that indicate which antenna is in use.
The
RCS-4 operates on 117 VAC 50/60 Hz line voltage.
PLEASE READ THIS MANUAL BEFORE OPERATING THIS EQUIPMENT !
AMERiITRON
116
Willow
Road
Starkville,
MS
39759
USA
662-323-8211
Version JA
Printed in U.S.A.
