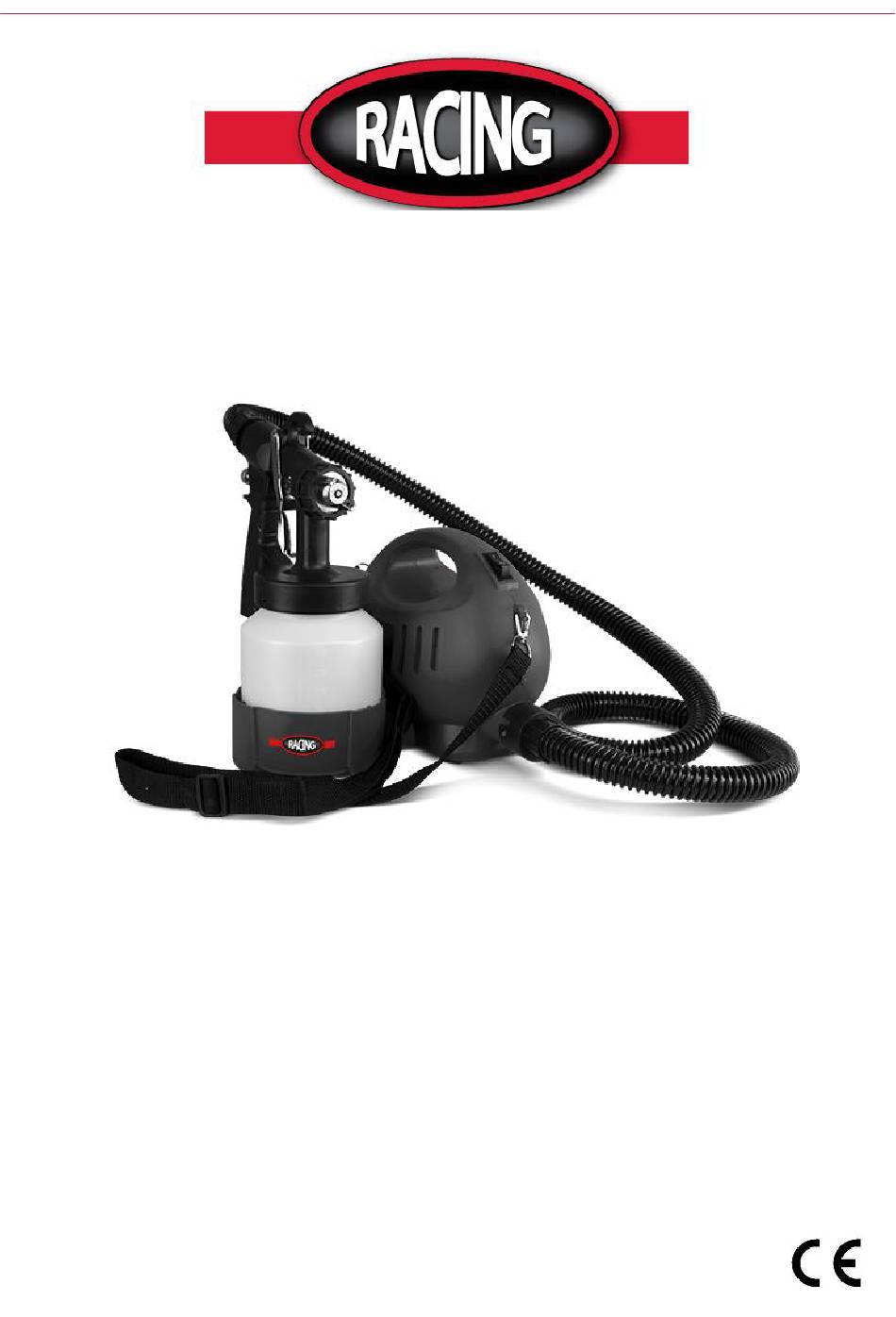

- Page 1 ORIGINAL INSTRUCTIONS PAINT SPRAYER RACSP450 USER GUIDE CAUTION Read the instructions before using the machine BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 202 1...
-
Page 2: Table Of Contents
CONTENT 1. GENERAL POWER TOOL SAFETY WARNINGS...........3 2. PAINT SPPRAYER SAFETY WARNINGS............5 3. INTENDED USE....................6 4. SYMBOLS.......................7 5. ASSEMBLY INSTRUCTIONS.................8 6. USING THE DEVICE..................11 7. SPRAYING TECHNIQUE ................12 8. CLEANING THE DEVICE................13 9. DISPOSAL ....................13 10. DECLARATION OF CONFORMITY……………………………………...……..14 11. WARRANTY....................15 12. -
Page 3: General Power Tool Safety Warnings
1. General power tool safety warnings WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 4 d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 5: Paint Spprayer Safety Warnings
2. Paint sprayer safety warnings NOTE: Learn to know your tool. Please read the operator’s manual. Learn the applications and limitations as well as the specific potential hazards. WARNING: TO AVOID THE RISK OF FIRE OR EXPLOSION: • DO NOT spray flammable or combustible materials near a flame or sources of ignition such as Cigarettes, motors, and electrical equipment. -
Page 6: Intended Use
If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard. Do not to spray any material where the hazard is not known. Use appropriate personal protective equipment, such as dust mask. Do not to clean guns with flammable solvents. -
Page 7: Symbols
4. SYMBOLS The labels on your tools and manual may show symbols. These represent important information about the product or instruction on its use. Read the instruction before use Wear eye protection Wear eyes protection Conforms to relevant safety standards Double insulation Do not dispose of old appliances with domestic rubbish WARNING! The jet should not be directed to persons, animals, live devices or the device... -
Page 8: Assembly Instructions
5. ASSEMBLY INSTRUCTIONS a) Machine components... - Page 9 1) Nozzle 7) Carrying Belt 2) Air Cap Ring 8) ON/OFF switch 3) Trigger 9) Plug 4) Gun Body 10) Viscosity cup 5) Fluid Adjusting Screw 11) Paint Container 6) Hose...
- Page 10 b) Technical data 1) Voltage: ..........230V~ 50Hz Power: ............450W 3) Rotation speed : ........28000/min 4) Technology : ..HVLP (High Volume Low Pressure) 5) Flow : ..........100-201 ml/min 6) Pressure : ..........0.15 -0.35 bar 7) Nozzle diameter : 1.5mm (1 & 1.8 mm nozzle + needle) 8) Sound pressure level: ....97dB(A), K=3dB(A) 9) Sound power level: ....108dB(A), K=3dB(A) 10) Vibration: ........2.31m/s...
-
Page 11: Using The Device
6. USING THE DEVICE Before plugging the device into the mains, make sure that the voltage of the power outlet corresponds to the voltage on the label with the technical characteristics of the tool 1) Attach the carrying strap. 2) Unscrew the container from the spray gun. 3) Align the suction tube (Figure 3). -
Page 12: Spraying Technique
7. SPRAYING TECHNIQUE - For best results, make sure that the surface is completely clean and level before spraying. Carefully pre- treat the surface if necessary. Cover at surfaces that you do not want to spray, including screws and screw threads. - To determine the amount of material and the spray pattern, test the spray on a piece of cardboard or any surface similar to the one you wish to spray. -
Page 13: Cleaning The Device
8. CLEANING THE DEVICE Clean the device carefully to keep it working properly. - Unplug the device from the mains. Before long pauses and alter finishing the paint job, flush the air in the container. Do these by keeping the container open for short period of time and closing it again or by pulling the trigger of the spray gun and pouring all the remaining material back into its original container. -
Page 14: Declaration Of Conformity
Tel: + 33 (0) 5.34.502.502 Fax: + 33 (0) 5.34.502.50 Declares that the machinery designated below: PAINT SPRAYER RACSP450 Serial number: 20211036623-20211039922 Complies with the provisions of the Directive « Machine » 2006/42/CE and national laws transposing it: Also complies with the following European directives:... -
Page 15: Warranty
11. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 16: Product Failure
12. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 17: Warranty Exclusions
13. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
